Yuichi Setsuhara, Innov Ener Res 2019, Volume 08

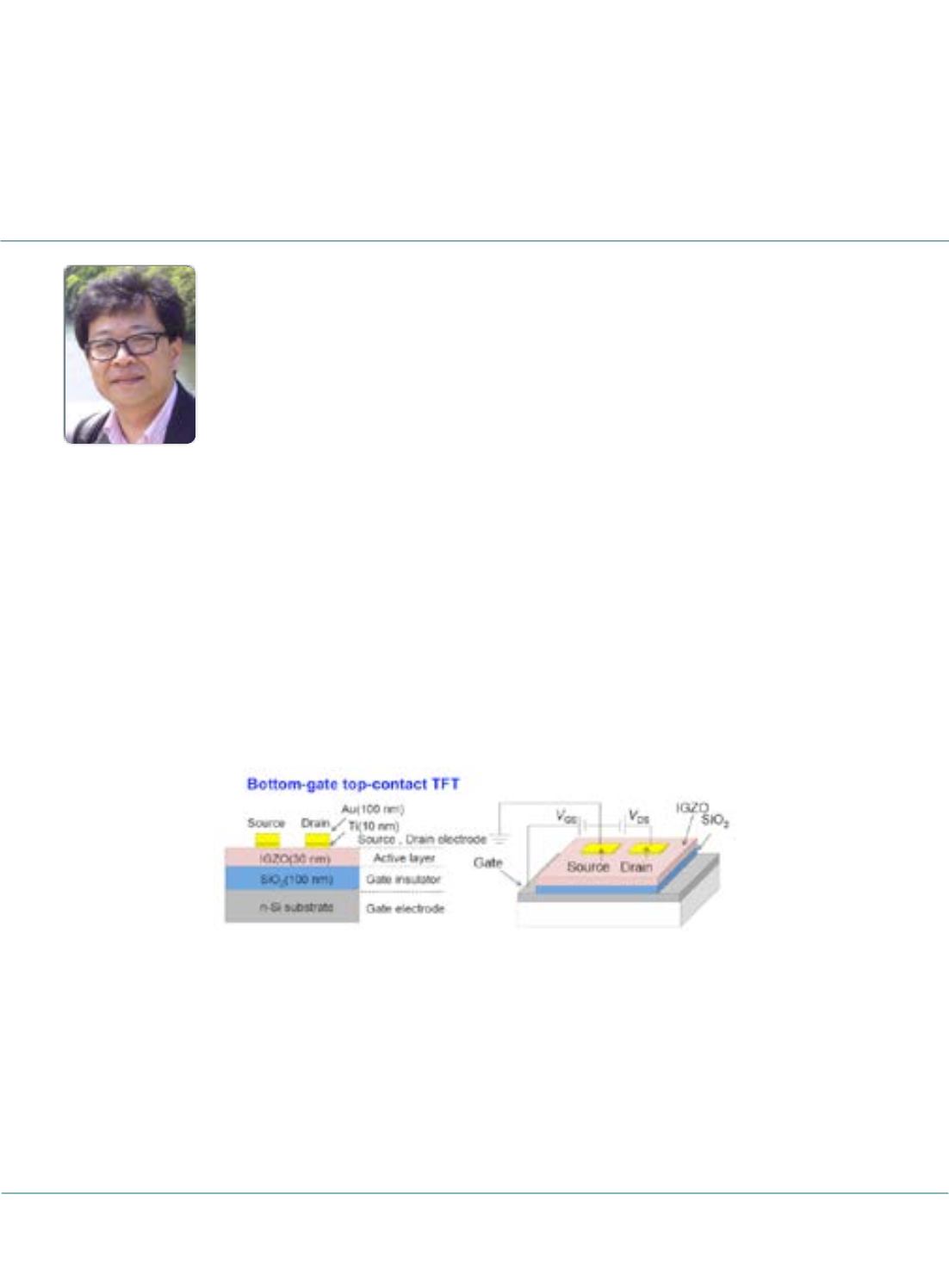

Reactive plasma processes for formation of high-mobility IGZO thin film transistors

R

eactive plasma process systems have been developed via installation of inductively-coupled plasmas (ICP) sustained

with low-inductance antenna (LIA) for low-temperature fabrication of flexible electronics, which require large area

and lowdamage processes with reactivity control capabilities at low substrate temperature. Major advantage of the reactive

processing system is that the reactivity during film-deposition processes can be enhanced and controlled via low-damage

and high-density plasma production for low-temperature processing of devices. The reactive plasma processes have

been applied to sputtering deposition of transparent amorphous oxide semiconductor a-InGaZnOx (a-IGZO), which

has attracted great attentions as key material for next-generation flexible electronics. So far post annealing at elevated

temperature (as high as 400°C) was required. Thus the conventional process for fabrication of the IGZO TFTs has been

carried out on glass substrates. With the advanced reactivity controlled plasma processes in this study, a-IGZO thin-film

transistors (TFTs) with mobility as high as or higher than 40 cm

2

/Vs was successfully formed at substrate temperature

less than 200°C. In this presentation, the reactive plasma processes are presented for low-temperature formation of IGZO

TFTs.

Recent Publications

1.

K Takenaka, M Endo, G Uchida and Y Setsuhara (2018) Fabrication of high-performance InGaZnOx thin film

transistors based on control of oxidation using a low-temperature plasma. Applied Physics Letters 112:152103.

2.

K Takenaka, Y Setsuhara, J G Han, G Uchida and A Ebe (2018) Plasma-enhanced reactive linear sputtering

source for formation of silicon-based thin films. Review of Scientific Instruments 89(8):083902.

3.

Kosuke Takenaka, Yoshikatsu Satake, Giichiro Uchida and Yuichi Setsuhara (2017) Low-temperature formation

of C-axis orientated aluminumnitride thin films with plasma-assisted reactive pulsed-DCmagnetron sputtering.

Japanese Journal of Applied Physics 57: 01AD06.

Yuichi Setsuhara

Osaka University, Japan
