Development of a Novel LC/MS/MS Extraction Assay for Galanthamine in Guinea Pig Plasma and its Application to Nerve Agent Countermeasures

Research Article Open Access
Wes E. Steiner1*, Ioannis A. Pikalov1, Patrick T. Williams2, William A. English2 and Corey J. Hilmas3
1Department of Chemistry and Biochemistry, Eastern Washington University, 226 Science Building, Cheney, WA 99004, USA
2Neurobehavioral Toxicology Branch, Analytical Toxicology Division, U.S. Army Medical Research Institute of Chemical Defense, 3100 Ricketts Point Road, Aberdeen Proving Grounds, MD 21010, USA
3Division of Dietary Supplement Programs, Office of Nutrition, Labeling, and Dietary Supplements, Center for Food Safety and Applied Nutrition, U.S. Food and Drug Administration, 5100 Paint Branch Parkway, College Park, MD 20740, USA
*Corresponding authors: Wes E. Steiner Department of Chemistry and Biochemistry Eastern Washington University 226 Science Building, Cheney WA 99004, USA Tel: (509) 359-6521 Fax: (509) 359-6973 E-mail: wsteiner@ewu.edu
Received March 06, 2012; Published July 25, 2012
Citation: Steiner WE, Pikalov IA, Williams PT, English WA, Hilmas CJ (2012) Development of a Novel LC/MS/MS Extraction Assay for Galanthamine in Guinea Pig Plasma and its Application to Nerve Agent Countermeasures. 1: 149. doi:10.4172/scientificreports.149
Copyright: © 2012 Steiner WE, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Abstract
Galanthamine Hydrobromide (GAL HBr), approved material for treatment of mild to moderate Alzheimer’s disease, is a centrally-acting reversible Acetylcholinesterase Inhibitor (AChEI) that is currently under evaluation as a therapeutic countermeasure against organophosphorus G- and V-Series nerve agents, which can induce rapid lethality in guinea pigs and humans. It has been shown that upon combination with Atropine (ATR) and pyridine-2- Aldoxime Methochloride (2-PAM), a single dose of GAL administered before or soon after the acute exposure to a lethal dose of organophosphorus compounds can safely counteract toxicity in guinea pigs. To that end a new sample preparation extraction method analysis assay has been developed to enable future high-throughput, reproducible, and sensitive assays to quantitate galanthamine in guinea pig plasma. Samples were prepared with Diphenhydramine Hydrochloride (DPH HCl) internal standard and recovered with a 10 min liquid-liquid trichloromethane extraction. Samples were analyzed with a reversed phase liquid chromatographic column interfaced to a triple quadrupole mass spectrometer (LC/MS/MS) operating in the positive ion Multiple Reaction Monitoring (MRM) Turbo Ionspray mode. Precursor to product ion (M+H)+ transitions of 288-to-213 m/z and 256-to-167 m/z for GAL and DPH were observed, respectively. Sample run times of 1.50 min were achieved. Overall extraction method development proved to be acceptable and rugged.
Keywords
Guinea Pig; Galanthamine; Liquid chromatography; Mass spectrometry; Chemical warfare agents; Nerve agents
Introduction
Organophosphorus compounds, since their early introduction in agriculture as a pesticide and later as Weapons of Mass Destruction (WMD) in the form of Chemical Warfare Agents (CWA), are a global concern for their toxicity in humans [1-3]. Organophosphorus G-Series (Sarin (GB), Cyclosarin (GF), Soman (GD), Tabun (GA)), and V-Series (VE, VG, VM, VX) compounds are one classification of CWA by convention, which act to severely disrupt neurological regulation within biological systems through their irreversible inhibition of the enzyme Acetylcholinesterase (AChE) [4-6]. The degree of toxicity (e.g. chronic to acute) or severity of the disruption (e.g. mild to severe) arises from this direct inhibition of the AChE enzyme which causes the excessive accumulation of the neurotransmitter Acetylcholine (ACh) to build up in synaptic junctions. This excessive accumulation of ACh in turn causes systemic symptomatic overstimulation of Ach receptors. The subsequent cholinergic crisis is indicative of muscarinic receptor overstimulation (miosis, lacrimation, bradycardia, bronchoconstriction, hypotension, and diarrhea), nicotinic receptor overstimulation and desensitization (intense skeletal muscle fasciculations followed by subsequent muscle weakness), and central nervous system related effects (nystagmus, ocular flutter, anxiety, restlessness, confusion, ataxia, tremors, seizures, respiratory paralysis, coma, and death) [7-10].
Currently, the standard approved therapeutic treatments to decrease slow aging organophosphorus agent toxicity like VX agents include Atropine sulfate (ATR) to antagonize the muscarinic response, Pyridine-2-Aldoxime Methochloride (2-PAM) to reactivate inhibited AChE enzymes, and Benzodiazepines (BZD) to mitigate convulsant seizures [9-11]. For rapidly aging organophosphorus agents such as soman, pretreatment prophylaxis with the carbamate Pyridostigmine Bromide (PB) is necessary before post-exposure treatment with ATR, 2-PAM, and BZD [12-14]. All of these treatments; however, have significant well recognized limitations [15-17]. Galanthamine Hydrobromide (GAL HBr), on the other hand, is an alkaloid synthesized synthetically or as an extract from the bulb and/or flowers of the Galanthus Caucasicus plant. GAL has been approved for the treatment of mild to moderate Alzheimer’s disease and has been sold as a dietary supplement for memory support. GAL has properties that make it a suitable candidate as a prophylactic and therapeutic countermeasure against organophosphorus poisoning. GAL is a centrally acting reversible Acetylcholinesterase Inhibitor (AChEI) that can cross the blood-brain barrier, exhibit anticonvulsant properties, and prevent neurodegeneration [18-21]. Thus, GAL is currently being studied by several investigators as a countermeasure against organophosphorus nerve agent-induced lethality in rodent animal models [22-24]. When administered alone, ATR and 2-PAM do not enhance survival against lethal nerve agent challenge in guinea pigs. However, when combined with ATR and 2-PAM, a single dose of GAL administered before or soon after the acute exposure to a lethal dose of slow or rapid aging organophosphorus nerve agent compounds GAL can safely counteract their toxicity in guinea pigs [23].
In contrast to other rodent models, guinea pigs, have lower levels of circulating Butyryl Cholinesterase (BuChE) enzymes (e.g. scavengers for CWAs) in their blood stream similar to nonhuman primates and humans, which in turn makes guinea pigs an appropriate nonprimate animal model to predict the effectiveness of GAL therapy for organophosphorus poisoning in humans [17,22,25,26]. To this end, it is imperative to accurately and precisely quantitate GAL in guinea pig plasma. Interestingly enough only a few assays have been reported for the quantitation of GAL in biological plasma fluids. The first development was in the use of high performance Liquid Chromatography (LC) combined with ultra-violet or fluorescence detection [27-29]. These assays all suffered from high plasma sample volume requirements, extended time consuming extraction procedures, low sensitivity, and low selectivity. Realizing these sample preparation and instrumental shortcomings researchers soon moved on to techniques that not only employed the separation power of LC but combined that with the low plasma sample requirement, high sensitivity, and high selectivity of triple quadrupole Mass Spectrometry (MS/MS) detection [30-32]. While these assays have shown a variety of improvements they have all been primarily developed for human plasma samples and have not been developed for the rapid extraction and quantitation of therapeutic doses of GAL in guinea pig plasma. With this in mind this paper seeks to expand upon the use of LC/MS/MS to explore the feasibility of using a new sample preparation extraction method analysis assay with Diphenhydramine Hydrochloride (DPH HCl) as an internal standard to enable a high-throughput, reproducible, and sensitive assay for the extraction of galanthamine in guinea pig plasma.
Experimental Methods
Chemicals and reagents
GAL HBr (purity ≥ 99% by HPLC) and DPH HCl (purity ≥ 99% by HPLC) used as standard reference material and internal standard reference material was purchased from Tocris Biosciences (Ellisville, MO). The chemical structures of GAL HBr and DPH HCl are shown in Figure 1. Organophoshorus nerve agent free guinea pig plasma, containing sodium heparin as an anticoagulant, was obtained from Valley Biomedical (Winchester, VA) and the United States Army Medical Research Institute of Chemical Defense (APG, MD). HPLC grade methanol and acetonitrile were obtained from Fisher Scientific (Pittsburgh, PA). Formic acid, glacial acetic acid, hexane, carbon tetrachloride, toluene, t-butyl methyl ether, methylene chloride, and trichloromethane were purchased from Sigma Aldrich (St. Louis, MO). HPLC grade 18.0 MΩ water was provided by an in house E-Pure water system from Barnstead (Rockford, IL).

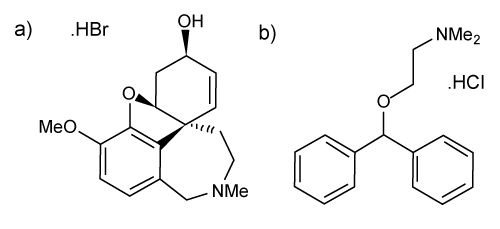

Figure 1: Chemical structures of a) Galanthamine hydrobromide (GAL HBr) and b) diphenhydramine hydrochloride (DPH HCl) internal standard.
Standards and quality controls
Stock solutions of the GAL standard reference material and the DPH internal standard reference material was prepared separately in methanol at concentrations of 1.0 mg/mL. Serial dilutions of the GAL and DPH stock solutions were made with a water methanol (50:50, v/v) solution to obtain working solutions of 0.05-12.5 μg/mL and 1.25 μg/mL respectively. Stock and working solutions were stored at -80°C until needed.
Guinea pig plasma samples
All 160 μL guinea pig plasma samples were vortex mixed for 10 s with spiked 40 μL aliquots of 1.25 μg/mL DPH internal standard working solution. GAL extraction was then accomplished by the addition of 1.4 mL of trichloromethane followed by 2 min of vortex mixing and 3 min of centrifugation at 2000 g. The upper organic layer was evaporated to dryness under nitrogen at 45°C for 5 min and the dry remaining residue was reconstitution with 100 μL of HPLC mobile phase (35% B).
Mass spectrometry instrumentation
The mass spectrometers systems that were used in this study were a Shimadzu LCMS-2010EV series single quadrupole mass spectrometer (Pleasanton, CA) for repetitive daily assay iterations and a Thermo TSQ Vantage (West Palm Beach, FL) and AB-SCIEX API 4000 (Foster City, CA) series triple quadrupole mass spectrometers for exacting assay development. A typical injection volume of 10 μL were made with an Agilent 1100 series HPLC system (Santa Clara, CA) that was pumped at a flow rate of 800 μL/min with a continuous isocratic ratio of (65:35, v/v) mobile phase A (0.05% formic acid, 0.2% glacial acetic acid, 99.75% HPLC grade water) to mobile phase B (0.1% formic Acid, 9.9% HPLC grade water, 90% methanol). The guard (3.9 mm x 20 mm) and analytical (4.6 mm x 75 mm) columns were both Waters Symmetry Shield 3.5 μm packed RP18 columns (Milford, MA) held isothermally at 28°C. Chromatographic run times for each injection was 1.50 min with retention times of 0.83 and 1.17 min being found for GAL and DPH, respectively. The analytical column eluent was then introduced into the AB-SCIEX API 4000 series triple quadrupole mass spectrometer, which was operating in the positive ion Multiple Reaction Monitoring (MRM) Turbo IonSpray mode. The main source dependent parameters (15 psi ion source gas 1 (GS1): 5 psi ion source gas 2 (GS2); 350°C source gas temperature (TEM); 15 psi curtain gas (CUR); 2700 V ion spray voltage (IS); on was the interface heater (IH)), compound dependent parameters (70 V declustering potential (DP); 10 V entrance potential (EP); 25 V collision energy (CE); 7 psi collision gas (CAD); 15 V collision cell exit potential (CXP); 200 ms dwell time (DT)), and detector dependent parameters (1730 V detector voltage (CEM)) were all found to be optimal for precursor to product ion (M+H)+ transitions of 288-to-213 m/z and 256-to-167 m/z for GAL and DPH, respectively. Data acquisition and processing was performed with AB-SCIEX Analyst Software version 1.4.2 (Foster City, CA) running on a standard Dell Precision 390 personnel computer (PC) system (St. Louis, MO).
Results
Sample preparation development
Organic solvents (hexane, carbon tetrachloride, toluene, methyl t-butyl ether, methylene chloride, and trichloromethane) were selected as potential candidates via their type, Snyder polarity index (P’), and boiling point to maximize GAL and DPH liquid-liquid extraction recovery from guinea pig plasma [33]. Depending upon which type of organic extraction solvent was used the P’ for that solvent consisted of three main contributions, xe (interaction with ethanol - proton acceptors), xd (interaction with dioxane - proton donors) and xn (interaction with nitromethane - dipole-dipole interactions) that could be fine tuned for chromatographic separation integrity and extraction recovery selectivity. Consideration was also given in the selection process to organic solvents with lower boiling points in an effort to increase the rate at which the upper organic layer could be evaporated in the sample preparation process. Thereby, minimizing the rate-limiting time step needed for sample preparation. Ultimately, trichloromethane with a P’ value of 4.1 (e.g. 0.1 for non-polar hexane and 9.0 for polar water) and a boiling point of around 61°C was used. Optimal extraction recoveries as determined by comparing the peak area for plasma samples for three replicate inter-batch assays that were spiked before and after extraction were obtained for both GAL (0.025 (8.69 nM), 0.25 (86.9 nM), and 1.00 μg/mL (348 nM)) and DPH (0.25 μg/mL (97.9 nM)) in 10 min with a trichloromethane liquid-liquid extraction.
Mass spectrometry development
Chromatographic mobile phase composition with a continuous isocratic ratio of (65:35 v/v) mobile phase A (0.05% formic acid, 0.2% glacial acetic acid, 99.75% HPLC grade water) to mobile phase B (0.1% formic acid, 9.9% HPLC grade water, 90% methanol) was found to be optimal for both chromatography and mass spectrometry ionization efficiency after many trials when combined with a Waters Symmetry Shield 3.5 μm packed RP18 guard (3.9 mm x 20 mm) and analytical (4.6 mm x 75 mm) column assembly. From a chromatography perspective the combination of select mobile phase solvent constituents (e.g. methanol organic modifier and formic acid to displace ion pairs) and stationary phase media type (e.g. shielded silanol non-polar RP18 packing) provided an environment in which equilibrium chemistry could take place between the two phases to provide improved Gaussian peak shapes with consistent baseline resolution, as seen in Figure 2, for GAL and DPH in a relatively short amount of time (i.e. 0.83 and 1.17 min, respectively). From a mass spectrometry perspective the use of key mobile phase solvent constituents (e.g. formic and acetic acid) helped to greatly improve the sensitivity of the analysis by increasing the positive ionization efficiency in the source region of the mass spectrometer.

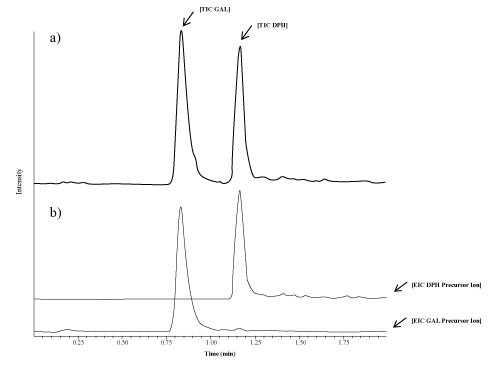

Figure 2: Positive ion mode chromatograms with a) being the total precursor ion current (TIC) chromatogram of a mixture of GAL and DPH and b) the extracted precursor ion current (EIC) chromatograms for GAL and DPH with retention times being found to be 0.83 and 1.17 min, respectively.
Mass spectrometric positive ion Turbo IonSpray mode quantifier precursor to product ion (M+H)+ transitions of 288-to-213 m/z and 256-to-167 m/z were found after a few trials to be the most sensitive and selective for GAL and DPH respectively, in this study. Here, the precursor ions (e.g. 288 and 256, GAL and DPH) were selected in Quadrupole 1 (Q1), fragmented by collisionally induced dissociation (CID) in Quadrupole 2 (Q2), and then product ions (e.g. 213 and 167, GAL and DPH) were selected in Quadrupole 3 (Q3). The quantifier precursor to product ion (M+H)+ transition of 288-to-213 m/z for GAL is shown in Figure 3 as a) full scan Q1 showing the GAL precursor 288 m/z ion and b) full scan Q3 showing the GAL product 213 m/z ion. In Figure 4, the quantifier precursor to product ion (M+H)+ transition of 256-to-167 m/z for DPH is shown as a) full scan Q1 showing the DPH precursor 256 m/z ion and b) full scan Q3 showing the DPH product 167 m/z ion. The same type of mass spectrometry ion selection was also done for the qualifier precursor to product ion (M+H)+ transitions of 288-to-231 m/z and 256-to-152 m/z for GAL and DPH, respectively. This ensured that if a case did happen to arise in which the quantifier ion transitions for GAL and DPH were not present the qualifier ion transitions could be used for the quantitation of GAL. The modes of fragmentation of the 288 m/z GAL and 256 m/z DPH precursor ions producing product ions at an m/z of 197, 209, 213, 225, 231, 270 for GAL and 152, 167, 183, 230, for DPH have been established in literature [31,32,34,35].

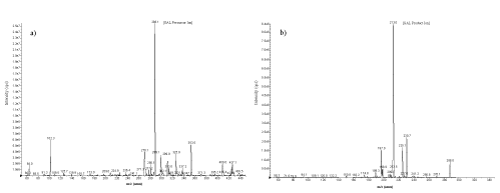

Figure 3: Positive ion mode quantifier precursor to product ion (M+H)+ transition of 288-to-213 m/z for GAL is shown as a) full scan Q1 showing the GAL precursor 288 m/z ion and b) full scan Q3 showing the GAL product 213 m/z ion.

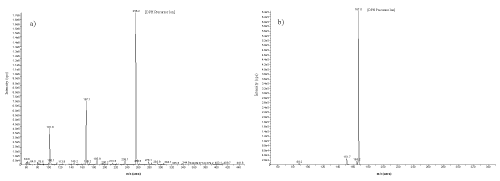

Figure 4: Positive ion mode quantifier precursor to product ion (M+H)+ transition of 256-to-167m/z for DPH is shown as a) full scan Q1 showing the DPH precursor 256 m/z ion and b)fullscan Q3 showing the DPH product 167 m/z ion.
Conclusions
A new high throughput sample preparation extraction LC/MS/ MS analysis assay has been developed with commercially available materials to enable future researchers the ability to reproducibly and sensitively quantitate galanthamine in guinea pig plasma. The sample preparation employing a 10 min trichloromethane liquidliquid extraction gave consistent extraction recoveries of GAL and the internal standard DPH from 160 μL plasma sample volumes. The LC/MS/MS analysis method operated in the positive ion MRM Turbo Ionspray mode yielding highly selective quantifier precursor to product ion (M+H)+ transitions for GAL (288-to-213 m/z) and DPH (256-to- 167 m/z). Sample run times where on the order of 1.50 min per sample. Most importantly, it is envisioned that this new extraction assay with low sample volume requirements, rapid GAL extraction recovery, and rapid sample runtimes would be beneficial to not only a wide range of researchers researching pharmacokinetics, bioavailability, or bioequivalence studies but of more specific interest to researchers exploring applications of organophosphorus nerve agent poisoning countermeasures in guinea pigs and humans.
Acknowledgements
The authors would like to acknowledge: Dr. James Bruce’s Laboratory from the University of Washington Genome Sciences, Seattle, WA; The University of Washington’s Proteomics Resource (UWPR95794); Dr. Jeff Jones’s Laboratory from Washington State University, Pullman, WA for open use of a variety of liquid chromatography and mass spectrometry instrumentation; and the United States Army Medical Research Institute of Chemical Defense, Aberdeen Proving Grounds, MD, for their continued scientific correspondence and support.
