The Analysis of Maintaining Biodiversity, Integrated Coastal Zone Management and Environmental Impact Assessment for Marine Spatial Planning

Victor Te Cheng Liao*
Rui Fang District Administration, New Taipei City, Taiwan
*Corresponding Author: Victor Te Cheng Liao, Rui Fang District Administration, New Taipei City, Taiwan, Tel: +886930276576;, Email: victortechengliao@gmail.com

Received: 13-Jul-2018 / Accepted Date: 04-Sep-2018 / Published Date: 07-Sep-2018 DOI: 10.4172/2155-9910.1000260

Keywords: Maintain Biodiversity; Integrated Coastal Zone Management; Environmental Impact Assessment; Marine Spatial Planning; Ecosystem Based Management; Precautionary Measure; Renewable Energy

Introduction

Maintain Biodiversity, Integrated Coastal Zone Management (ICZM), Environmental Impact Assessment (EIA) are the top 3 keywords after calculated total 30 respondents about questionnaire of 10 keywords and they are no different from gender and age respondents after conducted statistical test within confidence interval 95% which is the first part of this article. In reality, conservative community of fish port is in the face of maintaining biodiversity and restarts discard plant with coal dock establishment, which will pollute air and violate regulations of EIA and ICZM. However, it always specifies through politic process in the world. Even though, the 2nd part of article concentrates maintaining biodiversity, ICZM, EIA and proposes 3 marine spatial plans for the controversial issue between conservation and exploitation.

A multitude of uncoordinated activities resulted in irreversible loss and substantial damage biodiversity such as habitat loss, useenvironment conflicts. There were not all uses with compatibility, competing for ocean space or had adverse impact one another as use-use conflicts, shipping, offshore wind farms and significantly reducing the loss of biodiversity of coastal ecosystems [1]. Marine Spatial Planning (MSP) is the science for assessing, communicating tradeoffs among uses of ocean and identifying strategies to catch up policy opportunities from efforts to implement ecosystem-based management (EBM) [2]. It can be used as a tool reducing conflict and find compatible uses of ocean and coastal space [3]. The rational planning follows universal principles and steps presenting alternative perspective that are highly differentiated and place-specific [4]. MSP pursued essential tool for achieving marine and coastal conservation. If it lacks consideration of social data, values and preferences resulting in poor decision, may exacerbate conflict [5]. Integrated Coastal Zone Management (ICZM) was expected to lead coastal communities developing economies and brought areas of life by managing natural resources in a sustainable approach [6]. Decision maker requires Environmental Impact Assessments (EIA) for habitats and ecosystems to understand human activity in marine areas, particularly facing global change [7]. Marine Protection Area (MPA) creates a dangerous illusion of protection when no protection is occurring [8]. The precise spatial allocation helps balance at high competition for limited marine space among sectorial interests [9].

This article describes current scenario of marine management, expects to effectively control development, forecasts progress and further achieves objectives. It intends to raise awareness about human activities resulting in degradation ecosystem and focuses how proceed compatibility with economic, social culture, environment protection and sustainable development of renewable energy. Sustainable development means satisfying contemporary needs simultaneously without sacrificing ability of future generations to satisfy their needs [10]. In order to identify priority of policy enforcement for marine environment protection whether gender has significantly different about coastal management for sustainable development. The concrete scientific evidence with statistic supports comments, the article established 10 categories of marine environment after had literature review including international journal, UNESCO, Convention, domestic legislation, regulations and community economic development. It is easily identified the top 3 categories are Maintain Biodiversity, Integrated Coastal Zone Management (ICZM) and Environmental Impact Assessment (EIA) after each participant has 5 votes to cast among 10 categories as mentioned in Tables 1 and 2.

No Marine or Non-Marine Gender Age Age Group Married Education Maintain Biodiversity Offshore Windfarm Marine Ecotourism Marine Spatial Planning Integrated Coastal Zzone Management Environmental Impact Assessment Marine Museum in Virtual Reality Information Application Promote Marine Education Aquaculture with Digital Application
1 Marine Female 19-39 ≤ 39 (Young) No Graduated v     v v v       v
2 Marine Female 19-39 ≤ 39 (Young) No Graduated v   v v v v
3 Marine Female 40-59 ≥ 40 (Elder) Yes Graduated v v v v         v
4 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v v   v   v     v
5 Marine Male 19-39 ≤ 39 (Young) Yes Graduated v
6 Non-Marine Male 19-39 ≤ 39 (Young) No Graduated   v v             v
7 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v     v v v     v
8 Non-Marine Male 19-39 ≤ 39 (Young) No Graduated v v     v v     v
9 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v   v   v   v   v
10 Marine Male >60 ≥ 40 (Elder) Yes Graduated v     v v v     v
11 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v     v v v       v
12 Non-Marine Male 19-39 ≤ 39 (Young) No Graduated v v v   v v
13 Marine Female 19-39 ≤ 39 (Young) No Graduated v   v v v v
14 Marine Female 19-39 ≤ 39 (Young) No Graduated v       v v   v   v
15 Marine Male 19-39 ≤ 39 (Young) No Graduated v     v v     v v
16 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v v   v v v
17 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v v v   v v     v
18 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated         v v   v v v
19 Marine Male 40-59 ≥ 40 (Elder) Yes Graduated     v v v   v v
20 Non-Marine Female 40-59 ≥ 40 (Elder) Yes Graduated v     v v v     v
21 Non-Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v   v     v     v v
22 Non-Marine Female 40-59 ≥ 40 (Elder) Yes Graduated v   v   v v     v
23 Non-Marine Female 19-39 ≤ 39 (Young) No Graduated v   v   v v     v
24 Marine Female 19-39 ≤ 39 (Young) No Graduated v v v v v v v v v v
25 Non-Marine Female 19-39 ≤ 39 (Young) No Graduated v v v v   v     v
26 Non-Marine Female 19-39 ≤ 39 (Young) No Graduated v   v v v       v
27 Non-Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v v     v v     v
28 Non-Marine Male 40-59 ≥ 40 (Elder) Yes Graduated v   v v v v
29 Marine Female 40-59 ≥ 40 (Elder) No Graduated v     v v v     v
30 Non-Marine Male 19-30 ≤ 39 (Young) No College or underground v     v v v       v

Remarks:No 5 selected 1 keyword only; No 6 selected 3 keywords; No 17 selected 6 keywords;No 24 selected 10 keywords; No 25 selected 6 keywords

Table 1: Total 30 responses include 18 males and 12 females.

S No Keyword Male Female Age ≥ 40 (Elder) Age ≤ 39 (Young) All Age Gender
1 Maintain Biodiversity 15 12 14 13 27 27
2 Integrated Coastal Zone Management (ICZM) 14 10 13 11 24 24
3 Environmental Impact Assessment (EIA) 13 10 13 10 23 23
4 Marine Spatial Planning (MSP) 9 9 10 8 18 18
5 Promote Marine Education 10 8 12 6 18 18
6 Marine Ecotourism 7 8 7 8 15 15
7 Offshore Windfarm 7 3 5 5 10 10
8 Aquaculture Associated with Digital Application 5 3 3 5 8 8
9 Information Application 3 2 2 3 5 5
10 Marine Museum in Virtual Reality 2 1 2 1 3 3
Total 85 66 81 70 151 151

Remarks: Each respondent had 5 keywords selections × 30 respondents=150 selection; Male has total 85 selections; Female has total 66 selections; Total 151 selections

Table 2: The total 30 respondents recognize top 3 keywords Maintain Biodiversity, ICZM and EIA.

Material and Methods

Engaging conservation and stakeholders in scientific process can be incredibly valuable, in terms of hypothesis generation and validation as actual knowledge production [11]. Many countries has been implementing ICZM as a means to promote sustainable use, development and protection of coastal environments [12].The Convention on Biological Diversity (CBD) describes ecosystem approach as an integrated strategy management of land, water and living resources that equitably promotes conservation and sustainable use [13]. An analytical tool for assessing spatial conflicts and synergies among sectors, coastal conservation plan is formulated by ICZM [14]. The sustainable development of EIA and ICZM are a global trend and important issue in the future [15].

Everyone recognizes marine environment is very important but has no concrete statistics to support the comment. The article tries to identify current global trends and specifies 10 keywords after had literature review including international journal, UNESCO documents, Convention, Transition Regulation of State Energy, Domestic Legislation, Community Development and Ecosystem Conservation. The total 30 response including 18 males and 12 females from mostly graduated students as Table 1. A schematic representation of the complete methodology is illustrated in Figure 1. The writer visited the scene, collected data of location with longitude, latitude at app of Global Position System (GPS) from smart phone and exercised scientific roadmap in proceeding verification, found problems and studied solution as Figure 2a and 2b.

marine-science-BAD2A-primers

Figure 1: Relative positions of BAD2A primers used in PCR.

marine-science-locates-Ecological

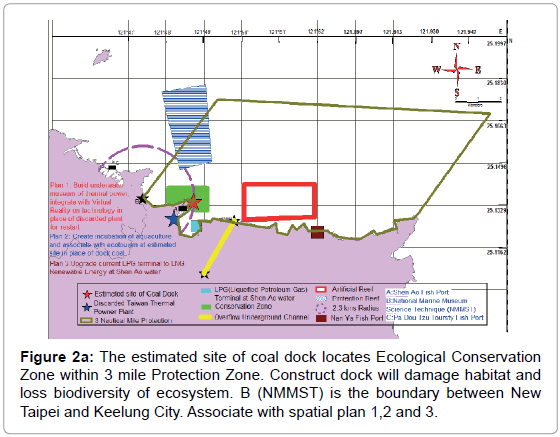

Figure 2a: The estimated site of coal dock locates Ecological Conservation Zone within 3 mile Protection Zone. Construct dock will damage habitat and loss biodiversity of ecosystem. B (NMMST) is the boundary between New Taipei and Keelung City. Associate with spatial plan 1,2 and 3.

marine-science-Large-scope

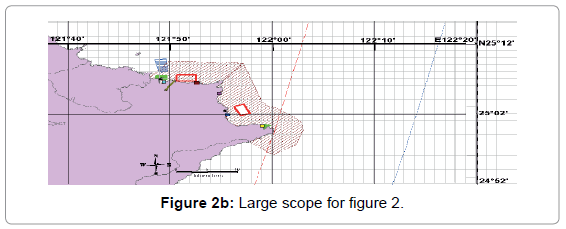

Figure 2b: Large scope for figure 2.

Questionnaire

1. Stakeholders provide better understanding of issues and conflicts through participation of management plans. Public communication tool increases transparency and collaboration in MSP process through involvement of stakeholders [9].

2. Please take your 30 seconds and tick 5 relatively important subjects from following 10 keywords for further analysis:

3. Marine Spatial Planning (MSP); Integrated Coastal Zone Management (ICZM); Environmental Impact Assessment (EIA); Maintain Biodiversity; Aquaculture Associated with Digital Application; Offshore Wind farm; Marine Ecotourism; Marine Museum in Virtual Reality; Information Application; Promote Marine Education

4. The 30 respondents of Table 1 are students from 3 departments of National Taiwan Ocean University. The first is Department of Environmental Biology and Fisheries Science. Second is Institute of Applied English and third is Department of Shipping & Transportation Management. Most of them are graduated students whose careers covering teachers at elements school, police, officer of Coast Guard, shipping managers and temporary workers at local administration.

Data collection

Data collection for expounding, analyzing and criticizing is the fundamental process of research. Strategic plan of data collection enhances process of decision making, which clearly depicts tradeoff between existing status and integrated measure, simultaneously leads clearest and least ambiguous set of objectives [16]. The article visited relevant scene to collect original data, fix position in latitude and longitude. A written report is provided by Geographic Information System (GIS) plotting map with all relevant location, makes plan for problem solving on social contribution through comparative analysis at Figure 2a. The ecological conservation paves the way for EBM and proposes alternative plan for sustainable development, which widely collects data and information for EIA before finds solution dealing with problems.

Table 2 indicates male 85 selection, female 66 and total 151 selection which the top 3 keywords Maintain Biodiversity, ICZM, EIA are all the same for Male, Female, age ≥ 40 elder and ≤ 39 young.

Table 3 t-test indication t statistics 0.568 is less than Critical Value 1.739 and the P value one tailed 0.288 is larger than alpha level 0.05. What means elder age ≥ 40 and young age ≤ 39 is no significant difference from 10 issues. It has no gap generation. Then, taking reference contents of Table 2 proves the results of Table 3.

  Age ≥ 40 (Elder) Age ≤ 39 (Young)
Mean 8.1 7
Variance 23.65555556 13.77777778
Number of Observation 10 10
Assumed Mean Error 0
Degree of Freedom 17
t Statistics 0.568543154
P(T ≤ t) one tailed 0.288550144
Critical Value: one tailed 1.739606726
P(T ≤ t) two tailed 0.577100288
Critical Value: two tailed 2.109815578

Table 3: Table 3: The t test of elder age ≥ 40 and young age ≤ 39 for 10 keywords.

Table 4, t-test indication t statistics 1.00 < critical value 1.7340 and P value 0.1652 is larger than alpha level 0.05 what means male and female are no significant difference from 10 keywords. Then, taking reference contents of Table 2 proves the results of Table 4.

  18 Male 12 Female
Mean 8.5 6.6
Variance 20.5 15.6
Number of Observation 10 10
Assumed Mean Error 0
Degree of Freedom 18
t Statistics 1
P(T<=t) one tailed 0.165282466
Critical Value : one tailed 1.734063607
P(T<=t) two tailed 0.330564931
Critical Value : two tailed 2.10092204

Table 4: The t test of Male and Female.

The Table 5, the variance of age ≤ 39 at 13.77 is the smallest which meaning is relatively non diverse among age ≥ 40, male and female. On the contrary, the age ≥ 40 variance at 23.65 is relatively diverse among age ≥ 39, male and female. Meanwhile, the values of mean and mode indicate no significant difference among male, female, age ≥ 40 and age ≤ 39.

Summary Male Female Age ≥ 40 (Elder) Age ≤ 39 (Young)
Mean 8.5 6.6 8.1 7
Standard Error 1.4317821 1.249 1.538036266 1.173787791
Median 8 8 8.5 7
Mode 7 10 13 8
Standard Deviation (SD) 4.5276926 3.949684 4.863697725 3.711842909
Variance 20.5 15.6 23.65555556 13.77777778
Kurtosis -1.235886 -1.71555 -1.9411682 -0.637087483
Skew 0.0673363 -0.24994 -0.133850807 0.032589672
Range 13 11 12 12
Min 2 1 2 1
Max 15 12 14 13
Sum 85 66 81 70
Data 10 10 10 10

Table 5: The summary of different variance.

The Table 6 Chi Squared value 21.27 is larger than critical value 16.919, degree of freedom (DF) 9, critical criteria 0.05 and P value 0.011 is less than alpha level 0.05. Thus, hypothesis is rejected what means female respondents at equal importance for 10 keywords are rejected. They focused on top 3 keywords Maintain Biodiversity, ICZM and EIA.

S No Keyword Observed % Predicted O-P (O-P)2 (O-P)2/P
1 Maintain Biodiversity 12 18.18% 6.6 5.4 29.16 4.4181818
2 Integrated Coastal Zone Management (ICZM) 10 15.15% 6.6 3.4 11.56 1.7515152
3 Environmental Impact Assessment (EIA) 10 15.15% 6.6 3.4 11.56 1.7515152
4 Marine Spatial Planning (MSP) 9 13.64% 6.6 2.4 5.76 0.8727273
5 Promote Marine Education 8 12.12% 6.6 1.4 1.96 0.2969697
6 Marine Ecotourism 8 12.12% 6.6 1.4 1.96 0.2969697
7 Offshore Windfarm 3 4.55% 6.6 -3.6 12.96 1.9636364
8 Aquaculture Associated with Digital Application 3 4.55% 6.6 -3.6 12.96 1.9636364
9 Information Application 2 3.03% 6.6 -4.6 21.16 3.2060606
10 Marine Museum in Virtual Reality 1 1.52% 6.6 -5.6 31.36 4.7515152
Total 66 100.00% 66     21.27

Remarks: 12 Female Probability CHIDIST(X2, DF)=0.011; The.011 is less than .05; Chi-Squared at 21.27 is larger than Alpha .05; df9, Critical Value at 16.919. Thus, rejected the hypothesis; Alfa.05,df9 at 16.919.
Each respondent had 5 keywords selections x 12 respondents=total 60 selections; No 25 of respondent selected all 10 keywords; o 26 of respondent selected 6 keywords; Thus, total 66 selections

Table 6: The Chi Squared test for 12 female respondents at equal importance for 10 keywords was rejected.

The Table 7, Chi Squared value 21.7059 is larger than critical value 16.919, DF 9, critical criteria 0.05 and P value 0.01 is less than alpha level 0.05. Thus, hypothesis is rejected what means male respondent at equal importance for 10 keywords are rejected. They focused on top 3 keywords Maintain Biodiversity, ICZM and EIA as well as 12 females did.

S No Keyword Observed % Predicted O-P (O-P)2 (O-P)2/P
1 Maintain Biodiversity 15 17.65% 8.5 6.5 42.25 4.970588235
2 Integrated Coastal Zone Management (ICZM) 14 16.47% 8.5 5.5 30.25 3.558823529
3 Environmental Impact Assessment (EIA) 13 15.29% 8.5 4.5 20.25 2.382352941
4 Marine Spatial Planning (MSP) 9 10.59% 8.5 0.5 0.25 0.029411765
5 Promote Marine Education 10 11.76% 8.5 1.5 2.25 0.264705882
6 Marine Ecotourism 7 8.24% 8.5 -1.5 2.25 0.264705882
7 Offshore Windfarm 7 8.24% 8.5 -1.5 2.25 0.264705882
8 Aquaculture Associated with Digital Application 5 5.88% 8.5 -3.5 12.25 1.441176471
9 Information Application 3 3.53% 8.5 -5.5 30.25 3.558823529
10 Marine Museum in Virutal Reality 2 2.35% 8.5 -6.5 42.25 4.970588235
Total 85 100.00% 85     21.70588235

Remarks: Probability CHIDIST(X2,DF)=0.01; The .01 is less than .05 Chi Squared 21.706 is larger Than Alpha .05, df9, Critcial Value at 16.919. Thus, rejected the hypothesis; Alfa.05,df9 at 16.919.
Each respondent has 5 selctions x 18 respondents = total 90 selctions; No 5. respondent selected 1 keyword only; No 6. respondent selected 3 keywords; No 17. respondent selected 6 keywords;Thus, total 85 selections.

Table 7: The Chi Squared test 18 male respondents at equal importance for 10 keywords are rejected.

The Table 8, Chi Squared value 26.28 is larger than critical value 16.919, critical criteria 0.05, DF 9 and P value 0.002 is less than alpha level 0.05. The hypothesis was rejected. Its meaning 95% confidence interval of age ≥ 40 is significantly different from 10 keywords. They focused on top 3 keywords Maintain Biodiversity, ICZM and EIA.

S No Keyword Observed % Predicted O-P (O-P)2 (O-P)2/P
1 Maintain Biodiversity 14 17.28% 8.1 5.9 34.81 4.297530864
2 Integrated Coastal Zone Management (ICZM) 13 16.05% 8.1 4.9 24.01 2.964197531
3 Environmental Impact Assessment (EIA) 13 16.05% 8.1 4.9 24.01 2.964197531
4 Marine Spatial Planning (MSP) 10 12.35% 8.1 1.9 3.61 0.445679012
5 Promote Marine Education 12 14.81% 8.1 3.9 15.21 1.877777778
6 Marine Ecotourism 7 8.64% 8.1 -1.1 1.21 0.149382716
7 Offshore Windfarm 5 6.17% 8.1 -3.1 9.61 1.186419753
8 Aquaculture Associated with Digital Application 3 3.70% 8.1 -5.1 26.01 3.211111111
9 Information Application 2 2.47% 8.1 -6.1 37.21 4.59382716
10 Marine Museum in Virtual Reality 2 2.47% 8.1 -6.1 37.21 4.59382716
Total 81 100.00% 81     26.28

Remarks: Age ≥ 40 Probability CHIDIST(X2,DF)=0.002; The 0.002 is less than alpha 0.05 and Chi Squared 26.28 is larger than Critical Value at 16.919, df9; critical criteria at 0.05. Thus, rejected the hypothesis.
Each respondent has 5 sections x 16 respondents=total 80 sections; No 17 of respondent selected 6 keywords; Thus, total 81 selections.

Table 8: The Chi Squared test 16 respondents of age >=40 at equal importance for 10 keywords are rejected.

The Table 9, Chi Squared value 17.71 is larger than critical value 16.919 at critical criteria 0.05, DF 9 and P value 0.039 is less than 0.05. Thus, hypothesis is rejected. Its meaning age ≤ 39 is significantly different from 10 keywords.

S No Keyword Observed % Predicted O-P (O-P)2 (O-P)2/P
1 Maintain Biodiversity 13 18.57% 7 6 36 5.142857143
2 Integrated Coastal Zone Management (ICZM) 11 15.71% 7 4 16 2.285714286
3 Environmental Impact Assessment (EIA) 10 14.29% 7 3 9 1.285714286
4 Marine Spatial Planning (MSP) 8 11.43% 7 1 1 0.142857143
5 Promote Marine Education 6 8.57% 7 -1 1 0.142857143
6 Marine Ecotourism 8 11.43% 7 1 1 0.142857143
7 Offshore Windfarm 5 7.14% 7 -2 4 0.571428571
8 Aquaculture Associated with Digital Application 5 7.14% 7 -2 4 0.571428571
9 Information Application 3 4.29% 7 -4 16 2.285714286
10 Marine Museum in Virtual Reality 1 1.43% 7 -6 36 5.142857143
Total 70 100.00% 70     17.71

Remarks: 14 respondents; Probability CHIDIST(X2,DF)=0.039; the.039 is less than 0.05 Chi-Squared at 17.71 is larger than criteria 0.05; df9, Critical Value at 16.919. Thus, rejected hypothesis.

Table 9: The Chi Squared test 14 respondents of age <=39 at equal importance for 10 keywords are rejected.

Data analysis

In vulnerable marine area updates data, associates GIS illustrative graph and connects practice with concrete scientific evidence. It is not only finding problems but provides effective plans for solution. The multiple objectives are related to achieve economic, environmental sustainability, minimize and reduce conflicts of user-user and userenvironment conflicts, that is dealt with integrated management [17]. The article further implemented analysis for top 3 keywords Maintain Biodiversity, ICZM and EIA.

Table 10, the total 90% includes young 43.33% ≤ 39 ages and elder 46.67% ≥ 40 ages. The meaning has no gap generation and almost each respondent selects Maintain Biodiversity is the most important keyword. Biological diversity plays an important role in enhancing resilience by increasing some species or functional groups will be resistant to perturbation, allowing species to compensate one another within community, facilitating ecological processes vital for recovery and adaptation [11].

Gender (All) Maintain Biodiversity
Age Quantity Important No Comment Total
≤ 39 (Young) People 13 1 14
 % 43.33% 3.33% 46.67%
≥ 40 (Elder) People 14 2 16
 % 46.67% 6.67% 53.33%
People Total 27 3 30
% Total 90.00% 10.00% 100.00%

Table 10: Maintain Biodiversity rating 90% selection at age.

Table 11, the total is 80% including young 36.67% ≤ 39 ages and elder 43.33% ≥ 40 ages. Connectivity among species, populations, and ecosystems enhance capacity for recovery by providing sources of propagules, nutrients, and biological legacies. The adaptive capacity includes combination of phenotypic plasticity, species range shifts, and microevolution [11].

Gender (All) ICZM
Age Quantity Important No Comment Total
≤ 39 (Young) People 11 3 14
% 36.67% 10.00% 46.67%
≥ 40 (Elder) People 13 3 16
% 43.33% 10.00% 53.33%
People Total 24 6 30
% Total 80.00% 20.00% 100.00%

Table 11: ICZM rating 80% at age.

Table 12, the total is 76.67% including young 33.33% ≤ 39 ages and elder 43.33% ≥ 40 ages. What means the majority respondents select EIA is important keyword.

Gender (All) EIA
Age Quantity Important No Comment Total
≤ 39 (Young) People 10 4 14
% 33.33% 13.33% 46.67%
≥ 40 (Elder) People 13 3 16
% 43.33% 10.00% 53.33%
People Total  23 7 30
% Total  76.67% 23.33% 100.00%

Table 12: EIA Rating 76.67% at age.

Legal regulation

MSP aims balancing development of maritime activities and increases cross-border cooperation through clearer legislation, better coordination among administrations, and early identification of impacts [9]. Without intervention and strict enforcement of governmental regulation, there will be no meaningful change in preservation of marine ecosystem [18]. Implementing the scientific approach of social issue establishes authority with legal framework, develops mechanism on ecosystem service, carries out enforcement, prevents illegal activities and maintains biodiversity. Each step should follow legal regulation including opinions from multiple stakeholders; reach a consensus in majority after opened discussion, dialogue and public hearing.

Report and file

Maintaining biodiversity, ICZM and EIA should be public, transparent and available to all stakeholders [19]. It is necessary to make compensatory project for stakeholder whom will suffer loss from implementation of majority at consensus and assesses whether has reached desired outcomes. Many managers are not able to systematically monitor performance of MSP because lack ICZM, EIA, legal enforcement and financial support.

Adaptive management

Adaptive management is essential to maintain biodiversity. Monitoring proxies of ecological resilience such as species, population, and genetic diversity can aid tracking efficacy of management strategies as changes in marine ecosystems [11]. The ability of organism to maintain functioning in the face of environmental stress depends on acclimation capacity. Adaptive management strategies incorporate new knowledge of ecosystem functioning which becomes available and will be critical [11]. Adaptive management have been widely recognized as fundamental components for effective marine management [1]. The adoption of Sustainable Development Goal (SDG) demonstrates global governments, recognize social, economic and environmental agendas, which are intrinsically linked and inseparable [20]. The assessment of SDG performance through adaptive management feeds back into an iterative mechanism, which integrates collaboration through transboundary, sets marine conflict with conciliation, management actions have intended effects and plans need to be periodically reviewed and updated. Adaptive management is a systematic approach for improving effectiveness through learning, monitoring and evaluating outcomes [19]. Under the premise of digital collaboration from trans-boundary activates idle resource on complementary contribution, governmental policy emphasizes quality of ecological conservation, associates with monitor mechanism and improves value chain of biology.

Results and Discussion

Participents from all the age groups; elder age included ≥ 40 and younger ≤ 39. Gender included male and female both. The toal 30 respondents multiplied by each one 5 selections made 150 selections. But No. 5 respondent selected 1 keyword only; No. 6 selected 3 keywords; No. 17 selected 6 keywords, No. 24 selected 10 keywords; No. 25 selected 6 keywords which included 18 male respondents 85 selections and 12 females had 66 selections, total 151 selections. Who had top 3 common keywords Maintain Biodiversity, ICZM and EIA. Meanwhile, elder age ≥ 40 and young ≤ 39 had same top 3 keywords, also (Table 2).

Table 3, the statistical inference at critical criteria 0.05, t test statistics 0.568 is less than one tailed critical value 1.739. The P value one tailed 0.288 and two tailed 0.577 are larger than significance level alpha 0.05. What means elder age ≥ 40 and young age ≤ 39 is no significant difference from 10 keywords each other. They apparently have no significant gap generation and focus on top 3 keywords Maintain Biodiversity, ICZM and EIA. The same number of observation 10 has different measure of central tendency Mean 8.1 for elder, 7 for young and measure of dispersion Variance 23.6555 for elder, 13.777 for young. What means elder age ≥ 40 is much high dispersion and variant than young age ≤ 39. Taking reference contents of Table 2 prove the results of Table 3.

Table 4, the statistical inference, critical criteria 0.05 t test statistics 1.00 is less than critical value one tailed 1.7340. The P value 0.1652 one tailed and 0.3305 two tailed are larger than significance level alpha 0.05 what means male 18 respondents and female 12 respondents are no significant difference from 10 keywords each other. They focus on top 3 keywords. The number of observation 10 have different measure of central tendency Mean 8.5 for male, 6.6 for female and measure of dispersion Variance 20.5 for male, 15.6 for female what mean male is high dispersion and much variant than female. Taking reference contents of Table 2 proves the results of Table 4.

Table 5, the same Data 10 have different Sum 85 for male, 66 for female because male 18 respondents had higher selection than female 12. The same Median 8 for male and female, but different Mode 7 for male, 10 for female, different measure of central tendency, Mean 8.5 for male and 6.6 for female which indicating male scale is larger than female. The measure of dispersion, Standard Deviation (SD) 4.527 for male, 3.949 for female indicates high dispersion of male, as Variance 20.5 for male is higher than female 15.6. The male dispersion is much variant than female. The same Data 10 and Range 12 of age have different Sum 81 for elder 16 respondents and 70 for young 14 respondents. The measure of central tendency Mean 8.1, Median 8.5 of elder is larger than Mean 7, Median 7 of young. The measure of dispersion SD 4.863 and Variance 23.665 for elder ≥ 40 are the largest among young, male and female. It means age ≥ 40 selections from 16 respondents focus on top 3 or low keywords resulting in high dispersion. However, it has same top 3 keywords Maintain Biodiversity, ICZM and EIA.

Table 6, the 12 female respondents multiplied by each one 5 selections made 60 selections. But No. 25 of respondent selected 10 keywords, No. 26 selected 6 words, thus, total 66 selections. The statistical inference, significance level alpha 0.05, degree of freedom (DF) 9, critical criteria 0.05, conducted Chi Squared test and the value 21.27 is larger than critical value 16.919. Meanwhile, P value 0.011 is less than significance level alpha 0.05. What means 95% confidence interval, 12 female respondents are significant difference from 10 keywords and focus on top 3 keywords Maintain Biodiversity, ICZM and EIA.

Table 7, the 18 male respondents multiplied by each one 5 selections made total 90 selections. But No. 5 respondent selected 1 keyword only, No. 6 selected 3 keywords, No. 17 selected 6 keywords, total 85 selections. The statistical inference, DF 9, critical criteria 0.05, conducts Chi Squared test and gets the value 21.7059 is larger than critical value 16.919. The P value 0.01 is less than significance level alpha 0.05. What means 18 male respondents are significantly different from 10 keywords and focus on top 3 keywords Maintain Biodiversity, ICZM and EIA as well as 12 females do.

Table 8, the 16 respondents of elder age ≥ 40 multiplied by each one 5 selections made 80 selections. But No. 17 respondent selected 6 keywords. Thus, total 81 selections. The statistical inference, critical criteria 0.05, DF 9, conducts statistical Chi Squared test and gets value 26.28 which is larger than critical value 16.919. The P value 0.002 is less than significance level alpha 0.05. What means 95% confidence interval of elder age ≥ 40 is significantly different from 10 keywords. They actually focused on top 3 keywords.

Table 9, the 14 respondents of young age ≤ 39 multiplied by each one 5 selections made total 70 selections. But No. 5 respondent selected 1 keyword only, No. 6 selected 3 keywords, No. 25 selected all 10 keywords, No. 26 selected 6 keywords, total 70 selections. The statistical inference, critical criteria 0.05, DF 9, conducts Chi Squared test and gets value 17.71 which is larger than critical value 16.919. The P value 0.039 is less than significance level alpha 0.05. What means 14 respondents of young age ≤ 39 are significantly different from 10 keywords and actually focus on top 3 keywords.

Discussion

A multitude of uncoordinated activities resulted in irreversible loss and substantial damage biodiversity such as habitat loss, useenvironment conflicts. There were not all uses with compatibility, competing for ocean space or had adverse impact one another as use-use conflicts, shipping, offshore wind farms and significantly reducing the loss of biodiversity of coastal ecosystems [16]. Marine Spatial Planning (MSP) is the science for assessing, communicating tradeoffs among uses of ocean and identifying strategies to catch up policy opportunities from efforts to implement ecosystem-based management (EBM) [18]. It can be used as a tool reducing conflict and find compatible uses of ocean and coastal space [19]. The rational planning follows universal principles and steps presenting alternative perspective that are highly differentiated and place-specific Table 13 [20].

Plan Corrective Measures Advantage Problems and Demands Remedial Preliminary Conclusion
Build Underwater Museum of Thermal Power in place of restarting discard plant
  1. Activate discard asset
  2. In consistent ecological tourism with surrounding National Museum and PaDouTzu recreational fish port
  1. Amplify effect of ecological conservation with vale chain integration
  2. Increase tourist revenue
  1. Inconvenient transportation
  2. No integration of relative facilities
  1. Setup shuttle bus between train station and Museum
  2. Increase frequency on holiday
  3. Implement ICZM
Available
Construct ecological touristy aquaculture in place coal of dock
  1. Connect museum, fish port with ecological tour
  2. Link Academia Sinica aquaculture with Marine Resource Resilience Center
  1. Activate discard power plant
  2. Integrate fish port resource
  3. Dgital technique developing tourism aquaculture
  1. Inconvenient transportation
  2. Lacks coordination of various fields
  1. Amplify effect of ecological tour
  2. Integrate artificial intelligence, internet of things with aquaculture
  3. Nation policy exporting global marine technology
Available
Upgrade current LPG terminal to LNG Renewable Energy at Shen Ao water Upgrade current facility
  1. Use natural resource
  2. Research and develop technology
Insufficient data Invite expert, scholar to evaluate feasible possibility Need study and evaluate

Table 13: Fish Port with Marine Spatial Transitional Plan.

Top 3 keywords

Table 10 Maintain Biodiversity, the total cross analysis rating 90% includes young 43.33% ≤ 39 ages, 14 respondents and elder 46.67% ≥ 40 ages, 16 respondents. It indicates no significant gap generation and 90% respondents select Maintain Biodiversity is relatively important keyword. Meanwhile, the analysis of 14 young respondents ≤ 39 has 92.86% preference which is higher than the analysis of elder ≥ 40 at 87.50%. It means young generation put much emphasis on Maintain Biodiversity than elder. Biological diversity plays an important role in enhancing resilience by increasing some species or functional groups will be resistant to perturbation, allowing species to compensate one another within community, facilitating ecological processes vital for recovery and adaptation [7].

Table 11 ICZM (Integrated Coastal Zone Management), the total cross analysis rating 80% includes young 36.67% ≤ 39 ages, 14 respondents and elder 43.33% ≥ 40 ages, 16 respondents. Meanwhile, the analysis of young 14 respondents 78.57% preference is less than the analysis of elder 16 respondents 81.25%. It means elder generation put much emphasis on ICZM than young. Connectivity among species, populations and ecosystems enhance capacity for recovery by providing sources of propagules, nutrients, and biological legacies. The adaptive capacity includes combination of phenotypic plasticity, species range shifts, and microevolution [7].

Table 12 EIA (Environmental Impact Assessment), the total cross analysis is 76.67% including 14 respondents young 33.33% ≤ 39 and 16 respondents elder 43.33% ≥ 40 ages. What means the majority respondents select EIA is an important keyword. Meanwhile, the analysis of young 14 respondents has 71.43% preference EIA which is less than analysis of elder 16 respondents 81.25%. That means elder generation puts much emphasis on EIA than young.

Marine spatial planning

Marine sciences have recognized interdependence of social, ecological systems and cumulative effects of multiple environmental pressures [21]. Without considering existence of conflicts and human impacts, marine ecosystem has inherent need to function sustainably [14]. The Figure 2a is based on UNESCO analyzing current situation, mapping important area, identifying conflict compatibility and area of human activities. Sustainable and precise spatial allocation is an important task, which balances high competition for limited marine space between sectorial interests [5]. Managing MSP will involve balancing trade-offs between different components. The challenge will be to balance benefits of managing for ecological resilience with the associated social and economic costs [7]. The plan 1 Maintain Biodiversity, establishing underwater museum of thermal power associates with virtual reality technology for maintaining biodiversity. Plan 2 ICZM, considering effect of amplification, managers create incubation of aquaculture, associate Pa Dou Tsu Touristy Fish Port, Shen Ao Fish Port with National Marine Museum Scientific and Technology (NMMST) for holistic quality control of ecotourism in aquatic cultivation. Plan 3 EIA, competent agency utilizes existing resource for renewable energy, upgrades current LPG (Liquefied Petroleum Gas) to LNG (Liquefied Natural Gas) of Shen Ao water. All above plans are good examples for maintaining biodiversity, ICZM and EIA. The ultimate decision on what space will be allocated for what use (or non-use) is a matter of societal selection [14]. Planners should always keep in mind their function is to generate information for decisions makers, not to make decisions.

Illegal overfishing of a regulated species damages marine ecosystem resulting in degradation of coastal estuary and habitant. MSP often focuses achieving the specific sectorial objectives, related to national important strategic priorities [22]. Exercising preventive, precautionary and anticipatory approaches avoids degradation of marine environment and reduces risk of long-term or irreversible adverse effects. [23]. Shen Ao branch of Taiwan Power Company (TPC) proposed to restart discarded thermal plant and construct coal dock for fuel unloading. The site selection locates Ecological Conservation Area of fish port is confronted with national policy of energy in transition [24]. International relations are making disciplinary diversity necessary in ways integrating perspectives and learn how to communicate results in governance processes [21]. The estimated site of coal dock locates Ecological Conservation Area within 3 miles Protection Zone, where is designed as first grade coastal conservation zone, in accordance with Article 12, Coastal Zone Management Act, Taiwan as Figure 2c. If TPC restarts discarded thermal plant will pollute quality of air, construct dock will damage intertidal ecological habitat, loss biodiversity on ecological conservation, degrade recreational fishing activity, ecotourism on NMMST, influence public participation activity on Pa Dou Tzu Touristy Fish Port and violate regulation of Coastal Zone Management Act, Taiwan.

marine-science-Relative-location

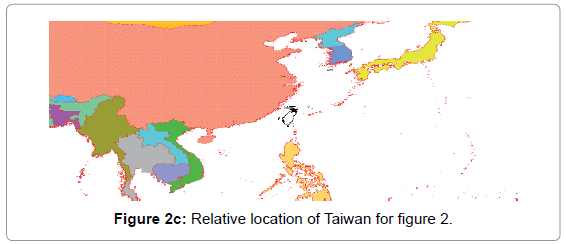

Figure 2c: Relative location of Taiwan for figure 2.

Maintain biodiversity; build underwater museum of thermal power and associate with virtual reality technology: How effectively uses international law at innovation to conserve and sustainably manage marine biodiversity beyond jurisdiction of state. On 24 February 2017, a workshop entitled “Law Beyond Boundaries: innovative mechanisms for the integrated management of biodiversity beyond national jurisdiction” was held in Australia. Which contributes ongoing discussions at United Nations General Assembly [25]. Levels of higher trophic diversity are threatened by over exploitation.

Net effect of diversity on recovery and overall community composition depends on frequency and magnitude of disturbance [7]. The loss of marine biodiversity is impairing ocean’s ability to produce seafood, resist diseases, maintain water quality and recover from overfishing and climate change [14]. Systems with low species diversity are likely to lose functional traits. Species diversity enhances resistance by increasing range of responses to environment and likelihood that species can functionally compensate for one another. Diversity increases variety of responses to disturbance and likelihood that species can compensate for one another [7].The loss of biodiversity alters species composition and subsequent loss of ecosystem functioning documents in marine habitats across the globe [26].

Terrestrial area of Taiwan is occupied 0.03% of the global, but species at quantity is 4% of the world which is 150 times of average value, marine biology is occupied 10% which is 360 times for global average. Taiwan is famous of biodiversity [27]. Among multiple human impact threatens functioning of coastal ecosystems, anthropogenic acts on the most extensive spatial temporal scales and poses some of most severe threat [7]. The estimated site of coal dock locates Ecological Conservation Area of Shen Ao fish port within 3 nautical miles multiple Protection Zone as Figure 2a. The dock construction will damage Ecological Conservation Zone, impair marine resilience in fisheries at 3 nautical miles of Protection Zone under ICZM Act, Taiwan, influence adjacent national museum NMMST as EIA and confront with State Policy of Energy Transition. Some impacts are irreversible once occurred and reinstatement of the original conditions are impossible [28]. Areas with high diversity or endemic species can be targeted for marine reserves to maintain functional redundancy and response diversity. Implementing fully protected (or no-take) marine reserves and other types of MPAs is strategy for maintaining or increasing multiple forms of diversity, connectivity, and adaptive capacity to enhance resilience [7]. Its advantage is replacing by renewable energy but defect is irrecoverable. Offshore energy, tourism are facing increasingly flourish and activities will continue, even more likely accelerate [14]. The Article 8 of Convention on Biological Diversity (CBD), special measures need to be taken maintaining biodiversity. Develop necessary guidelines for establishment and management of areas where conserve biodiversity to ensure conservation and sustainable use [29].

The implementation without planning is a recipe for failure and plan without implementation is sterile. Marine spatial management will not be achieved unless all stakeholders including decisionmakers, politicians, resource managers, bureaucrats, and general public understand net benefits. The virtual diving in underwater archaeological site of Cala Minnola has been publicly presented on 6th November 2016 at the exhibition “Mirabilia Maris. Treasures from the seas of Sicily” [30]. The digital technology associates virtual reality of marine recreation with Ecological Conservation Area, integrates maintaining biodiversity through EIA in ecosystem service. Virtual scene is populated with 3 dimension models of the flora and fauna in typical specific marine ecosystem, such as fishes, seagrass and seaweed plants [30]. The virtual visits are quite impressive in 3D versions, 360-degree filming and other technical procedures. Examples are Virtual Dive project in France, virtual access to French Lune wreck provided by DRASSM and Dassault 3D, and Pavlopetri project at University of Nottingham [31].

Ecosystem based management (EBM): A framework of Ecosystem- Based Approach with MSP has been discussed and promoted by coastal managers more than decade [32]. As present and future demand for marine resources, activities of exploitation are expected to be increased, which implements high pressure on ecosystem, competition and conflicts among marine users [5]. Protecting ecological mechanisms allows ecosystems to resist, recover from, and adopts to adaptive management will help to ensure that coastal marine ecosystems persist and continue to provide benefits [7]. EBM becomes widely accepted for providing important framework at assessing biodiversity, ecosystem services and implementing potential responses [14]. One core challenge for translating EBM and MSP from concept to practice develops approaches for balancing diverse human uses of ecosystem which services range from tangible to intangible includes food production, aesthetic value and natural capital for human welfare [33]. The EBM establishes communicative platform for interaction with convenient prompt opinions and coordinates various interests of stakeholder in competitive zone, in accordance with Article 16 of Coastal Zone Management Act, Taiwan. The EBM is an overarching framework for maintaining biodiversity [34]. EBM embodies adaptive flexible governance and management systems which require effective information providing mechanisms, rely on appropriate monitoring and integrated assessments [35]. The seminal step-by-step guide of UNESCO’s further notes MSP can be used selecting appropriate management strategies to maintain biodiversity [36]. EBM protects structure, function and process of ecosystem, integrates ecological, social, economic, institutional perspectives, which is place-based (adapted from COMPASS, 2005) [16]. Achieving EBM objectives, managers look for interdisciplinary scientific information to meet complex challenges with decision making processes.

Coastal marine ecosystems are among the most valuable and heavily used natural systems worldwide. Which provides many important ecosystem services, including shoreline protection, food from fisheries and aquaculture [7]. The arrangement of release in fishery conserves biological significant species on restoration and increases marine resource from aquaculture cultivation. In conformation with Southward Policy of State, council associations export marine technology to ASEAN countries and global market. Managers select breeding fishery in release, foster superior species on seeding and evaluate nurturing management on harvesting plan. It connects AI, IOTs with aquaculture, catches emission of carbon dioxide for culturing algae to feed indigenous species, increases revenue through ecotourism in cultivation and ensures artificial propagation. Nurturing species at artificial incubation for substantial release is the most effective way of increasing marine resource. Before planners engaged in seeds and seedlings of species on release, should consider what kind of fry, where, when, scale, quantity and the way how to release. The substantial artificial reef nurtures marine resource and prevents intrusion into ecological vulnerable areas, where environment needs to be protected for restoration and enhance propagation of native specific species.

Precautionary measure: Managers have recognized complex interactions between various human uses of ecosystems. A tendency for decisions about tradeoffs to be made implicitly, which is often exacerbated by fragmented or single sector managed independently [33]. Accumulation of quantitative data encourages multiple complementary of trans-boundary, integrates technical concept on innovation, further develops qualitative analysis and improves compatibility of resource though scientific approach. Ecological sustainability is the principle of MSP, comprehensive resilience at habitat, strategic alliance indicates distinctive opinions and implements effective measures to prevent deterioration. MSP definitely needs cooperation from trans-boundary, proposes incentive mechanism and increases efficiency through technological support innovation. If resources are unscrupulous use, the speed of consumption is much faster than producing and it will be exhausted soon. The measure is based on ecosystem management. Planners consider spatial temporal allocation, human activities on marine ecology and need adaptive management to achieve sustainable use.

The endurance capacity of vulnerable environments through EIA ensures effective protection, takes necessary measures to conserve natural resources and prevent damage to flora and fauna of marine environment [37]. Ecological or biological conservation from ecosystem resilience is an important approach for maintaining biodiversity. It stabilizes compatibility through spatial management, which is composed of scientific analysis and takes managed measure to complete overall performance. Variability and uncertainty in ecosystems is imperative to implement precautionary approach in the planning and governance framework [26]. The CBD regulates ecological or biological significant area (EBSA) for sustainable development. Only conservative isolation in protection is not able to deal with complicated scenarios from multiple uses overlapping in conflict. It will be too late to protect after there were damaged. Competent agent implements precautionary measure alleviating environmental degradation, monitors performance for adaptive management gradually and combines interactive network with relevant ecosystem. Under the premise of ecological, economic, social and cultural perspectives, preventing natural disaster is impossible, however, precautionary measure reducing probability of disaster and adverse impact. That are possible for alleviating systematic disasters and ecosystem degradation.

Integrated Coastal Zone Management (ICZM); construct research center of aquaculture cultivation replacing coal dock: The ICZM balances commercial compatible operation, resilience of habitat for maintaining biodiversity and EIA are overarching infrastructure for MSP. It implements precautionary measure, reducing conflict and formulates mechanism of protection, simultaneously explores high economic value and enhances quality control of ecological chain. The Article 10 of Coastal Zone Management Act, in the event two or more businesses are involved, competent authority of the main business shall jointly formulate plan with related agencies. The central competent authority may designate agency or directly formulate the plan. It suggested aquaculture has advantages over wild fisheries that artificial selection operates at much faster scales in aquaculture to maintain production levels [38]. Regulatory challenges and dysfunctional licensing in particular are often key reasons for the failure of aquaculture to meet its potential in many regions of the world [39]. Marine nurturing technology in fry on propagation associates experienced management at aquaculture, Artificial Intelligence (AI), Internet of Things (IOTs) with comprehensive integration, which infrastructure has to be weighed against protection of ecosystems, promotion of aquaculture, tourism development and benefits of economic growth [40]. Ageing ground of fish at productivity relies on nurturing species to satisfy demands of consumptive activities. AI innovates tradition, provides marine seaweed generating electricity and formulates value of chain in environmental protection on habitat resilience. Activating discarded plant combines existing NMMST, recreation ecotourism; global aquaculture links transitive technology and connects aquaculture of Academia Sinica and resilience center of marine resource. This article makes alternative plan of ecological center at aquaculture cultivation to alleviate environmental degradation and improving local communities in economics by autonomous arrangement through ecotourism protection and biodiversity with native characteristic.

Comprehensive communication: Connectivity among habitats and populations in marine ecosystems are critical for population and species persistence. The connectivity can occur through the movement of individuals or materials across permeable habitat boundaries [26]. In consideration of ecological conservation, environmental protection, public participation of stakeholder and comprehensive communication are necessary. Which examines holistic ecosystem service generating biodiversity, conserved priorities and apply in environments globally [41]. That emphasizes managing multiple use of marine space, where conflicts among users and environment in ecological or biological significant areas [17]. Multiple forms of connectivity among species, populations, and ecosystems can stabilize ecosystems under moderately improving recovery more severe disturbances [11]. ICZM is a process for coastal management which integrates all aspects of coastal areas balancing environmental, economic, social, cultural and recreational objectives in an attempt to achieve sustainability [13]. The strength of optical remote sensing in ICZM can display complex issues in a visual format, providing a new window to look at ecosystem [42]. ”The problems of ocean space are closely interrelated and need to be considered as a whole” Preamble to the United Nations Convention on the Law of the Sea, 1982 [1]. Integrated ecosystem assessment puts considerable effort in formative years into conducting integrative science and generating publications as establishing scientific credibility [43]. The integrated resource through digital technology propagates productivity of endangered species by cultivation and recreational fishery associates ecotourism with marine environmental protection.

Trade offs: The ICZM provides integrated framework, uses scientific collection with social fundamental data, draws on natural resource, and innovates AI and implements marine biological protection at habitat. Effectiveness of MSP is focused on achieving optimum trade-offs between a diversity of ecological, economic and social objectives [22]. A complementary approach integrates appropriate jurisdictional boundaries as local, regional, state and international [1]. The platform of comprehensive synergy coordinates problem solving from multiple interests with trade-off, which preserves biological resource, protects local features ecosystem and implements adaptive management over time in sustainability. Many spatial plans protected areas and offshore fisheries are managed. However, political drivers dealing with environment and fisheries management are strong [44]. The innovative digital technology coordinates strategic partners with complementary, drives collaborative alliance and implements appropriate management. AI connects communication for activating the idle resource in ecosystem service through IOTs. The ecological chain of value on ICZM emphasizes EIA including interdependent biodiversity, commercial catch and biological conservation. In compliance with ecosystem regulation, environment and hydrology, managers establish framework to protect biological valuable chain and implement appropriate ecological conservation under review of EIA and ICZM. Stakeholder participation is formulated with policy on particular area and emerges more layout directives. The biodiversity increases synergy, maintains stability in sustainability, elaborates comprehensive plan, manages platform at overall integrity and reaches consensus through scientific expounding.

Environmental Impact Assessment (EIA); upgrade current lpg terminal to lng renewable energy: Renewable energy is also called alternative energy, usable energy derived from renewable sources such as solar, wind power, hydroelectric rivers, tidal and biofuels [45]. The Renewable Energy Development Act, Taiwan is formulated for encouraging energy diversification, improving environmental quality, assisting relevant industries and enhancing sustainable development [46]. If LNG (Liquefied Natural Gas) is neglected leaking gas or hit by natural disasters such as earthquake, tsunami, flood results in explosion which local community is dangerous completely destroyed. Therefore, Shen Ao conservative community prefers restarting discard thermal plant with coal dock in place of renewable energy LNG. Planners further identify optimal LNG designs that minimize spatial conflicts, maximize value of each sector and connect ecosystem value under EIA. The LNG is a clean and safe renewable energy for National Policy of Energy at Transition, which is an overarching approach from current LPG (Liquefied Petroleum Gas) terminal to LNG. The exploitation of LNG should consider channel of marine transportation, traditional operation in fishery and mineral excavation through EIA. It simulates computer model for analyzing adverse impact, positive reaction of chain and associates with transitional energy policy through technological integration, EIA and ICZM.

Problem solving connects with environmental protection for achieving sustainable developments, which monitors performance with effective management, reduces conflict and mitigates impact of ecosystem from human activity. Increasing human pressures on coastal and offshore waters resulted in complex conflicts among different human activities, which are often competing for space and interactions between human activities and marine environment protection [35]. The fastest growing use of renewable energy is catalyzing debate around how decision makers allocate ocean space [2]. Renewable energy is found within coastal environment where characteristics, particular challenges in sustainable management has, varies in nature and extents around country as ports and submarine [47]. The ecosystem approach has become widely accepted framework for delivering sustainable development in marine environment. It provides framework for assessing biodiversity and ecosystem services [17]. Experts assess feasibility of renewable energy with touristy aquaculture and cooperate with complementary stakeholder in compatibility. The compatibility development looks alternative plan for problem solving and gains substantial profits through collaborative integration on trans-boundary. The political expedient in ideology of decision-maker predominately controls resource allocation, leaves political disagreement aside, moves forward strategic alliance with economic progress and ecosystem protection.

The EIA means managed plan based on scientific, objective and comprehensive surveys, evaluations conducted prior to determine degree and scope of potential impact of activity or policy on environment includes economy, culture, ecology and social environment [48]. The environmental changes impact overall levels of biological organization and disrupt ecosystem function [11]. EIA covers cultural landscape, seascape measure, explores vulnerable areas of coast and recommends rectification to improve ICZM [49]. Thermal generation with fuel coal increases particular material (PM) in the air which is not acceptable for EIA. A holistic legal basis, enforceable duty, enforcement tools or evaluation of ecological effects are positive approach for EIA [1]. Impact assessment provides public policy-makers with best available information, minimizes costs, maximizes benefits in association with development [28]. The Article 3, economic, technological and social development shall equally emphasize environmental protection based on national interests. [10]. Planners focus problem solving on collaborative communication, implements strategic alliance for sharing experience, performance and achievement. Under the regulation of EIA for comprehensive assessment, the conflicted area includes Ecological Conservation Zone, sites of discarded plant and estimated coal dock which should be evaluated and investigated ICZM where the place is exclusive or compatible use. This article proposes plan 1 activating discarded plant for establishment of underwater museum to improve recreational ecotourism of community-based for enhancing standards of livelihood. This replaces air pollution; harmful activities damage ecosystem, habitat and biodiversity. In consistent ecotourism with neighbor national museum, Pa Dou Tzu Touristy Fish Port amplifies related effect of conservation and integrates value of ecological chain. Ecosystem services emerges requirement of ICZM where framework integrates GIS and techniques mapping recreation opportunities, provided by coastal and marine ecosystems [50].

Conclusion

The article obtained top 3 relatively important keywords Maintain Biodiversity, ICZM and EIA which are all the same for male, female, elder age ≥ 40, young ≤ 39 and have no gap generation. Meanwhile, they are significantly different from 10 keywords after conducted statistical Chi Squared test within confidence interval 95%. There is no gap generation between ≥ 40 and ≤ 39 after conducted statistical t test at Table 3. There is no significant difference from 10 keywords between male and female after performed statistical t test as Table 4. Performing them at case study for 3 plans proposals in practice, the plan 1 Maintaining biodiversity establishes underwater museum of thermal power in place of plant restart and activates idle asset for use. The plan 2 performs ICZM, creates aquaculture incubation at site of estimated coal dock for ecotourism. The plan 3 implements comprehensive EIA, upgrades existing LPG to LNG renewable energy. Human cannot prevent natural disaster happening as earthquake but can alleviate adverse impact and adopt adaptive strategy. All above plans are good examples for maintaining biodiversity, EIA and ICZM through MSP.

References

  1. Ehler C, Douvere F (2017) Visions for a Sea Change: Report of the First International Workshop on Marine Spatial Planning. Center for Open Science, France.
  2. White C, Halpern BS, Kappel CV (2012) Ecosystem service tradeoff analysis reveals the value of marine spatial planning for multiple ocean uses. Proc Nat Acad Sci 109: 4696-4701.
  3. Sherman K, Lanier A, Barth JA, Conway F, Risien C, et al. (2016) The Oregon Nearshore Research Inventory project: The importance of science and the scientific community as stakeholders in marine spatial planning. Ocean & Coastal Manage 130: 290-298.
  4. Kidd S, Shaw D (2014) The social and political realities of marine spatial planning: some land-based reflections. ICES J Marine Sci 71: 1535-1541.
  5. Strickland-Munro J, Kobryn H, Brown G, Moore SA (2016) Marine spatial planning for the future: Using Public Participation GIS (PPGIS) to inform the human dimension for large marine parks. Marine Policy 73: 15-26.
  6. Maccarrone V, Filiciotto F, Buffa G, Mazzola S, Buscaino G (2014) The ICZM Balanced Scorecard: A tool for putting integrated coastal zone management into action. Marine Policy 44: 321-334.
  7. Melbourne-Thomas J, Constable AJ, Fulton EA, Corney SP, Trebilco R (2017) Integrated modelling to support decision-making for marine social–ecological systems in Australia. ICES J Marine Sci 74: 2298-2308.
  8. Agardy T, Di Sciara GN, Christie P (2011) Mind the gap: addressing the shortcomings of marine protected areas through large scale marine spatial planning. Marine Policy 35: 226-232.
  9. Pınarbası K, Galparsoro I, Borja A, Stelzenmuller V, Ehler CN, et al., (2017) Decision support tools in marine spatial planning: Present applications, gaps and future perspectives. Marine Policy 83: 83-91.
  10. Bernhardt JR, Leslie HM (2013) Resilience to climate change in coastal marine ecosystems. Ann Rev Marine Sci 5: 371-392.
  11. Rosendo S, Celliers L, Mechisso M (2018) Doing more with the same: A reality-check on the ability of local government to implement Integrated Coastal Management for climate change adaptation. Marine Policy 87: 29-39.
  12. Khakzad S, Pieters M, Van Balen K (2015) Coastal cultural heritage: A resource to be included in integrated coastal zone management. Ocean & Coastal Manag 118: 110-128.
  13. AGENCY CAP (2015) Coastal Zone Management Act, Taiwan. Ministry of The Interior.
  14. Wen-Yan C (2002) Marine and Coastal Managemen System. Marine and Taiwan Past, Present, Future. Marine Sustainable Management (Taiwan Research Foundation), p 60.
  15. Alterra-ILRI, Hoque R (2006) Integrated Coastal Zone Management Theme 4: Sustainable development of coastal zones in Yemen. Mission to support the development of the course module on integrated coastal zone management. Wiley-Blackwell, 170-177.
  16. Douvere F (2008) The importance of marine spatial planning in advancing ecosystem-based sea use management. Marine Policy 32: 762-771.
  17. Cheng D (2017) Preserving Underwater Cultural Heritage in a Globalized World. J Undergraduate Studies at Trent (JUST) 5: 88-92.
  18. Charles Ehler, Douvere F (2009) Marine Spatial Planning A Step-by-Step Approach toward Ecosystem-based Management. UNESCO IOC, Paris.
  19. Dalberg WI (2016) Protecting People Through Nature Natural World Heritage Sites as Drivers of Sustainable Development. WWF REPORT 2016, p76.
  20. Markus T, Hillebrand H, Anna-Katharina H, Krause G, Schlüter A, et al. (2018) Disciplinary diversity in marine sciences: the urgent case for an integration of research. ICES J Marine Sci 75: 502-509.
  21. Jones JS, Lieberknecht LM, Qiu W (2016) Marine spatial planning in reality: Introduction to case studies and discussion of findings. Marine Policy 71: 256-264.
  22. Developmet UNCoEaD (1992) Protection of the Oceans, all Kinds of Seas, Including Enclosed and Semi-Enclosed Seas, and Coastal Areas and the Protection, Rational Use and Development of their Living Resources. Report Of The United Nations Conference On Evnironment And Development. United Nations. 7: 296-329.
  23. Wealth C (2015) Marine Rubbish Makes of Shoe. Marine Pasture Simultaneously Generate Electricity and Nurture Fish. Common Wealth Bimonthly, p612.
  24. Goodman C, Matley H (2018) Law Beyond Boundaries: innovative mechanisms for the integrated management of biodiversity beyond national jurisdiction. ICES J Marine Sci 75: 402-404.
  25. Foley MM, Halpern BS, Micheli F, Armsby MH, Caldwell MR, et al. (2010) Guiding ecological principles for marine spatial planning. Marine Policy 34: 955-966.
  26. Ren KS (2017) Happiness Taiwan Way. Common Wealth Magazine 625(36 Anniversary Special Edition): 293.
  27. Jells Sorensen NW (1992) A Guide to Impact Assessment In Coastal Environments. Coastal Resources Center The University of Rhode Island, 1992.
  28. Bruno F, Lagudi A, Barbieri L, Muzzupappa M, Mangeruga M, et al. (2017) Virtual Diving in the Underwater Archaeological Site of Cala Minnola. ISPRS-Int Arch Photogrammetry, Remote Sensing Spatial Info Sci XLII-2/W3: 121-126
  29. UNESCO Cultural Organization, TPotUCH (2001) The Benefit of the Protection of Underwater Cultural Heritage for Sustainable Growth, Tourism and Urban Development. Elaborated by the UNESCO Secretariat and the Scientific and Technical Advisory Body of the Convention on the Protection of the Underwater Cultural Heritage, 2001: 1-35.
  30. Domínguez-Tejo E, Metternicht G, Johnston E, Hedge L (2016) Marine Spatial Planning advancing the Ecosystem-Based Approach to coastal zone management: A review. Marine Policy 72: 115-130.
  31. Lester SE, Costello C, Halpern BS, Gaines SD, White C, et al. (2013) Evaluating tradeoffs among ecosystem services to inform marine spatial planning. Marine Policy 38: 80-89.
  32. Pomeroy R, Douvere F (2008) The engagement of stakeholders in the marine spatial planning process. Marine Policy 32: 816-822.
  33. Stelzenmuller V, Breen P, Stamford T, Thomsen F, Badalamenti F, et al. (2013) Monitoring and evaluation of spatially managed areas: a generic framework for implementation of ecosystem based marine management and its application. Marine Policy 37: 149-164.
  34. Morgera E, Ntona M (2018) Connecting SDG 14 with the other Sustainable Development Goals through marine spatial planning. Marine Policy 93: 214-222.
  35. United Nations Conventionon (1982) The Law Of The Sea. United Nations Convention on the Law of the Sea 1982, Volume VII. Brill, 1-214.
  36. Miller DD, Ota Y, Sumaila UR, Cisneros-Montemayor AM, Cheung WWL (2017) Adaptation strategies to climate change in marine systems. Global Change Biol 24: e1-e14.
  37. Renwick A (2018) Regulatory challenges to economic growth in aquaculture: The case of licensing in the Irish oyster industry. Marine Policy 88: 151-157.
  38. Nunes CH, Roeder F (2014) Tourism and Algarve’s Underwater Heritage Valorisation. A Case Study. J Maritime Res 11: 35-44.
  39. Bagstad KJ, Semmens DJ, Waage S, Winthrop R (2013) A comparative assessment of decision-support tools for ecosystem services quantification and valuation. Ecosyst Services 5: 27-39.
  40. Kratzer S, Harvey ET, Philipson P (2014) The use of ocean color remote sensing in integrated coastal zone management-A case study from HimmerfjArden, Sweden. Marine Policy 43: 29-39.
  41. Harvey CJ, Kelble CR, Schwing FB (2017) Implementing “the IEA”: using integrated ecosystem assessment frameworks, programs, and applications in support of operationalizing ecosystem-based management. ICES J Marine Sci 74: 398-405.
  42. Jennings S, Lee J, Hiddink JG (2012) Assessing fishery footprints and the trade-offs between landings value, habitat sensitivity, and fishing impacts to inform marine spatial planning and an ecosystem approach. ICES J Marine Sci 69: 1053-1063.
  43. Administration Environment Protection (2003) Environmental Impact Assessment Act.
  44. Tiwi DA (2004) Improving environmental impact assessmentfor better integrated coastal zone management. UNESCO-IHE Delft Institute for Water Education. The Netherlands.
  45. Nahuelhual L, Vergara X, Kusch A, Campos G, Droguett D (2017) Mapping ecosystem services for marine spatial planning: Recreation opportunities in Sub-Antarctic Chile. Marine Policy 81: 211-218.

Citation: Liao VTC (2018) The Analysis of Maintaining Biodiversity, Integrated Coastal Zone Management and Environmental Impact Assessment for Marine Spatial Planning. J Marine Sci Res Dev 8: 260. DOI: 10.4172/2155-9910.1000260

Copyright: © 2018 Liao VTC. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Top
