Nanotechnology: Novel Approach in Orthopedic Oncology
Received: 31-Aug-2022 / Manuscript No. joo-22-001 / Editor assigned: 02-Sep-2022 / PreQC No. joo-22-001 (PQ) / Reviewed: 16-Sep-2022 / QC No. joo-22-001 / Revised: 21-Sep-2022 / Manuscript No. joo-22-001 (R) / Published Date: 28-Sep-2022 DOI: 10.4172/2472-016X.1000179
Abstract
Malignant neoplasms represent a genuine public medical condition in the modern world. Assessments from the GLOBOCAN project show that in the year 2015 rate and mortality extends an overall frequency of over 15.2 million new instances of malignancy, and deaths of over 8.8 million. Musculoskeletal tumors are moderately uncommon, as they represent 0.2–0.5% of all malignancies in all ages. Nations like India, China and Japan have an exceptionally low occurrence of musculoskeletal tumors, while the most elevated rate is accounted for in Western Europe and the USA, predominantly osteosarcoma and Ewing sarcoma. Upgrades in careful strategies, chemotherapy and radiotherapy have improved the forecast of sarcoma patients, yet have since arrived at a plateau level. Nanotechnology offers solution in different regions of sarcoma treatment including diagnosis and treatment. In orthopaedic oncology nanotechnology can possibly improve finding, beat drug resistance, fundamental harmfulness of typical host cells and all the more adequately provide medications to malignancy cells. This review focuses on tumor targeting by nanoparticles, literature survey on nanotechnological approaches in cancer therapy, role of nanomedicines in diagnosis and treatment of sarcomas, discusses few nano formulations being used in sarcoma. Finally, the potential role of nanotechnology in addressing the challenges of drug and radiotherapy resistance is discussed.
Keywords
Nanomedicines, tumor targeting, diagnosis, sarcoma therapy, radiotherapy, resistance.
Introduction

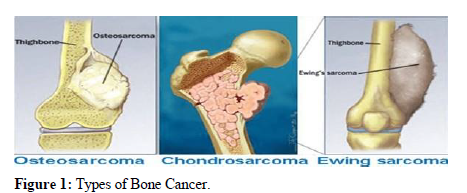

Introduction to Bone cancer
Malignancy has become a worldwide issue, disregarding the innovation and pharmaceutical upgradation over the earlier years, and is one of the fundamental causes of death worldwide [1]. Skeletal bones can have dif- ferent sorts of malignancies. There are in excess of 40 histological sub- types and show distinctive biological genes and clinical behaviour. [2] They conventionally get metastases from various malignancies, including breast, lung, renal, prostate, and thyroid cancers [3], three sorts of tumors arise in bone itself: osteosarcoma, Ewing sarcoma, and chondrosarcoma. Yet these malignancies speak to less than 1% of all analysed tumors con- sistently, their morbidity and mortality are significant [4].
Osteosarcoma
Osteosarcoma is the most well-known bone malignancy; accounting for almost 66% of all cases [5] Osteosarcoma is essentially a disease of ado- lescence, with a little expansion in rate among persons aging more than 60 years. It is the third most regular childhood danger, with a median incidence at 12 years old for young ladies and 16 years for boys [6, 7].Osteosarcomas can emerge in any bone, yet traditionally create in the metaphysis of long bones. Almost 60% happen in the distal femur, the proximal tibia, and the proximal humerus. [8]
Ewing Sarcoma
Ewing sarcoma is the second most common kind of bone malignant growth, containing around 33% of cases in the United States. [7] Its es- timated occurrence is one out of 100,000 among people 10 to 19 years of age. [5] The cell beginning of Ewing sarcoma isn't known. It has been conjectured that these tumors get from undifferentiated, crude neuroec- todermal or neural crest cells. Recently, it has been proposed that Ewing sarcoma begins from crude undifferentiated organisms, and the level of threat relies upon the phase of undeveloped cell arrest during separation. [9]
Chondrosarcoma
Chondrosarcoma is a dangerous, ligament delivering bone tumor. It is the most unbased bone malignant growth, with an estimated frequency of one out of 200,000 persons.[10] Unlike osteosarcoma and Ewing sar- coma, chondrosarcoma normally shows in grown-ups 40 to 75 years old. It happens more in the focal skeleton, usually emerging from the pel- vic girdle, vertebrae, and proximal long bones. [11] Bone metastases are mainly treated through surgery, radiotherapy, systemic chemotherapy, bisphosphonates, and radioisotopes [12] Recent advances have led to the develop¬ment of multifunctional bionanomaterials that can target a bone ftumor and deflfiver ftTherapeuftfic drugs or genes. [13]

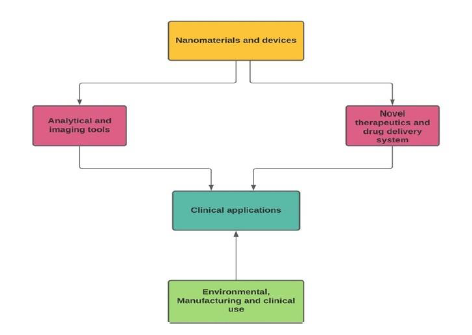

Introduction to Nanotechnology
The rise of nanotechnology, which investigates and uses the properties of materials modified hugely on the nanoscale (1–100 nm or 10−9–10−7 m) or nuclear scale, gets remarkable chances and furthermore challenges in clinical science and biomedical engineering fields. National Institutes of Health audited the uses of nanotechnology for monitoring, diagnosis and treatment of human illnesses and has consequently presented the expression "nanomedicine" to portray these applications [14] Nano- technology has offered an assortment of new therapeutic and diagnostic alternatives for muscular clinical practices and new methodologies for improving the presentation of current orthopaedic implants.[15] Nano- technology has been utilized in its active state to change the mode of ac- tion by which medications are delivered and is being investigated for its capability to fill in as a platform for nerve regeneration, among numer- ous different applications.[16] Within malignancy science, nanotech has been utilized to deliver medications, for example, doxorubicin in a way that stop disease genes that ordinarily permit cells to get away from the medication.[17] The principle measurements through which nanotech- nology can be utilized to have an effect in medication and orthopaedic surgery are sThown fin Ffig. 2[18]
NDDSs specially accumulate in the strong tumors through the enhanced permeability and retention (EPR) impact, which accordingly expands their latent targeting ability. [19,20] In addition, the alteration on the surface of NDDSs drags out the circulation time in vivo and along these lines improves the dispersion in tumor tissues. [20] However, an ide- al NDDS requires the ability to target tumor tissues as well as, the ca- pacity to deliver drugs in light of the environmental stimuli at explicit destinations. These intracellular improvements include characteristic physiological separation, for example, pH, temperature, redox potential, adenosine triphosphate (ATP), and catalysts. Among these kinds of im- provements, redox potential has been generally utilized dependent on the inclination of diminished glutathione (GSH0, which is available at a lot higher focus in the intracellular climate (1 − 10 mM) than that in the extracellular compartments (2 − 20 μM0. In addition, with the help of ferrous particles and high convergences of thiol, lysosomes likewise keep a decreasing microenvironment.[12] Specifically, the GSH concentration in cancers is > 4-overlap higher than that in ordinary cells, delivering redox-responsive NDDSs material to explicit delivery inside tumors, in- cluding OS[13]. Nanotechnology is being utilized in the field targeted drug delivery system for long term hindrance of bacterial development.
Although prior examinations effectively joined enormous particles, for example, development factors, into nanostructured materials[14] more recent examinations have made nanofibrous delivery system that con- solidate smaller molecules, for example, doxycycline[15] and silver par- ticles.(16) These can be delivered in a controlled style with long duration. [15]

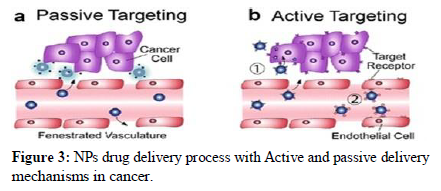

Tumor targeting by Nanoparticles
Up to this part, drug nanocarriers have been presented. All the endeav- ours in the production of different transporters are to make them more focused for delivering the medication to the predetermined part. In this part, we expect to momentarily review the system of drug delivery of nanocarriers. Generally, NPs do the drug delivery process with two Ac- ftfive and passfive deflfivery mecThanfisms.
Passive targeting
Nanoparticle system abuse genes of tumor growth for the utilization of a detached type of focusing on. The tumor becomes diffusion limited at a volume of 2 mm or above. This diffusion constraint impacts nutri- tion consumption, waste excretion, and oxygen delivery. The tumor can beat the diffusion limit by expanding the encompassing vasculature in an occasion called angiogenesis [17]. A normal for angiogenesis is de- viant convolution and irregularities in the cellar layer and the absence of pericytes lining endothelial cells. The fragmented tumor vasculature brings about cracked vessels with hole sizes of 100 nm to 2 μm relying on the tumor type. Moreover, interstitial pressing factor is higher at the centre of tumors than at the fringe since tumors come up short on a very much characterized lymphatic system. The expanded pressure causes an outward convective interstitial liquid stream, which diminishes drug dispersion to the centre of the tumor. Nonetheless, drugs and nanopar- ticles that acquire interstitial admittance to the tumor have higher main- tenance times than ordinary tissues. The blend of cracked vasculature and poor lymphatic waste brings about what is known as the Enhanced Permeation and Retention (EPR) impact. Nanoparticles more modest than the fenestrations can enter the interstitium and be captured in the tumor [18]. Passive targeting on likewise includes the utilization of other inborn attributes of the nanoparticle which can initiate focusing to the tumor, for example, charge. Cationic liposomes are found to tie by elec- trostatic collaborations to adversely charged phospholipid headgroups specially communicated on tumor endothelial cells [19].
Active targeting
Active targeting on includes the utilization of incidentally formed target- ing on moieties for improved delivery of nanoparticle system, as found in Fig. 1. Despite the fact that antibody targeting is viewed as a promis- ing system, a few groups have detailed antibody targeting doesn't incre- ment tumor limitation, yet rather builds disguise in animal models. The focusing on moieties is essential to the mechanism of cellular uptake. Long circulation times will take into consideration successful vehicle of the nanoparticles to the tumor site through the EPR impact, and the focusing on atom can build endocytosis of the nanoparticles. The dis- guise of nanoparticle drug transport system has indicated an expanded therapeutic effect [20]. On the off chance that the nanoparticle appends to vascular endothelial cells by means of a non-internalizing epitope, high local concentration of the medication will be accessible on the external surface of the targeted cell. Albeit this has a higher productivity than free medication delivered into circulation, just a part of the delivered medica- tion will be conveyed to the targeted cell. In most cases, disguise of the nanoparticle is significant for successful of some anticancer medications, particularly in gene silencing, gene delivery, and other biotherapeutics. In this review, the malignancy focuses for current nanoparticle system have been coordinated by chosen genes of tumor development and metastasis. These objectives are the neovascular of angiogenesis, uncontrolled cell development, and direct tumor focusing on. There is enormous cover be- tween these divisions which mirrors the heterogeneity of tumor biology and the huge potential for various focusing on plans utilizing a similar ligand [11].
Materials & Methods
Literature survey on nano technological approach in malig- nancy
1) Flak et al. exhibited that ZnPc@TiO2 hybrid nanostructures, as nanoparticles and nanotubes, could be utilized for double treatment by stacking PDT agent zinc phthalocyanine (ZnPc) and anticancer medication doxorubicin with folic acid targeting. They saw that these cross-breed nanoparticles specifically focused on and showed more take-up in human cervical malignant growth cells (HeLa) than in typical fibroblasts (MSU-1.1). Upgraded in vitro cytotoxicity and photo cytotoxic action was exhibited with mixture nanostructures specifically focusing to disease cells [12].
2) Li, Wang, et al. determined that gold nanoparticles can be utilized as photothermal treatment (PTT) agent that show a synergistic helpful impact when joined with PDT. Li and associates detailed the utiliza- tion of gold nanoclusters for double PTT/PDT treatment for pan- creatic ductal adenocarcinoma (PDAC). Gold nanoclusters were uti- lized as the PTT agent and Cathepsin E (CTSE) was utilized as the PDT prodrug. In this system, they saw that CTSE-touchy nanoclu- sters with focusing on U11 peptide can altogether expand the take- up and apoptosis of pancreatic disease cells, contrasted and that of the nontargeted nanocluster AuS-PEG and the uncaring nanocluster AuCPEG. They detailed that catalyst set off medication arrival of 5-ALA with tumor focusing in nanoclusters AuS-U11 could accom- plish ideal helpful viability with endomicroscopy-guided PTT/PDT, with decreased results [13].
3) Zhou et al. determined that magnetic nanoparticles are notable as magnetic resonance (MR) imaging agents. At the point when a PDT agent is conveyed with attractive nanoparticles, the attractive nanoparticles are utilized for image-guided PDT cancer treatment, which incorporates symptomatic and therapeutic functionalities into a solitary system. Zhou et al. formed the IR820 onto the outside of iron oxide nanoparticles with 6-amino hexanoic acid to prepare IR820-CSQ-Fe forms. The IR820-formed iron oxide nanoparticles indicated an upgraded capacity to deliver singlet oxygen practically twofold that of free colours, which improved its proficiency for PDT, and demonstrated expanded T1 and T2 unwinding values. [14]
4) Bhatt et al. explained that polymeric biodegradable nanoparticle po- ly-L-glutamic acid (PGA) is utilized for the formation of little par- ticles. Xyotax (PGA-paclitaxel) and CT-2106 (PGA-camptothecin) are presently in clinical trials [15].
5) Chenna et al. determined that H pathway inhibitor (HPI) - 1 is an antagonist of Gli1. It has been demonstrated that exemplification of HPI-1 utilizing PLGA formed with PEG improved the foundational bioavailability contrasted and the parent compound in pancreatic malignancy. [16]
6) Ashton et al. Aurora B is associated with cytokinesis, and hin- drance of this kinase has indicated mitotic disaster. Embodiment of AZD2811 and AZD1152 utilizing polymeric and lipid nanoparticles have brought about expanded medication amassing in tumors [17].
7) Chen et al. portrayed a technique for utilizing a metallic nanoparti- cle comprising of selenium and ruthenium to convey pools of siRNA for MDR and to meddle with microtubule elements. They demon- strated upgraded take-up of siRNA in breast cancer cells and accep- tance of cytotoxic and downstream flagging pathways, prompting improved restorative impacts [18].
8) Medarova, Balcioglu & Yigit described that iron oxide nanoparticles can be utilized during MRI. Henceforth, delivery of remedial siRNA utilizing these nanoparticles can be utilized for the double reasons for non-invasive disease imaging and treatment [19].
9) Jiang, et al. Cationic poly-amino acid formed magnetic nanopar- ticles were complexed with NM230HA-GFP plasmid DNA for gene transfection in mice bearing B16F10 melanoma tumors [10].
10) Wang et al. Ultrasound-actuated microbubble cavitation has been broadly perceived as a more secure method of conveying therapeu- tics. Wang et al. utilized ultrasound cavitation to convey miR-122 stacked with PLGA–PEG nanoparticles into human colon malig- nant growth xenografts in mice. The discoveries demonstrated that this novel methodology can be utilized for non-invasive delivery of therapeutic miRNA in disease treatment [11].
11) Zhu et al. created twofold polymer low-thickness lipoprotein N- succinyl chitosan–cystamine–urocanic corrosive (LDL-NSC-SS- UA) micelles with double pH/redox sensitivity and targeting for the codelivery of breast cancer obstruction protein, siRNA, and pacli- taxel (PTX). These siRNA–PTX-stacked micelles show strength un- der physiological conditions. In the tumor microenvironment (pH/ redox), the micelles demonstrated quick arrival of gene and medi- cation atoms. These micelles demonstrated upgraded antitumor ac- tion and downregulated the protein and mRNA articulation levels of breast cancer obstruction protein in MCF-7/Taxol cells. The in vivo study results uncovered that the siRNA–PTX-stacked micelles dem- onstrated delayed circulation time with a momentous tumor-target- ing on impact, and adequately repressed tumor development [12].
12) Zhang et al. utilized a joined way to deal with convey AktshRNA with drug demethylcantharate. The outcomes in three disease cell lines affirmed the upgraded therapeutic reaction of this blend par- ticle [13].
13) Tagami et al. detailed the advancement of thermoresponsive lipo- somes (HaT liposome) for image guided medication delivery in which they codelivered Gd-DTPA for T1 MRI and chemotherapy drug doxorubicin (DOX). They saw that 100% of Dox was deliv- ered at 40–42°C in 3min with a connection of MR T1 esteems that showed a 60% decrease in MR T1 relaxation values. In the in vivo study, scientists saw that DOX indicated more antitumor viability with improvement of T1 signal in a warmed tumor climate [14].
14) Wang and colleagues detailed more PTX discharge at 42°C than at 37°C. An in vivo investigation of a xenograft lung tumor model indi- cated upgraded drug discharge in tumor tissues when hyperthermia happened, bringing about expanded tumor development conceal- ment, contrasted and nontemperature-delicate liposome and free medication treatment [15].
Novel nanotherapeutics
1) Polymeric nanoparticles: Polymeric nanoparticles (PNPs) are natu- rally characterized as particulate dispersion or solid particles with a size in the scope of 10–1000 nm. PNPs have been generally re- searched as transporters in the drug area for controlled and sus- tained medication delivery and release. They can either be nano- spheres or nano capsules and their readiness procedures are primar- ily of two sorts, top-down and bottom-up methodologies. In this specific circumstance, the top-down methodology utilizes a compo- nent of scattering of preformed polymers while the base up meth- odology includes PNPs have been utilized to convey various details of medications by utilizing techniques, for example, adsorption, disintegration, capture, embodiment, or substance authoritative of medication atoms on the outside of polymeric nanoparticles [16]. Drug discharge energy and its attributes exclusively rely upon the medication catching strategy and polymer structure [17].
2) Additionally, PNPs can successfully shield insecure medication moi- eties from corruption, along these lines forestalling the symptoms of poisonous medications. In such manner, PNPs stacked with dexa- methasone or α-tocopherol succinate have been utilized to forestall cisplatin-instigated ototoxicity that outcomes from chemotherapy treatment. Moreover, nanoparticles that ensnare, transport, lastly convey dexamethasone or α-tocopherol succinates are able to do incompletely forestalling ototoxicity delivered from high dosages of cisplatin [18]. Nanoparticles have been utilized to convey a wide scope of drugs into the site of activity utilizing PNPs.[19]
3) Nanostructured lipid carriers: Nanostructured lipid carriers (NLCs) are characterized as a medication delivery system involving both strong and fluid lipids as a centre lattice. NLCs have demonstrat- ed a few favourable circumstances over traditional drug delivery transporters, for example, expanded solvency, upgraded capacity security, improved porousness and physiological bioavailability, di- minished results, drawn out shelf life, and tissue-focused on deliv- ery [20]. Methods used to plan NLCs incorporate high pressing fac- tor homogenisation, microemulsion, stage reversal, emulsification sonification, dissolvable emulsification-vanishing, solvent diffusion, solvent displacement, and layer constriction [12,13]. In expansion, NLCs might be delivered by different conventional procedures, where the favoured creation technique being high pressure homog- enization through which enormous scale production is conceivable. Besides, two late strategies have been as of late used to orchestrate NLC; these are stage reversal and layer worker for hire [12]. NLCs have acquired impressive consideration lately, particularly for their constructions, readiness, and organization plausibilities like effec- tive delivery. They additionally have been utilized in drug and cor- rective applications for drug delivery in therapeutics just as style. [13]
4) Solid lipid nanoparticles: Solid lipid nanoparticles (SLN) are col- loidal medication transporter systems, likewise alluded to as "zero- dimensional" nanomaterials. This definition emerges from the way that the entirety of their measurements is in the nanoscale range (1– 100 nm), instead of one-dimensional nanomaterials that have one measurement bigger than the nanoscale (nanowires and nanotubes). Then again, the two-dimensional nanomaterials have two measure- ments that are bigger than the nanoscale reach, for example, self- gathered monolayer films [14]. Lipid nanoparticles are made out of poly (D,L-lactideco-glycolide) changed with the dichain surfactant didodecyldimethylammonium bromide (DMAB) or the single- chain surfactant cetyltrimethylammonium bromide (CTAB) blend- ed and utilized for communication of the ionic parts of the plasma and endosomal lipid layer system. These nanoparticles adequately limit the development of doxorubicin-delicate breast cancer cells (MCF-7) [15]. In a comparative style, transferrin-enriched paclitax- el-stacked lipid nanoparticles (TPLN) used to target leukemia cells (HL-60) showed predominant focusing on capability of TPLN when contrasted with that of the paclitaxel-based nanoparticles (PLN). The IC50 esteem for TPLN was 0.45 when contrasted with 2.8 μg/ml for PLN. TPLN initiated an exceptional apoptosis in leukemia cells through a ligand-formed lipid nanoparticle system which may pre- pare for the focused on and effective therapy of malignancies [16]. So far, the utilization of SLN in different malignancy treatments in- cluding liver disease, breast malignancy, mind, colorectal, gastroin- testinal tumors have been accounted for. [17]
5) Self-assembled nanomaterials: Self-assembled polymeric nanoma- terials are frequently affected essentially, as a majority of organic designs are self-amassed. In oneself collected strategy, particles and molecules organize themselves into requested nanostructures or examples by methods for covalent and noncovalent cooperation, for example, [1] H (hydrogen)-bond, [2] electrostatic interactions,
[3] hydrophobic effect, and [4] Van der Waals powers. Be that as it may, regular issues of anticancer medication delivery are connected to antagonistic pharmacokinetics, enormous bio-distribution, and inadmissible physico-compound properties. This may be expected to after infusion; transporters should go through a few hindrances (extravasation, interstitial tissue penetration, and disguise by target cells) and ultimately separate and delivery medications to permit helpful impacts. Self-assembled nanostructure drug-carriers have an unmistakable gene of particular tumor amassing attributable to their size going from 100–200 nm [18]. Moreover, with expanding achievement in conquering issues, self-collected medication deliv- ery system selectivity can build the particularity of transporter to- target correspondence. This depends on the development of a se- cretive surface in drug delivery system (DDS) and ligand-receptor collaboration through focusing on extracellular receptors. Besides, a wide scope of endogenous boosts, including chemical focus, pH, and redox slopes are presently viewed as keen planning idea in these very much arranged self-gathered nanomaterials [19].
6) The assortment of responsive materials that can be amassed in un- mistakable structures makes the plan of clinically satisfactory sys- tems adaptable in oneself gathered nanotherapeutics. The utilization of self-gathered nanoparticle incorporated into doxorubicin (DOX) and epigallocatechin-3-O-gallate (a characteristic polyphenol) is an application method in medication, which improves chemothera- peutic adequacy in malignancy cells through hindrance of carbonyl reductase 1 [60]. These perceptions welcomed new spotlight on designing nanomaterials in mix with chemotherapeutic agents for clinical applications.
7) Self-micellizing anticancer lipid nanoparticles: Conventional medi- cation delivery nanoparticle approaches, for example, surface ad- justments, penetration upgrade, prodrug combination, colloidal lipid transporters and bio complex arrangements have been used in various treatments against tumors. Henceforth, solid lipid nanopar- ticles are the latest drug delivery systems that have added advantage over regular or drug nano-formulation [11]. On the other hand, drug delivery systems dependent on self-amassed nano polymers have progressed in affecting current medication, particularly ma- lignant growth chemotherapy [12]. Self-amassed lipid nanoparticles have especially been utilized for stacking a scope of inadequately water-solvent anticancer medications for delivery at tumor destina- tions [13]. For this reason, the lipid center of the nanoparticles is set- tled by surfactants (emulsifiers) that incorporate fatty oils (e.g., tri- stearin), diglycerides (e.g., glycerol behenate), monoglycerides (e.g., glycerol monostearate), unsaturated fats (e.g., stearic corrosive), steroids (for example cholesterol), and waxes (for example cetyl pal- mitate) [14]. The bioactive lipid sphingomyelin assumes key parts in cell signal transduction pathways, particularly cell development, multiplication, and apoptosis. As these sorts of lipids are fundamen- tal parts of plasma film lipid bilayer, they are utilized in the plan- ning of nano-transporters for drug delivery. Among these lipids, a sphingolipid-based transporter indicated a favourable to apoptotic action [15], Which further upgraded the antitumoral viability of ox- aliplatin [16]. Thus, these bioactive lipid transporters have proper- ties of high absorption to the cell film and subsequently an upgraded drug delivery. Also, lipid-based nanoparticles are impressively all around endured because of their compositional likeness to physi- ological lipids. As of late, a fresher plan of effective nanocarriers has been recognized in malignancy focusing on. In any case, the point is to improve the chemotherapeutic reaction of a medication moiety, while saving typical cells from results at a bigger degree, particularly utilizing a supportive of apoptotic agents [17] that may have high in- clination and selectivity towards disease cells when contrasted with typical cells for prompting apoptosis, by temperance of changed cell development and passing signalling pathways [18]. This achieved the possibility of favourable to apoptotic nanoparticulate material as an engineered sphingolipid which may assume a significant part in cell flagging pathways, for example, separation, expansion, cell cycle, apoptosis, and senescence [19].
8) Nanogels are nanoparticles, which included three-dimensional hydrogel materials in the nanoscale range (10–100 nm). They are framed by crosslinked swellable polymer networks with a high-wa- ter holding limit and without really dissolving into the liquid me- dium. Nanogels are mostly made out of either engineered polymers, biopolymers or a mix of crosslinked artificially or truly [20].
9) Usually, nanogels are spherical in shape, yet the current creation strategies could set them up in various shapes. Nanogels, compris- ing of adaptable hydrophilic polymers can be set up as plain gels [11], and the medication can be encapsulated spontaneously in the nanogels after swelling in water. Accordingly, gel breakdowns, prompting the arrangement of strong and thick nanoparticles with a reduced solvent volume. Inferable from their biocompatibility, high moisture content, and attractive mechanical features, nanogels present extraordinary applications for polymer-based drug deliv- ery systems. These gels have expanded surface area for polyvalent bioconjugation and an inner network for ensnarement of biomol- ecules. Actual embodiment of bioactive components, for example, DNA, proteins, sugars, and drugs in the polymeric lattice alongside their in vitro discharge design has been broadly investigated as a focused-on method of medication delivery for biomedical applica- tions [12]. Nanogels are three-dimensional nanoscale size hydrogels that are shaped by the crosslinking of hydrophilic adaptable poly- mers and have high water holding limit without being broken up in the aqueous medium [13]. Nanogels can likewise be targeted to the site of interest by forming focusing on ligands on their surface [14]. Various engineered techniques, for example, miniature embellish- ment and photolithographic strategies, adjustment of biopolymers, consistent miniature fluidics, and heterogeneous living/controlled radical and free radical polymerizations are utilized for the arrange- ment of nanogels.
10) Nanoemulsion: Nanoemulsions are colloidal nanoparticles with a submicron size range (10–1000 nm) with an element of transporters for drug particles. They are typically strong circles with an undefined and lipophilic surface indicating a negative charge. These charged nanoemulsions improved site particularity and in this way can up- grade the helpful adequacy of the medication and limit harmfulness or unfriendly impacts [15]. Nanoemulsions are basically utilized in the therapy of disease of the reticuloendothelial system, liver pro- tein substitution treatment, anticancer drug delivery and antibody delivery. They establish an intriguing colloidal drug delivery system, which is thermodynamically steady and can be cleaned by filtration [16]. Artificially, nanoemulsions give a drawn-out movement of medications by shielding them from hydrolysis and oxidation [17]. Research discoveries uncovered that dexamethasone lipid nano- emulsions target P-selectin, diminishes the endothelium initiation and monocyte penetration which toward the end decreases vascular aggravation. Essentially, some nanoemulsion plans are Troypofol (Propofol), Restasis, Norvir (Ritonavir), Gengraf (Cyclosporin A), Etomidat-Lipuro (Etomidate), Ropion (Flurbiprofenaxtil), Diprivan, Limethason (Dexamethasone), and Liple (Alprostadilpalmitate) [18]. In a nutshell, nanoemulsions addressing another and promis- ing class of nano-carrier for disease treatment are empowered with a hydrophobic center that permits embodiment of lipophilic mixes. Subsequently, it permits effecient cell take-up of hydrophobic medi- cation agents. Another favorable position of nanoemulsions is iden- tified with its targeted drug delivery in multi drug safe tumor cells [19].
11) Nanocapsules: A nanocapsule comprises of a fluid or strong center embodied with a manufactured film or any normal polymer, and the medication that will be conveyed is stacked in the center. As such, a nanocapsule comprises of a shell with space inside which wanted drugs can be set. Nanocapsules have been utilized as savvy drugs with explicit synthetic receptors that can tie to explicit cells. Along these lines receptor-particularity makes it 'shrewd' and permits it to target tumors and different sicknesses. Favorable circumstances of nanocapsules incorporate their capacity to initiate high portion stacking limit, longer site-explicit portion maintenance, effective as- similation of active agents, increased bioavailability, high safety and efficacy, and expanded half-life. Nanocapsules with a lipid center were readied utilizing the precipitation strategy. Then again, poly- meric nanocapsules can be set up in different explicit shapes and siz- es. The readied nanoparticles were assessed for physical, compound and natural highlights. The main highlights to be considered during their combination are molecule size and distribution [10]. Addition- ally, their utility has likewise been explored in medication delivery for disease treatment, radiotherapy, self-mending, and virus treat- ment [11]. Drug-filled nanocapsules can likewise be covered with antibodies or cell surface receptors which can tie to disease cells in a particular way and delivery the drug load [12]. In this specific situ- ation, resveratrol-stacked lipid-center nanocapsules (RSV-LNC) are created and described for their capability to target colon malignancy cells; these RSV-LNC uncovered sustained and controlled release of medications. Resveratrol ensnared in a nanocapsule, brought about an improved anticancer impact in HT29 malignancy cells, in con- trast with free resveratrol [13]. On the premise of in vitro assess- ment, resveratrol-stacked nanocapsules show a promising potential to upgrade the restorative viability in colon disease cells. In a com- parable vein, doxorubicin-stacked nanocapsules (NCS-DOX) with a slick center of selol and a shell of poly (methyl vinyl ether-comaleic anhydride) covalently bound was tried against breast adenocarci- noma 4T1 cells [14]. NCS-DOX was circular fit as a fiddle with a normal hydrodynamic diameter of around 170 nm and with an extra negative zeta potential. NCS-DOX adequately co-conveyed the selol in breast cance cells and adjusted the intracellular appropriation of DOX from the cores to the mitochondria demonstrating its site- particularity [15].
12) Dendrimers: Dendrimers are interesting three-dimensional, globu- lar hyperbranched nano polymeric structures. Not at all like other nanoparticle, are dendrimers exceptionally stretched with effec- tively modifiable surfaces. This trademark highlight makes them a promising mechanism for primary and useful adjustments and for formation with drugs and nucleic acids (DNA or RNA) [16]. Their engineering can be constrained by various amalgamation measures which lead to nanoparticles with trademark shape, size, charge, and solvency. Dendrimers have the benefit of added solvency and bio- availability of hydrophobic medications when entangled in the in- tramolecular pit. Connections of nucleic acids structure buildings with the decidedly charged surface of the cationic dendrimers and this further encourages the intracellular transportation [16]. Den- drimers with the capacity to expand the bioavailability of hydropho- bic medications added a bit of leeway of ensnaring drugs with vari- able practical gatherings. Biomolecules like nucleic acids can shape edifices with cationic dendrimers (emphatically charged surface) or a cationic biomolecule may frame a complex with an anionic den- drimer. These biomolecules having more prominent practical close- ness with the cell micromilieu can incredibly improve the bioavail- ability of medications [17]. Thus, dendrimers could be utilized as drug and gene transporters with practical extemporization towards malignant growth drug delivery and treatment. Polyamidoamine (PAMAM) dendrimers are the most broadly investigated for drug delivery. Their combination begins from an amine bunch that re- sponds with methyl acrylate to shape two new branches with ester ended dendrimer. 'Full-age' amine-ended dendrimer can be deliv- ered by ensuing amidation of methyl ester with ethylene diamine. Moreover, PAMAM dendrimers are nonimmunogenic, biocompat- ible and water-soluble, with terminal amine practical gatherings that can be changed for drug focusing on [18]. Transferrin-bearing dendrimers for malignant growth treatment are likewise all around investigated [19]. Transferrin is an individual from the group of iron-restricting glycoproteins, which assumes significant part in authoritative and circulation of iron in the body through the state- ment of transferrin receptors (TfR1). As TfR1 is overexpressed in exceptionally multiplying malignant growth cells (up to 100-over- lay overexpression as contrasted and typical cells) [20], transferrin- bearing dendrimers have an additional favourable position in arriv- ing at disease cells in an exact way. Dendrimers are as of now being investigated for their use as medication and gene transporters and for functionalized adjustments to improve the delivery of malignant growth therapeutic agent.
13) Carbon and Graphene nanomaterials: Carbon nanomaterials (CNMs) have pulled in the consideration of mainstream researchers because of their electronic, optical, thermal, and mechanical proper- ties. Likewise, they have adaptable functionalization science, and are more biocompatible and more secure than metal-based nanomateri- als for their utilization in malignant growth theragnostic [11]. Due to the innate hydrophobic nature of carbonaceous nanomaterials, they can stack the medication of interest through hydrophobic asso- ciations or π–π stacking, to be utilized as effective medication deliv- ery stages [12]. Graphene, fullerenes, carbon nanotubes, and carbon quantum spots are among the most generally utilized carbon nano- materials for disease treatment [13]. CNMs including graphene, fullerenes, carbon nanotubes, and carbon quantum dabs have been investigated for their different biomedical applications, particularly in malignancy therapeutic delivery. Every individual from the car- bon family has shown interesting highlights that have been generally abused in a few biomedical applications, for example, bio-detecting, drug delivery, and tissue designing, sub-atomic imaging, diagnos- tics, and malignancy treatment [14]. In expansion, a magneto fluo- rescent carbon quantum speck intended to stack doxorubicin as a nanocomposite material (MWCNT-DOX) for chemo-and photo- graph warm treatment was likewise evolved [15]. Similarly, a carbon composite material with a negative surface accuses encouraged the official of decidedly charged DOX particles to empower retention of close IR light. Likewise, temperature-based impact supported the arrival of DOX and photothermal treatment and exhibited the con- cealment of tumor volume [16]. Moreover, research discoveries un- covered that TAT-chitosan functionalized carbon nanotube (CNT) stacked with DOX shows consolidated chemo-and photothermal treatment in disease cells [17]. Along these lines, a PEG-covered CNT-ABT737 nano-drug focused on mitochondria in a disease cells and initiated apoptosis. The CNT form delivers the nano-drug in cytosol and brought about apoptosis of cellular breakdown in the lung’s cells through suddenness of the mitochondrial layer [18]. CNMs with flexible surface properties, shape, and size has caused extraordinary to notice biomedical applications including antican- cer medication delivery.
14) DNA nano-cocoons: notwithstanding all advances in the systems of passive delivery, a one-of-a-kind methodology of using DNA plat- forms for on-request drug delivery in an improvements responsive design was created by Gu and Mo's examination bunch in 2014 [19]. This new technique utilizes a bioinspired "nano-cocoon", which is exclusively made of self-amassed single-abandoned DNA. As indi- cated by this strategy, the DNA folds up and folds into a ball-like shape through different DNA collapsing methods and structures a case inside which anticancer medication doxorubicin just as de- oxyribonuclease (DNase) are kept. DNase is secured by a slender polymer with the goal that the compound doesn't process the DNA which makes up the container. Besides, the nano-cocoon are con- nected with various folic corrosive (FA) and hyaluronic (HA) li- gands all through its surface which empowers its authoritative to the particular receptors on the outside of a disease cell. This per- mits explicit connection to malignant growth cells as it naturally sucks to the DNA nano-cocoon. Upon cell section, the acidic cli- mate predominant inside the disease cells prompts the breakdown of the polymeric coat and deliveries the DNase that causes splitting up of the nano-cocoon and releasing a monstrous portion of the medication load [19]. The "nano-cocoon" DNA-based medication delivery system may offer a few favorable circumstances over other nanotechnology-inferred delivery systems. This strategy can explic- itly target disease cells, and can convey a huge medication burden and delivery the medication rapidly once inside the malignancy cell. This uniquely planned system isn't just viable in conveying drugs but on the other hand is bio-viable and less poisonous to patients than systems that utilizes engineered materials that is totally DNA- based. Also, the quick acid actuated arrival of the anticancer medi- cation could upgrade restorative list, which is exceptionally urgent for regulating on track just as askew adequacy. After the spearhead- ing work by Gu and Mo, there has been a few utilizations of nano cocoons innovation as a practical course to ship gene or small par- ticle drugs into cells. The Gu gathering additionally proceeded to utilize the DNC (DNA nano-cocoons) innovation for the controlled arrival of stacked enemy of PD1 (customized cell passing 1) counter acting agent and CpG oligodeoxynucleotides (CpG ODNs) in light of aggravation conditions for post-medical procedure therapy [20]. DNA nano-cocoons utilize the DNA atomic marker of a minuscule delivery system that utilizes fewer drugs and subsequently decreases the result. The DNA nano-cocoons are not just imperative to treat malignant growth patients all the more successfully, yet additionally improve the patient's personal satisfaction.
Diagnostic and Treatment Applications Using Nanotechnology
Diagnostic applications
Nanotechnology can fabricate various nanoparticles, which can convey ligands. Those ligands can collaborate with explicit particles on the out- side of focused cells and thusly tie to them. By adding a difference agent to the nanoparticle–ligand buildings ("stacking" of the nanoparticle), exact focused on imaging of tumors might be accomplished at the cell level. [11] For instance, the transformed p15 gene is a tumor marker for osteo- sarcoma. What's more, there is a solid relationship between the presence of the transformed p15 gene and the propensity for lung metastasis. [12] By adding a ligand that ties to cells that express the transformed p15 gene, through the above mechanism, early recognizable proof of metastasis or of the metastatic capability of the tumor might be accomplished. Super- paramagnetic iron oxide (i.e., metallic) nanoparticles or quantum spot nanocrystals have been concentrated likewise as difference agents for tar- geted attractive reverberation imaging. [13] Nanoparticles that can both ingest light and discharge warmth might be made. These nanoparticles will specifically penetrate the tissue of revenue and might be identified utilizing laser innovation. By conveying and distinguishing these parti- cles, different intracellular cycles might be assessed. [14]Compared with traditional techniques, which depend on histologic assessment after care- ful resection of the tumor, this may conceivably offer higher precision in recognizing the percent of suitable tumor remaining. Average nanostruc- tures (congregations of nanoparticles) utilized for the above purposes in- corporate empty gold nano shells, gold/gold sulphide nanoparticles, gold nanocages, carbon and titanium nanotubes, photothermal-based nano- bubbles, polymeric nanoparticles, and copper-based nanocrystals.[15] Nanotechnology applications can possibly upset the previous detection of disease, its metastases, or both and the capacity to evaluate, in detail, the reaction after treatment.
Treatment Applications
Several exploration projects have utilized nano vectors to convey regu- lar anticancer agent, for example, doxorubicin and methotrexate for the treatment of osteosarcoma and Ewing sarcoma. A definitive objective is to improve drug energy and hence accomplish predominant restorative outcomes.
Doxorubicin Contrasted and conventional doxorubicin treatment, doxo- rubicin-stacked strong lipid nanoparticles were appeared to improve the medication's anticancer exhibition when utilized for a safe ovarian car- cinoma cell line (NCI/ADR-RES). [16]Mannose-covered nanoparticles may tie lectin surface particles (ga¬lectin-3) overexpressed by osteosar- coma cells, bringing about exact delivery of chemotherapeutic drugs.[17] In thusly, doxorubicin delivery can prompt less fundamental results and expanded medication bioavailability.[18] Doxorubicin-stacked PEGylat- ed liposomes have gotten US Food and Drug Administration.
Endorsement for the treatment of AIDS-related Kaposi's sarcoma. Poly- ethylene glycol (PEG) is an engineered hydrophilic polymer framing a hydration layer that encourages collection of proteins on the nanopar- ticle's surface, bringing about delayed medication half-life. [19] The cyto- toxic impact of the above nanostructures was attributed to the high take- up of the mind boggling just as to the blockage of multidrug resistance protein 1. [10] Because osteosarcoma cells additionally express the folate receptor, [11] this would be a potential treatment approach. What's more, the decreased folate transporter that is communicated on the outside of delicate yet not of safe osteosarcoma cells fills in as a way to effectively ship methotrexate intracellularly. [12] Regarding osteosarcoma¬ ma lung metastases, a potential treatment could be founded on nanostructured lipid carriers stacked with doxorubicin and a silencing RNA (siRNA) atom against Bcl-2 and P-glycoprotein to conquer drug resistance. Deliv- ery to the lungs has been accomplished by adding an engineered simple of luteinizing chemical delivering chemical to this complex. [13]
Methotrexate and Newer Antifolates: Traditional chemotherapeutic treat- ment with methotrexate requires a high dose and accordingly prompts expanded toxicity. In two in vivo considers including breast disease cells, nanotechnology-delivered strong lipid nanoparticles stacked with meth- otrexate indicated improved gastrointestinal absorption and expanded bioavailability, along these lines requiring lower doses and subsequently prompting diminished toxicity. [14] Lipid nanoparticles can likewise be utilized to convey the more up to date antifolate chemotherapeutic agents, including trimetrexate and pemetrexed, to osteosarcoma cells. Trimetrexate restrains the compound dihydrofolate reductase, yet its in- tracellular fixation is decreased by the activity of multidrug opposition protein 1 just as by its failure to be polyglutamylated for longer retention.
[15] The utilization of trimetrexate-stacked lipid nanoparticles may con- quer these issues and improve the anticancer impact. Pemetrexed enters the cell through the layer transporter and squares the activity of different folate-related chemicals (e.g., thymidylate synthase, dihydrofolate reduc- tase). [14] Mutations of the vehicle protein make it unable to move the medication intracellularly. In any case, this can be overwhelmed by en- capsulation of pemetrexed in lipid nanoparticles, which might be utilized to move the medication intracellularly autonomously of the changed car- rier. [15]
Etoposide. Contrasted and conventional therapy with etoposide, etopo- side-stacked strong lipid nanoparticles demonstrated better capacity than murder metastatic cellular breakdowns in the lungs in one study.[16] Therefore, further examination on this for essential osteosarcoma lung metastases is justified. Osteosarcoma cells, particularly in metastases, ex- press CD44 receptors. [17] The effective dynamic focusing of these recep- tors in ovarian carcinoma may give bits of knowledge to the treatment of osteosarcoma. [18]
Results
Nanovesicles Interacting with Molecular Pathways. Receptors with tyro- sine kinase movement are found in a few sarcoma oncogenic pathways. [19] For example, the insulin-like development factor receptor 1 pathway is firmly connected with both osteosarcomas. [12] and Ewing sarcoma. [12] In osteosarcoma, the polo-like kinase 1 inhibitor scytonemin initi- ates apoptosis in a portion subordinate way and the barricade of Mirk kinase is associated with tumor cell demise. Nanovesicles that dilemma to ligands that meddle with the tyrosine kinase pathway, and therefore effectively actuate apoptosis, have been concentrated in vitro. [12] Other possible focuses for osteosarcoma treatment at the sub-atomic level in- corporate vascular endothelial development factor and its receptor, the phosphatidylinositol-3 kinase pathway, platelet-inferred development factor receptor, the liposomal muramyl tripeptide phosphatidylethanol- amine, hypoxia-inducible factor 1, human epidermal development factor receptor 2, and insulin-like development factor receptor 1. [13]
Hydroxyapatite Nanoparticles in Different Osteosarcoma Cell Lines: Hydroxyapatite nanoparticles with various nanosphere sizes have been examined in regards to their cytotoxicity to various osteosarcoma cell lines. Both little and enormous hydroxyapatite nanoparticles have been appeared to murder osteosarcoma U2OS cells, with the more modest be- ing more poisonous than the larger.[14] In difference, a comparative ex- periment with osteosarcoma MG-63 cells found that huge hydroxyapatite nanoparticles were the best inhibitor of these cells contrasted and little hydroxyapatite nanoparticles. These veering results were chiefly credited to phenotypic and hereditary variety between the U2OS and the MG-63 cell lines. All of the hydroxyapatite nanoparticles were morphologically similar. Moreover, the apoptotic instrument of both little and enormous hydroxyapatite nanoparticles included the inherent pathway with the ini- tiation of procaspase-9 to caspase-9 auxiliary to the arrival of calcium and phosphate in the cell cytoplasm.[15]
Gene Therapy Using Nanotechnology: Another way to deal with treat or forestall harm is to restrain the differentiation cycle of disease start- ing cells toward tumor cells or to thump down explicit genes that add to the development of a threatening aggregate. Nanotechnology, by offer- ing vehicles to ship RNA/DNA atoms or different variables to influence the gene expression cycle of tumor cells, could potentially give critical occasions to accomplish this goal. For instance, CD133 is a sub-atomic marker for osteosarcoma and Ewing sarcoma malignant growth starting cells. Nanostructures can be stacked with explicit particles to repress this marker. In addition, change of the flagging cascade that drives a crude cell to communicate threatening attributes and furthermore epigenetic adjustment of gene articulation have been demonstrated to be compel- ling methods of forestalling tumorigenesis.[16] Because Ewing sarcoma is the consequence of a combination oncogene (as a rule, EWSYFli1), a siRNA particle might be utilized to thump down its appearance. Among the different approaches to convey a siRNA atom is the creation of the fa- voured arrangement and its immediate introduction into the tumor cell. [17] However, this is troublesome due to the susceptibility of the siRNA atom to degradation during its delivery just as the previously mentioned issues of obstructed cell penetration. [18], thus, lipid nanocarriers were believed to be a decent arrangement. One study [19] used noncationic polyisobutyl¬cyanoacrylate nanocapsules as a "protected" in vivo deliv- ery system for siRNA molecules focused at the Ewing sarcoma oncogene. Doing so stayed away from their degradation by nucleases.[20] In models involving mice, two conventions were utilized to think about the cytotox- ic impact of free versus nano encapsulated siRNA atoms on Ewing sarco- ma tumor cells.[13] The last were discovered to be essentially unrivalled for repressing tumor development. A similar siRNA atom, aside from the inhibition of the combination oncogene, likewise obstructed the outflow of the EWS gene, maybe on the grounds that the EWS and EWSYFli1 pro- teins structure heterodimers.[12] Thus, the last tumor restraint could be the after effect of the synergistic impact of both processes.[13] Similar ap- plications utilizing antisense DNA oligonucleotides against explicit genes can be utilized. Maksimenko et al. demonstrated that nanocapsules or nanospheres were valuable for conveying antisense DNA oligonucleotides to Ewing sarcoma tumor cells in mice and effectively thumped down the declaration of the EWSYFli1 oncogene.[13] Mesoporous silica nanopar-ticles possess unmistakable primary and morphological genes that make them superb possibility to be nanocarriers for gene therapy,[14] apart from their possible use in medication delivery systems[15] or as differ- entiation agents for attractive reverberation imaging to improve tumor discovery applications.[16] These attributes incorporate the capacity to control their morphology and dimensions, their expanded surface terri- tory, and their brilliant biocompatibility and biodegradability properties. [17] Pore size has been appeared to assume a critical part with respect to what particles the mesoporous silica nanoparticles can convey. Designs with pore sizes of fewer than 3 nm can have siRNA [18] sequences, yet are just somewhat secured (outer surface). Constructions with bigger pores offer better defensive/covering properties not just for hereditary particles, which are currently impervious to the activity of nucleases, [19] but ad- ditionally for proteins and enzymes. [14]
Discussion
Role of Nano-selenium in Orthopaedic Oncology: Selenium metalloid is a cell reinforcement normal follow element. [14] During metabolic and oxidative burst cell measures, receptive oxygen species are created that are poisonous to the cells (oxidative pressure). Selenium goes about as a cofactor in compound responses that kill receptive oxygen species and has antibacterial [12] and anticancer [14] properties. In a few in vitro considers, covering customary orthopaedic materials (e.g., bone inserts) with nanotechnology-fabricated selenium (nano-selenium) has been appeared to incite apoptosis in osteosarcoma cells while supportive of mooting sound bone properties. Tran et al[14] produced an "anticancer" nano-selenium–covered titanium embeds that all the while advanced solid bone cell capacities (soluble phosphatase activity, attachment, ex- pansion, and calcium testimony) and restrained destructive bone cell capacities. Wang et al. [15] indicated that selenium-covered hydroxyapa- tite nanoparticles were more cytotoxic than non–selenium-covered hy- droxyapatite nanoparticles for human osteosarcoma cell lines (MG-63). The component of apoptosis in these cells incorporates the enactment of caspase-9 (i.e., the inborn apoptotic pathway) after the age of responsive oxygen species and the arrival of cytochrome c from the mitochondria to the cell cytoplasm. Stoloff et al. [16] made poly-L-lactic corrosive in- serts covered with selenium nanoparticles and demonstrated that they diminished the endurance of osteosarcoma cells while correspondingly expanding the capacity of solid osteoblasts (i.e., increased soluble phos- phatase movement).
Defeating Drug and Radiotherapy Resistance
Drug resistance
Drug obstruction is a significant issue while treating patients who have osteo-sarcoma. Safe cells generally overexpress P-glycoprotein 1 (other- wise called multidrug opposition protein 1), transporting the chemo- therapeutic medication out of the cell and along these lines diminish- ing its intracellular focus. The current polymorphisms[17] in this layer adenosine triphosphate–subordinate carrier, in mix with the outflow of extra proteins, for example, metallothionein, heat stun proteins, thy- midylate synthase, dihydrofolate reductase, and O6-alkylguanine DNA alkyltransferase84 inside the tumor cell, make the development of regi- mens to defeat drug resistance incredibly testing. Nanotechnology can deliver vehicles to move anticancer agents or siRNA atoms explicitly to safe tumor cells to improve their affectability to drugs. Utilizing a siRNA grouping to thump down Glycoprotein might be a successful methodol- ogy for conquering drug resistance. [18] To accomplish these objectives, such transporters should have the option to dodge the safe system reac- tion and, above all, shield the delivered siRNA from debasement mea- sures, including the activity of nucleases and the leeway by the cells of the reticuloendothelial system. Additionally, the transporters should be controlled and fit for being endocytosed explicitly by the medication safe cells to viably deliver their substance into the cell cytoplasm. Nanocarri- ers with these properties incorporate liposomes, cationic polymers, inor- ganic transporters (permeable silicon nanoparticles, gold nanoparticles, and apatite nanoparticles), beta-cyclodextrin nanocarriers, and nanogels. [19] A investigation directed in 2009 utilized in vitro polymeric nanopar- ticles stacked with doxorubicin to sidestep the P-glycoprotein carrier in medication safe osteosarcoma cell lines and increment the intracellular medication concentration.[15] The gathering of doxorubicin inside these cells, transported through this nanostructure vehicle, was similar to that in the medication delicate cell lines. Similar writers utilized dextran- based nanoparticles after lipid change handling to convey siRNA parti- cles to osteosarcoma cells communicating multidrug obstruction protein 1 (ABCB1). They announced effective downregulation of P-glycoprotein expression along with resensitization of such cells for doxorubicin. [15]
Radiotherapy Resistance
Radiotherapy opposition is emphatically corresponded with the expand- ed extent of disease starting cells.[12] Resistance may likewise emerge from radiation recuperation measures that happen during fractionated radiotherapy, by repopulation of tumor cells in the spans between ra- diation treatments.[15] Hydrogenated nondiamond might be utilized to conquer this issue. They can create additional receptive oxygen species at the tumor site, aside from those as of now produced by traditional radio- therapy, and in this way increment the affectability of malignancy cells to radiation. Such examinations have been conducted with cell lines other than those of muscular tumors. [14]
Conclusion
Due to the ongoing advances in the development of nanotherapeutics and their application to tumour imaging, are the growing need to close the gap between the bench and a bed for nanotechnology-based sarcoma treatment. There has been significant progress in basic research of sar- coma, unravelling multiple signalling pathways involved in development of the disease. Treatment thresholds can be overcoming modified MDR mutations, eliminating cancer cells through direct or indirect markings by inhibits angiogenesis, disrupts tumor-niche interactions, and immu- no-modulation. Nanoparticles can be introduced in various ways in the above strategies; because for example, several restrictions on RNAi and drugs delivery to drug-resistant sarcoma can be overcome through use nano systems. In the future, nanotechnology will undoubtedly be possible contributing to the development of sarcoma treatment.
References
- Siegel RL, Miller KD, Jemal A (2019) Cancer statistics, 2019. CA Cancer J Clin 69:7-34.
- Jemal A, Siegel R, Ward E, Hao Y, Xu J, et al. (2009) Cancer statistics, 2009. CA: a cancer journal for clinicians 59: 225-249.
- Ferguson JL, Turner SP (2018) Bone cancer: diagnosis and treat- ment principles. Am Fam Physicia 98: 205-213.
- Smith RA, Andrews KS, Brooks D, Fedewa SA, Manassaram‐Baptiste D et al. (2017) Cancer screening in the United States, 2017: a review of current American Cancer Society guidelines and current issues in cancer screening. CA Cancer J Clin 67: 100-121.
- Rajwanshi A, Srinivas R, Upasana G (2009) Malignant small round cell tumors. J Cytol 26:1-10.
- Suva LJ, Washam C, Nicholas RW, Griffin RJ (2011) Bone metastasis: mechanisms and therapeutic opportunities. Nat Rev Endocrinol 7:208-218.
- Mohamed M, Borchard G, Jordan O (2012) In situ forming implants for local chemotherapy and hyperthermia of bone tumors. J Drug Deliv Sci Technol 22:393-408.
- Dasgupta N, Ranjan S, Mundekkad D, Ramalingam C, Shanker R, Kumar A (2015) Nanotechnology in agro-food: from field to plate. Food Res Int 69: 381-400.
- Moghimi SM, Hunter AC, Murray JC (2005) Nanomedicine: current status and future prospects. FASEB J 19: 311-330.
- Patil M, Mehta DS, Guvva S (2008) Future impact of nanotechnology on medicine and dentistry. J Indian Soc Periodontol 12:34-40.
- Chen J, Ding J, Xu W, Sun T, Xiao H, et al. (2017) Receptor and microenvironment dual-recognizable nanogel for tar- geted chemotherapy of highly metastatic malignancy. Nano Lett 17: 4526-4533.
- Fenaroli F, Repnik U, Xu Y, Johann K, Van Herck S et al. (2018) Enhanced permeability and retention-like extravasation of nanoparticles from the vasculature into tuberculosis granulomas in zebrafish and mouse models. ACS Nano 12:8646-8661.
- Reddy PR, Venkateswarlu V (2005) Pharmacokinetics and tissue distribution of etoposide delivered in long circulating parenteral emulsion. J Drug Target 13:543-553.
- Balce DR, Greene CJ, Tailor P, Yates RM (2016) Endogenous and exogenous pathways maintain the reductive capacity of the phagosome. J Leukoc Biol 100:17-26.
- Dai G, Zheng D, Guo W, Yang J, Cheng AY (2018) Cinobufagin induces apoptosis in osteosarcoma cells via the mitochondria-mediated apoptotic pathway. Cell Physiol Biochem 46: 1134-1147.
- Wei G, Jin Q, Giannobile WV, Ma PX (2006) Nano-fibrous scaffold for controlled delivery of recombinant human PDGF-BB. J Control Release 112:103-110.
- Feng K, Sun H, Bradley MA, Dupler EJ, Giannobile WV, et al. (2010) Novel antibacterial nanofibrous PLLA scaffolds. J Control Release 146:363-369.
- Xing ZC, Chae WP, Huh MW, Park LS, Park SY, et al. (2011) In vitro anti-bacterial and cytotoxic properties of silver-containing poly (L-lactide-co-glycolide) nanofibrous scaffolds. J Nanosci Nanotechnol 11: 61-65.
- Jones A (1998) New developments in angiogenesis: a major mechanism for tumour growth and target for therapy. Cancer J Sci Am 4:209-217.
- Hobbs SK, Monsky WL, Yuan F, Roberts WG, Griffith L, et al. (1998) Regulation of transport pathways in tumor vessels: role of tumor type and microenvironment. Proc Natl Acad Sci U S A. 95: 4607-4612.
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Indexed at, Google Scholar , Crossref
Citation: Belgamwar VS, Khule MR, Mishra SS (2022) Nanotechnology: Novel Approach in Orthopedic Oncology. J Orthop Oncol. 8:179. DOI: 10.4172/2472-016X.1000179
Copyright: © 2022 Belgamwar VS, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
