Journal of Clinical & Experimental Pathology
Open Access

DWI: Diffusion Weighted Imaging; ADC: Apparent Diffusion Coefficient; AIS: Acute Ischemic Stroke; IVTMT: Intravenous Thrombolysis and Mechanical Thrombectomy; LVO: Large Vessel Occlusion; NIHSS: National Institutes of Health Stroke Scale; TICI scale: Thrombolysis in Cerebral Infarction Scale; mRS: Modified Rankin Scale

Infarct lesion is defined on Diffusion Weighted Imaging (DWI) acquisition, especially through the generated Apparent Diffusion Coefficient (ADC) maps which is a pertinent method to rapidly evaluate an ischemic stroke.

DWI signal intensity varies with magnetic field strength, scanning parameters, and is susceptible to artefacts which are not the case of ADC map [1]. The ADC as for it is a measure of the diffusivity of water molecules in tissue. The cytotoxic oedema secondary to tissue’s ischemia tissue leads to a reduction in the ADC. It allows a better accuracy than visual, manual outlining or semi-automated determination of hyperintense region on DWI [2].

Multiple semi-automatic software such as Olea Sphere^® (Olea Medical SAS, La Ciotat, France) and RAPID^® (iSchemaView) were used for assessing lesional volume in randomized controlled trials [3,4]. However, computed segmentation of the infarct lesion is induced by the threshold applied on ADC map, thus volume could vary inducing over or underestimation of the DWI ischemic volume whereas pre- treatment lesional volume appears to be an independent predictor for functional outcome in acute ischemic stroke with proximal intracranial Large Vessel Occlusion (LVO) [5,6].

Applied threshold varies among software, but an optimal threshold for identification of ischemic core was suggested at 620 × 10^-6 mm /s in literature [7].

Because IVTMT is regarded as gold standard therapy in patients with AIS caused by LVO, determining the best measurement method to quantification of the AIS volume is becoming an important factor to consider for patient selection [8-10].

The aim of this study is to compare the lesional acute infarct volume assessed on ADC computed map using different ADC threshold of 600, 615 and 620 × 10^-6 mm²/s with two different software and to evaluate the influence on functional outcomes of patients treated by mechanical thrombectomy combined with intravenous thrombolysis.

Outcomes

The primary study outcome was to compare the AIS’s means volumes obtained with three different thresholds.

Secondary outcome was to determinate if this AIS volumes can be predicting functional prognosis, favourable outcome is defined as a modified Rankin Scale (mRS) 0-2 at 3 months.

All data comprising Baseline characteristics (age, sex, vascular risk factors and comorbidities), baseline examination data (mRS at 3 months, baseline NIHSS) and symptom onset to recanalization with TICI status were extracted from THRACE database (Table 1).

Table 1: Baseline characteristics extracted from THRACE.

Image acquisition, segmentation and normalization

Pre-treatment DWI data were acquired on 1.5T or 3T MRI scanners (General Electric Healthcare, WI, USA; Philips medical systems, Best, Netherlands; Siemens, Erlangen, Germany) according to the local routine protocol in each participating center. Pre-treatment infarct lesions were semi-automatically segmented by both Olea Sphere^® (Olea Medical SAS, La Ciotat, France) after applying a threshold of apparent diffusion coefficient (ADC) of 600 × 10^-6 mm²/s on ADC maps, and with our homemade software named Strike^® implementing RAPID^® algorithm for DWI lesion segmentation (for more details see Appendix) after applying a threshold of ADC 615 and 620 × 10^-6 mm²/s on ADC maps.

Figure 1 compares the two different thresholds used by our software Strike^® (615 and 620 × 10^-6 mm²/s) with ADC maps.

All the image post-processing results and lesion masks were checked and were manually corrected if necessary, by a junior neuroradiologist (5 years’ experience) blind to clinical information.

Statistical analysis

Quantitative variables are expressed as mean ± standard deviation or median (interquartile range) and categorical variables are expressed as numbers (percentage). For volume comparisons, mean infarct volumes were calculated and tabulated in a summary statistic (Table 2).

Table 2: Means infarct volume obtained from different ADC thresholds.

ANOVA analysis was conducted on mean infarct variability for each ADC thresholds using Bonferoni method, which uses critical values from Student’s t-distribution after an adjustment to compensate for multiple comparisons (Table 3).

Table 3: Mean infarct differences between the different ADC thresholds.

Main baseline characteristics and outcomes were compared between different ADC thresholds in uni and multivariable models. In multivariable models, association of ADC volumes were adjusted for pre-specified confounding factors (age, haemorrhagic transformation, and recanalization status) by using mixed binary logistic regression models for binary outcomes, mixed ordinal logistic regression model for mRs.

Data were analysed using statistical software R^® (version 3.6.2). A p-value of less than 0.05 was considered statistically significant.

The gross evaluation of the gallbladder revealed a saccular 9.0 × 4.5 cm gallbladder with multiple gallstones and red to tan velvety mucosa with a firm mass measuring 5.0 × 3.0 × 1.5 cm on the lateral fundus, 5.0 cm away from the cystic duct margin [1]. The external surface serosa is smooth and glistening. Within the gallbladder, there were approximately 20 hard black faceted gallstones, 4 × 4 × 3 cm in aggregate. No gallstone was lodged within the cystic duct. Histologic examination demonstrated unusual gall bladder adenosquamous carcinoma (Figure 1). Submitted entirely, the carcinoma infiltrated the fundus wall locally but was confined within the serosa. The liver margin was negative for carcinoma cells, while tumor invaded peri muscular connective tissue on the peritoneal side without involvement of the serosa (visceral peritoneum). The remainder of the gallbladder mucosa showed changes of chronic cholecystitis and multiple gallbladder cystic diverticula (Rokitansky Aschoff sinuses).

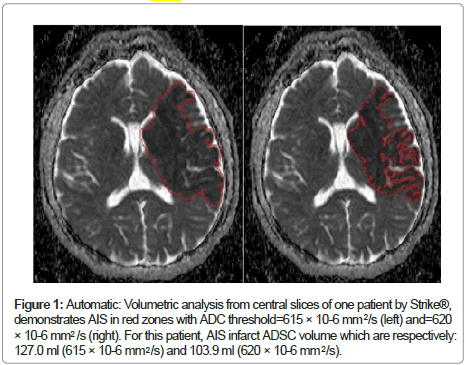

Figure 1: Automatic: Volumetric analysis from central slices of one patient by Strike^®, demonstrates AIS in red zones with ADC threshold=615 × 10^-6 mm /s (left) and=620 × 10^-6 mm /s (right). For this patient, AIS infarct ADSC volume which are respectively: 127.0 ml (615 × 10^-6 mm /s) and 103.9 ml (620 × 10^-6 mm /s).

Patients selection

We included 101 patients from THRACE (Figure 2) (Mechanical thrombectomy after intravenous alteplase versus alteplase alone after stroke a prospective, multicenter, randomized controlled trial comparing efficacy and adverse events of IVTMT versus intravenous thrombolysis and alone in patients who presented an anterior circulation stroke by LVO. A central medical ethics committee approved the THRACE trial protocol and consents form. Additional inclusion and exclusion criteria have been reported previously [7]. We included in this post- hoc study all patients randomized in THRACE undergoing a Magnetic Resonance Imaging (MRI) at admission, and we excluded 21 patients because their ADC map was too artefact and our software Strike^® could not calculate a relevant infarct lesional volume and one patient because we didn’t have all data characteristics.

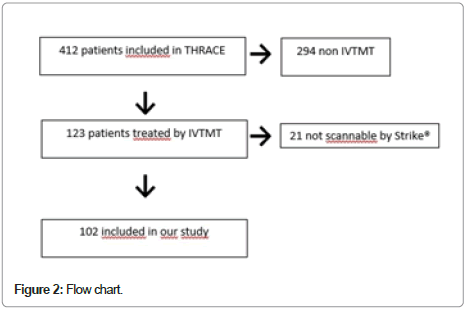

Figure 2: Flow chart.

Relationship between ADC thresholds and obtained volumes

The median of ADC tissue volumes obtained were: Sphere^® (600 × 10^-6 mm /s)=37.4664 ml (3.4712 DS), Strike^® (615 × 10^-6 mm /s)=31.3464 ml (3.4712DS) and Strike^® (620 × 10^-6 mm /s)=26.4188 ml (3.5061DS). Figure 3 shows that these results are highly comparable. Bonferoni analysis revealed also that the ADC tissue volumes decreased slightly with increasing threshold (Table 2).

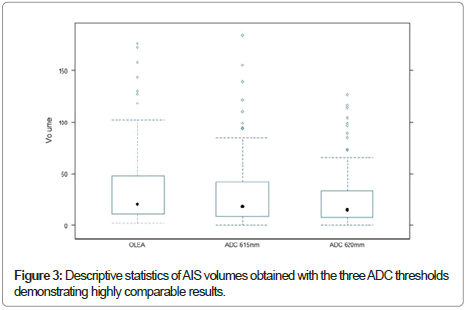

Figure 3: Descriptive statistics of AIS volumes obtained with the three ADC thresholds demonstrating highly comparable results.

For the support of a therapeutic decision, the absolute ADC volume differences (95% CIs) for each threshold were: Sphere^® (600 × 10^-6 mm/s) and Strike^® (615 × 10^-6 mm /s)=6.1200 ml (p-value: 0.6405 [-5.6988, 17.9389]), Sphere^® (600 × 10^-6 mm /s) and Strike^® (620 × 10^-6 mm /s)=-11.0476 ml (p-value:0.0776 [-22.9260, 0.8308]) and Strike^® (615 × 10^-6 mm /s) and Strike^® (620 × 10^-6 mm /s)=-4.9276 ml (p-value: 0.9562 [16.8060, 6.9508]) (Table 3).

Predictive of the impact on clinical outcomes

From the multivariate logistic analyses, the observed association between ADC 600 mm /s (Olea^®) and functional outcome remained significant (p=0.0448). ADC 615 mm /s and ADC 620 mm /s remained not statistically significant (Respectively p=0.0987 and p=0.0692).

In our study, we didn’t find significant difference between mean AIS volumes using three different ADC thresholds and two software. However, a discrepancy on prognosis prediction using volumes computed by these three different thresholds has been highlighted.

MRI-based selection of patients for acute stroke interventions requires rapid accurate estimation of the infarct volume which is of great importance as it impacts on patient selection [2], eligibility for reperfusion procedures and in the evaluate of the risk of haemorrhagic transformation.

Two methods are typically used for identifying AIS volumes: the DWI stroke volume which corresponds to the abnormally hypersignal intensity areas on DWI sequence and the abnormal signal based on the threshold of the ADC computed map. About the latter, there are several currently available tools for the measurement of ischemic core using different diffusion coefficient ≤ 620 × 10^-6 mm / (10)/s or 600 × 10^-6 mm /s [11]. In some reports, patients with ADC infarct core volumes >70 cm , which depends of the ADC threshold used, or an infarct volume above a specified cut-off volume have been excluded from trials of endovascular treatment [12].

Frequent diverging thrombectomy decisions were observed when applying DAWN criteria, using 9 commonly used tools for the measurement of infarct volume, despite a high agreement [13,14].

Spatial estimation of penumbra tissue is also of great importance as it impacts on eligibility for reperfusion procedures and in prediction of complications, especially malignant infarct [15].

Recently, concerning RAPID^® and Olea Sphere^® at least, a study proves that thresholds used for ADC ischemic core volumes and diffusion/perfusion mismatch volume segmentation may lead to significantly different result in the individual patient and may thus seriously influence the decision for or against mechanical thrombectomy [16].

We hypothesize that the discrepancy in our finding on prediction of clinical outcomes using AIS volumes is due to the overestimation of the ischemic core using a low ADC threshold. The concept of ischemic core is now debated and the notion of “severely ischemic tissue with uncertain viability” seems more appropriate for the burden of death cell and because validated measures and irreversibility injured tissue imaging parameter are lacking.

In our study, some limitations have not allowed us to demonstrate statistically significant predictiveness of ADC volumes on functional prognosis.

Apart from technical concerns, which forced us to exclude 21 patients, the sample size was relatively small to demonstrate a predictability of the functional prognosis of the ischemic core volumes evaluate by ADC maps while several studies show it for all ADC thresholds.

Due to its retrospective design, it should be cautious about variability of institutional imaging protocols.

In addition, only two software packages were investigated and applied different segmentation algorithms for calculation of ADC maps.

Furthermore, additional calculation of the spatial overlap between lesions was not performed.

More studies will be necessary comparing more thresholds and automatic software AIS volumes to validate suggested predictive functional power.

ADC thresholds computed by two software, from 600 to 620 × 10^-6 mm², for the measurement of acute infarct volume are highly comparable. However, a predictability of the functional prognosis for patients with acute ischemic stroke treated by mechanical thrombectomy combined with intravenous thrombolysis was not demonstrated for all of three thresholds due to an overestimation induced by a low threshold.

Authors have nothing to disclose.
