Geochemical Evidence for Provenance, Tectonic Settings and Presence of Gas Hydrate in Mud Volcano Sediments of Andaman Islands

Vignesh A^*, Ramanujam N, Rasool Q and Swapan KB

Department of Disaster Management, Pondicherry University, Andaman Islands

*Corresponding Author:

Vignesh A
Department of Disaster Management
Pondicherry University, Andaman Islands
Tel: +91 9434263194
E-mail: vignesh@live.com.sg

Received December 10, 2015; Accepted January 28, 2016; Published February 28, 2016

Citation: Vignesh A, Ramanujam N, Rasool Q, Swapan KB (2016) Geochemical Evidence for Provenance, Tectonic Settings and Presence of Gas Hydrate in Mud Volcano Sediments of Andaman Islands. Oil Gas Res 2:111. doi:10.4172/2472-0518.1000111

Copyright: © 2016 Vignesh A, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Oil & Gas Research

Abstract

Abstract Mud volcanoes are one of the land / seafloor expressions of the expulsion of argillaceous material from deeper areas, generated by an extrusion activity involving the transfer of sediments, liquids and gas from subsurface to the land / seafloor. Eruption of mud volcano has been recorded historically in 1843, 1879, 1907, 1983, 2003, and 2004 in Bara tang in Middle and Diglipur in North Andaman Islands. Exceeding of threshold pressure of pressured gas and/ or liquid breaks upward through the overlying sediment frequently following existing zone of weakness and flow out sub aerially or subaqueous condition. Venting structure of mud volcanoes are the most important natural seepage features with fluid, gases and sediments from the earth’s surface. Most of the terrestrial mud volcanoes are located in convergent plate margin with thick sedimentary sequences as seen in Alpine-Himalayan, Caribbean and Pacific organic belts. The occurrence of mud volcanoes is controlled by several factors, such as tectonic activity, sedimentary loading due to rapid sedimentation and the existence huge thickness of fine-grained sediments and continuous hydrocarbon accumulation. Tectonic setting discrimination diagrams based on major, minor and trace elements suggest a shale provenance in an oceanic island arc. The correlation of K2O with other elements, abundance of Al2O3, Ba, Th suggest that these elements are primarily controlled by the dominant clay minerals. The compositional immaturity of the analyzed mud volcano sediments is typical of sub ducted-related environments, and their SiO2/Al2O3 and K2O/Na2O ratios reflect their oceanic island arc settings.

Keywords

Mud volcano; Gas hydrates; Tectonic provenance; Tectonic setting; Andaman islands

Introduction

Mud volcanoes are the world’s most dynamic unstable sedimentary structures and their geomorphic expression at the surface vary significantly. A variety of geomorphological expressions of mud volcanoes have been identified from different parts of the world in the onshore and offshore [1-3]. The typical and simplest morphology of mud volcanoes is represented by a cone with a summit crater. Their size and shape vary in relation to the nature [viscosity, density, grain size] of the emission products, the nature and frequency [slow, rapid, or even explosive] of the emissions, and the volumes of the material and fluids produced [3,4]. Mud volcanoes typically emit a mixture of gas, water, and sediment derived from deep seated rocks. The nature and relative proportions of these products affect the shape and size of the surface feature of mud volcanoes [3-5]. The main component of the emission products of a mud volcano are in the form of a liquid mud containing clasts [mud breccia] and gases. Individual fragments, which may be angular or rounded, range in diameter from a few millimetres to boulders, derived from different stratigraphic layers, from greater depths. Hydrocarbons are the dominant gases [mainly methane] emitted by the mud volcanoes, which might have been generated by microbial or thermogenic origin [5]. Methane emissions from mud volcanoes may be partly associated to methane-dependent biological habitats, around the feeder of the mud volcano Mud volcanoes have been identified on seismic sections as vertical features, with a seismically transparent or chaotic internal character, which disrupt or pierce through sediment strata. Collier and White [6] suggested possible explanations for the seismic transparency: the physical disruption of the sediment layers, ‘overwriting’ of the layering by concentrations of gas, and/or acoustic signal starvation caused by the presence of gas, gas hydrates, or methane derived authigenic carbonates at or near the seabed. Many of the mud volcanoes show a typical “Christmas Tree” structure on reflection seismic cross sections due to the stacking of mud flow edifices suggested by [7-9] but not all of them. Due to its internal structure, the mud volcanoes in Andaman Island are referred to as a sedimentary diatreme [10]. Besides the visible surface feature [cone and crater], mud volcanoes have a subsurface feeder pipe or channel that may have subsidiary feeder pipes, which determine its plumbing system. Normally, the feeder pipes are not single entities feeding an individual mud volcano but instead show a composition of feeders [11]. Mud volcanoes are common features in fore arc region. Apart from the main fault of the subduction zone, i.e. the decollement fault along which the two plates come into contact, there exist numerous faults along the convergent margin. Some of these faults acts as pathway and play an important role in the formation of mud volcanoes. These faults help to release high pressurized gas along with fluidized solid materials from the subduction zone through deep conduits and serve as a window of subducting slab. The diameter of mud volcanoes ranges from a few centimeters to several meters; predominantly locate in areas of tectonic compression like the subduction zones. Seismic pumping is the main factor that enhances the ejection of mud, water and gas to form mud volcanoes.

The conditions for the development of mud volcanoes [1]

• Thick sedimentary deposits with rapid sedimentation of argillaceous materials.

• The presence of plastic stratum in the subsurface.

• Availability of over pressured sedimentary formation to generate hydrocarbon.

• Sediments deposits associated with tectonic shortening and/or earthquake activity to enhance dehydration.

• Fluid emissions of gas, brines, water retrieved from mineral dehydration sources to increase the gas hydrate dissociation.

• Compressional faults and active tectonic settings are necessitating for clustering of mud volcanoes.

• For ease ejection of argillaceous mud fraction in the mud volcanoes, polymictic assemblages of the rock fraction are essential.

As the present study area is located on the sites of the collision plates, where abnormal pore fluid pressure are developed due to expanding gases trapped inside the plastic clays and other internal processes. The geochemistry of the mud volcano sediments provide important information about the sediments of subducting slab along with composition of deep seated series and can be used for revealing the evolution of the Andaman subduction zone. The geochemical analysis can also hint for the nature of their source, provenance, tectonic settings and weathering conditions. Some researchers emphasized that major element geochemistry of the sedimentary environments are more useful in discriminating the tectonic setting [12,13]. However, Armstrong- Altrin and Verma [14] have warned against an indiscriminate use of discrimination diagrams for provenance studies using major element geochemistry. The trace elements such as La, Sc, Cr, Th, Zr, Hf and particularly TiO₂ among the other major elements are best suited for provenance and tectonic setting discriminate studies, because of their relatively low mobility during sedimentary process [15]. Weathering conditions have been inferred by application of a variety of chemical indexes based on abundances of major elements [16].

Geological Setting of Andaman Islands

The tectonic evolution of Andaman and Nicobar Islands has been modelled on the basis upon the following component such as i] tectonic features noted from the Sea floor [17]. ii] seismic records [18] and iii] regional correlation of tectonic elements of the eastern part of the Himalaya [19]. The history of subduction in the central part of Sunda arc has been a matter of debate. There exist two schools of thoughts. The first school Acharyya et al., [20] argues that the present subduction, all around the western Sunda arc, began during Miocene times and onland emplacement of Ophiolites took place during terminal collision in Oligocene times. In their model, a second trench further east of the present trench with a proto continent was assumed. Also, Cretaceous Ophiolites and Eocene sediments were considered as a part of this accretionary prism related tNo second subduction margin and believed to have subsequently emplaced as east to west propagating allochthonous nappe sheets on present subduction margin. The second school of thought is based on the presence of melange and the highly deformed sediments. These authors suggest that the onset of subduction took place during Late Cretaceous times, after the early break-up of the Gondwanaland during Cretaceous Curray [17] or from Late Palaeozoic period [21,22]. The currently accepted stratigraphy of the Andaman Islands is based on the earliest lithological mapping done by Oldham [23]. Who first divided the rocks of Andaman into two parts; older Port Blair series and younger Archipelago series, separated by volcanic rocks and serpentines, later recognized as an Ophiolites sequence. In 1960s paleontological constraints were used to identify the Paleocene-Neogene lithostatigaphic units and subsequently in last five decades the stratigraphy has been modified and formation names have been changed. Allen et al. [24] divided the Andaman Island stratigraphy into four groups. Accordingly, the present stratigraphy now comprises of four units, which, in ascending order, are the Ophiolites Group, the Mithakhari Group, the Andaman Flysch Group, and the Archipelago Group.

Ophiolite group

The Ophiolite Group forms the basement of the Andaman Islands, a part of the Indo-Burma accretionary complex. It contains numerous north-south trending slices of Cretaceous-Palaeocene Ophiolites. The group is made up of a plutonic complex, a volcanic sequence and pelagic sedimentary rocks. Pal and Bhattacharya [25] developed regional Ophiolites stratigraphy on the basis of local contact relationships. They reported that the lower part of the group [80% of the total outcrop] comprises foliated and highly serpentinized peridotite. The upper part comprises a layered sequence of ultramafic-mafic rocks, and intrusive section of homogenous gabbro-plagiogranite-diorite - dolerite and an extrusive section of boninite and tholeitic basalt lavas. Although Ophiolite occurrences are reported from almost all the major Andaman Islands, but the largest volume of mantle sequence is exposed in Middle and North Andaman Islands Pal [25]. The age of Andaman Ophiolites and the timing of their obduction remain controversial. In a couple of studies recently, two independent groups of researchers, dated zircon from plagiogranites of the Ophiolite Group from south Andaman by U-Pb dating method, and suggested that the formation age of these could not have been younger than~95 Ma [26]. These workers also suggested that the new age of Andaman Ophiolites is similar to that of the Oman and Troodos, Cyprus Ophiolites and that it extends the range of Late Cretaceous Ophiolite formation along the Tethyan suture zones from the Mediterranean to the Andaman Sea. The similarity in age between the Troodos, the Oman and now the Andaman Ophiolite seems best explained by a suprasubduction zone origin Pal [27].

Mithakhari group

Karunakaran [28] was the first geologist who introduced the term Mithakhari Group. The thickness of this sedimentary unit is ~1.4 km, and is divided into three formations Ray [28]: i] the Lipa Black Shale, ii] the Hope town conglomerates and iii] the Namunagarh Grit. The Lipa black shale is a minor unit with very limited exposures [29]. The rocks in this group consist of immature gravels, pyroclastic sandstones, polymictic conglomerates and thin bed shales, mudstones and coal. Pal et al. [30] recognized eight different lithofacies in these formation on the basis of the bed geometry and recorded sedimentray structures. These lithofacies include disorganized and graded matrix supported conglomerate, graded pebbly sandstone, interbedded sandstone and mudstone, massive to faintly laminated shale and interbedded shale and coal. The conglomerates contain clasts of quartz vein, lithic shale fragments, limestones, sandstones, cherts, ultramafic rocks, porcellinite and basalts. The shale facies consist of massive to laminated pyritiferous shale interbedded with silt/fine sandstone. Apart from above a number of mud volcanoes are also reported in the Middle and North Andaman Islands in shale dominated facies of the Mithakhari Group (Figure 1).

Andaman Flysch

The Andaman Flysch Group along with the Archipelago Group are deposited in a forearc environment. The Andaman Flysch Group overlies the Mithakhari Group and underlies the Archipelago Groups. The Andaman Flysch Group is a siliciclastic turbidite sequence which most completely exposed in South Andaman.

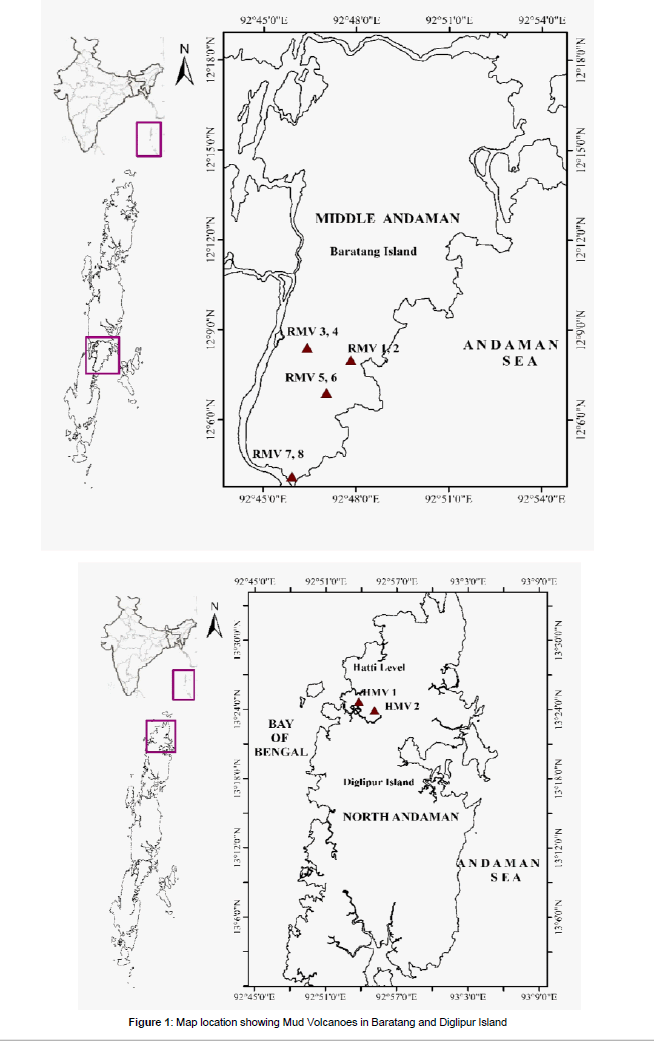

Figure 1:Map location showing Mud Volcanoes in Baratang and Diglipur Island.

Archipelago group

Archipelago Group represents the topmost stratigraphic unit of the Andaman accretionary prism. The deposition of the unit was believed to have taken place mostly in a slope environment Roy [31]. The lower members of this group comprise basal conglomerates and sandstones, overlain by calcareous arenites of the Strait Formation. On the basis of Radiolarian and planktonic forminiferas and calcareous nano fossils form John Lawrence Island Singh et al. [32] reported depositional ages for this group in the range of 18.3-15.6 Ma, but Pal et al. [33] has argued for a younger age.

Study of Mud Volcanoes in Andaman Islands

The eruption of mud volcanoes and throwing of mud above the height of the surrounding trees have been witnessed in Baratang Island of the Middle Andaman, and from Diglipur Island in the North Andaman at the time of 2004 Great Sumatra - Andaman Earthquake with Mw 9.3 Geological Survey of India [34]. Present study is concentrated over mud eruption spread over in the areas at Rajathgarh, [N12Ã?Â?07 19.76 E92º45 37.52] Pusi [N12º047 20.35 E92º76 01.26] and at Mirchtikkri [N12º0746.82 E92º47 31.23] at Baratang Island and Hatti Level [N 13°24.894’, E 92°53.579’] at Diglipur (Figure 2). These mud volcanoes are located along fault zones trending mainly in NE-SW at Baratang and NNW-SSE direction at Diglipur. The NE-SW aligned faults are part of the imbricated thrust sheets that dip eastward, parallel to trench axis of the subduction zone. The diapiric ascent of fine sediments pierced through these faults is believed from compressional forces resulting from overthrusting Badve et al. [35] Ling et al. [36]. These thrust faults provide the pathways for the material transport pierced through the accretionary wedge to form the mud volcanoes at the surfaces. These faults are probably from the continuation of East Margin Fault Curray [37] and extended further north as the Jarawa Thrust Fault. Mud volcano eruption at Baratang and Diglipur was observed in February 2003. A minor fissure eruption was also recorded at the same site before 1983. This type of fissure eruption are common in Baratang Island, where mud and gases are constantly seeping out. Subsequently major eruptions have been reported in March 1983 and December 2004. The eruption of mud has covered vast area and forming of circular mound more than 30 m in diameter and 2 to 3 m in height at centre. The main crater is submerged under the grey coloured solidified mud. The ejected mud contains angular and sub rounded rock fragments of sandstone, red and green shale fragments, serpentine and Ophiolites. The colourless gas is constantly emitting from the mud volcanoes. The analysis of the constitution of the gas reveals the following gases CH₄ [55.7 vol. %] followed by N₂ [32.2%], O2 + Ar [9.9%], CO₂ [2.0%] and He [0.2%] at Baratang Island. Volcanic glass, brines, and sulfide nodules in addition to the dominant illite and kaolinite were reported in the mud volcanoes in Baratang Island, Jarawa Creek and the mud volcano of Diglipur Island [38]. Before the major earthquake the eruption from fissure mud volcano were observed at many places in middle Andaman. Mud volcano near the Jarawa creeks at middle Andaman erupted with loud explosive noise before the 2004 major earthquake. Individual mud volcano are observed with various size and shape in the areas of Rajatgargh, Katan and Mirchitikiri in Baratang Island and Hatti level in Diglipur Island. About 13 and 11 active mud volcanoes are identified at Baratang and Diglipur Islands. The eruption of mud volcanoes along the cracks / fissures are oriented in NE-SW direction in Baratang Island and NW-SE direction in Diglipur Island. Mud volcanoes in these area erupted with various sizes of sedimentary rocks and Ophiolites group of rocks along with mud fractions. Mud breccia in the study area are easily related to the regional geology and the clay or shale bearing lithology at depth. It is clearly seen that the mud volcanoes in these regions are acting as a tectonic windows for visualization of various types of rock material present at the deeper level. From these observation, it is seen that the sources of mud volcanoes such as liquid, gases and sedimentary clast had been derived from the various depth and sources. Since the study area of the Baratang and Diglipur Island are in the close proximity to oblique subduction zone due to tensional and transtenstional tectonics grooming of mud volcanoes in Baratang and Diglipur been evolved due to the proximity of these sites very closer to oblique subduction zone.

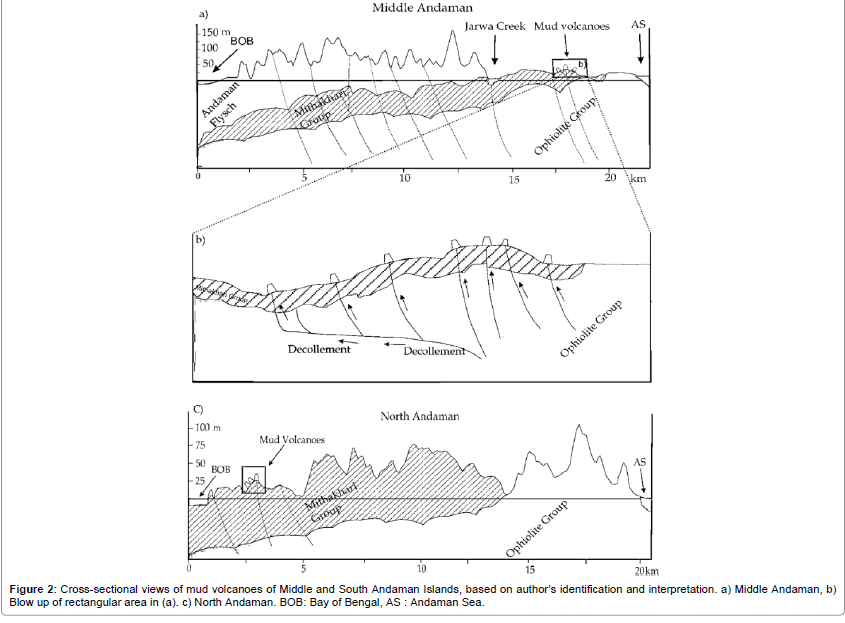

Figure 2:Cross-sectional views of mud volcanoes of Middle and South Andaman Islands, based on author’s identification and interpretation. a) Middle Andaman, b) Blow up of rectangular area in (a). c) North Andaman. BOB: Bay of Bengal, AS : Andaman Sea

Geomorphology of Mud Volcano

Andaman and Nicobar Islands are experiencing heavy rainfall of 3000 to 4000 mm/year. So rainfall washed all the mud volcano features and geometrical shaped. After the rainfall, once again the mud volcano starts from the beginning to build then shape and increase their sizes. Analysis of morphological features of the various craters in the study area reveal that there was no permanent existence of single crater continued in the past. The thick accumulation of the erupted mud around the edifice of the mud volcanoes increases the height and change the shape into conical shape. The craters changed configuration and resulted in several small satellite cones. Most of the crater of the mud volcanoes are subsequently submerged due to the invasion of the other crater. Conical, plano convex and concave collapse structure of mud volcano are observed in Hatti Level in Diglipur. The conical shaped mud volcano ejects thick mud flow with gases matter than the water. The plano convex shaped mud volcano ejects more equal proportion of mud, gas and water. This type of mud volcanoes are located in Baratang and Diglipur. The mud volcano of concave collapse structure at Diglipur ejects more of water than mud and gases. This type of mud volcano can be called as a new volcano which is ejecting high amount of water due to overpressure. However, some of the mud volcanoes at Diglipur regions erupt voluminous low viscous mud flows very frequently and spread over the surface area are certainly hazardous for human beings and animals. The shape of mud volcano feature at Diglipur area reflects some extent, that physical properties of the extruded materials as more viscous have to ultimately increase the width of the conduit in order to facilitate for eruption. Whereas the mud volcanoes at Baratang are found as more fluidity and eruptions are spread out easily so that width of the conduit has not been increased. Surface expression of the mud volcano is variable and depend primarily on the mud fluid content and extrude mud. Mud with low viscosity form cohesive mud with fluid content can give rise to mud volcano. The extrusion of mud flow with various shape and size at Diglipur differs from the Baratang mud volcanoes. Sometimes the craters of the peripheral cones of the mud volcanoes are covered with overflows. The mud volcano contains bubbles with erupted gases. The ejection of mud in Diglipur mud volcano is accompanied by an unusual gurgling sound which is not heard at Baratang mud volcanoes. If a stone is hurled into the mud reservoir, a weird and bizarre sound echoed through the air. Mud volcano which erupts violent and noisy effusion of mud. The mud volcano had unexpectedly become dormant. Sometimes an inactive crater rejuvenates its activities and also active crater become inactive at some places. The volume of erupted materials from the mud volcanoes of Diglipur are comparatively more than the Baratang mud volcanoes (Figure 3).

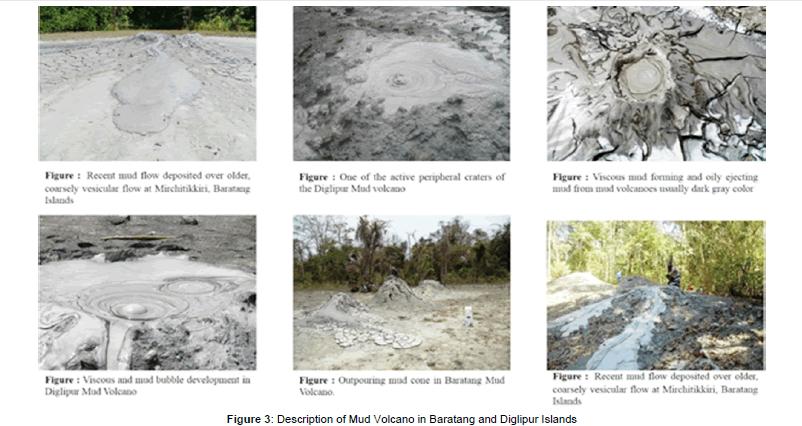

Figure 3:Description of Mud Volcano in Baratang and Diglipur Islands.

Methods

Geochemical characterization of mud sediments to describe the various geochemical, geodynamic and sedimentological parameters such as provenance, tectonic setting, and conditions of formation and sources of weathering. 8 mud samples from Baratang Islands and 7 mud samples from Diglipur Islands were collected. During this study, proper care was taken to avoid any metal contamination while powdering the samples. Prior to powdering sample were thoroughly cleaned [repeatedly with HCl and Ethyl alcohol]. Powdering was done using agate mortar and pestle. The samples were powdered to less than75 micron size [200 mesh.], homogenized and stored in plastic bottles. The major oxides [SiO₂, TiO₂, Al₂O₃, Fe₂O₃, MnO, MgO, CaO, Na₂O, and K₂O and P₂O₅] were analyzed using X- Ray Fluorescence [XRF] spectroscopy method (Tables 1 and 2).

Results

The mud volcanoes in the Baratang and Diglipur in the vicinity of fault have become active and erupted huge amount of mud flows at the time of Great earthquakes . Seismicity reactivated the mud volcanoes and erupted the muds along the faults as conduit. Over pressured multiphase pore fluids mainly water and methane are incorporated to make the mud as a semi - liquid and forced up through fissures in the crust and producing an out flowing mass of mud on the surface. Due to the effects of tectonic activity, geological structures of Andaman Island are largely oriented in N -S direction. Furthermore, the intense mountainbuilding activity, faulting and folding have occurred throughout the Island. Paleogene extensional fault system [NW- SE, N-S and NE-SW direction] and Neogene [Upper Miocene] compressional fault system oriented in NE-SW direction. These mud volcanoes are located along fault zones trending mainly in NE-SW direction in Baratang Island and NW-SE direction in Diglipur Island. The N-S aligned faults are part of the imbricated thrust sheets that dip eastward, parallel to trench of the subduction zone. The diapiric ascent of fine sediments through these faults is believed to be due to post-Eocene compressional forces resulting from over thrusting Badve and Ling [35,36]. These thrust faults provide the pathways for the material in the accretionary wedge to come up through the mud volcanoes. The most favourable source rock for formation of mud volcano in the Late Cretaceous-Late Eocene age, comprising of shale, silt, sand, carbonaceous shale, limestone belonging to Mithakhari Group of rocks The free gas diffusion through clay or silt as a function of the median pore and kinematic diameter of gas molecules has developed ‘shale gases ’even over impermeable shale section [39]. The amplification of overburden pressure owing to accretionary wedge setting and thrusting of off scraped material in Andaman Sliver Plate enhanced the pathways for migration of fluids through the system. Strain hardenings at depth [2.5-3 km] furnish a characteristic scaly fabric to mud for migration of gas saturated brine. While, the strain softening of these formation in the upper part [1.0- 1.5 km] has allowed dissolved gas to rapid expansion as it comes out of solution and developed migration pathways to the surface through lines of weakness prevailed to extensional tectonic over the top of the underlying diaper Ware and Ichram [40]. The overpressure which gives rise to the mud volcanism also causes increased expulsion efficiency. In the clay rich sediments the hydrate may occur in veins or fracture and be better represented by HS upper bound where resistive material occur in sheets impeding currents flow through the matrix fluid.

Table 1: Concentrations of the major element oxides and Trace element composition of Mud Volcano, in Baratang, Middle Andaman Islands.

Table 2: Concentrations of the major element oxides and Trace element composition of Mud Volcano, in Hati level, Diglipur, North Andaman Islands.

Chemical composition and conditions of formation

TiO₂ concentrations increase with Al₂O₃ [r = 0.40 in Baratang Mud Volcano and r = 0.08 in Diglipur Mud suggesting that TiO₂ is probably associated with phyllosilicates especially with illite Dabard [41] (Figure 4). Al₂O₃, Th, elements have clear correlation coefficients with K₂O [r = 0.81 for Al₂O₃ and r = 0.80 for Th in Baratang Mud Volcano and r = 0.94 for Al₂O₃ and r = 0.47 for Th in Diglipur Mud Volcano] suggesting that the absolute abundances of these elements are primarily controlled by Ramasamy [42] (Figure 5). Fe₂O₃ + MgO are also correlated with Al₂O₃ [r =0.73 in Baratang Mud Volcano and r = 0.96 in Diglipur Mud Volcano]. The latter correlation implies that these oxides are associated with phyllosilicates, particularly in matrix chlorites (Figure 6). The ferromagnesian trace elements [Co,Ni andSc] relationship illustrate the chemical coherence and uniformity of the mud volcano sediments. Cobalt and Sc abundances show significant correlation with Ni and Al2O3 [r =0.38 in Baratang Mud Volcano, r=0.76 in Diglipur Mud Volcano and r=0.17 in Baratang Mud Volcano, r = 0.92 in Diglipur Mud Volcano] inferring that Co and Sc are partly controlled by Chlorite and other accessory non-aluminous silicate minerals [43] (Figures 6 and 7). Ba have high correlation with Al₂O₃ [r = 0.68 in Baratang Mud Volcano sediment and, r = 0.85 in Diglipur Mud Volcano]. These correlation suggest that their distributions are controlled by Kaolinitic and Montmorillonite phyllosilicate phases (Figure 8). The K₂O/Al₂O₃ ratio of sediments can be used as an indicator of the original composition of ancient sediments. The K₂O/Al₂O₃ ratios for clay minerals are different 0.0 to 0.3, 0.3 to 0.9, respectively; Cox et al. [44]. The average K₂O/Al₂O₃ ratio for the mud samples of Baratang Mud volcano vary from 0.12 to 0.13 and Diglipur Mud volcano vary from 0.11 to 0.14. In most of the samples, the K₂O/Al₂O₃ ratios are close to the upper limit of the clay mineral range, which suggest that the illite is the dominant clay mineral in these mud volcanoes (Table 3). The chemical data of the mud samples were plotted on discrimination diagrams like Garrels and McKenzie’s Na₂O/Al₂O₃ vs.K₂O/Al₂O₃ diagram. The samples dominantly plotted in the sedimentary field on the Na₂O/Al₂O₃ vs.K₂O/Al₂O₃ diagram, thereby confirming that the sediments are largely of sedimentary origin (Figure 9).

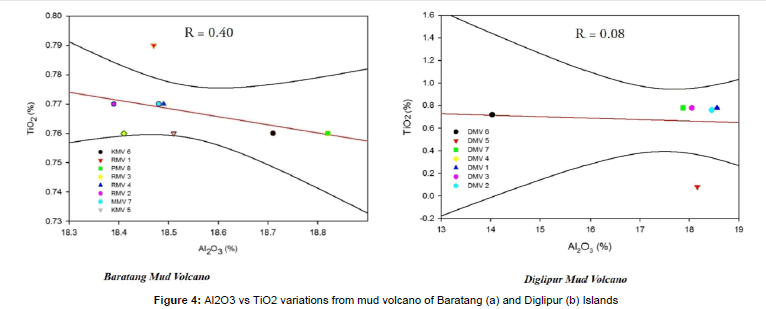

Figure 4:Al₂O₃ vs TiO₂ variations from mud volcano of Baratang (a) and Diglipur (b) Islands

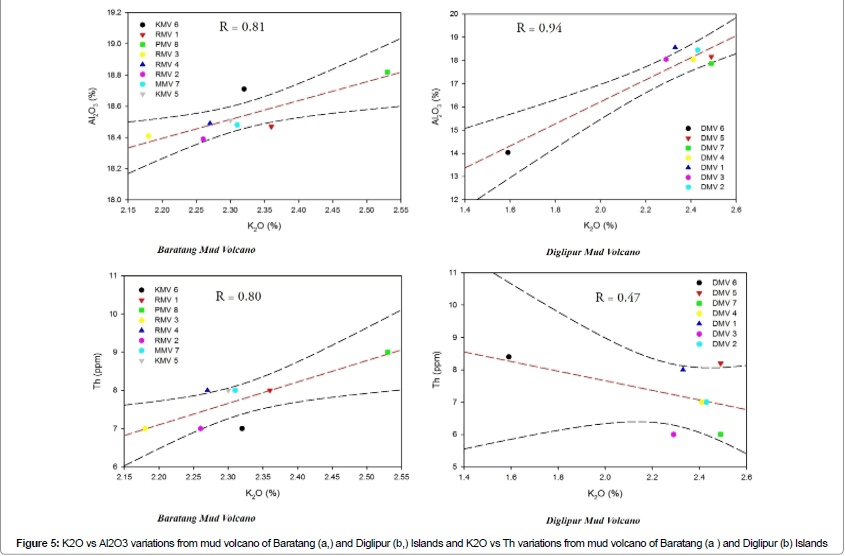

Figure 5:K₂O vs Al₂O₃ variations from mud volcano of Baratang (a,) and Diglipur (b,) Islands and K₂O vs Th variations from mud volcano of Baratang (a ) and Diglipur (b) Islands.

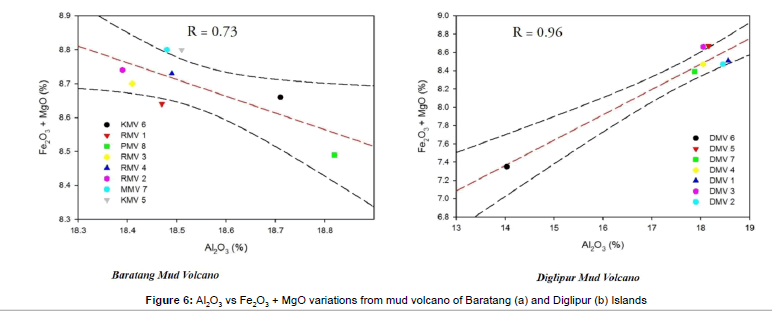

Figure 6:Al₂O₃ vs Fe₂O₃ + MgO variations from mud volcano of Baratang (a) and Diglipur (b) Islands

Figure 7:Ni vs Co variations from mud volcano of Baratang (a) and Diglipur (b) Islands and Al₂O₃ vs Sc variations from mud volcano of Baratang (a) and Diglipur (b) Islands

Provenance of sediments and tectonic setting

Several classifications have been proposed to discriminate from various origins and tectonic settings and are good indicator of provenance Rosher [13]. Plate-tectonic setting discrimination of ancient sedimentary basins are usually accomplished using major trace element bivariate and multivariate plots. The ratio of SiO2 versus K₂O/Na₂O provides a tectonic-setting discriminator for sandstonemudstone suites Rosher [13]. As expected from prior knowledge on the tectonic setting of the Mud Volcano formation in Andaman Islands, a SiO₂ versus K₂O/Al₂O₃ diagram (Figure 10) clearly shows the Mud Volcanoes sediments of Baratang and Diglipur are in Oceanic Island Arc field defined by Roser and Korsch [13]. Another Discrimination of tectonic settings on the basis of major element data was also proposed by Bhatia [12]; most of the sediments fall in the general area of Oceanic Island Arc of the TiO₂ versus Fe₂O₃ + MgO plot (Figure 11)

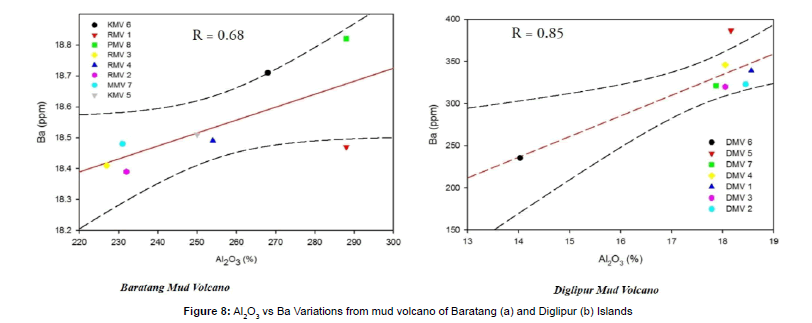

Figure 8:Al₂O₃ vs Ba Variations from mud volcano of Baratang (a) and Diglipur (b) Islands.

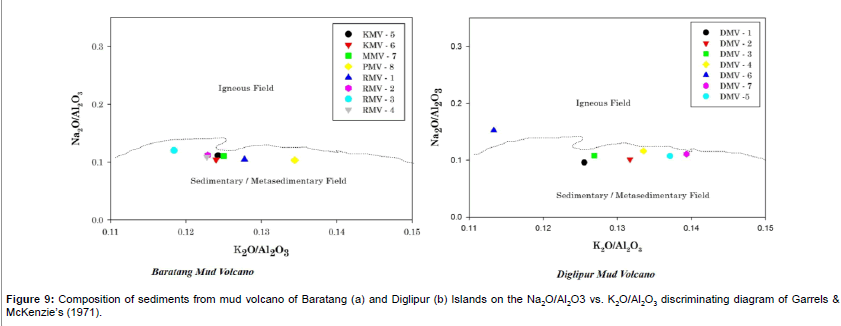

Figure 9:Composition of sediments from mud volcano of Baratang (a) and Diglipur (b) Islands on the Na₂O/Al₂O₃ vs. K₂O/Al₂O₃ discriminating diagram of Garrels & McKenzie’s (1971).

Two ternary plots, in which the highly incompatible elements Th and Zr are plotted against the highly compatible elements Co and Sc, have been used by Bhatia [12], (Figure 12). The analysed samples plot in the fields for oceanic island arc and continental island arc, with generally high Zr/Th ratios and moderate abundances of Co and Sc. The compositional range is correlated with four plate boundary settings: 1] oceanic island arc [= modern fore arc], 2] continental island arc [= modern back arc], active continental margin [= modern leading edge], 4] passive margin [= modern trailing edge], when the compositional fields of Herron [45]. The scattergram log [Fe₂O₃/K₂O] versus log [SiO₂/Al₂O₃ ] discriminates tectonic environments, particularly oceanic island arc, which is located in field labeled “Shale” (Figure 13).

Conclusions

Study of subduction zone is very active field of research because it is known as our planet’s largest recycling system. The subducting slab deliver raw materials such as oceanic lithosphere along with oceanic sediments and Sea water to the subduction factory, where these raw materials reequilibrate with ambient mantle, triggering melting and incidentally crating continental crust on the overriding plate. A special type of geological feature which occur in these zone known as ‘Mud Volcanoes’ bring materials from subducting slab can throw some light on the chemistry of subducting slab. In this context the present study is an attempt to understand the geochemical properties of mud volcanoes in the study area of Baratang and Diglipur in Andaman Islands. From the geochemical analysis it is clearly seen that the minerals like Smectite-illite-kaolinite-chlorite-quartz-calcite assemblage derived from the oceanic crust and originates from a deep environmental conditions. The presence of Smectite and illite indicate that these sediments were derived from the depth zone of 2 to 6 km within the Andaman forearc. Based on all the evidences we conclude that the sampled mud volcano originated at the plateboundary décollement zone, and the sediments and altered oceanic crust of the subducting Indian plate. The clay minerals present in the mud volcano samples from Baratang and Diglipur shows that Smectite group of clay minerals [Montomorillonite] are dominant in the mud sediments and serpentine with lesser amounts of chlorite clay mineral are present. Quartz with minor amount of calcite, feldspar, pyrite, dolomite [carbonatites and ultramafic], Aerinite [formed at relatively low temperature in fractures cutting mafic rocks], Pyrargyrite [lowtemperature mineral; also formed by secondary processes] and illite are also observed in these clay minerals. In the accretionary complexes in Andaman forarc zones, the clay dehydration at depth generate over pressure and alteration of hydrated clays [such as illite, chlorite or other interlayered clay minerals] takes place at the depth of 2 to 6 km. The montmorillonite mineral is having 2:1 interlayer which can host the methane hydrate. Apart from this mineral other clay minerals such as smectite, illite, chlorite or kaolinite are also identified in the mud sediments can be called as a Silicaclatharates. These types of minerals of having framework with cages like voids. These voids are occupied by traces of low temperature hydrothermal thermogenic natural gas hydrates. From the geochemical studies, evaluation of these methane bearing clays at depths are identified. From the study it is seen that the Mud volcano eruptions are driven by the release of high pressurised methane gas from the dissociation of gas hydrates deposits at depth. Mud source beds typically occur at depths of 1-3 km [3,11]. Gas emissions from onshore mud volcanoes are composed primarily of methane [70-99%] and CO₂ [46,47]. Submarine mud volcanoes emit methane and CO₂ along with other hydrocarbons, sulphur, and noble gases.

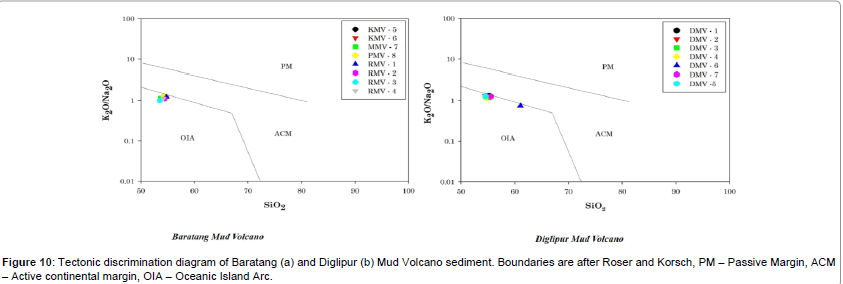

Figure 10:Tectonic discrimination diagram of Baratang (a) and Diglipur (b) Mud Volcano sediment. Boundaries are after Roser and Korsch, PM – Passive Margin, ACM– Active continental margin, OIA – Oceanic Island Arc.

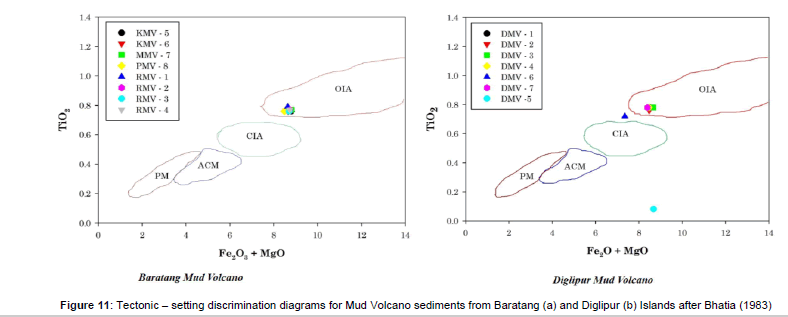

Figure 11:Tectonic – setting discrimination diagrams for Mud Volcano sediments from Baratang (a) and Diglipur (b) Islands after Bhatia (1983)

Table 3: The ratios of K₂O/Al₂O₃ of Batatang and Diglipur Mud Volcano sediments.

Acknowledgment

The senior author wishes to thank Ministry of Earth Sciences, Seismology Division, Government of India, New Delhi for the sanctioning of Research project and also acknowledge the facilities and permission accorded by Former Vice chancellor of Pondicherry University Prof. J. A. K. Tareen, and Current Vice chancellor of Pondicherry University Prof Chandra Krishnamurthy, Director, Dean and Registrar for constant encouragement and support.

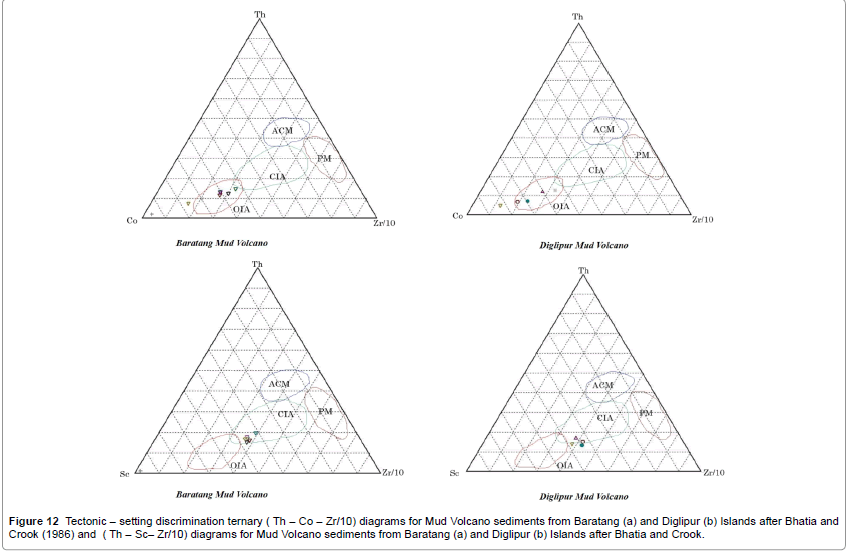

Figure 12:Tectonic – setting discrimination ternary ( Th – Co – Zr/10) diagrams for Mud Volcano sediments from Baratang (a) and Diglipur (b) Islands after Bhatia and Crook (1986) and ( Th – Sc– Zr/10) diagrams for Mud Volcano sediments from Baratang (a) and Diglipur (b) Islands after Bhatia and Crook.

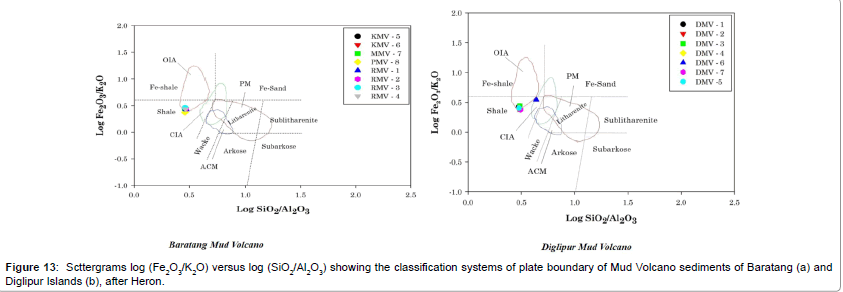

Figure 13:Scttergrams log (Fe₂O₃/K₂O) versus log (SiO₂/Al₂O₃) showing the classification systems of plate boundary of Mud Volcano sediments of Baratang (a) and Diglipur Islands (b), after Heron.
