  • Research Article
  • Adv Crop Sci Tech, Vol 10(2)
  • DOI: 10.4172/2329-8863.1000494

Exploring the Variation in Grain and Straw Yield and Straw Quality Traits of Improved Varieties of Tef [Eragrostis tef (Zucc.) Trotter]

Habte Jifar1, Kebebew Assefa1, Zerihun Tadele2, Kassahun Tesfaye3,4, Kifle Dagne5, Alemayehu Teressa Negawo6, Michael Blümmel6 and Chris S. Jones7*
1Ethiopian Institute of Agricultural Research, Debre Zeit, Ethiopia
2Institute of Plant Sciences, University of Bern, Altenbergrain 21, 3013 Bern, Switzerland
3Addis Ababa University, Institute of Biotechnology, Addis Ababa, Ethiopia
4Ethiopian Biotechnology Institute, Addis Ababa, Ethiopia
5Department of Microbial, Cellular and Molecular Biology, Addis Ababa University, Addis Ababa, Ethiopia
6International Livestock Research Institute, P.O. Box 5986 Addis Ababa, Kenya
7International Livestock Research Institute, P.O. Box 30709, Nairobi 00100, Kenya
*Corresponding Author: Chris S. Jones, International Livestock Research Institute, P.O. Box 30709, Nairobi 00100, Kenya, Tel: +254-710 915 068, Email: C.S.Jones@cgiar.org

Received: 24-Nov-2021 / Manuscript No. acst-21-48285 / Editor assigned: 26-Nov-1969 / PreQC No. acst-21-48285(PQ) / Reviewed: 03-Feb-1970 / QC No. acst-21-48285 / Revised: 10-Dec-1969 / Manuscript No. acst-21-48285(R) / Accepted Date: 14-Feb-2022 / Published Date: 16-Feb-2022 DOI: 10.4172/2329-8863.1000494

Abstract

Tef [Eragrostis tef (Zucc.) Trotter] is an indigenous Ethiopian cereal providing healthy and nutritious diets for people and a palatable straw for livestock. Thirty-five released varieties and a local check were grown at two locations over two years in Ethiopia to investigate the variation in grain and straw yield and straw quality traits of tef. The investigated traits were grain yield (GY), straw yield (STY), crude protein (CP), in vitro organic matter digestibility (IVOMD), metabolizable energy (ME), acid detergent fiber (ADF), neutral detergent fiber (NDF) and acid detergent lignin (ADL). GY, CP, IVOMD and ME were significantly (P < 0.01) affected by the variety of tef, the cultivation environment and their interactions. The performances of the GY, CP, IVOMD and ME traits were higher (P < 0.01) at mid-altitude, in Debre Zeit, compared to the high-altitude site, Holetta, and in 2016 than 2015. Similarly, the associations observed between GY and STY, among CP, ME and IVOMD, and among NDF, ADF and ADL were significant (P<0.01) and positive. Conversely, the association between yield and quality traits was significant and negative. The present study also identified four groups of varieties based on their grain and straw yield and straw quality traits, with some varieties performing above the mean for both yield and quality traits. Hence, varieties like Melko which possess better grain and straw yield and quality traits could be promoted for immediate utilization as a dual-purpose variety or as a parental line in changing the existing tef breeding strategy that focuses on grain yield improvement alone.

Keywords

Eragrostis tef; Grain yield; Straw yield; Straw quality; Tef variety; Variation

Introduction

Tef [Eragrostis tef (Zucc.) Trotter] is an indigenous cereal crop widely grown in Ethiopia, where it is cultivated on 3.1 million hectares of land by 7.1 million households and produces approximately 5.7 million tons of grain annually [1]. The grain of tef is gluten free and considered to be a nutritious human food [2-4] while its straw is used as a good source of livestock feed [5, 6]. Consequently tef is growing in popularity, both for its grain and as a forage crop, in more countries around the world [7-9]. Though tef adapts to grow across a wide range of soil, altitude, rainfall and temperature conditions, its grain and straw yield and quality are a function of the genotype, the environment and of their interactions [4, 10]. This is not unusual and environmental factors significantly affect the quality of forage crops, particularly those grown in environments with varying degrees of different stresses [11]. Temperature, in particular, affects the digestibility of grasses, mainly through its effect on leaf-to-stem ratios and on increases in the indigestible cell-wall fraction and the concurrent reduction in nonstructural carbohydrates. On the other hand, the effect of drought on forage quality is usually only slightly negative, and can even be positive, particularly if the stress on leaf mass is not severe, and the effect of soil nutrients on forage quality of many grasses is also relatively small [11].

Natural pastures, crop residues, agro-industrial by-products, and improved forage and pasture crops are the major sources of animal feed in Ethiopia, with the first two contributing the largest share [12, 13]. However, grazing lands are shrinking due to conversion into arable lands to support the ever increasing human population and the associated demand for food. Consequently the lack of feed, both in terms of quality and quantity, is becoming the major constraint to livestock productivity in Ethiopia, especially during the dry season [14, 15]. This in turn affects the ability of farmers to produce food and cash crops by reducing the availability of draft power, cash and manure [6]. More efficient use of crop residues is an option suggested to fill the gaps in feed availability. However, this opportunity is highly dependent on the farming system, type of crop and intensity of cultivation [12]. The appropriate identification and utilization of dual purpose crop cultivars is an additional option to help address these shortages in quality feed as well as to reduce competition for land and water. Various works demonstrating the potential of dual purpose cereal crops, such as maize, sorghum, wheat and rice in different parts of the world, including Ethiopia, have previously been presented [16-18]. The identification of dual purpose tef cultivars is also important since the crop covers the largest area under cereal production and provides nearly half of the total annual cereal straws in the central highlands [6] and a quarter of the total straw in Ethiopia [19]. The national tef improvement program, which has been able to double grain productivity, to date, has not paid significant attention to the improvement of fodder quality traits [1]. Anecdotal evidence indicates that farmers in major tef growing areas are concerned that high yielding improved grain varieties have fibrous straw which is less liked by livestock. However, studies conducted so far on tef straw yield and fodder quality traits to confirm such speculation have been limited. The importance of tef as a food and a feed crop, together with the farmers demand to have varieties with higher yield and straw quality traits, calls for the identification, development and release of dual purpose tef varieties in the future.

A substantial amount of research performed over the last few decades has revealed the presence of significant variation in feed traits, both within and between cultivars, of several cereal crops, and demonstrated that this variation can be exploited without compromising the grain traits [17, 20-22]. Considering the importance of feeding the straw in support of livestock production, little effort has been put into exploiting the opportunity to improve both the grain and crop residue traits of tef concurrently. Therefore, this study was designed to assess the grain and straw yield and straw fodder quality traits of 36 tef varieties, consisting of 35 released varieties and a local check, both within the selected varieties and across growing environments, and to provide recommendations for tef breeding programs on selecting for both food and feed values in the future.

Materials and Methods

Description of the study area

The field study was conducted at Holetta and Debre Zeit Agricultural Research Centers in central Ethiopia during the main cropping seasons of 2015 (Year 1) and 2016 (Year 2). The distribution of major weather variables in Holetta and Debre Zeit in 2015 and 2016 are summarized in Figure 1. Holetta is located at 2400 meters above sea level (masl) and receives 1100 mm annual rainfall in a bimodal pattern with the main rains falling between July and September. Its minimum and maximum temperatures are 60C and 200C, respectively and the major soil type is a Nitosol. Debre Zeit is located at 1850 masl and receives 851mm annual rainfall in a similar pattern to Holetta. Its temperature ranges between 60C and 200C and the major soil type is a Pellic Vertisol.

Treatments and trial design

Thirty-five improved tef varieties, released between 1970 and 2014 in Ethiopia [23], and a local check [Table 1] were evaluated in a randomized complete block design with three replications. A plot area of 1m x 1m was used at a spacing of 0.2 m, 1 m and 1.5 m between rows, plots and replications, respectively. A fertilizer rate of 60 kg ha-1 P2O5 and 60 kg ha 1 N was applied at the Debre Zeit experimental site while 60 kg ha 1 P2O5 and 40 kg ha-1 N was applied in Holetta. The entire P2O5 and half of the recommended N was applied in the form of diammonium phosphate (DAP) at planting while the remaining N was applied in the form of urea at tillering, about 30 - 40 days after planting, depending on the climatic conditions of the experimental sites. In this study, 50% more N was applied to the black vertisol soil, in Debre Zeit, which is more exposed to fertilizer leakage than the red nitosol soils in Holetta, based on the national fertilizer recommendation rates. All agronomic and cultural practices were applied as per the recommendation for each location. Harvesting of the tef crop was performed close to ground level at the full grain maturity stage and straw samples, for laboratory analysis, were taken after threshing and partitioning of shoot biomass into grain and straw. All necessary care was taken not to miss the various straw components (leaf, stem and chaff) of the samples from each plot.

No. Varieties No. Varities
  Pedigree Common name   Pedigree Common name
1 DZ-01-354 Enatit 19 DZ-01-1821 Zobel
2 DZ-01-99 Asgori 20 DZ-01-2423 Dima
3 DZ-01-196 Magna 21 DZ-01-1868 Yilmana
4 DZ-01-787 Wolenkomi 22 DZ-01-2675 Dega Tef
5 DZ-Cr-44 Menagesha 23 DZ-01-899 Gimbichu
6 DZ-Cr-82 Melko 24 Ho -Cr-136 Amarach
7 DZ-Cr-37 Tseday 25 DZ-Cr-387 Quncho
8 DZ-Cr-255 Gibe 26 DZ-01-1880 Guduru
9 DZ-Cr-358 Ziquala 27 DZ-Cr-387 (RIL-127) Gemechis
10 DZ-01-974 Dukem 28 Acc. 205953 Mechare
11 DZ-01-2053 Holeta Key 29 23-Tafi Adi-72 Kena
12 DZ-01-1278 Ambo-Toke 30 DZ-01-3186 Etsub
13 DZ-01-1281 Gerado 31 RIL 273 Laketch
14 DZ-01-1285 Koye 32 DZ- CR-385 (RIL-295) Simada
15 DZ-01-1681 Key Tena 33 DZ-Cr-409 (RIL 50d) Boset
16 DZ-01-2054 Gola 34 133B (Quncho x K. Muri) Kora
17 PGRC/E 205396 Ajora 35 214746A Worekiyu
18 DZ-01-146 Genet 36 Farmers’ variety Local check

Table 1: List of tef varieties used in the current study.

Assessment of tef straw fodder quality attributes

Four hundred and thirty-two tef straw samples, pre-dried overnight in an oven at 600C, were analyzed using Near Infrared Spectroscopy (NIRS) at the ILRI Nutrition Laboratory in Addis Ababa, Ethiopia. A FOSS Forage Analyzer 5000 with software package WinISI II (version 1.5, Intra Soft International, LLC) and specifically developed calibration equations, was employed at a scanning wavelength of 1100 nm to 2500 nm. The determined feed constituents were dry matter (DM), ash, Nitrogen (N), neutral detergent fiber (NDF), acid detergent fiber (ADF), acid detergent lignin (ADL), metabolizable energy (ME) and in vitro organic matter digestibility (IVOMD).

For wet chemistry analysis, 104 representative samples were selected based on their NIRS spectra to develop and validate the tef straw calibration equations at the ILRI Nutrition facilities in Addis Ababa, Ethiopia and Hyderabad, India. From these, 52 samples were used to develop the calibration and a further 52 samples were used to validate this calibration. Following validation, the calibration was finalized using all 104 samples. Determination of DM, ADF, NDF and N were performed in duplicate and expressed on a dry weight basis using 2 g, 1 g, 0.5 g and 0.3 g of ground samples, respectively. DM, ash and N were analyzed according to the Association of Official Agricultural Chemists (AOAC) [24], NDF, ADF and ADL following [25], ME following [26] and IVOMD according to [27]. Total N was determined following the Kjeldahl procedure [28] and the crude protein (CP) concentration was calculated as N*6.25. Prediction of all samples scanned by NIRS was performed after developing and validating the new tef straw equations. The developed equations showed very strong and consistent correlation between NIRS and chemical analysis. Thus, the coefficient of determination (R2) values, ranging between 0.893 (ADL) and 0.992 (ME), and low standard error of calibration (SEC) values, ranging between 0.813 (ADF) and 0.034 (ME), [Table 2] support the robustness of the equations and potential use of NIRS to predict tef straw quality [29].

  52 Calibration 52 Validation 104 Calibration
Constituent n R2cal SEC n R2val SEC N R2Global SEC
N 49 0.996 0.035 52 0.951 0.122 100 0.985 0.066
NDF 47 0.964 0.8 52 0.92 1.628 99 0.976 0.763
ADF 44 0.944 0.645 52 0.918 0.902 103 0.922 0.813
ADL 49 0.938 0.176 52 0.789 0.305 102 0.893 0.229
IVOMD 50 0.995 0.255 52 0.971 0.58 104 0.99 0.341
ME 50 0.991 0.036 52 0.969 0.067 102 0.992 0.034

N = Nitrogen; NDF = Neutral detergent fiber; ADF = Acid detergent fiber; ADL = Acid detergent lignin; IVOMD= In vitro organic matter digestibility; ME = Metabolizable energy; SEC = standard error of calibration.

Table 2: Tef straw global calibration models.

Statistical analysis

The analysis of variance was conducted using the general linear model procedure of SAS software [30] and the test for mean separations were declared at P < 0.05 using the least significant difference procedure. Estimation of the Pearson correlation coefficient among the studied food-feed traits was performed using MINITAB software [31] and analysis of clusters and the principal component bi-plots, showing the distribution of studied traits and varieties were performed using R software [32-34].

Results and Discussion

Analysis of variance

Combined analysis of variance for grain and straw yield and straw quality traits revealed significant (P < 0.01) effects of variety (G) and location (L) on all the studied traits of tef [Table 3]. The effect of: year (Y), except for grain yield and ME; interaction of L x Y, except for NDF and ADL; and that of G x L, G x Y and G x L x Y, except for ADL, were all highly significant (P < 0.01). Surprisingly, ADL was not significantly affected under all types of interactions.

Source DF CP NDF ADF ADL ME IVOMD GY STY
Entry (G) 35 1.08*** 3.91*** 3.54*** 0.25*** 0.03** 2.11** 1.86** 23.54***
Loc (L) 1 2556.9*** 5295.1*** 7134.6*** 141.8*** 37.9** 3178.7** 28.98** 1510.7**
L*G 35 1.06*** 3.71*** 3.23*** 0.22ns 0.04** 2.45** 0.28** 7.19***
Year (Y) 1 171.7*** 338.85*** 107.57*** 16.6*** 0.06ns 25.00** 0.01ns 1548.1**
Y*G 35 0.97*** 5.19*** 3.02*** 0.22ns 0.03** 1.87** 2.23** 23.87***
Y*L 1 19.19*** 2.25ns 81.35*** 0.00ns 0.45** 13.3** 8.63** 1607.4**
Y*L*G 35 0.88*** 3.36*** 3.66*** 0.20ns 0.03** 2.04** 0.26** 3.94***
Error 286 0.28 1.77 1.23 0.15 0.02 0.80 0.02 0.44
Mean 56.9 801.8 401.7 76.9 6.60 455.8 3880 11920
CV (%) 9.27 1.66 2.39 5.03 1.98 1.96 3.56 5.55
R2 0.97 0.92 0.95 0.82 0.90 0.94 0.97 0.98
DF = Degrees of freedom; CP = Crude protein; NDF = Neutral detergent fiber; ADF = Acid detergent fiber; ADL = Acid detergent lignin; ME = Metabolizable energy; IVOMD= In vitro organic matter digestibility; GY = grain yield; STY = Straw yield. ** Significant at P < 0.01, *** significant at P < 0.001, ns: not significant. 

Table 3: Mean square values for the combined ANOVA across two locations by two years.

Effect of location on yield and quality traits of 36 tef varieties The studied grain and straw yield and straw quality traits of the 36 tef varieties at Holetta and Debre Zeit in both years are presented in Table 4. The CP content ranged from 52.8 to 107.2 and 13.8 to 49.7 g kg-1 DM in Debre Zeit and Holetta, respectively. Similarly, IVOMD ranged from 44.4 to 52.8% in Debre Zeit, while in Holetta it ranged from 40.7 to 45.1%. Furthermore, the GY ranged from 2160 to 5780 kg ha-1 and from 2810 to 4800 kg ha-1 in Debre Zeit and Holetta, respectively. The STY ranged from 4970 to 13920 kg ha-1 in Debre Zeit, while in Holetta it ranged from 6900 to 24410 kg ha-1. In general, the existence of exploitable genetic variation in grain and straw yield and straw quality traits were observed over years and across locations in Table 4. This is in line with reports on other cereal crop residues such as maize, sorghum, rice and wheat in Ethiopia and other parts of the world [17, 20-22]. The performances of all traits were significantly higher in Debre Zeit compared to Holetta except for all fiber related traits, which are negatively correlated with other straw quality traits and straw yield. For example, the crude protein, grain yield and IVOMD were 150%, 12.5% and 11.2%, respectively, higher in Debre Zeit compared to Holetta. This could be due to differences in management practices and, in soil and climate variables between the two locations [Figure 1]. For example, the low crude protein content of tef straw observed at Holetta might be due to its high rainfall, supporting the positive effect of drought on forage quality reported by [11]. It could also be due to the relatively acidic nature of the soil at Holetta (pH = 6.32) [35] unlike Debre Zeit where the black Vertisols are found to be neutral (pH = 7.03) [36]. Furthermore, altitude could also be a contributing factor. In line with this, samples from mid-altitude areas have been reported to have threefold the proline levels compared to those from the high-altitude areas and also a decrease in lysine content of tef straw with an increase in altitude [37]. This could be a possible explanation for Debre Zeit, which is located at 1850 m above sea level in the mid-altitude environment, to have higher crude protein content compared to Holetta, which is a true highland site, located at 2400 m above sea level. The variation in straw quality traits across locations in the present study is also in line with previous reports for Holetta and Ginchi [19] and for Debre Zeit and Akaki [38]. The observed varietal trait differences in our study are also in agreement with the report by [5]. The previous studies reported the variation in either grain or straw yield or straw quality traits alone based on the assessment of only a few varieties. Our research builds on these initial studies by undertaking a comprehensive assessement of the variation in grain and straw yield as well as straw quality traits of 35 released varieties and a local check evaluated at two locations for two years.

Traits Comparison of means Ranges of values for various traits for each location, year and combined data Over all
Between locations Between years Debre Zeit Holetta 2015 2016 Combined combined
Debre Zeit Holetta 2015 2016 Min Max Min Max Min Max Min Max Min Max means
CP 81.3a 32.6b 50.6b 63.2a 52.8 107.2 13.8 49.7 13.8 102.1 23.2 107.2 50.4 62.6 56.9
NDF 766.7b 836.8a 810.6a 792.9b 711 827.1 788.9 874.4 711 874.4 716.9 859.7 790.8 811.8 801.8
ADF 430.1b 511.4a 475.7a 465.7b 383.2 474.9 479.7 544.1 383.2 544.1 400.3 529.5 460.5 479.4 470.8
ADL 71.2b 82.7a 78.9a 75.0b 57.7 85.8 69.2 93.9 57.7 93.9 59.9 89.7 6.4 9.4 76.9
ME 6.89a 6.30b 6.58a 6.61a 6.39 7.66 6.02 6.61 6.02 7.66 6.13 7.22 6.21 7.14 6.6
IVOMD 48.3a 42.9b 43.3b 45.8a 44.4 52.8 40.7 45.1 40.7 52.8 41.6 51.1 44.9 46.3 45.6
GY 4140.0a 3622.4b 3886.2a 3876.6a 2160 5780 2810 4800 2580 5780 2160 5200 3230 4630 3881.4
STY 10070b 13805a 13828a 10042b 4970 13920 6900 24410 4970 24410 6530 13920 9760 14830 11938
ADF = acid detergent fiber (g kg-1 DM); ADL = acid detergent lignin (g kg-1 DM); CP = crude protein (g kg-1 DM); GY = grain yield (Kg ha-1); IVOMD = in vitro organic matter digestibility (%); ME = metabolizable energy (MJ); NDF = neutral detergent fiber (g kg-1 DM); STY = straw yield (Kg ha-1). Values with different letters indicate statistically significant differences (P <0.05).

Table 4: Descriptive statistics showing the variation in grain and straw yield and straw quality traits of tef evaluated in Debre Zeit and Holetta in the 2015 and 2016 cropping seasons.

seasons.

Effect of years on yield and quality

With respect to years, the CP content ranged from 13.8 to 102.1 and 23.2 to 107.2 g kg-1 DM in 2015 and in 2016, respectively. Similarly, IVOMD ranged from 40.7 to 52.8 and 41.6 to 51.1% in 2015 and 2016, in that order. Thus, a 24.9% and 5.7% higher CP content and IVOMD, respectively, were observed in 2016 than 2015, while the reverse was observed for straw yield and all fiber traits in both years. On the other hand, GY ranged from 2580 to 5780 and 2160 to 5200 kg ha-1 in 2015 and in 2016, respectively, while the STY ranged from 4970 to 24410 and 6530 to 13920 kg ha-1 in 2015 and 2016, in that order. In general, the highest values of CP, ME and IVOMD were obtained in 2016 compared to 2015 while the performances of grain and straw yields and all fiber contents were higher in 2015 than 2016. Such better CP content and IVOMD in 2016 compared to 2015 might be due to a better amount and distribution of rainfall in 2016 [Figure 1] by increasing the uptake of useful assimilates. The higher CP content observed in 2016 compared to 2015 samples might also be due to variation in storage duration. Because, fresh samples are said to have higher CP content than those stored for longer duration. In line with this, a study conducted on the effect of storage duration of tef and wheat straw quality reported a decrease in CP content with prolonged storage [39].

advances-crop-science-and-technology-Patterns

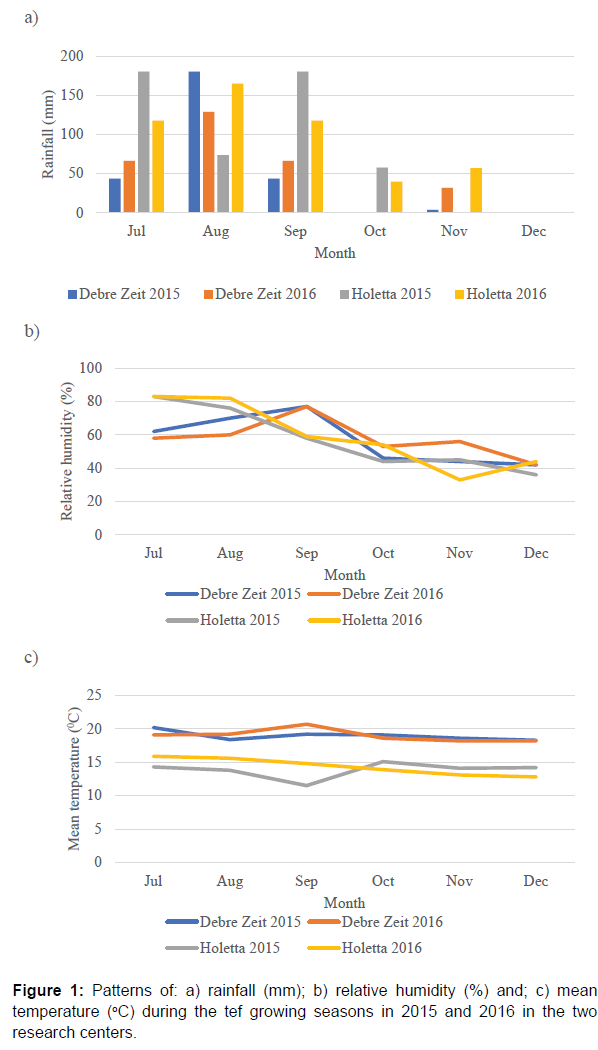

Figure 1: Patterns of: a) rainfall (mm); b) relative humidity (%) and; c) mean temperature (oC) during the tef growing seasons in 2015 and 2016 in the two research centers.

Effect of years by location interaction on yield and quality of tef

Based on data from the combined means over years by locations, the CP content ranged from 50.4 to 62.6 g kg-1 DM with a mean of 56.9 g kg-1 DM while IVOMD ranged from 44.9 to 46.3%. On the other hand, the GY ranged from 3230 to 4630 kg ha-1 while straw yield ranged from 9730 to 14830 kg ha-1 [Table 4]. The observed mean CP values in the present study are higher than previous reports of 39 g kg-1 DM [15] and 46.0 g kg-1 DM [40] while they are comparable with CP values ranging from 45.4 to 61.3 g kg-1 DM [41] and a CP value of 60 g kg-1 DM reported for 21 tef varieties [42]. On the other hand, our CP content values are much lower than the 90 -140 g kg-1 DM reported for tef by [43]. Such variation in values of CP contents among the various reports could be a result of differences in the stages of crop harvesting. Because, in our case the straw samples were collected after the grain harvest while the samples in the Miller [43] study were collected at a green stage from a crop entirely grown for forage purposes. In the present study, generally, a wider range of variation was observed among tef varieties for grain and straw yields compared to straw quality traits probably due to the existing breeding strategy that has been entirely focusing on improvement of the grain yield.

Relationships between traits and their implications in tef improvement

A Pearson correlation coefficient among grain and straw yield and straw quality traits of tef was estimated based on combined means across two locations by two years [Table 5]. Positive and significant (P < 0.01) associations were observed between GY and STY, and among CP, ME and IVOMD while the latter three traits were negatively and significantly (P < 0.01) correlated with the remaining studied traits. On the other hand, the association among the three cell wall constituents (NDF, ADF and ADL) and their correlations with GY and STY were positive and significant (P < 0.01).

The positive association observed between GY and STY and among CP, IVOMD and ME indicates the possibility of improving those traits simultaneously in a breeding program. This finding is in alignment with previous reports for other crops [14, 44]. The fact that the yields of grain and straw showed significant negative association with CP, IVOMD and ME in this study is also in line with those reported for grain yield and crude protein content [13]. The negative correlation observed between straw feed quality and food-feed yield traits indicates the difficulty associated with improving both traits simultaneously. This phenomenon suggests that the breeder may need to develop varieties primarily used for either yield or feed quality traits. However, the interests of tef breeders are now to make simultaneous improvements in both trait categories since it is becoming very difficult to get enough cultivable land for independent programs. On the other hand, the moderately negative association between the grain and straw yield and straw fodder quality traits in our study highlights the possibility to select for improved feed quality traits without significantly impacting the grain and straw yield [Table 5]. In this study, varieties like Melko which provided relatively higher yields of grain and straw, along with good straw quality traits could have a potential role to play with this regard. In line with this, the possibility for simultaneous improvement of grain and stover yield traits has also been reported to alleviate the critical problem of developing dual purpose grain-fodder varieties of maize in the maize-livestock mixed farming system of Eastern Africa [5].

Grouping of the studied traits and varieties of tef

Based on scatter plot, principal component biplot and cluster analyses, the eight studied traits and 36 varieties were categorized into groups as follows. The use of a scatterplot analysis based on pairs of important yield and quality traits such as GY and CP; GY and IVOMD; STY and CP; and STY and IVOMD was one way of assessing the variations in performance among the 36 studied varieties. With this analysis, four groups of varieties were identified and these include those performing: 1) above average for both traits; 2) above average for trait on the y-axis and below average for trait on the x-axis; 3) below average for both traits; and 4) below average for trait on the y-axis and above average for trait on the x-axis. Thus, some varieties were found to consistently perform above or below the mean for GY and CP, GY and IVOMD, STY and CP, and STY and IVOMD. The details are presented in Fig. 2a-d, 3a-d and 4a-d for Debre Zeit, Holetta and the combined data over years by locations, respectively.

At Debre Zeit, for example, five varieties marked with red font (group-I) performed above average while the local check and three other varieties marked with aqua font (group-III) performed below average for CP and GY [Figure 2a]. For IVOMD and GY, on the other hand, four and five varieties were found to perform above and below average, respectively [Figure 2b]. Furthermore, seven and six varieties respectively were found to perform above and below average for CP and STY [Figure 2c]. Similarly, the local check and four other varieties were found to perform above average unlike the seven varieties which performed below average for IVOMD and STY [Figure 2d]. The Yilmana variety, however, consistently performed above the mean while Mechare and Etsub performed below the mean in Debre Zeit for all studied pairs of traits [Figure 2a-d].

advances-crop-science-and-technology-Scatter

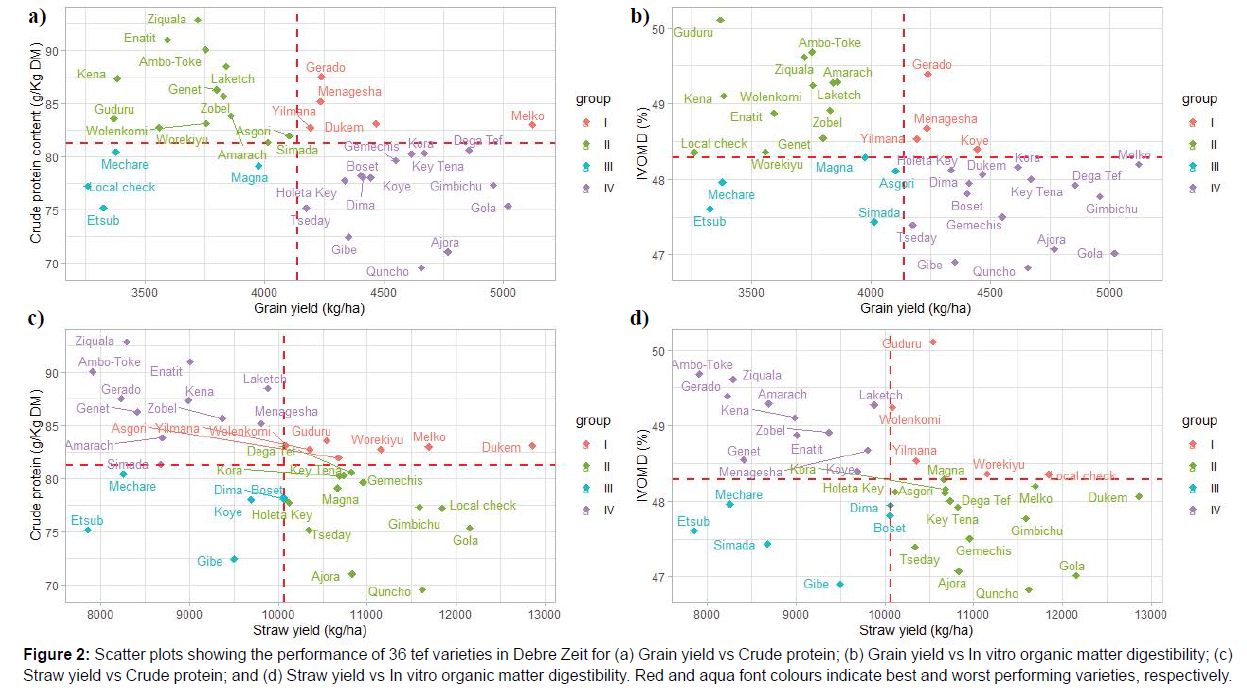

Figure 2: Scatter plots showing the performance of 36 tef varieties in Debre Zeit for (a) Grain yield vs Crude protein; (b) Grain yield vs In vitro organic matter digestibility; (c) Straw yield vs Crude protein; and (d) Straw yield vs In vitro organic matter digestibility. Red and aqua font colours indicate best and worst performing varieties, respectively.

Based on Holetta data, seven varieties performed above average unlike the local check and 10 released varieties which performed below average for CP and GY [Figure 3a]. Nine varieties also performed above average while the local check and nine released varieties performed below average for IVOMD and GY [Figure 3b]. Furthermore, for CP and STY, seven released varieties performed above average while the local check and seven released varieties performed below average [Figure 2c]. For IVOMD a nd STY, on the other hand, 11 released varieties performed above average while the local check and nine released varieties performed below average [Figure 3d]. In general at Holetta, Melko, Ajora and Koye varieties consistently performed above the mean while Amarach, Ambo-Toke, Magna and the local check performed below the mean [Figure 3a-d].

advances-crop-science-and-technology-performance

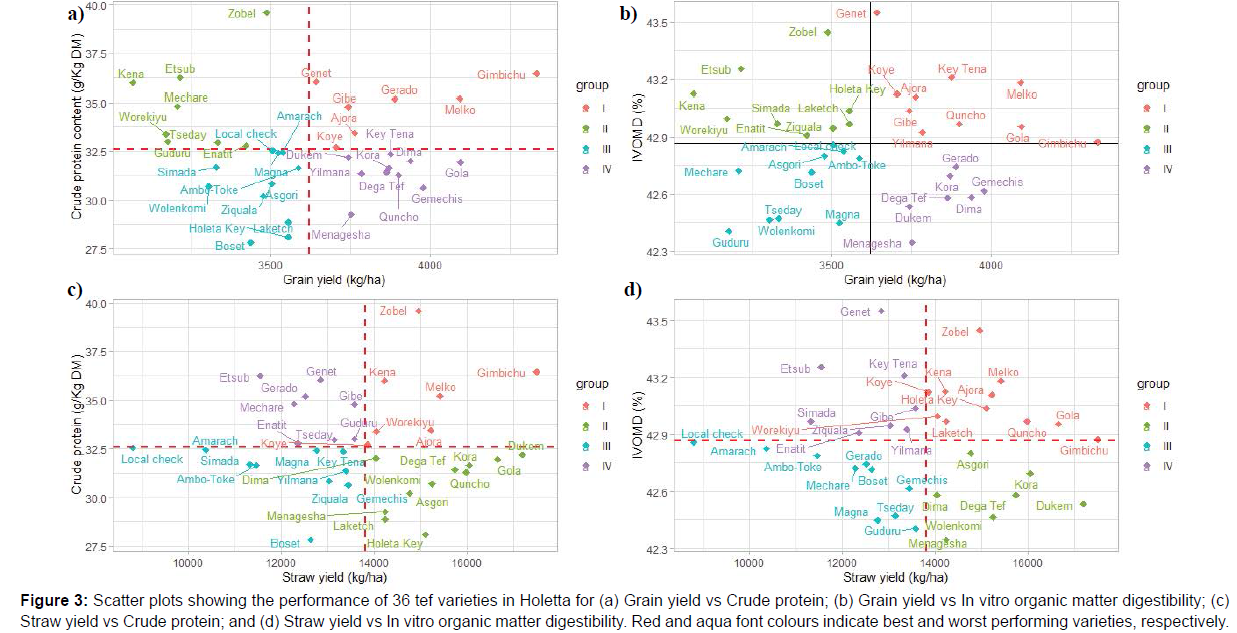

Figure 3: Scatter plots showing the performance of 36 tef varieties in Holetta for (a) Grain yield vs Crude protein; (b) Grain yield vs In vitro organic matter digestibility; (c) Straw yield vs Crude protein; and (d) Straw yield vs In vitro organic matter digestibility. Red and aq a font colours indicate best and worst performing varieties, respectively.

Based on combined mean data over years by locations, five released varieties performed above average while the local check and five varieties performed below average for CP and GY [Figure 4a]. For IVOMD and GY, six released varieties performed above average while another six released varieties performed below average [Figure 4b]. For CP and STY, seven released varieties performed above average while the local check and seven other released varieties performed below average [Figure 4c]. Furthermore, for IVOMD and STY, eight released varieties performed above average while the local check and another six varieties performed below average [Figure 4d]. Surprisingly, some varieties performing better at one location were found to perform poorly in another location. For example, the Guduru variety was amongst the varieties with high CP, IVOMD and ME values at Debre Zeit while it had the lowest values of these traits at Holetta. The Etsub variety, on the other hand, performed poorly at Debre Zeit while it had the highest CP, IVOMD and ME values at Holetta. Generally under all circumstances, Etsub, Simada, Magna and Tsedey performed below the mean, while the Melko variety consistently performed above the mean. Melko, which combined higher grain and straw yield as well as reasonable values of CP, IVOMD, GY and STY under all circumstances, will be useful in developing a dual-purpose tef variety [Figure 4a-d].

advances-crop-science-and-technology-showing

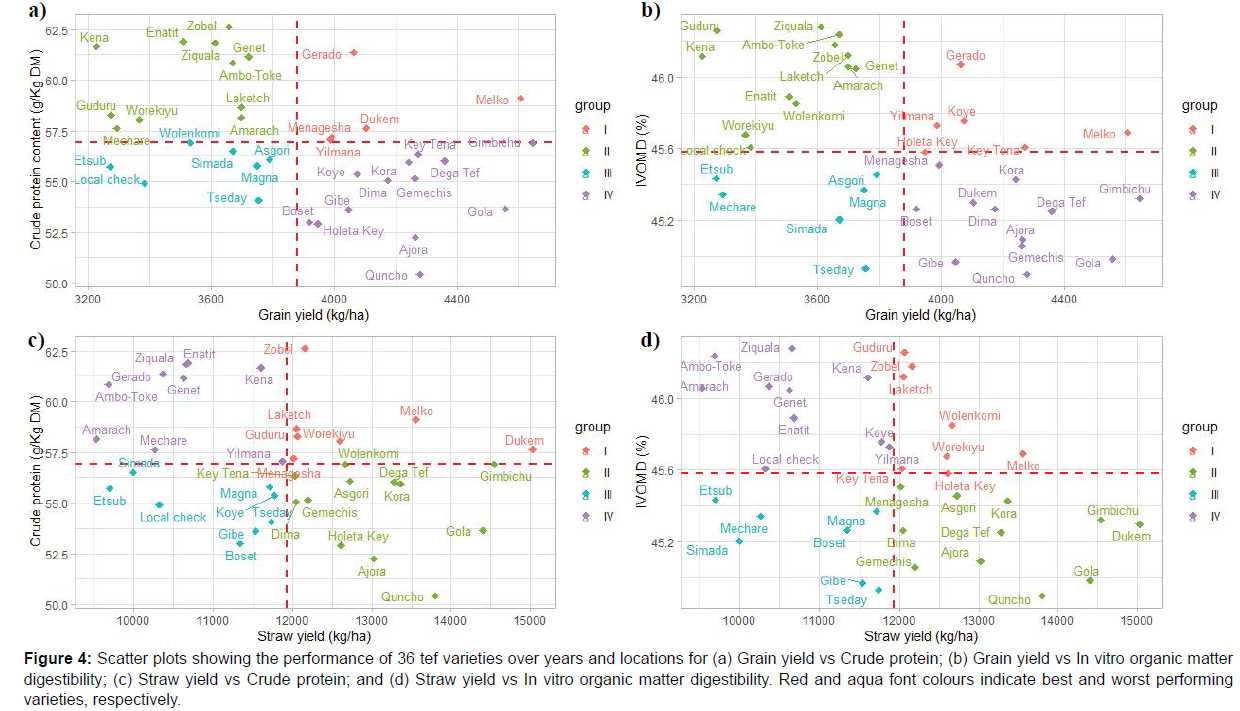

Figure 4: Scatter plots showing the performance of 36 tef varieties over years and locations for (a) Grain yield vs Crude protein; (b) Grain yield vs In vitro organic matter digestibility; (c) Straw yield vs Crude protein; and (d) Straw yield vs In vitro organic matter digestibility. Red and aqua font colours indicate best and worst performing varieties, respectively.

Principal component and cluster analyses were also used to group the eight studied traits and 36 tef varieties into various distinct categories. Thus, the first two PCs which accounted for 85.7%, 74.5% and 84.2% of the total variation based on Debre Zeit data [Figure 5a], Holetta data [Figure 5b] and combined data [Figure 6], respectively, revealed the formation of three groups of traits and four groups of varieties. Hierarchical cluster analysis, based on combined mean data over location by years, also revealed the formation of three groups of traits and four groups of tef varieties [Figure 7]. Based on both cluster and PCA bi-plot analyses, similar grouping patterns were observed among the studied tef varieties and traits, to design breeding strategies targeting suitable improved varieties for both food and feed traits. Both analyses identified three groups of traits whereby GY and STY; CP, IVOMD and ME; and NDF, ADF and ADL were grouped into clusters I, II and III, respectively. Both analyses also grouped the 36 studied tef varieties in to four categories: 1) those with high grain and straw yield; 2) those with high straw quality; 3) those with moderately high yield and straw quality; and 4) those with the lowest values of all studied traits.

advances-crop-science-and-technology-between

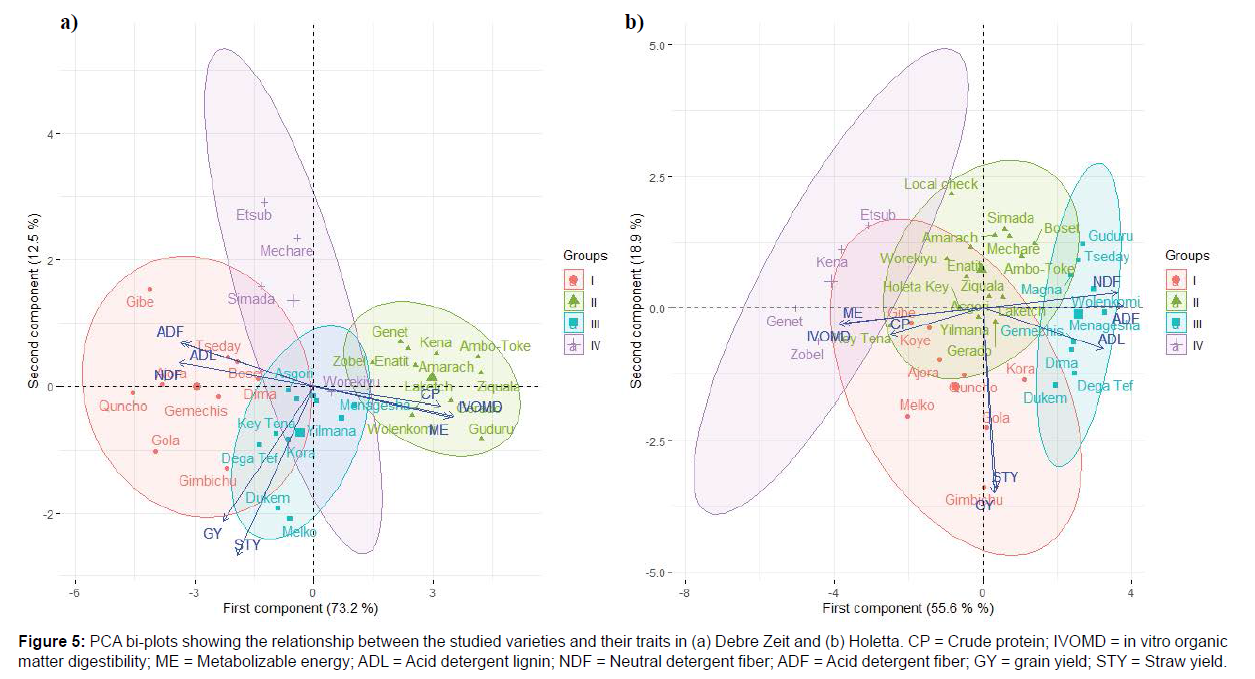

Figure 5: PCA bi-plots showing the relationship between the studied varieties and their traits in (a) Debre Zeit and (b) Holetta. CP = Crude protein; IVOMD = in vitro organic matter digestibility; ME = Metabolizable energy; ADL = Acid detergent lignin; NDF = Neutral detergent fiber; ADF = Acid detergent fiber; GY = grain yield; STY = Straw yield.

advances-crop-science-and-technology-traits

Figure 6: PCA bi-plot showing the relationship between the studied varieties and their traits based on the combined data. CP = Crude protein; IVOMD = in vitro organic matter digestibility; ME = Metabolizable energy; ADL = Acid detergent lignin; NDF = Neutral detergent fiber; ADF = Acid detergent fiber; GY = grain yield; STY = Straw yield.

At Debre Zeit, group-I consisted of nine released varieties with high yield and high fiber content while group-II consisted of 11 released varieties with high CP, IVOMD and ME. Group-III consisted of six varieties with high yield and moderately low fiber contents while group-IV consisted of the local check and three released varieties having the lowest values of all studied traits. At Holetta, on the other hand, group-I consisted of eight varieties with high grain and straw yields while group-II consisted of the local check and 12 released varieties which had moderately low values of all studied traits. Group- III consisted of nine released varieties with high fiber contents while group-IV consisted of four varieties with high CP, IVOMD and ME. Furthermore, based on combined data, group-I consisted of eight varieties which had the highest fiber contents while group-II consisted of 12 released varieties with higher CP, IVOMD and ME. Group-III consisted of a local check and four released varieties which had lower values of all studied traits while group-IV consisted of nine released varieties with higher values of grain and straw yield.

In the cluster analysis, some varieties like Gola and Quncho which were in cluster-I produced both the highest grain and straw yield, along with high cell wall constituents [Figure 7]. The fact that our popular high yielding improved variety Quncho was included in this cluster might confirm the suspicion of farmers that suggest that its straw is fibrous and less palatable. Guduru and Zobel varieties in cluster-II had the highest value of ME and CP, respectively, while Kenna had the highest CP, IVOMD and ME along with the lowest value of ADL. The varieties in cluster-III were generally identified as the poorest performers of all the studied varieties [Figure 7]. Among the varieties in cluster-IV which were identified to have high grain and straw yield, Gimbichu, Dukem and Melko possessed the highest GY and STY and moderately high ADL; highest STY and moderately high NDF; and GY and moderately high STY and CP, respectively.

advances-crop-science-and-technology-clusters

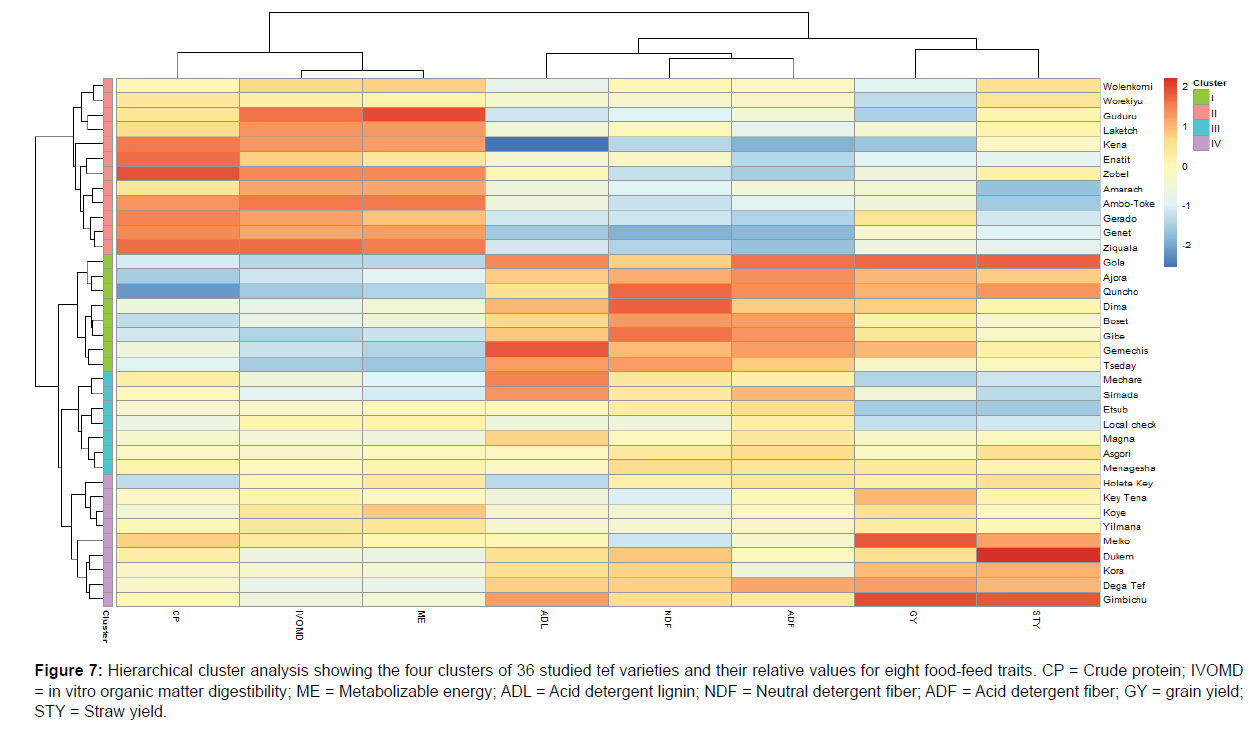

Figure 7: Hierarchical cluster analysis showing the four clusters of 36 studied tef varieties and their relative values for eight food-feed traits. CP = Crude protein; IVOMD = in vitro organic matter digestibility; ME = Metabolizable energy; ADL = Acid detergent lignin; NDF = Neutral detergent fiber; ADF = Acid detergent fiber; GY = grain yield; STY = Straw yield.

Conclusions

The National Tef Breeding Program in Ethiopia has mainly been focusing on grain yield improvement alone in developing new varieties.

In this study, 35 tef varieties approved for release in Ethiopia until 2015 and a local check were investigated for key grain- and straw-related traits including straw crude protein, in vitro organic matter digestibility and metabolizable energy. The straw feed quality traits were assessed by the NIRS technique which was confirmed to be robust. Our findings revealed the existence of a wide range of variations in grain and straw yield and straw quality traits across growing environments, tef varieties and their interactions. Thus, a better tef grain and straw yield as well as straw quality traits were observed at Debre Zeit compared to Holetta. PCA bi-plot and cluster analyses have enabled us to identify varieties with: 1) high grain and straw yield; 2) high straw quality; 3) high fiber content and moderately high yield; and 4) low yields of all studied traits. Among all studied varieties, Melko combined higher grain and straw yield and fodder quality traits while Etsub and Simada varieties performed poorly under all circumstances. The current findings show that future tef breeding programs need to also consider straw quality traits in the development of new varieties. Hence varieties like Melko, which combined most of the important traits, could be promoted for immediate utilization as a dual-purpose variety or as a parental line in changing the existing tef breeding strategy that focuses on grain yield improvement alone.

Acknowledgments

We would like to acknowledge Syngenta Foundation for Sustainable Agriculture, Ethiopian Institute of Agricultural Research and the CGIAR Research Program on Livestock for co-funding this work. We are also indebted to tef breeding staff at Holetta and Debre Zeit Agricultural Research Centers for field management and the Feeds and Nutrition staff of International Livestock Research Institute for facilitating the laboratory work.
