Evaluation of Inexpensive Bedding Materials for Culm Cutting of Bambusa balcooa Roxb. and Its Field Performance

¹IRDM Faculty Centre, Ramakrishna Mission Vivekananda University, Ramakrishna Mission Ashrama, Narendrapur, Kolkata-700103, India

²Department of Agricultural Biotechnology, Faculty of Agriculture, Bidhan Chandra Krishi Viswavidyalaya, Mahanpur, Nadia, West Bengal, India

*Corresponding Author:

Md Nasim Ali
Department of Agricultural Biotechnology, Faculty of Agriculture
Bidhan Chandra Krishi Viswavidyalaya, Mahanpur, Nadia, West Bengal, India
Tel: +91-8902107881
E-mail: nasimali2007@gmail.com

Received date: April 25, 2016; Accepted date: May 13, 2016; Published date: May 20, 2016

Citation: Ray SS, Ali MN (2016) Evaluation of Inexpensive Bedding Materials for Culm Cutting of Bambusa balcooa Roxb. and Its Field Performance. J Biotechnol Biomater 6:227. doi:10.4172/2155-952X.1000227

Copyright: © 2016 Ray SS, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Journal of Biotechnology & Biomaterials

Abstract

Background: Bambusa balcooa Roxb. is a species with multipurpose utility and economic value. Natural forests are being depleted due to human activities so it is necessary to grow important bamboo species in plantations. Effective propagation methods are required to generate large quantities of material for planting and culm cutting has been found to be very promising modified vegetative method. However, suitable low-cost bedding materials are required to ensure the process is efficient and cost effective.

Methods: Five different bedding materials (coarse sand, 50: 50 mixture of coarse sand and soil, soil, vermicompost, vermiculite) were assessed for macro-propagation of B. balcooa Roxb. using a two-nodal culm cutting method during the summer seasons of 2013 and 2014.

Results: Coarse sand was shown to be the most economic and easily accessible bedding material for macropropagation of bamboo followed by the mixture of coarse sand: soil. The saplings were withstood in the natural conditions.

Conclusions: Coarse sand could be used as bedding material for the successful regeneration of bamboo through macro propagation using Culm with two nodes.

Keywords

Bambusa balcooa Roxb.; Macropropagation; Bedding material

Introduction

Bambusa balcooa Roxb. is indigenous to India [1], and is one of the most important bamboo species recognized by the Food and Agriculture Organisation (FAO) [2].This species is widely used for scaffolding and construction purposes [1,3] due to its strong and durable stems [4], while the edible shoots of this species are pickled [5]. In India, 99% of the total bamboo resource currently comes from natural forests [6]. The Planning Commission of India estimated the economic value of country’s domestic bamboo to be Rs. 26,000 crores (equivalent to 43.3 billion US$) in 2015 [7,8]. However, the depletion of natural forests due to uncontrolled deforestation and other human activities such as industrialisation is increasing daily [6,8]. Given its multipurpose utility and economic value, there is an urgent need to increase the availability of important bamboo species like B. balcooa Roxb. through plantation forestry in areas where it grows naturally.

Sexual reproduction of B. balcooa Roxb. is limited [9]. So, vegetative propagation is widely used conventional, improved, or In vitromethods [10]. Conventional (traditional) propagation involves taking rhizome or offset cuttings while the improved method involves culm cutting (spilt culm cutting and branch cutting), layering, and macro-proliferation [11]. In vitro techniques are effective but are very expensive and require skilled personnel [10] so are not accessible to rural people. The basic problems with vegetative propagation are low multiplication and rooting rates and low survival of saplings [3,12]. Conventional propagation is popular in rural areas but has several problems like low availability of parent plants, low survival rate and transportation problems due to the large size (4−30 kg) of the propagules [13]. Modified vegetative methods like culm cutting/branch cutting have been reported to be easier, simpler and more effective than conventional methods for large-scale multiplication of bamboo [14,15]. In culm-cutting propagation, horizontal planting of two-nodal cuttings of B. vulgaris Schrad. ex J. C. Wendl. was found to be more effective than threenodal culm cuttings during summer [16].

A key component of successful propagation is the substrate used. Previous studies on macro-propagation of bamboo have used a range of substrates including: fine sand for eight bamboo species (including Bambusa balcooa Roxb.) [10]; sand for Bambusa balcooa Roxb. [17]; loamy material for Bambusa nutans Wall. ex Munro, Dendrocalamus hamiltonii Nees & Arn. ex Munroand D. hookeri Munro for a culmcutting method [18]; and a mixture of coarse sand and gravel for branch cuttings of Bambusa nutans Wall. ex Munro [13]. No reports are available on the effect of other low-cost growth substrates such as vermicompost, vermiculite or soil on macro-propagation of bamboo although these have been used for several other types of plant. For example, Vermicompost was used in rooting of yacon (Smallanthus sonchifolius) [19] and vermiculite for guava (Psidium guajava L.) [20].

The aim of the present study was to evaluate five different lowcost substrates (coarse sand, a 1:1 mixture of coarse sand and soil, soil, vermicompost and vermiculite) for propagating two-nodal culm cuttings of B. balcooa Roxb. Two-year-old culms were selected for the experiment because of previously reported high survival rates of this species by the culm-cutting method [21]. Experiments were conducted during summer (March-May) of two consecutive years. In addition, a field trial was conducted in a rural area to determine the survival of material propagated using these substrates.

Materials and Methods

Five nursery beds of uniform size (15.75 ft (4.8 m) x 4.75 ft (1.4 m)) were prepared separately using one of five different low-cost bedding materials i.e.: coarse sand of size 2-4 mm (100%); coarse sand: soil (50:50); Clayey loam soil (100%); vermicompost (100%) having Nitrogen-6.3%, Phosphorus-1.03%, Potassium-0.58%, pH-5.9 and vermiculite of Keltech Energies Ltd make (100%).

Two-year-old culms of B. balcooa Roxb. were collected from Bamunghata, South 24 Pgs., West Bengal, and transported to the green house (15 km away) by vehicle. Culms were cut from parent plants at a height of 1.5 ft (0.46 m) above the ground to avoid any damage to the parent plant. Culms were approximately 10-12 m long. Weather data of the collection site were collected from the meteorological department of Kolkata, Alipur branch, West Bengal (Supplementary file). Before the experiment, all on the culms were trimmed with a sharp knife without harming the matured culms and buds. Trimmed culms were treated with an aqueous solution (1% w/v) of the fungicide Bavistin (Biostadt, Mumbai, India) for 1 hour. The two cut ends were then sealed with wet soil mixed with the insecticide Furadon 3G (Carbofuran 3% G; FMC Corporation, Bangalore, India). The nodal ring of each trimmed culm was coated with a commercial herbal rooting-hormone product Arodix, Grade IV for Bamboo (PharmaFlora Kolkata, West Bengal, India)

The chemically treated cutting materials were buried at a depth of 0.5 inches from the surface in the different bedding materials horizontally and were planted in 3 rows of 20 plants/row. Water applied through sprinkler method at one week interval during the experiment and no fertilizers was used. The experiment was conducted in 2013 and repeated in 2014 using fresh bedding materials. Key aspects of the experiment are shown in Figure 1.

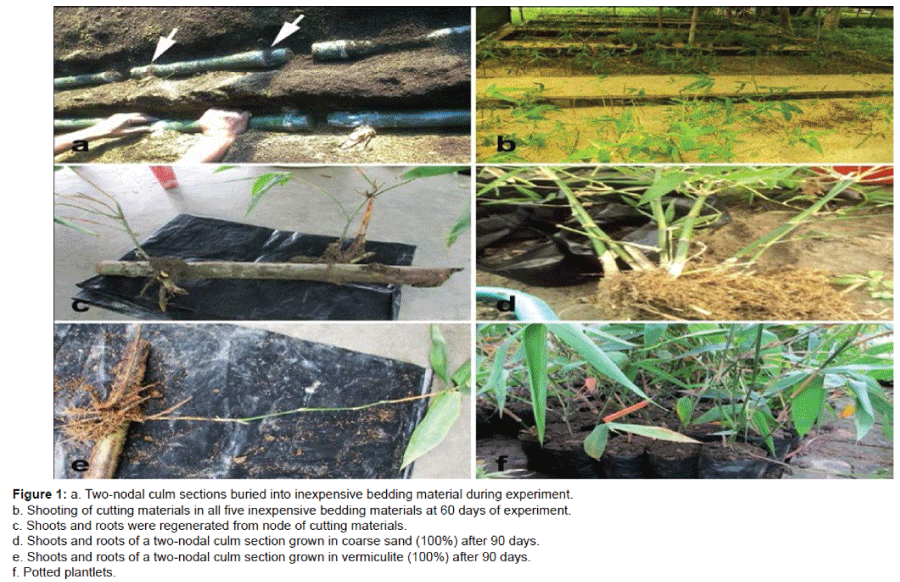

Figure 1: a. Two-nodal culm sections buried into inexpensive bedding material during experiment.
b. Shooting of cutting materials in all five inexpensive bedding materials at 60 days of experiment.
c. Shoots and roots were regenerated from node of cutting materials.
d. Shoots and roots of a two-nodal culm section grown in coarse sand (100%) after 90 days.
e. Shoots and roots of a two-nodal culm section grown in vermiculite (100%) after 90 days.
f. Potted plantlets.

Data were collected at two-week intervals from 14 days to 90 days to record the level of shooting per treatment (Table 1). After threemonths, the number shoots present were recorded for each culm as were the proportion of culms with roots, the number of roots per culm and the root length per culm. Culms with shoots were taken out of each bed and those plants with both shoots and roots were transferred to plastic pot sand kept separately in the greenhouse for one month.

Table 1: Shooting percentage under different bedding materials at different time intervals over two planting seasons (out of 120 nodes; 60 per season).

Ten regenerated plantlets of each treatment were transferred to a field trial, which was carried out at Village: Kastogoara, Rupnarayan Beat, Garbeta block, Paschim Medinapur (West Bengal). Plantlets were arranged in four replicates, each having ten macro-propagated plants. Data regarding survival rate, Physiological parameters i.e; intermodal distance, plant height and internodal diameter (with respect to 5th node) and survival rate were taken at three-month intervals (Table 2) for 12 months. Key aspects of the experiment are shown in Figure 2.

Table 2: Pooled growth and survival data from the field trial of B. balcooa Roxb. in Garbeta block up to 12 months.

Figure 2: Field trial (2014) of Bambusabalcooa Roxb. in Garbeta block. Plant height at: a) 3 months; b) 6 months; c) 9 months; and d) 12 months.

Statistical analyses of recorded data were performed using SPSS v16.0 for Windows (SPSS Inc., USA) with 5% probability level of statistical significance.

Findings

Generally, shooting percentage during the first 90 days of the experiment reached a maximum within the first 45 days (Table 1). Some shoots became dry after this time, which may be due to high temperature and water scarcity during the summer season. The highest percentage of shoots at 90 days was found in coarse sand(100%), soil (100%) and vermicompost (100%) in 2013 (Figure 3). In all cases, the level was significantly lower in 2014, particularly for vermicompost (100%), which may be due to environment temperature particularly. Coarse sand (100%) was found to be the best of the bedding materials based on the proportion of culms with roots, the number of roots per culm and the root length per culm as well as the number of shoots. Plants grown in vermicompost (100%) or vermiculite (100%) had good root lengths but a low rooting percentage, and many shoot found dead later. In the current study, the rooting percentage in coarse sand (100%) was lower than rooting percentage of Bambusa balcooa Roxb. through culm cutting in fine sand [10] for the same season but had higher shooting and rooting percentages compared with the findings of Joshi et al. [17] who used misting conditions for the same species. However, Stapleton [18] reported poor rooting of culm cuttings of Bambusa nutans Wall. ex Munroin a loamy bed. Effective rooting media for vegetative propagation should minimise water loss from the buried part of plant and remain moist and well aerated as these are essential for root growth and development [11]. Sand (100%) may suitable for propagation of bamboo since it has all the criteria mentioned above for suitable rooting medium. Advantages of sand as rooting bedding materials are it is cheap, locally accessible, provides good drainage system, and maintains a uniform temperature in the bed [11]. The percentages of shooting and rooting may be improved by altering the sand type (fine sand in stead of coarse sand) or using one nodal cutting (since it would be easier to handle [9] or by increasing the rooting hormone concentration.

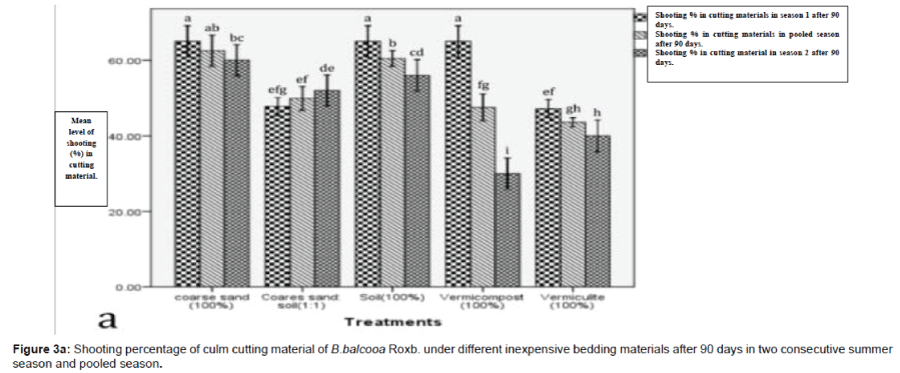

Figure 3a: Shooting percentage of culm cutting material of B.balcooa Roxb. under different inexpensive bedding materials after 90 days in two consecutive summer season and pooled season.

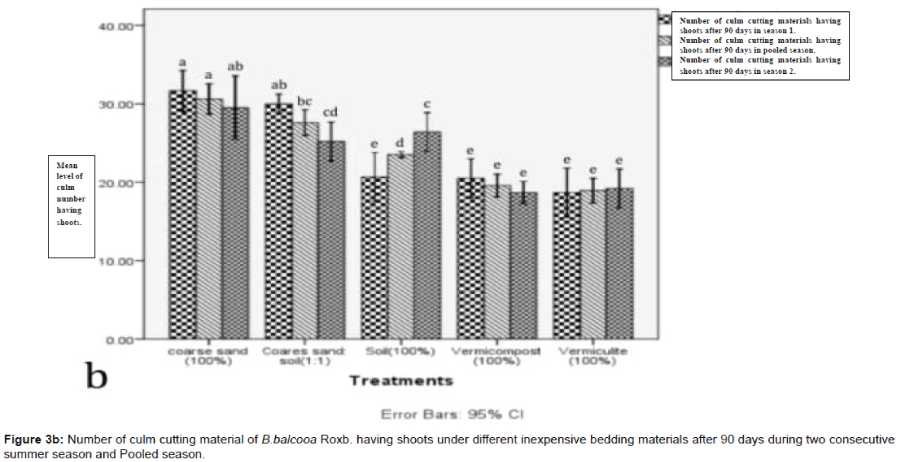

Figure 3b: Number of culm cutting material of B.balcooa Roxb. having shoots under different inexpensive bedding materials after 90 days during two consecutive summer season and Pooled season.

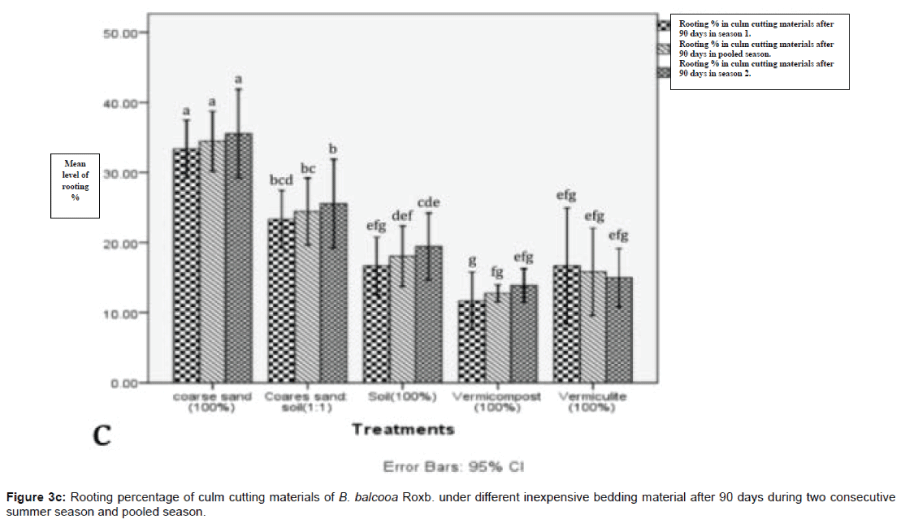

Figure 3c: Rooting percentage of culm cutting materials of B. balcooa Roxb. under different inexpensive bedding material after 90 days during two consecutive summer season and pooled season.

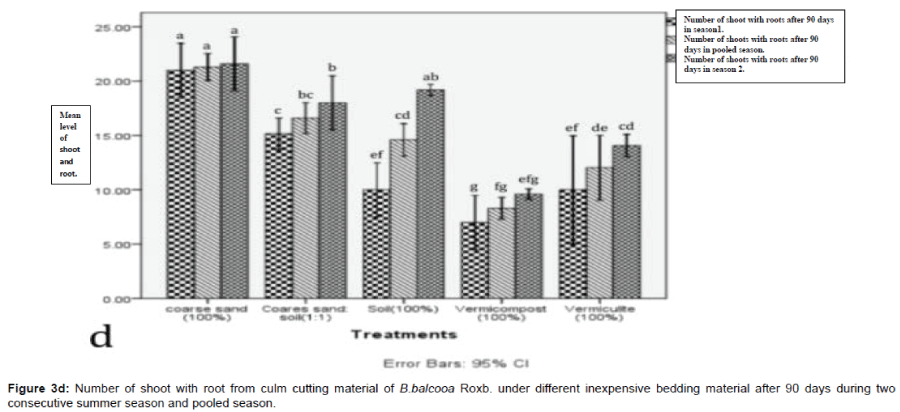

Figure 3d: Number of shoot with root from culm cutting material of B.balcooa Roxb. under different inexpensive bedding material after 90 days during two consecutive summer season and pooled season.

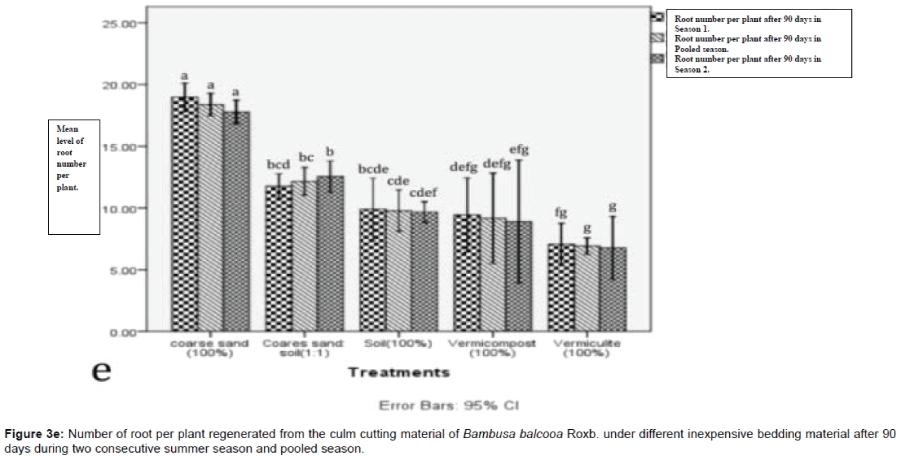

Figure 3e: Number of root per plant regenerated from the culm cutting material of Bambusa balcooa Roxb. under different inexpensive bedding material after 90 days during two consecutive summer season and pooled season.

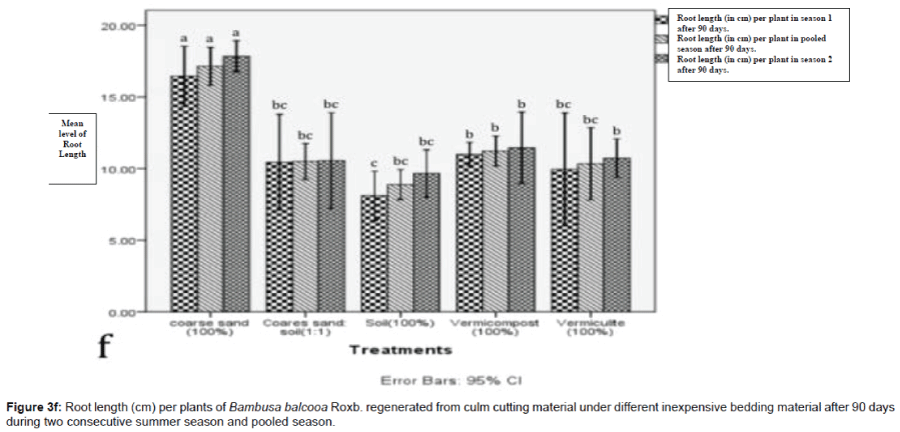

Figure 3f: Root length (cm) per plants of Bambusa balcooa Roxb. regenerated from culm cutting material under different inexpensive bedding material after 90 days during two consecutive summer season and pooled season.

All macro-propagated plantlets that were transferred to the field trial survived up to 12 months after transplanting (Table 2). No variation among the treatment with respect to survival rate was found.

Conclusion

Coarse sand (100%) was superior to other four other low-cost materials tested for macropropagation of culm cuttings of Bambusa balcooa Roxb. Vermicompost and verculite are not suitable for macropropropagation of bamboo due to their low rooting capacity.

Acknowledgements

Authors are grateful to West Bengal State Council for Science and Technology (WBSCST), Department of Science and Technology (DST), Govt. of West Bengal for providing the fund and space to conduct this experiment. We are thankful to the entire supporting Staff of Greenhouse, DST (Govt. of W.B.) for their support during the entire experiment.

References

1. Tewari DN (1992) A monograph on bamboo. International book distributors, Dehradun, India.
2. Das M, Pal A (2005) In vitro regeneration of B. balcooaRoxb. factors affecting changes of morphogenetic competence in the axillary buds. Plant Cell Tissue Organ Culture 81(1): 109–112.
3. Negi D, Saxena S (2011) Micropropagation of BambusaBalcooaRoxb. through axillary shoot proliferation. In Vitro Cellular Developmental Biology-Plant. 47: 604-610.
4. Sharma P,Sarma KP (2011) In vitro propagation of Bambusabalcooafor a better environment. International Conference on Advances in Biotechnology & Pharmaceutical Sciences (ICABPS'2011).
5. Mudoi DK, Borthakur M (2009) In vitro micropropagation of BambusaBalcooaRoxb. through nodal explants from field –grown culms & scope for upscaling. Current Science96: 962-966.
6. Agnihotri RK,Nandi SK (2009) In vitro shoot cut: A high frequency multiplication & rooting method in the bamboo Dendrocalamushamiltoni. Biotechnology 8: 259-263.
7. Mahapatra R, Shrivastava SK (2013) Bamboo rising. Down to Earth.
8. Roy SS, Ali MN, Gantait S, Chakraborty S, Banerjee M (2014) Tissue Culture & Biochemical Characterization of Important Bamboos.Research Journal of Agricultural Sciences5: 135-146.
9. Ntirugulirwa B, Asiimwe T, Gapusi J, Mutag A, Nkuba G, et al. (2012). Influence of Bud Position on Mother Stem & Soaking Duration on Sprouting of Bamboo.
10. GulabraoAY, Kaushal R, Tewari KS, Tomar SMJ, Chaturvedi PO (2012) Seasonal effect on rooting behaviour of important bamboo species by culm cuttings. JournalofForest Research 23: 441-445.
11. Banik RL (1995)A manual for vegetative propagation of bamboos. Basic Conditions Needed For Vegetative Propagation.
12. Singh RS, SinghR, Kalia S, Dalal S, Dhawan KA, et al. (2013) Limitations, progress & prospects of application of biotechnological tools in improvement of bamboo: A plant with extraordinary qualities.PhysiolMolBiol Plants 19: 21-41.
13. Islam MS, Bhuiyan MK, Hossain MM, Hossain MA (2011) Clonal propagation of Bambusa vulgaris by leafy branch cuttings. Journal of Forestry Research 22: 387-392.
14. Pattanaik S, Das P, Borah E, Kaur K (2004) Vegetative multiplication of BambusabalcooaRoxb. using branch cuttings. Journal of Bamboo &Rattan4: 365−374.
15. Banik RL (2008) Issues in production of bamboo planting materials-lessons & strategies. Indian Forester134:291−304.
16. Bhol N,Nayak H (2012) Effect of Planting Alignment & Cutting Size on Propagation of Bambusa vulgaris. Journal ofTree Science31: 69-75.
17. JoshiR, Tewari SK, Kaushal R,Tewari L (2012) Rooting Behaviour of BambusabalcooaRoxb in relation to season, age & growing conditions. Indian Forester.
18. Stapleton CMA (1985) Studies on vegetative propagation of Bambusa&Dendrocalamus species by culm cuttings, recent research on bamboos. Proceedings of the International Bamboo Workshop.
19. Angayon DJ, Castañeto TY, Castañeto TE (2008) Rooting of Yacon (Smallanthussonchifolius) Using Main Stem in Different Rooting Media. NVSU Research Journal XV: 17-21.
20. Gautam NN, Singh K, Singh B, Seal S, Goel A, et al. (2010) Studies on clonal multiplication of Guava (PsidiumguajavaL.) through cutting under controlled Conditions.Australian Journal of Crop Science 4:666-669.
21. Saharia UK, Sen SK (1990) Optimum age of bamboo culms for nodal cuttings. Indian Forester 116: 780-784.
