Dynamical Patterns in Gene Expression Profile After Influenza A Virus Injection

Sherehe Semba1,2*, Huiyun Wan1, Changgui Gu1 and HuijieYang1
1Department of Systems Science, University of Shanghai for Science and Technology, Shanghai, China
2Department of Science, University of Dar es Salaam, Dar es Salaam, Tanzania
*Corresponding Author: Dr. Sherehe Semba, Department of Systems Science, University of Shanghai for Science and Technology, Shanghai, China, Email: sembasherehe@gmail.com

Received: 11-Aug-2023 / Manuscript No. DPO-23-110142 / Editor assigned: 14-Aug-2023 / PreQC No. DPO-23-110142 (PQ) / Reviewed: 28-Aug-2023 / QC No. DPO-23-110142 / Revised: 04-Sep-2023 / Manuscript No. DPO-23-110142 / Accepted Date: 04-Sep-2023 / Published Date: 12-Sep-2023 DOI: 10.4172/2476-2024.8.S13.003 QI No. / DPO-23-110142

Abstract

Background: Finding the underlying gene regulatory mechanisms for complex diseases is essential for systems biology. The dynamic mode decomposition is adopted in this article to unveil the coherent dynamical patterns that correspond to viral recognition receptors in time-course gene expression profiles after injection of the Influenza A virus.

Results: The eigenvalues, dynamic modes, and amplitudes provide sufficient clues for distinguishing the symptomatic influenza infection individuals from the asymptomatic ones. The symptomatic individuals have a total of 20 dominant modes having positive real eigenvalues, implying a monotonic increase of the receptor response due to the replication of the virus. The asymptomatic individuals have only two real positive eigenvalues, corresponding to the receptors that activate the innate immune response promoting viral clearance.

Conclusion: If the time-course gene expression profiles are available, one can straightforwardly extend this approach to other diseases, such as COVID-19.

Keywords: Dynamical patterns; Dynamic mode decomposition; Time-course gene expression; Influenza A virus

Background

In a cell a single gene may take part in expressions of several or even many genes, and a gene’s expression is usually regulated cooperatively by a set of genes [1]. The genes are integrated by the regulations into a gene regulatory network [1-12], through which they realize their roles in various cellular processes and pathways. As a response to the signals from the environments and/or the intrinsic cellular processes, the gene regulatory network will adjust the expressions of the genes [2]. The records for all expressions will form a multivariate time series. Identifying the dynamical patterns in the gene expression time series is subsequently an essential task since the invention of the high-through- out technique [13-15]. It can not only shed light on the underlying molecular-level mechanism for the processes occurring in the cell, but also be helpful in intervention, regulation, and even control of the cell’s life. Herein one meets a typical problem called curse of dimensionality.

In each specific measurement, the micro-array can provide us simultaneous expressions for more than ten thousand genes [16]. However, the number of sampling in the interested time duration can reach only to several tens due to technical limitation. One solution is to reduce the dimension by decreasing the redundancy of the expressions, such as the clustering and the mixed-effect modeling techniques, and describe the dynamical process with ordinary differential equations in the low-dimensional space [17,18]. The procedure for dimension reduction involves a serial of steps for clustering, smoothing, regulation identification, parameter estimates refining, and function enrichment analysis, each of which implies loss of information. For instance, in gene clustering [19], the correlations between genes are calculated, but the causal and effect information is lost. An alternative solution is to simplify the regulations by means of representing them with, for examples, the cross-correlations between gene expressions or several logical states [20-23]. The simplification leads also to serious loss of information or expensive computations. For instance, in the Boolean model the gene expression levels are simply coarse-grained into two states (on and off) [4,5], in which the time-course nature of gene expression profiles are not efficiently taken into account. In the Bayesian network [8,24], different types of data and prior knowledge are combined with the Bayes’ rule to find the optimization solution from many combinatory candidates, implying usually a high computational cost. The vector auto-regressive and state-space models [2,25] are also discrete ones, requiring equally spaced and intensive time series to obtain reliable inference of parameters. Actually, in most practice cases, due to the complications in computations and theoretical justifications, only the first-order and linear auto-regressive model is adopted [26].

Recent years have witnessed a rapid development of the Dynamic Mode Decomposition (DMD) [27-30]. It is a pure data-driven technique designed to identify the low-dimension coherent structures in dynamical processes’ for high-dimensional systems. Let us consider the dynamical process of a complex system. When the interested time duration is so short that the intrinsic condition keeps unchanged, it is reasonable to assume the dynamical process follows an identical law [27]. Though the dynamical process is generally nonlinear and complex, when the time interval between two successive sampling is small enough, it is reasonable to approximate the following state with by a linear transformation of the present state, i.e., the dynamical law can be quantitatively described by the matrix corresponding to the linear transformation, called evolutionary matrix.

The DMD paves a path to find the collective patterns from microscopic to macroscopic time scales stored in high-dimensional data, without the loss of information. It provides us also the dominated coherent structures at each sampling point. It is well-known that a complex biological function is usually realized by the co-operations between several or more genes, and a complex disease is closely related with several or more genes. Hence, the dynamical collective patterns detected by the DMD may deepen our understandings of various biological functions and diseases. Some gene expression profile series have been reported, i.e., all the expressions of interesting genes are measured simultaneously at successive time points.

For instance, the response of a total of 17 volunteers to the injection of H3N2 virus is reported in the famous data-base https://www.ncbi. nlm.nih.gov/geo/query/acc.cgi?acc=GSE30550. Before the injection, the gene expressions for each volunteer are measured as a reference.

After the injection, the gene expressions for all the volunteers are measured per eight hours. The experiment lasts a total of five days, in which nine individuals become patients with significant symptoms and the others keep healthy [31,32]. The records for each specific volunteer form a multivariate time series with 11961 rows and 16 columns. Each row corresponds to a specific gene, and each column a specific sampling time point. Going further to the peak symptom time analysis reported in Zaas, et al. [31] and the report of an hour-by-hour detailed view of host immune response as a continuum, spanning the time from exposure to peak symptom manifested by Huang, et al. [32]. In this work, the DMD is adopted to identify the collective dynamical patterns of symptomatic and asymptomatic individuals in these gene expression series.

Technically, the successive columns for the gene expression time series are linked with an identical evolutionary matrix, respectively. A standard procedure of DMD [33,34] is then used to reduce the dimension of the evolutionary matrix, the eigenvectors for which are called dominant DMD modes, whose characteristic time scales are determined by the corresponding eigenvalues. The amplitude for each specific mode quantifies its influence. It is found that the spectral components distinguish successively the symptomatic from the asymptomatic individuals. The highest dominant mode of the asymptomatic individuals has lower amplitude than that of the symptomatic individuals. The eigenvalues of the collective symptomatic individuals correspond to stable DMD modes except 20 eigenvalues, and that for asymptomatic individuals have two unstable temporal modes. The dominant patterns turn out to correspond to the recognition receptor genes, e.g., the Protein Disulfide Isomerase family A member 3 (PDIA3), Histone cell cycle regulator (HIRA), G protein subunit alpha 13 (GNA13), S100 calcium binding protein P (S100P), Ribosomal Protein L36a pseudogene 37 (RPL36AP37), Keratin 1 (KRT1), Endoplasmic Reticulum Aminopeptidase 2 (ERAP2), X Inactive Specific Transcript (XIST), Retinoic acid-Inducible Gene-I (RIG-I)-Like Receptors (RLRs) [35-37], Toll-Like Receptors (TLRs) [38,39], Nucleotide-binding Oligomerization Domain (NOD)-Like Receptors (NLRs) [35,40-42], which are causal for transcriptional response to other genes sharing the features like innate immunity response.

Materials and Methods

Data and pre-processing

The data GSE30550 for a human influenza challenge study was freely downloaded from the GEO database in NCBI website, also refer [31,32]. A cohort of 17 healthy human volunteers received an intranasal injection of influenza H3N2/Wisconsin (four different doses). The total genes available on whole peripheral blood drawn from each individual at 16 sequences of time-course gene expressions are 11961. Each sequence covers a duration of 132 h including 15 measurements at 0,5,12,21,29,36,45,53,60,77,84,93,101,108 h post-injection (hpi) and one measurement taken 24 h before injection (-24 hpi). The individuals 8,13,17 have missed values at the sampling points 21,(-24,36),36, respectively. The absent value is estimated to be the median of its two neighboring expression values. We describe the original expressions for the k-th individual with a matrixSk, whose specific entity; Sk(i,m),i=1,2,3,.......11961; m=0,1,2,3,.....,15 is the original expression level for the i-th gene in the  time point. We conducted dynamic mode decomposition in each individual gene expression matrixSk, and the individuals with at least one positive eigenvalue is symptomatic (unstable) otherwise is asymptomatic (stable). We found a total of  9 individuals numbered 2,3,4,5,6,7,8,13,17 are symptoms and the other 8 numbered 1,9,10,11,12,14,15,16 are asymptomatic. The numbers of symptomatic and asymptomatic after influenza A injection are equivalent to the numbers reported in [31,32].

Subsequently, for conducting the DMD in collectively symptomatic (asymptomatic), we unite the expression profiles of 9 symptomatic (8 asymptomatic) into a single gene expression profile (matrix)SI (SH),whose entity becomes

Equation

Equation

for the i-th gene in the m-th expression level. Figure 1 is the heat- map of the gene expression profile data samples (left) and the extracted symptomatic and asymptomatic individual’s matrices (right).

diagnostic-pathology-gene

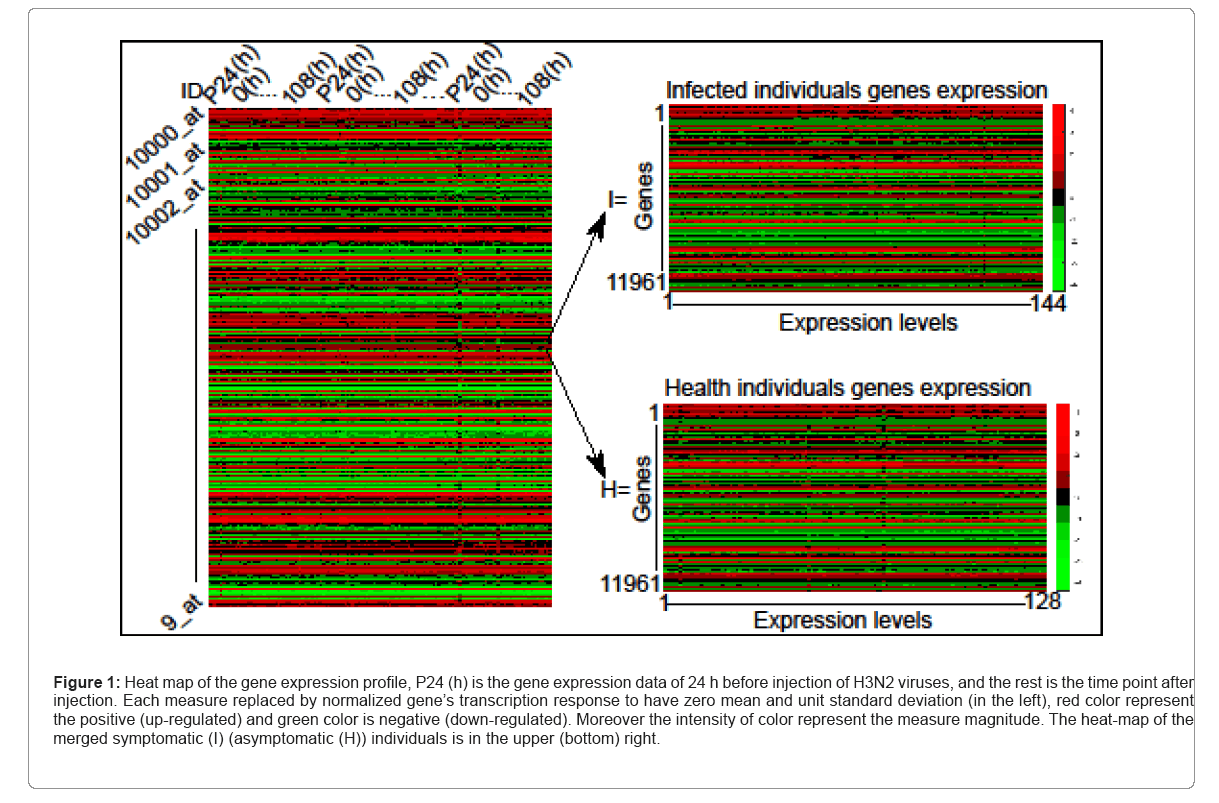

Figure 1: Heat map of the gene expression profile, P24 (h) is the gene expression data of 24 h before injection of H3N2 viruses, and the rest is the time point after injection. Each measure replaced by normalized gene’s transcription response to have zero mean and unit standard deviation (in the left), red color represent the positive (up-regulated) and green color is negative (down-regulated). Moreover the intensity of color represent the measure magnitude. The heat-map of the merged symptomatic (I) (asymptomatic (H)) individuals is in the upper (bottom) right.

Dynamic mode decomposition of the time-course expressions

The normalized gene expression profile of the collective symptomatic (asymptomatic) individuals denoted by matrix I(H), whose entity corresponding to Equation

Herein,Equation are the mean and standard deviation of the gene expression levels with respect to the dummy variable (∙), i.e., the genes? A reasonable assumption is that all the transitions between successive expression levels can be mimicked by an identical linear relation Α. Let us denote the symptomatic (asymptomatic) gene expression levels at the m-th point with I(i,nm)[H(i,m)] (the m-th column in I[H] ), we have,

Equation

Equation

Equation

Equation

Equation

Equation

: represent index of all genes, i.e., 1,2,3,...,1196.

A simple computation for symptomatic leads to Equation where † denotes the Moore-Penrose pseudoinverse of the dummy variable(.).

It can be estimated by minimizing the Frobenius norm of the difference

Equation

The operator AI is a matrix with a size of 11961 × 11961, implying that it has a total of 11961 eigenvalues and corresponding eigen-modes. To preserve (discard) the eigen-modes reflecting the macroscopic behaviors (microscopic details from noises and occasional events) of I0, the Singular Value Decomposition (SVD) is adopted the detailed of SVD see in [33,34] and depicted in Figure 2, i.e.,Equation where * denotes the complex conjugate transpose, r refers to the number of the preserved rank of the data matrix and it is less than or equal to min 1 (11961,143)=143. The same procedure were used for AH Discarding, reduces the number of operations in subsequent steps, but care takes to avoid discarding relevant parts of the dynamics. More details about discarding with examples and advanced strategies are available in [29,43,44]. In this work, we discarded the negative log scale of the singular valuesEquation

diagnostic-pathology-matrix

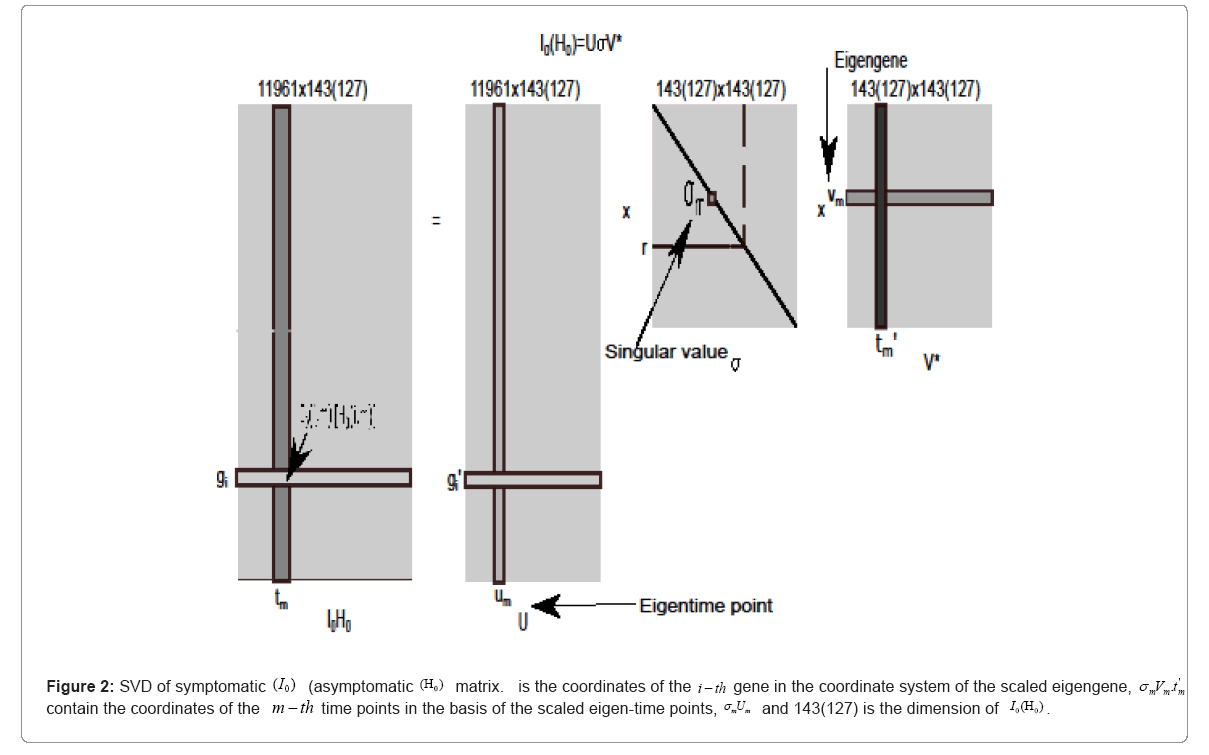

Figure 2: SVD of symptomatic (I0)(asymptomatic (H0) matrix. is the coordinates of the i-th gene in the coordinate system of the scaled eigengene, σm,Vm.tm' contain the coordinates of the m-th, time points in the basis of the scaled eigen-time points, σmUm and 143(127) is the dimension of I0(H0).

Using the component of the SVD, the operator AI approximated asEquation but the size of matrix A1 is still 11961 × 11961. A low- dimensional is efficiently performed by projecting using the first r left singular vectors ( Ur ). The reduced operator defined to beEquation whose eigen-decomposition read,Equation where the columns ofEquation and the diagonal entries ofEquation are the eigen-modes and the eigenvalues ofEquation , respectively. Then,Equation is used to approximate the DMD mode (dynamic mode) of AI i.e., the approximated dynamic mode corresponding to the lm is,Equation the m-th column of W .

The dynamic modes describe how gene are related (each gene expression in gene expression profile). Within a single dynamic mode, the magnitude of each element in a column Equation provide a measure of gene’s expression participate in the mode. The DMD eigenvalues can also be converted to continuous time eigenvalues by, Equation , where ∆t is the difference between two successive points. The continuous eigenvalues can be interpreted by their corresponding real and imaginary part i.e., Equation The real part regulates the growthEquation of the dynamic modes. The imaginary part indicates the frequencyEquation of oscillation in the mode. Then, by using the approximate eigen-decomposition, we obtain a coupled gene- temporal model,

Equation

Following the same simple computation used for united symptomatic individuals, we obtain the dynamical patterns and thecoupled gene-temporal model for united asymptomatic individuals: Equation is a set of weights satisfying Equation is not a square matrix so that Equation Note that entries ofEquation are coefficients of the linear combination of I(:,0)[(:,0)] H in the eigen-modes basis, called DMD amplitudes

Results and Discussion

For symptomatic individuals, Figures 3a-3e, illustrate the DMD decomposition of 11961 genes in united 9 symptomatic individuals over 144-gene expression levels. The top left panel (a) is the log scale of the singular values decomposition. Specifically, the singular value decomposition produces a diagonal matrix whose the leading elements establish the modes with maximum variance. Four open circles are the noisy modes which were discarded. The panel (b) illustrate the distribution of eigenvalues ω , showing the modes which have growth, dominant modes which are used in the solution decay and/or oscillatory control. The solid circles represent the Equation to approximate the genes expression levels. The panel (c) considered the magnitude of real part of eigenvalues, plotted in a histogram, showing the gene expression growth in each gene. We found 20 positive real part eigenvalues, where 12 distributed in the interval (0,2) and 8 in the interval (2,4). The DMD modes patterns which are composed of amplitudes (mode-values) of the 11961genes, and its high resolution of the first five dominant gene-modes between Equation are highlighted in the panel (d),Equation (not shown) are conjugate to Equation respectively. The panel (e) demonstrate modes of each gene and their high resolution of the first 9 dominant gene-modes between 4000-4010.

diagnostic-pathology-symptomatic

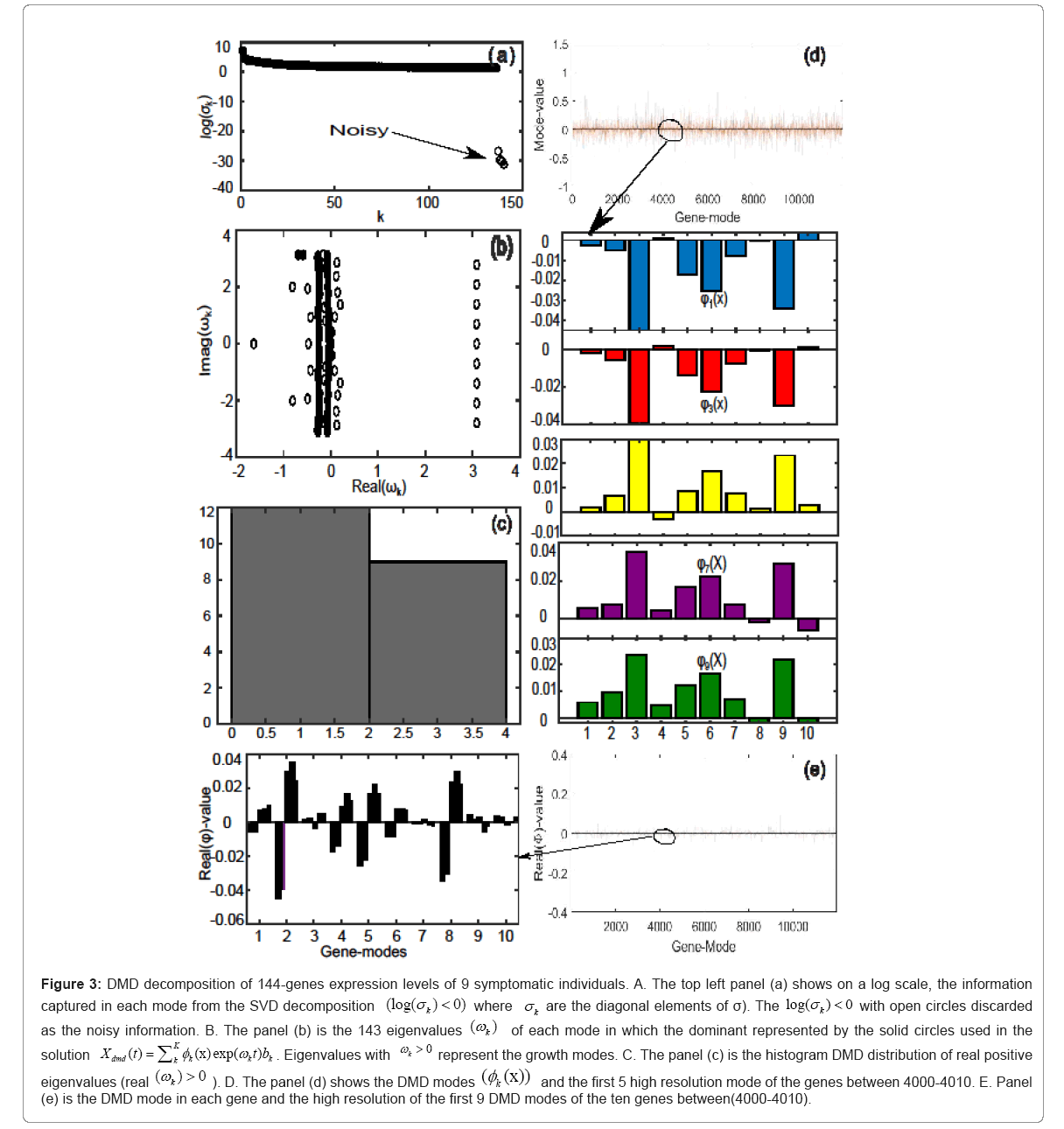

Figure 3: DMD decomposition of 144-genes expression levels of 9 symptomatic individuals. A. The top left panel (a) shows on a log scale, the information captured in each mode from the SVD decomposition (log(σk)<0 with open circles discarded as the noisy information. B. The panel (b) is the 143 eigenvalues (ωk) of each mode in which the dominant represented by the solid circles used in the solutionEquation Eigenvalues with Equation represent the growth modes. C. The panel (c) is the histogram DMD distribution of real positive eigenvalues Equation D. The panel (d) shows the DMD modesEquation and the first 5 high resolution mode of the genes between 4000-4010. E. Panel (e) is the DMD mode in each gene and the high resolution of the first 9 DMD modes of the ten genes between(4000-4010).

For asymptomatic individuals, Figures 4a-4e, illustrate the DMD decomposition of 11961 genes in united 8 asymptomatic individuals over 127-gene expression levels. The top left panel (a) is the log scale of the singular values decomposition. Panel (b) is the distribution of eigenvalues wk, used to approximate the genes expression levels. The panel (c) is the magnitude of real part eigenvalues, plotted in a histogram, showing the gene expression growth in each gene. We found two positive real part eigenvalues, one has 0.0037 magnitude and the other has the magnitude 0.0005. The DMD modes which are composed of weightings of the 11961 genes, and the high resolution of the first five dominant modes in genes Equation are highlighted in the panel (d),Equation (not shown) are conju gate toEquation respectively. Modes of each gene and their high resolution of the first 9 dominant modes in genes 4000-4010, demonstrated in the panel (e). As shown in Figure 4a, all the log scale singular values are greater than zero, implies that no noisy information in the health individuals genes expression profile, but Figure 3a which is the singular values from the infected individuals genes expression profile had four noisy information represented by an open circles. The eigenvalues for both Figures 3a and 4b are mostly distributed in the negative real part and are symmetric distributed in the imaginary part, showing that most of the DMD mode decayed and have controlled with oscillation. However, as shown in Figures 3c and 4c, the symptomatic individual contain more real positive eigenvalues with large magnitude comparing to asymptomatic individuals genes expression profile. The higher resolution between 4000-4010 gene-modes shows that in each gene mostly contains both the negative and positive modes for symptomatic while for asymptomatic mostly has only one sign (negative/ positive) mode (see the higher resolution in Figures 3a and 4e). The magnitude of the modes for symptomatic and asymptomatic individuals are in the interval (-0.4,0.4) and (-0.1,0.1), respectively as shown in Figures 3a and 4e. What is more, for symptomatic we unveiled 6543 components of the dominant modes with positive values, equivalent to 54.7% components mode patterns while for asymptomatic we obtained 6495 modes with positive mode-values, equivalent to 54.3% out of 11961 mode patterns. Interestingly, for symptomatic the modes with values >0.9 turn out to correspond to the Protein Disulfide Isomerase family A member 3 (PDIA3), Histone cell cycle regulator (HIRA), G protein subunit alpha 13 (GNA13), S100 calcium binding protein P (S100P), Ribosomal Protein L36a Pseudogene 37 (RPL36AP37) and for asymptomatic the unstable modes with values >0.06 turn out to correspond to the Keratin 1(KRT1), Endoplasmic Reticulum Aminopeptidase 2(ERAP2), and X Inactive Specific Transcript (XIST). The instability of the gene-modes to symptomatic individuals, implies that the correspond genes it recognizes the influenza virus and may play a role in the etiology of respiratory viral infections. The instability of the gene-modes to asymptomatic individuals, implies that it detect the presence of influenza virus and may mediate viral clearance.

diagnostic-pathology-asymptomatic

Figure 4: DMD decomposition of 128 genes expression levels of 8 asymptomatic individuals in the 11961 genes. A. The top left panel (a) shows, on a log scale, the information captured in each mode from the SVD decomposition (log(σk)) where sk are the diagonal elements of σ. B. Panel (b) is the 127 eigenvalues (ωk>0) used in the solutionEquation Eigenvalues withEquation represent the growth modes. C. The panel (c) is the histogram DMD distribution of eigenvalues (ωk>0) D. The top right panel (d) shows the DMD modes(Φk(x)) from the 11961 genes and the first 5 high resolution mode of the genes between 4000-4010. E. Panel (e) is the DMD mode in each gene and the high resolution of the first 9 DMD modes in each gene of the ten genemodes (4000 -4010).

Conclusion

The DMD discards the microscopic details from noises and occasional events and preserves the macroscopic information of the gene expression profile data. It decouples the measure of the gene’s occurrence positions and transcription responses from the environmental conditions and or disease state. In this work, first, we conducted the DMD in each gene expression profile to distinguish the infected and healthy individuals by considering the existence of at least one real positive eigenvalue as a detector for an infected symptomatic individuals after the H3N2 injection. It found nine infected symptomatic individuals, and the remaining eight are healthy. Then, we unite the infected (healthy) into one gene expression profile for collective symptomatic (asymptomatic) pattern extractions.

The patterns obtained correspond to the recognition receptors. For example, in collective symptomatic individuals, 20 eigenvalues are positive and correspond to growing modes, i.e., it has positive dominant DMD modes, corresponding to an increase of the receptors (PDIA3, HIRA, GNA13, S100P, RPL36AP37) response triggered by the replication of the virus and generating exacerbated local immunity responses resulting in acute infection and increased pathogenesis. In the collective asymptomatic individuals, two eigenvalues are positive with positive dominant modes, corresponding to the receptors (KRT1, ERAP2, XIST) response that activates the innate immune response and subsequently promotes the viral clearance. As mentioned in the introduction, Huang, et al. reported the analysis of genes expression profile after influenza A injection and the active genes reported are concordant with those found in Zaas, et al. report. We have compared the genes found by Huang, et al. with the genes corresponding to the positive components of DMD modes found in this paper. There exists almost non-overlap between those genes. We hope in future work one can get some interesting findings by comparing the biological functions of the genes found in this paper with those listed in Huang, et al. report. A Deep understanding of these patterns distinguishes the symptomatic from the asymptomatic in influenza A virus and sheds new light on emerging acute respiratory distress like a currently novel Coronavirus disease-19. Hence, if the time-course gene expression profile is available. one can straightforwardly extend this approach to other diseases, such as cancer and COVID-19.

Funding

This research received no external funding.

Conflicts of Interests

The authors declare no conflict of interest.
