Diversity Investigation of the Seaweeds Growing on the Lebanese Coast

¹Laboratory of Seaweeds Polysaccharides and Chemical Synthesis, Faculty of Pharmacy, Lebanese University, Beirut, Lebanon

²Pacific Institute of Bioorganic Chemistry, Far Eastern Branch of the Russian Federation Academy of Sciences, Vladivostok, Russia

³Far Eastern Federal Universities, Vladivostok, Russia

⁴Laboratory of Microbiology, Department of Biology, Faculty of Sciences I, Lebanese University, Hadath Campus, Beirut, Lebanon

⁵PRASE, Platform of Research and Analysis in Environmental Sciences, Doctoral School of Sciences and Technologies, Lebanese University, PO Box 5, Hadath Campus, Beirut, Lebanon

*Corresponding Author:

Dr. Hussein Kanaan
Faculty of Pharmacy
Lebanese University
Campus Hadath, Beirut, Lebanon
Tel: +9613703532
E-mail: hkanaan@ul.edu.lb

Received date December 12, 2013; Accepted date December 29, 2014; Published date December 31, 2014

Citation: Kanaan H, Belous O, Chokr A (2015) Diversity Investigation of the Seaweeds Growing on the Lebanese Coast. J Marine Sci Res Dev 5:156. doi:10.4172/2155-9910.1000156

Copyright: © 2015 Kanaan H, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Journal of Marine Science: Research & Development

Abstract

By specialized underwater cameras we have filmed and collected samples of algae from the following sites along the Lebanese coast: Batroun, Barbara, Manara, Officer’s Military club, Saida, Sarafand, Tyre and Naqoura. We have identified ninety-four species of algae that grow along the Lebanese coast and we have established a collection sites map of these algal species. The identification of the samples was done in three steps: (1) Determine the largest group (green, brown and red algae) to which the sample belongs, then continue searching within the most likely group. (2) Seek off in the succession of morphological types which proposed that the sample is approaching. (3) Seek out using the illustrations and descriptions a satisfactory identification. It is worth noting that confirmation cannot be obtained in all cases unless a careful reading of the description is done. (4) We then proceeded to the classification of the collected seaweeds which are distributed as follows: Rhodophyta forty one species, Ochrophyta
twenty two species, Chlorophyta twenty six species and Cyanobacteria five species. (5) Synthesis: The present study allowed us to establish a primary infrastructure regarding the distribution of the Lebanese seaweeds. Such findings represent an important scientific support concerning the Mediterranean seaweeds, which provides a great assist in algal studies and all its applications. This screening of the Lebanese coastline shows a broad and significant algal distribution. The most common algal types among the identified ones are: Sargassum, Padina, Laurencia, Ulva, Corallina, Hypnea, Chondracanthus, Jania, Amphiroa, Pterocladia, Cladophera, Codium.

Keywords

Chlorophyta; Ochrophyta; Lebanese coastline; Rodophyta; Lebanese seaweeds diversity; Marine algae

Introduction

Over the past decades, an increasing attention to learn more about marine organisms and especially seaweeds has arisen. Seaweeds have shown to produce a variety of compounds whose some of them have been reported for diverse biological activities [1-3].

Seaweeds have become particularly interesting and many studies have been conducted to characterize their contents which have shown great potential in a wide range of biological activities such as antiinflammatory, anticoagulant, anti-obesity, antibacterial, antiviral, antifungal, antioxidant, antitumoral, antiproliferative [3-21].

Many species of marine algae have long been used in food diet and in traditional oriental medicine [9,22,23].

Seaweeds contain and/or produce a panel of substances that currently received most attention from pharmaceutical, drug development and food companies [3,14,20,21,23-26].

Polysaccharides (carrageenan, cellulose, agar, gepsin, porphyran, fucoidan, alginic acid), carotenoids (fucoxanthin, zeaxanthin, violaxanthin, β-carotene, anthocyanins), fatty acids, amino acids, some trace or oligoelements (K, Ca, Mg, Na, Si, Sr, P, Fe,…) are among these substances [3,9,22,24-28].

Despite the quality and the emerging importance of marine algae, to our knowledge the diversity of the Mediterranean Lebanese coast flora and especially that of its seaweeds has never been investigated.

Since few years, we were the unique researchers in Lebanon who have started investigating some algal species from the Lebanese coast for their chemical composition and some biological activities of some extracted and characterized components.

In total, we have studied five Lebanese seaweeds species (Padina pavonica, Dictyopteris polypodioides, Corallina, Sargassum sp. and Pterocladia) for the contents of their extracts in polysaccharides (carrageenan, sulfated galactan, fucoidan, laminaran, alginic acid and Mannuronan), aminoacids, fatty acids and some trace and oligoelements (K, Ca, Mg, Na, Si, Sr, P, Fe) and the following biological activities: anticoagulant, antibacterial, antioxidant and antitumoral activity [29-35].

The worldwide emerging interest in seaweeds for their importance in many fields and the promising results obtained from our previous work referenced above have led us to focus our study on the Lebanese seaweeds by highlighting the diversity of the Lebanese coast seaweeds flora.

Thus the objective of our present study is to investigate the diversity of the seaweeds flora inhabiting the Mediterranean Sea in front of the Lebanese coast.

Materials and Methods

By specialized underwater cameras (Canon Digital IXUS 900 Ti, Japan) we have filmed and collected many samples of algae from different sites along the Lebanese coast. These different sites are: Batroun, Barbara, Manara, Officer’s Military club (Bain militaire in Figure 1), Saida, Sarafand, Tyre and Naqoura. They are indicated in Figure 1.

Figure 1: Map showing the sites of collection of the seaweeds along the Lebanese coast.

The samples were freshly harvested between (Junes-July 2014) from the field at an average distance of 3 m from the coastline and an average depth of 5 m from the water surface. The physicochemical factors determined in these sites together with their average values are summarized in Table 1. They are always carefully picked and taken with their base, the latter often being a fundamental character recognition (case of Cystoseira). The fresh samples are kept well in dampened plastic bags. It is thus possible to conserve them in a refrigerator for a few days. The samples were microscopically identified using the stereo microscope (M165C, Leica Microsystems, Buffalo, N.Y., U.S.A) according to the procedure described by [36,37]. After their identification and separation by species, the samples are placed in a flat dish containing seawater. A plate of glass or plastics half immersed allows the spreading of the sample. They are then dried and conserved.

Table 1: Physicochemical factors of the sites from which the seaweeds were collected.

Results

Physicochemical characteristics of the sites of collection

The physicochemical characteristics of the seawater of the sites from which the seaweeds were collected are summarized in Table 1.

Identification of the collected seaweeds from the Lebanese coast

We have collected and identified from the Lebanese coast ninety four seaweeds species belonging to the following phyla: Rhodophyta (forty one species), Ochrophyta (twenty two species), Chlorophyta (twenty six species) andCyanobacteria (five species) (Table 2). The forty one species of Rhodophyta belonging to the class of Florideophyceae are distributed in the following orders: 1-Erythropeltidales (one specie belonging to the family of Erythrotrichiaceae), 2-Gigartinales (three species belonging to the family of Cystocloniaceae, one specie belonging to the family of Gigartinaceae and two species belonging to the family of Phyllophoraceae), 3-Corallinales (seven species belonging to the family of Corallinaceae), 4-Ceramiales (eight species belonging to the family of Rhodomelaceae, two species belonging to the family of Ceramiaceae, two species belonging to the family of Dasyaceae and one specie belonging to the family of Spyridiaceae), 5-Nemaliales (three species belonging to the family of Liagoraceae and one specie belonging to the family of Galaxauraceae), 6-Bonnemaisoniales (two species belonging to the family of Bonnemaisoniaceae), 7-Gelidiales (two species belonging to the family of Gelidiellaceae and one specie belonging to the family of Pterocladiaceae), 8-Peyssonneliales (one specie belonging to the family of Peyssonneliaceae), 9-Rhodymeniales (three species belonging to the family of Rhodymeniaceae) and 10-Hildenbrandiales (one specie belonging to the family of Hildenbrandiaceae) (Table 2).

Table 2: Classification and quantitative distribution of seaweeds collected from the Lebanese Coast.

The twenty two species of Ochrophyta belonging to the class Phaeophyceae of are distributed in these five following orders: 1-Ectocarpales (one specie belonging to the family of Ectocarpaceae, one specie belonging to the family of Scytosiphonaceae, two species belonging to the family of Chordariaceae and one specie belonging to the family of Scytosiphonaceae), 2-Sphacelariales (two species belonging to the family of Sphacelariaceae and one specie belonging to the family of Stypocaulaceae), 3-Fucales (five species belonging to the family of Sargassaceae), 4-Dictyotales (eight species belonging to the family of Dictyotaceae) and 5-Ralfsiales (one specie belonging to the family of Ralfsiaceae) (Table 2).

The twenty six species of Chlorophyta belonging to the class Ulvophyceae of are distributed in these four following orders: 1-Cladophorales (nine species belonging to the family of Cladophoraceae, one specie belonging to the family of Anadyomenaceae and one specie belonging to the family of Valoniaceae), 2-Ulvales (four species belonging to the family of Ulvaceae), 3-Dasycladales (one specie belonging to the family of Polyphysaceae and one specie belonging to the family of Dasycladaceae) and 4-Bryopsidales (four species belonging to the family of Bryopsidaceae, four species belonging to the family of Codiaceae and one specie belonging to the family of Derbesiaceae) (Table 2).

The five species of Cyanobacteria belonging to the class Cyanophyceae of are distributed in these two orders: 1-Oscillatoriales (two species belonging to the family of Oscillatoriaceae and one specie belonging to the family of Phormidiaceae) and 2-Nostocales (two species belonging to the family of Rivulariaceae) (Table 2).

Distributionof the seaweeds along the Lebanese coast

A great number of the identified seaweeds species from the Lebanese coast (59.5% of the ninety four identified species) has the lowest distribution rate (found in ≤ 25% of the examined sites) while only 11.75% of the identified species were found in ≥ 75% of the examined sites. The remaining 28.75% have a middle distribution as they were found in between 25% and 75% of the examined sites in the Lebanese coast (Table 3 and Figure 2).

Table 3: Distribution/Phylum of the collected seaweeds species.

Figure 2: Distribution/Phylum.

The widest distributed species (eleven/ninety four)in the examined sites are: four species belonging to Rhodophyta (Hypnea musciformis, Jania rubens, Corallinaelongate and Corallina officinalis),six species belonging to Ochrophyta (Colpomenia sinuosa, Sphacelaria tribuloides, Halopteris filicina, Cystoseira tamariscifolia, Taoniaatomaria and Padina pavonica) and one specie belonging to Chlorophyta phylum (Valoniautricularis) (Tables 2,3 and Figure 2).

The most diversified sites are Barabara (fifty nine species), Tyre (forty three species) and Batroun (forty one species) followed by Manara (thirty four species), Naqoura (twenty five species) and Saida (twenty one species) having a moderate diversity and the least diversified sites are Sarafand (fourteen species) and Military club (thirteenspecies) (Table 4 and Figure 3). The distribution is as follow in all the sites: Rhodophyta > Ochrophyta > Chlorophyta > Cyanobacteria, except in Sarafand and Naqoura where there is more Ochrophyta species than Rhodophytaones (Table 4 and Figure 3).

Table 4: Distribution/site of the collected seaweeds species.

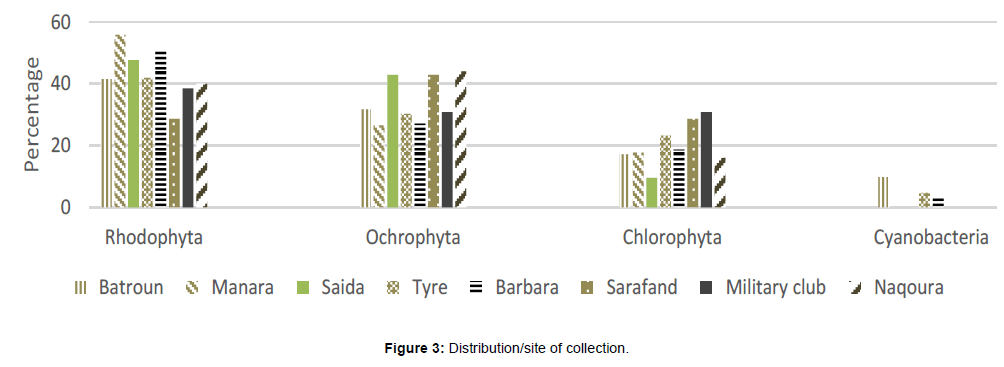

Figure 3: Distribution/site of collection.

Frequency of the seaweeds along the Lebanese coast according to the sites of collection

In all phyla the frequency of the species between the sites is as follow: the species having the lowest distribution rate (found in ≤ 25% of the examined sites) are the most frequent followed by those having a middle distribution rate (found in between 25% and 75% of the examined sites) then by those having a high distribution rate (found in ≥ 75% of the examined sites). According to Rhodophyta, this is true for all the sites except at Manara (where the species having the middle distribution rate are the most frequent followed by those of low distribution rate then by those of high distribution rate), Sarafand and Naqoura (where the species having the high distribution rate are more frequent than those having the middle distributionrate) (Table 5 and Figure 4).

Table 5: Frequency/Phylum of the collected seaweeds species regardless their distribution in at least one of the sites where they are found.

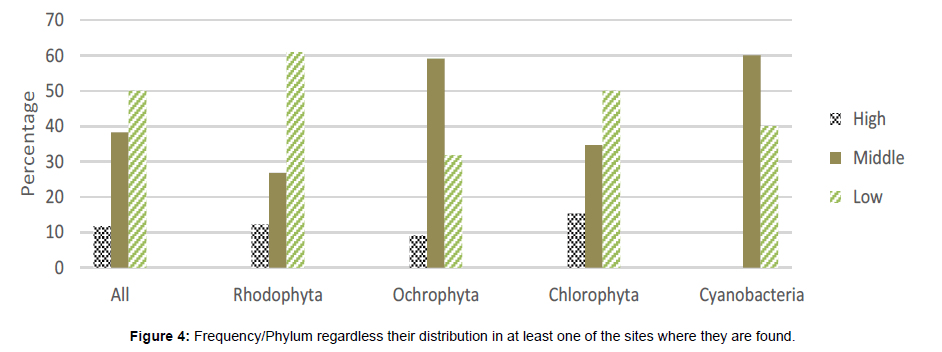

Figure 4: Frequency/Phylum regardless their distribution in at least one of the sites where they are found.

Regarding Ochrophyta, the exception appears in Tyre and Barbara sites (where the species having the middle distribution rate are the most frequent followed by those of low distribution rate then by those of high distribution rate) (Table 5 and Figure 4).

Concerning Chlorophyta, the exception appears in Batroun (where the species having the middle distribution rate are more frequent than those of low distribution rate) and Saida (where the species having the high distribution rate are more frequent than those having the middle distribution rate) (Table 6 and Figure 5).

Table 6: Frequency/site of the collected seaweeds species regardless their distribution in at least one of the sites where they are found.

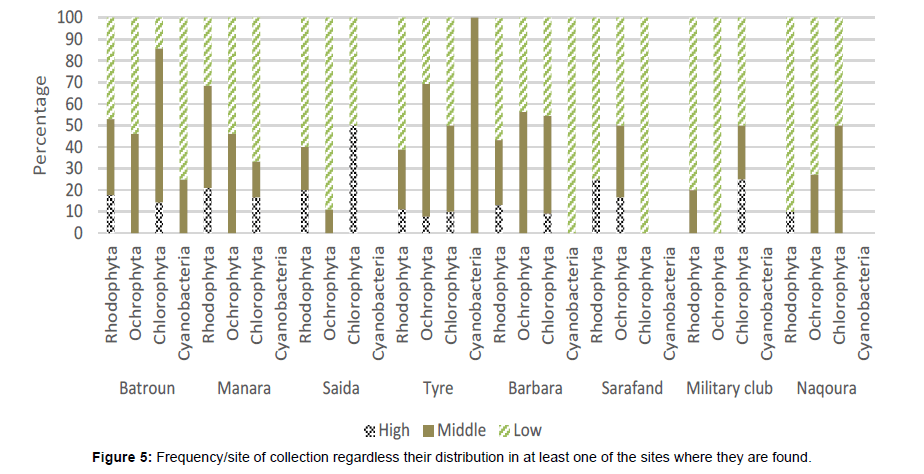

Figure 5: Frequency/site of collection regardless their distribution in at least one of the sites where they are found.

Pertaining to Cyanobacteria, the species belonging to this phylum exist in only three sites. The exception appears in Tyre (where the species having the middle distribution rate constitute 100%) (Table 6 and Figure 5).

Discussion

This present work was conducted to study the diversity of the seaweeds found in the Mediterranean Lebanese coast which has never been investigated.

Worldwide, there is an increasing importance given to learn more about seaweeds for their diverse biological activities such as antiinflammatory, antimicrobial and anticancer [5,7-9,11,15,17-20] and the importance of some species of marine in food diet [9,21,22] as well as their contributionin pharmaceutical, drug development and food processing fields [3,14,20,23-25].

For these reasons we started to investigate the diversity of the flora of the Lebanese coast in marine algae.

On the other hand some studies have shown that when grown extensively, microalgae may produce harmful effects on marine or freshwater ecology and fishery resources [38].

Geographical distributions are more sensitive to environmental changes, especially water temperature because physiological activities of marine organisms depend on water temperature, Especially seaweeds [39,40].

Other studies show that climatic factors such as temperature, surrounding waters as rivers, etc. could influence the distribution of marine algae [41-46].

Photoperiod, along with temperature, regulates seaweed reproduction [45-47] Shipping, pollution and many other factors may play key roles in marine algae distribution, a change in their metabolism and then in their chemical composition and their biological activities.

This screening of the Lebanese coastline shows a broad and significant algal distribution. Our findings represent an important scientific infrastructure concerning the Mediterranean seaweeds, which provides a great assist in algal studies and all its applications in an interactive way by understanding the effect of the above mentioned factors as examples beside other important factors on them.

Acknowledgements

The authors thank the Lebanese University represented by his president Dr. Adnan El Sayed Hussein and the Doctoral School of Sciences and Technology for their financial Support. The authors also thank Mr. Hussein Kanaan for his technical assistance.

References

1. Koyanagi S, Tanigawa N, Nakagawa H, Soeda S, Shimeno H (2003) Oversulfation of fucoidan enhances its anti-angiogenic and antitumor activities. BiochemPharmacol 65: 173-179.
2. Heo SJ, Park EJ, Lee KW, Jeon YJ (2005) Antioxidant activities of enzymatic extracts from brown seaweeds. BioresourTechnol 96: 1613-1623.
3. Mhadhebi L, Mhadhebi A, Robert J, BouraouiA (2014) Antioxidant, Anti-inflammatory and Antiproliferative Effects of Aqueous Extracts of Three Mediterranean Brown Seaweeds of the Genus Cystoseira. ijpr 13: 207-220.
4. Naqvi SWA, Solimabi, Kamat SY, Fernandes L, Reddy CVG et al. (1981) Screening of Some Marine Plants from the Indian Coast for Biological Activity. Botanica Marina 24:51-56.
5. Blunden G (1993) Marine Algae as Sources of Biologically Active Compounds. Interdisciplinary Science Reviews 18: 73-80.
6. Yan X, Nagata T, Fan X (1998) Antioxidative activities in some common seaweeds. Plant Foods Hum Nutr 52: 253-262.
7. Maeda H (2001) The enhanced permeability and retention (EPR) effect in tumor vasculature: the key role of tumor-selective macromolecular drug targeting. Adv Enzyme 41: 189-207.
8. Bhosale SH, Nagle VL, Jagtap TG (2002) Antifouling potential of some marine organisms from India against species of Bacillus and Pseudomonas. Mar Biotechnol (NY) 4: 111-118.
9. Smit AJ (2004) Medicinal and pharmaceutical uses of seaweed natural products: A review. Journal of Applied Phycology 16: 245-262.
10. Jaime L, Mendiola J, Herrero M, Soler-Rivas C, Santoyo S, et al. (2005) Separation and characterization of antioxidants from Spirulinaplatensis microalga combining pressurized liquid extraction, TLC, and HPLC-DAD. Journal of Seperation Science 28: 2111-2119.
11. Duan XJ, Zhang WW, Li XM, Wang BG (2006) Evaluation of antioxidant property of extract and fractions obtained from a red alga, Polysiphoniaurceolata. Food Chemistry 95: 37-43.
12. QuirósAR.Bd, Costa HS (2006) Analysis of carotenoids in vegetable and plasma samples: A review. Journal of Food Composition and Analysis 19: 97-111.
13. Blunt JW, Copp BR, Hu WP, Munro MH, Northcote PT, et al. (2009) Marine natural products. Nat Prod Rep 26: 170-244.
14. Cabrita MT, Vale C, Rauter AP (2010) Halogenated compounds from marine algae. Mar Drugs 8: 2301-2317.
15. Plaza M, Santoyo S, Jaime L, García-Blairsy Reina G, Herrero M, et al. (2010) Screening for bioactive compounds from algae. J Pharm Biomed Anal 51: 450-455.
16. Quirós AR.-Bd, Frecha-Ferreiro S, Vidal-Pérez AM, López-Hernández J (2010) Antioxidant compounds in edible brown seaweeds. European Food Research and Technology 231:495-498.
17. Shrestha-Bhattarai T, Rangnekar VM (2010) Cancer-selective apoptotic effects of extracellular and intracellular Par-4. Oncogene 29: 3873-3880.
18. D'Orazio N, Gemello E, Gammone MA, de Girolamo M, Ficoneri C, et al. (2012) Fucoxantin: a treasure from the sea. Mar Drugs 10: 604-616.
19. Rajauria G, Abu-Ghannam N (2013) Isolation and Partial Characterization of Bioactive Fucoxanthin from Himanthaliaelongata Brown Seaweed: A TLC-Based Approach. Int J Anal Chem 2013: 802573.
20. Cho 1, Park GM, Kim SN, Amna T, Lee S, et al. (2014) Glioblastoma-specific anticancer activity of pheophorbide a from the edible red seaweed Grateloupiaelliptica. J MicrobiolBiotechnol 24: 346-353.
21. Ghosh R, Banerjee K,Mitra A (2011) Eco-Biochemical Studies of Common Seaweeds in the Lower Gangetic Delta, in Handbook of Marine Macroalgae: Biotechnology and Applied Phycology. John Wiley & Sons, Ltd, Chichester, UK.
22. Francavilla M, Franchi M, Monteleone M, Caroppo C (2013) The red seaweed Gracilariagracilis as a multi products source. Mar Drugs 11: 3754-3776.
23. Cantrell A, McGarvey DJ, Truscott TG, Rancan F, Böhm F (2003) Singlet oxygen quenching by dietary carotenoids in a model membrane environment. Arch BiochemBiophys 412: 47-54.
24. Laurienzo P (2010) Marine polysaccharides in pharmaceutical applications: an overview. Mar Drugs 8: 2435-2465.
25. Gupta S,Abu-Ghannam N (2011)Bioactive potential and possible health effects of edible brown seaweeds. Trends in Food Science & Technology 22: 236-315.
26. Rajauria G, Jaiwasal AK, Abu-Ghannam N, Gupta S (2013) Antimicrobial, antioxidant and free radical-scavenging capacity of brown seaweed Himanthaliaelongata from western coast of Ireland. Jfb37: 322-335.
27. Pereira MS, Melo FR, Mourão PA (2002) Is there a correlation between structure and anticoagulant action of sulfated galactans and sulfated fucans? Glycobiology 12: 573-580.
28. Silva FRF, Dore CMPG, Marques CT, Nascimento MS, Benevides NMB et al. (2010) Anticoagulant activity, paw edema and pleurisy induced carrageenan: Action of major types of commercial carrageenans. Carbohydrate Polymers 79: 26-33.
29. Kanaan H, Krivorushko, Makhlouf H, Yassine A,Murtada M (2005) Trace elements and lipids in Padinapavonica in Lebanon. Arab Journal of Pharmaceutical Sciences 2: 21-28.
30. Krivoruchko Y, Kanaan H, Kavalyov V (2010) Chromato-masse spectrometry analysis of component composition of Brown Algae PadinaPavonica and FucusVesiculosus. Pharmacom 3:1-12.
31. Sokolova R, Emrakova S, Awada S, Zvyagintseva T,Kanaan H (2011) Composition, structural characteristics, and antitumor properties of polysaccharides from the brown algae Dictyopterispolypodioides and Sargassum sp. Chemistry of Natural Compounds 47: 329-334.
32. Sebaaly C, Kassem S, Grishina E, Kanaan H, Sweidan A, et al. (2014) Anticoagulant and antibacterial activities of polysaccharides of red algae Corallina collected from Lebanese coast. JAPS 4:30-37.
33. Sebaaly C, Karaki N, Chahine N, Evidente A, Yassine A et al. (2012) Polysaccharides of the red algae “Pterocladia” growing on the Lebanese coast: Isolation, structural features with antioxidant and anticoagulant activities. JAPS 2: 1-10.
34. Yassine F, Awada S, Zein S, Krivoruschko E, Chahine Net al. (2012) The influence of seasons on the composition and antioxidant activity of polysaccharides of brown algae (Padinapavonica) from the Lebanese coast. JPP1: 19-33.
35. Karaki N, Sebaaly C, Chachine N, Faour T, Zinchenko A et al (2013) The antioxidant and anticoagulant activities of polysaccharides isolated from the brown algae Dictyopterispolypodioides growing on the Lebanese coast. JAPS 3: 43-51.
36. Bold HC,Wynne MJ (1978) Introduction to the Algae: Structure and Reproduction. Prentice-Hall Inc, Englewood Cliffs.
37. Haroon AM, Szaniawska A, Normant M,Janas U (2000) The biochemical composition of Enteromorpha spp. from the Gulf of Gdansk coast on the southern Baltic Sea. Oceanologia 42: 19-28.
38. Coltelli P, Barsanti L, Evangelista V, Frassanito AM, Gualtieri P (2014) Water monitoring: automated and real time identification and classification of algae using digital microscopy. Environ Sci Process Impacts 16: 2656-2665.
39. Komatsu T, Meinesz A, Buckles D (1997) Temperature and light responses of alga Caulerpataxifolia introduced into the Mediterranean Sea. Meps 146: 145-153.
40. Mikami A, Komatsu T, Aoki M, Yokohama Y (2006) Seasonal changes in growth and photosynthesis-light curves of Sargassumhorneri (Fucales, Phaeophyta) in Oura Bay on the coast of central Honshu, Japan. La Mer 44: 109-118.
41. Breeman AM (1990) Expected Effects of Changing Seawater Temperatures on the Geographic Distribution of Seaweed Species. Developments in Hydrobiology 57: 69-76.
42. Huntley B, Berry P, Cramer W, McDonald A (1995) Modelling present and potential future ranges of some European higher plants using climate response surfaces. Jb 22:967-1001.
43. Pearson RG, Dawson TP (2003) Predicting the impacts of climate change on the distribution of species: are bioclimate envelope models useful? Gep 12: 361-371.
44. Araújo MB, Guisan A (2006) Five (or so) challenges for species distribution modelling. Journal of Biogeography 33: 1677-1688.
45. Jueterbock A, Tyberghein L, Verbruggen H, Coyer JA, Olsen JL, et al. (2013) Climate change impact on seaweed meadow distribution in the North Atlantic rocky intertidal. EcolEvol 3: 1356-1373.
46. Santelices B (1990) Patterns of reproduction, dispersal and recruitment in seaweeds. Oceanography and Marine Biology 28: 177-276.
47. Brawley SH, Johnson LE (1992) Gametogenesis, gametes and zygotes: an ecological perspective on sexual reproduction in the algae. British Phycology Journal 27: 233-252.
