Cellular and Molecular Biology
Open Access

CLDN6; Snail; MMP2; MMP9; SMADs

Breast cancer is a main cause of cancer-associated death in women [1]. Recurrence and metastasis are the primary reasons for breast cancer-associated patient death [2]. CLDN6 is a member of the claudins family, which plays an important role in the biology of many neoplastic diseases. Its effects are often tissue specific [3-6]. EMT is one of the most important steps during cancer progression [7,8]. Cancer cells grow in situ initially. Following loss of polarity and changes in morphology, the malignant cells exit from their place of origin and invade adjacent local tissue or metastasize into distant organs through the blood vessels and continue to grow [9,10]. The epithelial markers are downregulated and the interstitial markers are upregulated [11]. The process of EMT is regulated by EMT associated transcription factors Twist, Snail, Zeb1 [12-17], and signaling pathways including TGF-β and Wnt pathway [18]. In our previous experiments, it is found that CLDN6-mediated SB blocked EMT, invasion and migration [19].

Snail is a zinc Finger structure transcription factor, one of the key regulators that promotes EMT, migration and invasion in many types of malignant tumors including head and neck squamous cell carcinoma (HNSCC) [20], lung cancer [21], hepatocellular carcinoma [22], Snail can regulate the expression of Matrix Matalloproteinases (MMPs) in numerous cancers [23-25]. MMPs degrade the extracellular matrix (ECM) to facilitate the metastatic process [26].

Our previous experiment demonstrated that CLDN6-mediated SB inhibited invasion, migration and EMT in breast cancer cells, as well as the downregulation of Snail, MMP2 and MMP9 [19,27]. In our present experiments, we have verified the hypothesis that CLDN6-mediated SB inhibits invasion, migration, and EMT via down regulation of snail/ MMP2/9 in MCF-7 and SKBR-3 cell lines.

Cell culture and reagents

The human breast cancer cell lines MCF-7 and SKBR-3 were bought from the Cell Bank of the Chinese Academy of Sciences and cultured in DMEM (Gibco, Carlsbad, CA, USA) with 10% fetal bovine serum (Hyclone, Logan, UT, USA). All the cells were put in a humidified incubator with 5% CO2 at 37℃. SB431542 was obtained from Sigma (St. Louis, MO, USA).

Transient transfection with short hairpin RNA

Transient transfection CLDN6: Cells were transfected with short hairpin RNA and Lipofectamine 2000 (Invitrogen), following the instructions. shRNA targeting CLDN6 (5’-GTGCAAGGTGTACGACTCA-3’) and a negative control shRNA were obtained from Shanghai GeneChem Co. Ltd.

Transient transfection snail: Following the method of Ding et al. [28], shRNA (containing sense and antisense sequences linked by a hairpin loop: TTCAAGAGA) was designed and constructed into the vector pGCsilencer TM U6/Neo/GFP (GeneChem, China). The MCF-7 and SKBR-3 cells were then transfected with SuperFect®. Transfection Reagent (QIAGEN, USA). The negative control cell line was generated by treating cells with the vector pGCsilencer TM U6/ Neo/GFP constructed with oligonucleotides, which have no homology to the human gene. The control group was the untreated MCF-7 and SKBR-3cell lines.

Reverse transcription-polymerase chain reaction (RT-PCR)

Reverse transcription-polymerase chain reactions were carried out as described previously. Total RNA was extracted from the cloned cells using TRIzol (Invitrogen, USA) following the manufacturer’s instructions. One microgram of total RNA was reverse-transcribed to synthesize cDNA using the MMuLVreverse transcriptase (TaKaRa, Japan) for 60 min at 42℃, 0.5ug cDNA was used for PCR. SNAIL, MMP2 and MMP9 were amplified along with GAPDH as an endogenous control following the instructions of Premix LA Taq Kit (TaKaRa, Japan). The PCR reaction conditions and the primer sequences are listed in Table 1. After electrophoresis, the gel was captured and analyzed by an imaging system (Syngene, Cambridge, UK).

Table 1: Primers and information for RT-PCR.

Western blotting analysis

Western blotting analyses were carried out as described previously [29]. Anti-MMP2, MMP9, N-cadherin, and Vimentin antibodies were obtained from Abcam (Cambridge, UK), an anti-E-cadherin antibody was purchased from Bioworld Technology (Dublin, OH, USA), the anti-β-actin antibody was from Santa Cruz (Santa Cruz, CA, USA). The blots were imaged and analyzed using an ECL Western blotting system (GE, Fairfield, CT, USA).

Immunofluorescence microscopy

An immunofluorescence assay was carried out to evaluate the expression of these targets as previously described [30]. Cells were cultured with primary antibodies against E-cadherin diluted to 1:400 and N-cadherin diluted at 1:250 at 4℃ overnight. The secondary antibody was Alexa Fluor 647 anti-mouse IgG diluted at 1:200 (Cell Signaling Technology, Beverly, MA, USA). Cells were observed with a fluorescence microscope (Olympus, Tokyo, Japan).

Wound healing assays

1×10₆ cells were cultured overnight in 60 mm dishes, allowed reaching confluency, and a wound was introduced. Images were captured using a microscope at 0 and 24 hr after wounding to calculate the width of the wounded area. The relative migration distance was calculated as (W₀-W₂₄)/W₀×100%.

Matrigel invasion assays

Matrigel invasion assays were carried out using transwells containing 8.0 μm pore membranes (Corning, Lowell, MA, USA). MCF-7 and SKBR-3 cells were inoculated into the upper chamber of the Trans well, and 48 hr later, the chambers were washed twice with phosphate buffer solution. The filter side of the upper chamber was cleaned with a cotton swab, and then the membrane was cut out of the insert. Cells were fixed by methanol and stained by 5% Giemsa at room temperature for half an hour. We counted the cells in each field (five fields/membrane) on the membrane to quantify the result of the assay.

Statistical analysis

All computations were performed using the SPSS version 22.0 for Windows. Unpaired t-tests were carried out to analyze data. The data are presented as means ± standard error from at least three independent experiments. p < 0.05 was considered statistically significant.

CLDN6-mediated effects of the suppression of SMADs signaling pathway inhibited invasion, migration, and EMT via downregulation of MMP2/9 in MCF-7 and SKBR-3 cells

Our previous experiments demonstrated that CLDN6-mediated effects of the suppression of SMADs signaling pathway inhibited invasion, migration, and EMT in MCF-7 and SKBR-3 cells. These results also showed that CLDN6 mediates suppression of SMADs signaling pathway to regulate morphology, transepithelial resistance, and colony formation, which are associated with EMT, invasion and migration. However, the molecular mechanisms were not very clear. To address this problem, we evaluated the expression of MMP2 and MMP9 by RT-PCR and Western blot. In MCF-7and SKBR-3 cells, MMP2 and MMP9 were found to be downregulated following treatment with the SMADs signaling pathway inhibitor SB431542. CLDN6 was knocked down after cells were treated with SB431542, and the downregulation of MMP2 and MMP9 was blocked. The results were Similar as our previous reproered [27]. The accelerating effect of knocking down CLDN6 on migration and invasion were reversed by MMP2/9 Inhibitor I (Figures 1a and 1b), The effect of knocking down CLDN6 on up-regulation of EMT associated genes N-cadherin and Vimentin and effect on downregulation of E-cadherin were blocked by MMP2/9 Inhibitor I (Figure 1c and 1d). Thus, we conclude that SB431542/ CLDN6 inhibited EMT, migration and invasion by downregulation of MMP2 and MMP9 in MCF-7 and SKBR-3 cells.

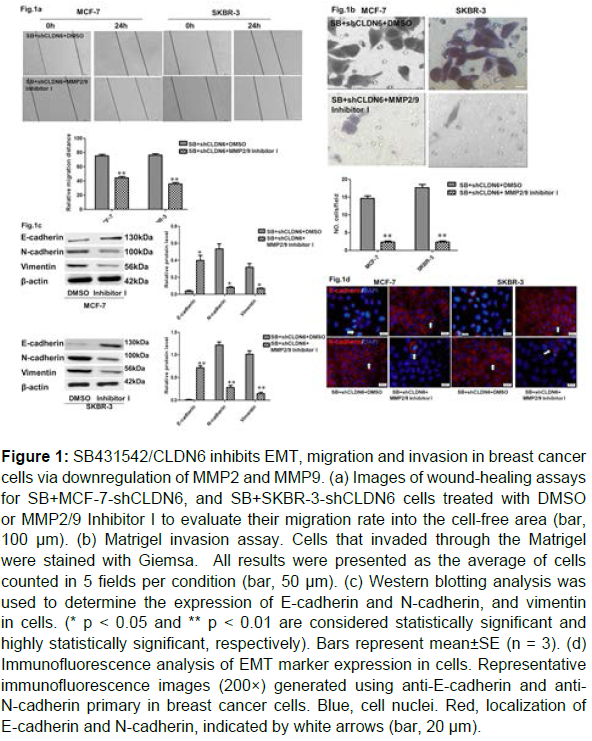

Figure 1: SB431542/CLDN6 inhibits EMT, migration and invasion in breast cancer cells via downregulation of MMP2 and MMP9. (a) Images of wound-healing assays for SB+MCF-7-shCLDN6, and SB+SKBR-3-shCLDN6 cells treated with DMSO or MMP2/9 Inhibitor I to evaluate their migration rate into the cell-free area (bar, 100 μm). (b) Matrigel invasion assay. Cells that invaded through the Matrigel were stained with Giemsa. All results were presented as the average of cells counted in 5 fields per condition (bar, 50 μm). (c) Western blotting analysis was used to determine the expression of E-cadherin and N-cadherin, and vimentin in cells. (* p < 0.05 and ** p < 0.01 are considered statistically significant and highly statistically significant, respectively). Bars represent mean±SE (n = 3). (d) Immunofluorescence analysis of EMT marker expression in cells. Representative immunofluorescence images (200×) generated using anti-E-cadherin and anti- N-cadherin primary in breast cancer cells. Blue, cell nuclei. Red, localization of E-cadherin and N-cadherin, indicated by white arrows (bar, 20 μm).

Snail knockdown downregulated MMP2/9 and inhibited EMT, migration and invasion in breast cancer cells

Snail was knocked down in MCF-7 and SKBR-3 cells. The levels of Snail in MCF-7-shSnail and SKBR-3-shSnail cells were decreased significantly compared with control groups (Figure 2a). In MCF-7 cells, MMP2 and MMP9 were significantly downregulated in knockdown groups (Figure 2b). Similar results were obtained in SKBR-3 cells (not shown). Similarly, migration and invasion were also inhibited in knockdown groups (Figure 3a and 3b), as well as suppression of expression of the EMT-associated genes N-cadherin and Vimentin, and enhancement of the level of E-cadherin (Figure 3c and 3d).

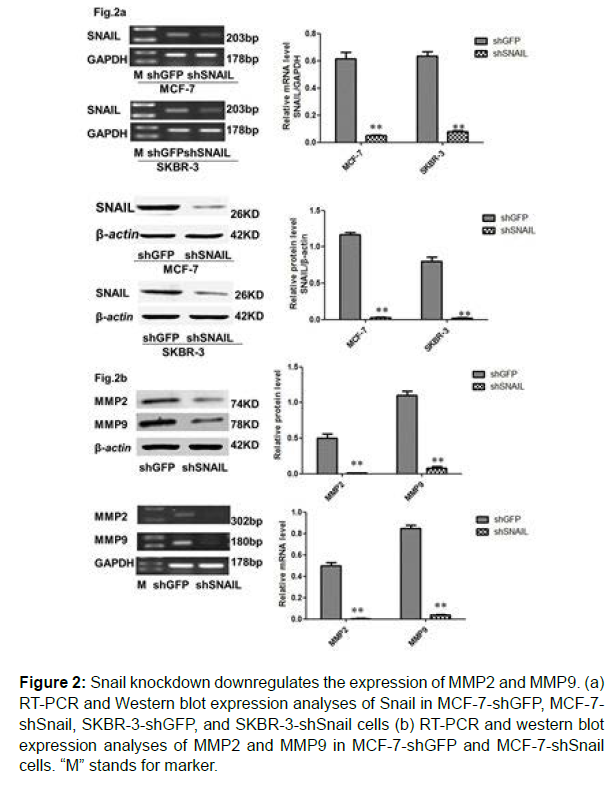

Figure 2: Snail knockdown downregulates the expression of MMP2 and MMP9. (a) RT-PCR and Western blot expression analyses of Snail in MCF-7-shGFP, MCF-7- shSnail, SKBR-3-shGFP, and SKBR-3-shSnail cells (b) RT-PCR and western blot expression analyses of MMP2 and MMP9 in MCF-7-shGFP and MCF-7-shSnail cells. “M” stands for marker.

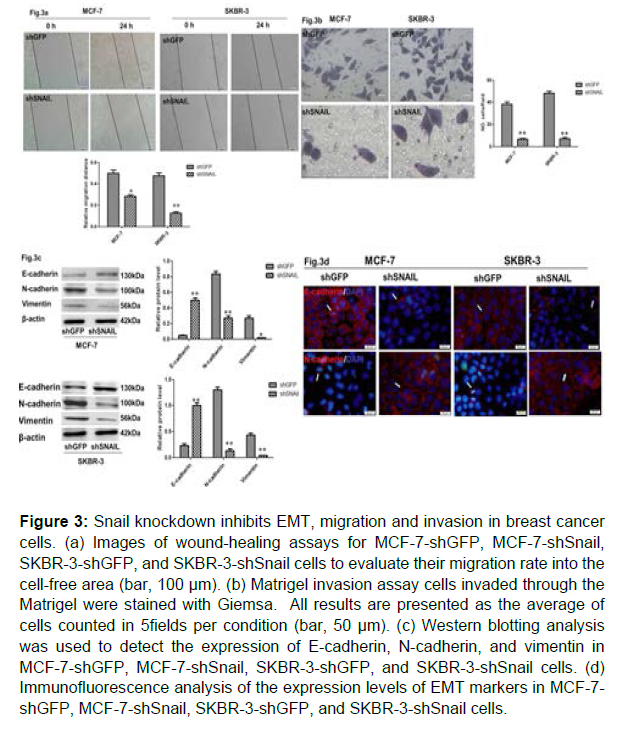

Figure 3: Snail knockdown inhibits EMT, migration and invasion in breast cancer cells. (a) Images of wound-healing assays for MCF-7-shGFP, MCF-7-shSnail, SKBR-3-shGFP, and SKBR-3-shSnail cells to evaluate their migration rate into the cell-free area (bar, 100 μm). (b) Matrigel invasion assay cells invaded through the Matrigel were stained with Giemsa. All results are presented as the average of cells counted in 5fields per condition (bar, 50 μm). (c) Western blotting analysis was used to detect the expression of E-cadherin, N-cadherin, and vimentin in MCF-7-shGFP, MCF-7-shSnail, SKBR-3-shGFP, and SKBR-3-shSnail cells. (d) Immunofluorescence analysis of the expression levels of EMT markers in MCF-7- shGFP, MCF-7-shSnail, SKBR-3-shGFP, and SKBR-3-shSnail cells.

The junctions between cells include tight junctions, adherens junctions, desmosomes and gap junctions [31]. Tight junction possesses the barrier function, fence function, and signal transfer function [32,33]. Claudins maintain the construction and function of tight junctions [34].

Claudins are expressed abnormally in numerous epithelial-derived cancers [35]. Our previous experiments confirmed that CLDN6 mediated inhibition of SMADs signaling pathway to regulate EMTassociated gene expression including upregulation of E-cadherin, downregulation of N-cadherin, Vimentin, Snail, MMP2 and MMP9, inhibition of migration and invasion in breast cancer cells. However, the molecular mechanism remains unclear. To further address this problem, we conducted the experiments in this study. In MCF-7 and SKBR-3 cells, the results showed that SB431542 downregulated the level of MMP2 and MMP9. Knocking down CLDN6 blocked the effects of SB431542 on downregulation of MMP2 and MMP9. MMP2/9 Inhibitor I blocked the effects of knocking down CLDN6 on upregulation of N-cadherin, Vimentin, down-regulation E-cadherin, facilitation of invasion and migration. The finding suggests that CLDN6-mediated effects of the suppression of SMADs signaling pathway inhibited invasion, migration, and EMT via downregulation of MMP2/9 in MCF-7 and SKBR-3 cells.

Combining current and previous studies [19], the results indicate that knocking down CLDN6 upregulates the level of Snail, MMP2 and MMP9. Our current findings suggest that MMP2 and MMP9 were downregulated in the Snail knocked down groups. Consistent with our data, other studies have also indicated MMP9 or MMP2 can be induced by Snail in tumors [36-39]. However, this is in contrast to the results of Heta Merikallio’s study [40]. The expressions of N-cadherin, Vimentin were downregulated and E-cadherin was upregulation, migration and invasion were inhibited in the Snail knocked down groups.

In summary, we confirm for the first time that SMADs-downregulated CLDN6 promotes EMT, migration and invasion via Snail/ MMP2/9 in MCF-7 and SKBR-3 cells. We suggest that SMADs /Snail/ MMP2/9 axis might represent a therapeutic target for breast cancer, and CLDN6 might play an important role in the therapy of breast cancer.

Authors’ contributions

Liping Wang carried out part of the experiments, participated in the design of the study, performed the statistical analysis, and drafted the manuscript. Ting Liu, Libo Jiang, Qingyang Bai, Shuqin Wu, Xiuwen Yu, Tian Wu, Junping Wang and Xiaojie Zhang carried out most of experiments, and helped draft the manuscript. Hongmei Li, and Kun Zhao assisted with the experiments, and helped to edit the paper. All authors have read and approved the final manuscript.

Acknowledgments

This work was supported by Item of Scientific Research Fund for Doctor of Qiqihar Medical University [Code: QY2016B-25], and the Fundamental Research Funds for the Provincial Universities of Heilongjiang [Code: 2020-KYYWF-0005], and Clinical Scientific Research Fund project of Qiqihar Academy of Medical Sciences [Code: QMSI2019L-12], and General project of Heilongjiang Provincial Department of Education [Code: 2016-KYYWF-0888]. The authors thank Dr. William Orr, Department of Pathology, University of Manitoba, Canada, for help with this manuscript.

Competing interests

The authors declare that they have no competing interests.

1. Bustamante-Eduardo M, Popovici V, Imboden S, Aebi S, Ballabio N, et al. (2019) Characterization of molecular scores and gene expression signatures in primary breast cancer, local recurrences and brain metastases. BMC Cancer 19: 549.

Indexed at, Google Scholar, Crossref

2. Rios-Garcia M, Steinbauer B, Srivastava K, Singhal M, Mattijssen F, et al. (2017) Acetyl-CoA Carboxylase 1-Dependent Protein Acetylation Controls Breast Cancer Metastasis and Recurrence. Cell Metab 26: 842-855.

Indexed at, Google Scholar, Crossref

3. Danzinger S, Tan YY, Rudas M, Kastner MT, Weingartshofer S, et al. (2019) Association of Cytokeratin 5 and Claudin 3 expression with BRCA1 and BRCA2 germline mutations in women with early breast cancer. BMC Cancer 19: 695.

Indexed at, Google Scholar, Crossref

4. Guo Y, Lin D, Zhang M, Zhang X, Li Y, et al. (2016) CLDN6-induced apoptosis via regulating ASK1-p38/JNK signaling in breast cancer MCF-7 cells. Int J Oncol 48: 2435-2444.

Indexed at, Google Scholar, Crossref

5. Micke P, Mattsson JS, Edlund K, Lohr M, Jirstrom K, et al. (2014) Aberrantly activated claudin6 and 18.2 as potential therapy targets in non-small-cell lung cancer. Int J Cancer 135: 2206-2214.

Indexed at, Google Scholar, Crossref

6. Gao F, Li M, Xiang R, Zhou X, Zhu L, et al. (2019) Expression of CLDN6 in tissues of gastric cancer patients: Association with clinical pathology and prognosis. Oncol Lett 17: 4621-4625.

Indexed at, Google Scholar, Crossref

7. Zheng X, Carstens JL, Kim J, Scheible M, Kaye J, et al. (2015) Epithelial-to-mesenchymal transition is dispensable for metastasis but induces chemoresistance in pancreatic cancer. Nature 527:525-530.

Indexed at, Google Scholar, Crossref

8. Chen Y, Wang DD, Wu YP, Su D, Zhou TY, et al. (2017) MDM2 promotes epithelial-mesenchymal transition and metastasis of ovarian cancer SKOV3 cells. Br J Cancer 117: 1192-1201.

Indexed at, Google Scholar, Crossref

9. Yang YM, Yang WX (2017) Epithelial-to-mesenchymal transition in the development of endometriosis. Oncotarget 8: 41679-41689.

Indexed at, Google Scholar, Crossref

10. Nieto MA, Huang RY, Jackson RA, Thiery JP (2016) Emt. Cell 166: 21-45.

Google Scholar, Crossref

11. Wang Q, Cheng Y, Wang Y, Fan Y, Li C, et al. (2017) Tamoxifen reverses epithelial-mesenchymal transition by demethylating miR-200c in triple-negative breast cancer cells. BMC Cancer 17: 492.

Indexed at, Google Scholar, Crossref

12. Odero-Marah V, Hawsawi O, Henderson V, Sweeney J (2018) Epithelial-Mesenchymal Transition (EMT) and Prostate Cancer. Adv Exp Med Biol 1095: 101-110.

Indexed at, Google Scholar, Crossref

13. Nieto MA (2002) The snail superfamily of zinc-finger transcription factors. Nat Rev Mol Cell Biol 3: 155-166.

Indexed at, Google Scholar, Crossref

14. Yang J, Mani SA, Donaher JL, Ramaswamy S, Itzykson RA, et al. (2004) Twist, a master regulator of morphogenesis, plays an essential role in tumor metastasis. Cell 117: 927-939.

Indexed at, Google Scholar, Crossref

15. Galvan JA, Zlobec I, Wartenberg M, Lugli A, Gloor B, et al. (2015) Expression of E-cadherin repressors SNAIL, ZEB1 and ZEB2 by tumour and stromal cells influences tumour-budding phenotype and suggests heterogeneity of stromal cells in pancreatic cancer. Br J Cancer 112: 1944-1950.

Indexed at, Google Scholar, Crossref

16. Wei SC, Fattet L, Tsai JH, Guo Y, Pai VH, et al. (2015) Matrix stiffness drives epithelial-mesenchymal transition and tumour metastasis through a TWIST1-G3BP2 mechanotransduction pathway. Nat Cell Biol 17: 678-688.

Indexed at, Google Scholar, Crossref

17. Yu JM, Sun W, Hua F, Xie J, Lin H, et al. (2015) BCL6 induces EMT by promoting the ZEB1-mediated transcription repression of E-cadherin in breast cancer cells. Cancer Lett 365: 190-200.

Indexed at, Google Scholar, Crossref

18. Zhang J, Tian XJ, Xing J (2016) Signal Transduction Pathways of EMT Induced by TGF-beta, SHH, and WNT and Their Crosstalks. J Clin Med 5.

Indexed at, Google Scholar, Crossref

19. Lu Y, Wang L, Li H, Li Y, Ruan Y, et al. (2017) SMAD2 Inactivation Inhibits CLDN6 Methylation to Suppress Migration and Invasion of Breast Cancer Cells. Int J Mol Sci 18.

Indexed at, Google Scholar, Crossref

20. Ota I, Masui T, Kurihara M, Yook JI, Mikami S, et al. (2016) Snail-induced EMT promotes cancer stem cell-like properties in head and neck cancer cells. Oncol Rep 35: 261-266.

Indexed at, Google Scholar, Crossref

21. Zhang K, Li XY, Wang ZM, Han ZF, Zhao YH (2017) MiR-22 inhibits lung cancer cell EMT and invasion through targeting Snail. Eur Rev Med Pharmacol Sci 21: 3598-3604.

Indexed at, Google Scholar         Cross Ref

22. Deng G, Zeng S, Ma J, Zhang Y, Qu Y, et al. (2017) The anti-tumor activities of Neferine on cell invasion and oxaliplatin sensitivity regulated by EMT via Snail signaling in hepatocellular carcinoma. Sci Rep 7: 41616.

Indexed at, Google Scholar, Crossref

23. Miyoshi A, Kitajima Y, Kido S, Shimonishi T, Matsuyama S, et al. (2005) Snail accelerates cancer invasion by upregulating MMP expression and is associated with poor prognosis of hepatocellular carcinoma. Br J Cancer 92: 252-258.

Indexed at, Google Scholar, Crossref

24. Zhao X, Yu D, Yang J, Xue K, Liu Y, et al. (2017) Knockdown of Snail inhibits epithelial-mesenchymal transition of human laryngeal squamous cell carcinoma Hep-2 cells through the vitamin D receptor signaling pathway. Biochem Cell Biol 95: 672-678.

Indexed at, Google Scholar, Crossref

25. Hemmatzadeh M, Mohammadi H, Babaie F, Yousefi M, Ebrazeh M, et al. (2018) Snail-1 Silencing by siRNA Inhibits Migration of TE-8 Esophageal Cancer Cells Through Downregulation of Metastasis-Related Genes. Adv Pharm Bull 8: 437-445.

Indexed at, Google Scholar, Crossref

26. Kapoor C, Vaidya S, Wadhwan V, Kaur HG, Pathak A (2016) Seesaw of matrix metalloproteinases (MMPs). J Cancer Res Ther 12: 28-35.

Indexed at, Google Scholar, Crossref

27. Li X, Li H, Liu C, Leng X, Liu T, et al. (2020) CLDN6-mediates SB431542 action through MMPs to regulate the invasion, migration, and EMT of breast cancer cells. Int J Clin Exp Pathol 13: 1590-1600.

Indexed at, Google Scholar

28. Ding JX, Feng YJ, Yao LQ, Kaur HG, Pathak A (2006) The reinforcement of invasion in epithelial ovarian cancer cells by 17 beta-Estradiol is associated with up-regulation of Snail. Gynecol Oncol 103: 623-630.

Indexed at, Google Scholar, Crossref

29. Liu Y, Jin X, Li Y, Ruan Y, Lu Y, et al. (2016) DNA methylation of claudin-6 promotes breast cancer cell migration and invasion by recruiting MeCP2 and deacetylating H3Ac and H4Ac. J Exp Clin Cancer Res 35: 120.

Google Scholar

30. Lu Y, Yu L, Yang M, Jin X, Liu Z, et al. (2014) The effects of shRNA-mediated gene silencing of transcription factor SNAI1 on the biological phenotypes of breast cancer cell line MCF-7. Mol Cell Biochem 388: 113-121.

Indexed at, Google Scholar, Crossref

31. Boivin FJ, Schmidt-Ott KM (2017) Transcriptional mechanisms coordinating tight junction assembly during epithelial differentiation. Ann N Y Acad Sci 1397: 80-99.

Indexed at, Google Scholar, Crossref

32. Basler K, Bergmann S, Heisig M, Naegel A, Zorn-Kruppa M, et al. (2016) The role of tight junctions in skin barrier function and dermal absorption. J Control Release 242: 105-118.

Indexed at, Google Scholar, Crossref

33. Sawada N (2013) Tight junction-related human diseases. Pathol Int 63: 1-12.

Indexed at, Google Scholar, Crossref

34. Baumholtz AI, Gupta IR, Ryan AK. (2017) Claudins in morphogenesis: Forming an epithelial tube. Tissue Barriers 5: e1361899.

Indexed at, Google Scholar, Crossref

35. Tabaries S, Siegel PM (2017) The role of claudins in cancer metastasis. Oncogene 36: 1176-1190.

Indexed at, Google Scholar, Crossref

36. Lin CY, Tsai PH, Kandaswami CC, Lee PP, Huang CJ, et al. (2011) Matrix metalloproteinase-9 cooperates with transcription factor Snail to induce epithelial-mesenchymal transition. Cancer Sci 102: 815-827.

Indexed at, Google Scholar, Crossref

37. Jin H, Yu Y, Zhang T, Zhou X, Zhou J, et al. (2010) Snail is critical for tumor growth and metastasis of ovarian carcinoma. Int J Cancer 126(9): 2102-2111.

Indexed at, Google Scholar, Crossref

38. Li YY, Tao YW, Gao S, Li P, Zheng J M, et al. (2018) Cancer-associated fibroblasts contribute to oral cancer cells proliferation and metastasis via exosome-mediated paracrine miR-34a-5p. EBioMedicine 36: 209-220.

Indexed at, Google Scholar, Crossref

39. Qiao B, Johnson NW, Gao J (2010) Epithelial-mesenchymal transition in oral squamous cell carcinoma triggered by transforming growth factor-beta1 is Snail family-dependent and correlates with matrix metalloproteinase-2 and -9 expressions. Int J Oncol 37: 663-668.

Google Scholar

40. Merikallio H, Turpeenniemi-Hujanen T, Paakko P, Makitaro R, Riitta K, et al. (2012) Snail promotes an invasive phenotype in lung carcinoma. Respir Res 13: 104.

Indexed at, Google Scholar, Crossref
