Industrial Chemistry
Open Access

An international company in ON Canada is looking to improve chemical properties of their Car wash shampoo. A liter of carwash shampoo concentrate dilutes only to 200L using the current formulation. The formulation consists of the following chemical compounds: 5% Linear Alkyl Benzene Sulphonic Acid (LABSA) , 20% Sodium Lauryl Ether Sulphate (SLES), 5% Sodium Lauryl Sulphate (SLS), 1% Sodium Hydroxide, 2% Betaine, 61.5% Water, 3% Sodium triphosphate, 2% Glycerol, and 0.5% Propylene Glycol [1].

Car maintenance products are classified into interior and exterior car care products. Interior car care products are deodorants, grease cleaners, vinyl and plastic cleaners and polishes, interior wins screen cleaners, carpet shampoos, and leather polishes. Interior car care products include, tyre dressings and cleaners, pre-soak detergents, car polishes, wash and wax formulations, windscreen cleaners, water repellents and drying aids, and wheel rim cleaners. The climate and the season of the year affect the nature of the soiling of the vehicle and the ease of its removal [2].

The bodywork of the automobile is of consist of multiple coatings; each coating provides a variety of functions. (Figure 1) shows the coating layers in the bodywork of modern cars. The paintwork of the vehicle is the external surface to be cleaned.

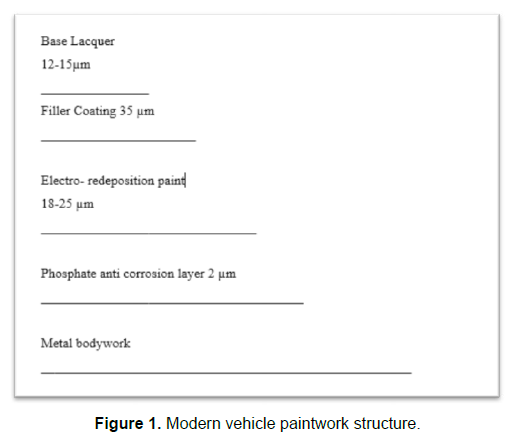

Figure 1. Modern vehicle paintwork structure.

The base coat is usually water based polymeric binders, fillers, and pigments. The inner coating, the electro-deposition paint and the phosphate based anti-corrosion layer provide protection to the metal surface. On top of the protective coatings is the filler layer, it must have an excellent adhesion property to both top-coat and the base coat. The finishing lacquer must have good impact strength, retain gloss, and it must be waterproof. Domestic and industrial automated cleaning of vehicles can be divided into four main steps, pre-wash, main wash, rinse, and drying besides the manual cleaning of domestic vehicles. Pre-wash includes cold degreaser, microemulsion, and foam wash. Main wash includes shampoo, and microemulsion. Rinse includes hot/ cold wax and rinse aid [3].

Car shampoos can be either in liquid or in powder form. Liquid car shampoos are a combination of binders, surfactants and liquids dissolved in water as the main solvent. These products are easily to rinsed off, high foaming, biodegradable, made to cut through grease on the bodywork, and they don’t damage any part of vehicle surface including the paintwork. Economy car shampoos do not contain builders. Powder car shampoos are made of a mixture of builders (carbonates, phosphates or metasilicates) and surfactants (fatty alcohol ethoxylates or dodecylbenzene sulphonates) absorbed onto the powder. The main anionic detergent can be either Alkylbenzene sulphonates and/or sodium lauryl ether sulfates. Sodium lauryl ether sulfates is incorporated into the formulation used when denser richer foam is required. Fatty acid alkanolamides, amine oxide or betaine are used in the formulation for viscosity and to stabilize the foam produced. For greater foam stability and viscosity, amides are added to the formulation. To increase the quantity of the foam produced, betaines and amine oxides are used. Glycerol ether are used to ease grease removal. Secondary surfactants are used for viscosity and foam modifications, and are also used to enhance spot removal, and to improve detergency. Binders such as phosphates (0.5-2.5%) are added to improve detergency [4]. Low hydrophilic lipophilic balance (HLB) fatty alcohol ethoxylate/ hydrotropic system replaced the traditional anionic surfactant-based car shampoo as they afford more effective cleaning performance, decreasing and they have low foam profile [5].

Sodium citrate is known to be a water softener and a PH adjuster. It’s an ingredient in most common liquid detergents. It’s also used in some food products to adjust its acidity. It’s used in ice cream, gelatin desserts, candy, and jelly. It’s also used in some pharmaceutical and personal care products, such as sunscreens, facial moisturizers, makeup, baby wipes, soaps, shampoos, and conditioners .

Coconut di-ethanol amide is used as an emulsifying and foaming agent in personal care products and in cosmetics. It’s extracted from coconut oil. It’s also used in hydraulic fluids and industrial cooling lubricants.

Experimental

Linear alkyl benzene sulphonic acid with a chemical formula of CH₃(CH₂)₁₁C₆H₄SO₃H and a molecular mass of 326.49 is used as a mercerizing and washing agent in textile industry . It’s used as an emulsifier and wetting agent in small quantities with surfactants as it increases the surface area of distempers . Because of its good performance and low cost linear alkylbenzene sulfonic acid is the largest volume synthetic anionic detergent. As all surfactants, linear alkylbenzene sulfonic acid has both hydrophilic and hydrophobic groups. Other examples of commercial anionic surfactants are alkyl sulfates and Alpha-olefin sulfonates. These compounds are produced by sulfonation, and they are non-volatile compounds (Table 1). Linear alkylbenzene sulfonic acid consist of a phenyl isomer of 5 to 2 position substituents, different alkyl chain lengths consisting of ten to fourteen carbon atoms (C10-C14), and an aromatic ring sulfonated at the para position attached to the linear alkyl chain at any position except position 1, the 1-phenyl position. The chemical and physical properties of linear alkylbenzene sulfonic acid differ based on the length of the alkyl chain, giving rise to different formulations and different usage in various applications [6].

Table 1: Traditional anionic car wash shampoo formulation.

Sodium Lauryl Ether Sulphate with a chemical formula of CH₃(CH₂)₁₁(OCH₂CH₂)nOSO₃Na and a molecular mass of 421 g/mol is used as a surfactant and it’s an anionic detergent. It’s a very effective foaming agent, inexpensive, and used in shampoos, toothpastes, and soaps [7].

Sodium Lauryl Sulphate with a chemical formula of C12H25NaSO4 and a molecular mass of 288.4 g/mol is used in hygiene, cleaning, food and pharmaceutical products, and it’s an anionic surfactant. It is widely used as food additives in the food industry, and as emulsifier and an ionic solubilizer in the pharmaceutical industry [8].

Sodium Hydroxide Sulphate with a chemical formula of NaOH and a molecular mass of 39.9 g/mol is a strong base, hygroscopic solid, soluble in water and can cause severe burns. It’s used in various industries, it’s used in the manufacture of drain cleaner, soaps, detergents, textiles, drinking water, pulp and paper. It’s used as paint stripper, cleaning agent, relaxer, and in food preparation [9].

Betaine with a chemical formula of C5H11NO2and a molecular mass of 117.146 g/mol is a chemical compound occurring in plants and it’s an amino acid, it’s a white solid at room temperature [10]. It is present in living cells and it’s a methylated nitrogen compound. It’s used in the pharmaceutical industry in the preparation of shampoo and soap as it’s a nonionic surfactant. Due to its high surface activity, its derivatives are used as efficient cleansing agents. It’s also used as viscosity modifiers, foam stabilizers, and detoxifiers. Betaine esters can be used in antiperspirants as it processes anti-microbial activity.

Water with a chemical formula of H₂O and a molecular mass of 18.01 g/mol is an inorganic compound that is odorless, tasteless, transparent liquid at room temperature, and act as solvent [11]. It’s present in 70% of the earth’s surface as seas and oceans [12]. In the world economy, 70% of water is used in agriculture .

Sodium triphosphate with a chemical formula of Na₅P₃O₁₀ and a molecular mass of 367.864 g/mol is used as a component of industrial and domestic products in a large scale .

It’s used as a builder and a water softener in commercial detergents. Detergents are deactivated in water containing high concentrations of Mg²⁺ and Ca²⁺, hard water (Table 2). It’ a chelating agent as it binds tightly to bications and prevents them from interfering with sulfonate detergent. It’s used as an emulsifier to retain moisture, and it’s also used as a preservative in the food industry. It’s also used as anti-cracking agent, flame retardant, anti-corrosion pigment, and as a synthetic tanning agent and masking agent in the leather industry .

Table 2: HLB fatty alcohol ethoxylate/ hydrotropic car wash shampoo formulation 5.

Glycerol with a chemical formula of C3H8O3 and a molecular mass of 92.094 g/mol is an odorless and a non-toxic colorless viscous liquid at room temperature. Glycerol is hygroscopic in nature and is miscible in water. It’s used as a humectant in pharmaceutical formulations as it improves the ability of skin to absorb water, and it’s used in the food industry as a sweetener .

Propylene Glycol with a chemical formula of C₃H₈O₂ and a molecular mass of 76.095 g/mol is colorless viscous liquid at room temperature and has a faintly sweet taste. It’s miscible in a wide variety of solvents including chloroform, acetone, and water. It’s a nonirritating substance with a low volatility . It’s used in various industries including food and drug, anti-freezes, polymers, and electronic cigarettes. It’s used as a humectant in hand sanitizers to prevent skin drying [13]. It’s used in coffee-based drinks, ice creams, whipped dairy products, soda, and liquid sweeteners . Polypropylene glycol alginate gives rise to greater increase in form stability equal

The current formulation consists of 1% builder in the form of sodium hydroxide, 3% water softener in the form of sodium triphosphate, 32% surfactants in forms of 5% Linear Alkyl Benzene Sulphonic Acid, 20% Sodium Lauryl Ether Sulphate and 5% Sodium Lauryl Sulphate, and 2.5% solvents in forms of 0.5% Propylene Glycol and 2% Glycerol.

Sodium and potassium hydroxides are known to be used in wheel rim cleaner formulation as the alloy wheel pick up dirt and grease from the road and they are prone to dirt from the abrasive wear of brake shoes. The amount of sodium and potassium hydroxides used in the wheel rim cleaner formulation 0-15%.3. It isn’t known to be used in carwash formulations. Other builders are known to be used in car wash formulations to soothe out slight imperfections and to remove road grease and stubborn tar from the bodywork of the vehicle. These builders would be calcium carbonate, silicones, and lamella aluminum silicates. To increase the quality of car wash shampoo formulation silicone derivative builders are added as to the formulation. Silicone derivative builders contribute to the ease of application of the products, the gloss and its water repellency property.

The amount of surfactant used in the current car wash shampoo formulation concentrate is 32% (5% Linear Alkyl Benzene Sulphonic Acid, 20% Sodium Lauryl Ether Sulphate, 5% Sodium Lauryl Sulphate, and 2% Betaine). To increase the quality of the car wash shampoo, the amount of surfactants in the formulation must be increased to 37%.

The solvents used in the current formulation: 0.5% propylene glycol and 2.0% glycerol, both are known to be used as humectants in pharmaceutical personal care product formulations to improves the ability of skin to absorb water. These solvents aren’t known to be used in car wash shampoo formulations [14]. Other solvents used in car wash shampoo formulations (4% glycol ether) to aid in removal of surface dirt and to act as carrier for silicates and components of the shampoo. Solvents that are commonly are used in car wash shampoo formulations are glycol ethers such as di propylene alcohol mono methyl ether used as solvent to dissolve grease.

The choice of solvent is critical to avoid stress, cracking of plastics and to avoid damage to painted surface . It isn’t recommended the use of glycerol or propylene glycol in the formulation, and it’s recommended the use of glycol ether. Also, the amount of solvents used in the current formulation is low 2.5% compared to the amount used reference 4%. The amount of solvents used should be increased to 4% to increase the quality of the car wash shampoo formulation.

For the current formulation to dilute to a greater volume 500L, and to also maintain the quality of the car wash shampoo concentrate, the amount of surfactants, builders, foaming agents, and solvents must be increased relative to the amount of the main solvent used to dissolve it’s components. The current formulation dilutes to 200L, in order for the formulation to dilute to double this volume the amount of the main solvent used to dissolve its components must be decreased to ½ and the amount of surfactants/builders/foaming agents and solvents must be increased by 1 ½ . Taking the traditional anionic car wash shampoo formulation as an example, the percentage of each chemical compound in the formulations would be: 3% Sodium carbonate, 4.5% Sodium metasilicate pentahydrate, 3% Sodium citrate, 6% Glycerol ether, 40.0% Linear alkyl benzene sulphonate, 15% Sodium lauryl ether sulphate, 4.5% Coconut diethanolamide, and 24.0% water as the dissolving solvent.

Conclusion

The current formulation for the contrate must be modified to increase its quality. It’s not recommended the use of sodium hydroxide as a builder or the use for glycerol/ propylene glycol as solvents in the car wash shampoo formulation and the amount of surfactants must be increased to at least 37%. The choice of builders and solvents are critical to avoid stress- cracking of plastics and to avoid damage to painted surface.

Sodium hydroxide are known to be used in wheel rim cleaner formulation as the alloy wheel pick up dirt and grease from the road not in car wash shampoos, glycerol and propylene glycol are known to be used as humectants in lotions and personal care products. Sodium hydroxide, glycerol, and propylene glycol aren’t known to be used in car wash shampoo formulations.

Builders used in car wash shampoo formulations to remove road grease and stubborn tar from the bodywork of the vehicle, sooth out minor surface scratches and slight imperfections, and contribute to the gloss, the water repellency, increase the durability of the overseal, and to polish the paint work. Calcium carbonates, silicones, lamella aluminum silicates, and poly dimethyl siloxane are known to be used in car wash shampoo formulations as builders.

To increase the quality of the car wash shampoo, concentrate 2% sodium carbonate and 3% silicates should be used instead of 1% sodium hydroxide. It’s also recommended the use of a different solvent to dissolve grease and improve the quality of the car wash shampoo concentrate, 4% glycol ether.

Foaming and emulsifying agents are missing from the current formulation, 3% Coconut diethanolamide. Coconut diethanolamide are used to dissolve solvents, builders, silicates and facilitate the formation of foams.

For a Liter of concentrate dilute to 500L, the amount of builders, solvents and surfactants must be increased to 1 ½ and the amount of water must be decreased to ½ .

Acknowledgement

I would like to sincerely thank the Association of Consulting Chemist and Chemical Engineers for their efforts in making our profiles available for clients in the USA and worldwide

1. Company M, Karsa DR (2007) Handbook for Cleaning/ Decontamination of Surfaces, Amsterdam, the Netherlands, Elsevier BV

Indexed at, Google Scholar

2. Hauthal HG Wagner G (2004) Household Cleaning, Care and Maintenance Products: Chemistry, Application, Ecology and Consumer Safety, pub1. Verlag Fur chemische Industrie H Ziolkowsky GmbH

Indexed at, Google Scholar

3. H Abdel-Wahab (1998) Surfactants Selector a Guide to the Selection of I&I and Household Product Formulations, Akcros Chemicals (now part of Akzo Nobel Surface Chemistry AB).

Indexed at, Google Scholar

4. Further formulation information available from Akzo Nobel Surface Chemistry AB, S 444 85 Stenungsund, Sweden, on request.

Google Scholar

5. Valappil K,, Lalitha S, Gottumukkala D, Sukumaran R K, Pandey A  (2015) White Biotechnology in Cosmetics. Indus BiorefinWhite Biotech 607-652.

Google Scholar

6. Baroni L, Cenci L, Tettamanti M, Berati M (2007) Evaluating the environmental impact of various dietary patterns combined with different food production systems". Eur J Clin Nutri 61:279-286.

Indexed at, Crossref

7. Complexing agents Environmental and Health Assessment of Substances in Household Detergents and Cosmetic Detergent Products. Danish Environmental Protection Agency Accessed.

Google Scholar

8. Schrodter (2008) Klaus Bettermann Gerhard Staffel, Thomas; Wahl, Friedrich; Klein, Thomas; Hofmann, Thomas Phosphoric Acid and Phosphates. Ullmann's Ency Ind Chemistry.

Google Scholar, Crossref

9. Oxford Dictionaries English (2016) glycerol Definition of glycerol in English by Oxford Dictionaries". Archived from the original.

Google Scholar

10. Christophe Ralf, Schmidt Bernd, Steinberner Udo, Dilla Wolfgang, Karinen Reetta (2006). Glycerol. Ullmann's Encyclopedia of Industrial Chemistry.

Indexed at, Google Scholar, Crossref

11. Sullivan Carl J, Kuenz Anja, Vorlop Klaus‐Dieter (2018) "Propanediols". Ullmann's Encyclopedia of Industrial Chemistry Weinheim Wiley-VCH.

Google Scholar, Crossref

12. Lohrey Jackie (2018) Ingredients in Hand Sanitizer. LIVE STRONG.COM 06-11.

Indexed at, Google Scholar

13. Quack mail (2015) you shouldn’t Fall For the Internet's Newest Fool, The Food Babe". Butterworth, Trevor. Forbes.

Indexed at, Google Scholar

14. G. Jackson, R T Roberts and T Wainwright (1980). Mechanism of Beer Foam Stabilization by Propylene Glycol Alginate. J Ins of Brew 86: 34-37.

Indexed at, Google Scholar, Crossref
