Assessment of Ground Water Quality in Punjab, India

Chopra RPS¹ and Krishan G^2*
¹Punjab Water Resources and Environment Directorate, Chandigarh, India
²IGB Groundwater Resilience Project, British Geological Survey, UK
Corresponding Author :	Krishan G IGB Groundwater Resilience Project British Geological Survey, UK Tel: +91-1332-272108 E-mail: drgopal.krishan@gmail.com
Received November 22, 2014; Accepted December 15, 2014; Published December 25, 2014
Citation: Chopra RPS, Krishan G (2014) Assessment of Ground Water Quality in Punjab, India. J Earth Sci Clim Change 5:243. doi: 10.4172/2157-7617.1000243
Copyright: © 2014 Chopra RPS, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Journal of Earth Science & Climatic Change

View PDF Download PDF Tables & Figures

Abstract

In the present study, groundwater quality in respect of native groundwater has been determined in the entire State of Punjab during the installation of observation wells under World Bank aided Hydrology Project Phase II undertaken during 2009-14 by Water Resources and Environment Directorate, Punjab. The results of sampling done during installation of observation wells show that the groundwater quality in the depth range of 45-60 m on the basis of EC and RSC is categorized as: fit in 53% and marginal to unfit in remaining 47%.

Keywords

Groundwater; Quality; Depth; Punjab; EC; RSC

Introduction

Groundwater is well thought-out to be the most vital natural and fresh resource on earth which is used for drinking and irrigation purposes. Groundwater quality studies become unavoidable since its poor quality may badly affect its users [1]. Various processes affecting the water quality may be natural like evaporation and weathering and or anthropogenic like agricultural activities, domestic-industrial effluents and minor amount of atmospheric fallout. Some of the studies on groundwater quality focused on drinking and irrigation carried out in various parts of India are as: Andhra Pradesh [2]; Jharkhand [3]; Pondicherry [4]; Tamil Nadu [5].

Punjab having geographical area of about 50,362 Sq. Km is predominantly an agricultural state where 80% of population is engaged in agriculture and has highest % age of irrigated land compared to total cultivable land in India. About 83% of the State’s geographical area is cultivated with cropping intensity of 190% [6]. 98% of net area sown is irrigated. The agriculture in the State is, therefore, dependent on heavy requirement of water. The State’s surface water resources are limited and fully utilized. To meet the ever-growing demand for agriculture, urban and rural population and industry, dependency on groundwater has been increasing tremendously. Out of the total irrigated area, 73% of the area is now irrigated by groundwater through tube wells as against 55% four decades ago. Excessive extraction of groundwater has resulted in decline of water table in more than 80% of the State area having fresh/fit quality of groundwater in North-Western, Central and South-Eastern part of the State which has been reported in many studies also [7-11]. On the other hand, groundwater is substantially rising causing waterlogging and salinity/alkalinity problems in South- Western part of the State where ground water extraction is limited due to brackish/saline/alkaline quality [12-14] and water quality for Bistdoab area is also reported [15].

In order to meet the demand of groundwater for diverse purposes, there is a need (1) to ascertain the depth upto which native groundwater is fresh/ fit for use (2) depth/aquifer wise quality of native groundwater. Therefore, in the present study, groundwater quality in respect of native groundwater has been determined in Punjab during the installation of observation wells under World Bank aided Hydrology Project Phase II undertaken during 2009-14 by Water Resources and Environment Directorate, Punjab.

Study Area

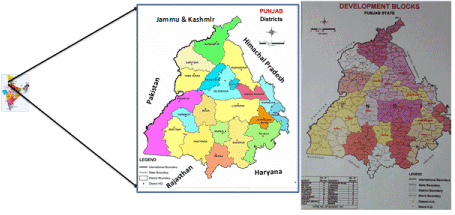

The state Punjab extends from the latitudes 29.30° N to 32.32° N and longitudes 73.55° E to 76.50° E and is bounded by Jammu and Kashmir in the north-east, by Himachal Pradesh in east and southeast, by Haryana in south, by Rajasthan in south and west and shares the international boundary with Pakistan on western side (Figure 1). Punjab state is divided into 22 districts which are further divided into 77 tehsils and 141 development blocks [16].

Depth to water level in the area ranges from 1.5 to 31 meter below ground level (mbgl). Water table is at shallow depth at several areas of Muktsar, Ferozepur, Bathinda and Mansa districts where it ranges from 1.5 to 7.5 mbgl causing water logging at many places. The bores drilled in the area up to 60 m depth reveal the presence of predominance of fine sand occasionally associated with ‘kankar’ and comprising of two main aquifer zones each ranging in thickness from 4 to 25 m separated by clay layers of 3 to 5 m thickness [16]. Water table has been rising in the area comprising blocks of Muktsar, Lambi, Kot Bhai, Khuiyan sarwar, Abohar and Fazilka creating water logging at many places.

There has been erratic rainfall distribution in Punjab for the last two decades during which the annual average rainfall has decreased by 40-50% from 755 mm in 1990 to 385 mm in 2009 and 472 mm in 2010 [16].

Methodology

The representative groundwater samples were collected using the standardized methodology during the installation (2009-14) of each Shallower/Medium Groundwater Observation Well (MGWOW) from appropriate depth ranging mostly between 45 metres and 60 metres and subjected to chemical analysis for its quality for irrigation use. The observation wells were evenly distributed ranging from 5 to 10 in each of 141 development blocks (the development blocks are shown in Figure 1) in the State in regard to their respective area. Results of chemical analysis of one time sampling of groundwater during the installation of MGWOW give first-hand information about the quality of groundwater at specific depth representing the respective aquifer.

Ground Water Quality Map has been prepared on the basis of results of Electrical Conductivity (EC) and Residual Sodium Carbonate (RSC) of ground water samples collected during development of each observation well. EC of each sample has been determined in the laboratory by conductivity Meter through direct reading. Prior to determining EC (in micro mhos/cm at 25°C), the instrument was calibrated through Standard Solution. RSC (meq/l) was determined by the following formula:

RSC= (CO₃^--+H CO₃^-) - (Ca⁺⁺ +Mg⁺⁺).

The above ions were determined volumetrically in the laboratory using titration method [17]. Quality was categorised as Fit, Marginal and Unfit on the basis of criteria of EC and RSC values as mentioned below [18]:

i) EC values (μmhos/cm at 25°C)

a) upto 2000 Fresh/fit

b) 2000-4000 Marginal

c) Above 4000 Unfit

ii) RSC values (meq/l)

a) upto 2.5 Fresh/fit

b) 2.5 to 5.0 Marginal

c) Above 5.0 Unfit

Results and Discussion

The results of the chemical analysis have been compiled district wise and classification of the groundwater quality is given in Table 1. Relative abundance of sodium with respect to alkaline earths and boron, and quantity of bicarbonate and carbonate in excess of alkaline earths, influences suitability of water for irrigation. Above excess carbonate is denoted by ‘Residual sodium carbonate’ (RSC). Water with high RSC has high pH and lands irrigated by such water become infertile, owing to deposition of sodium carbonate [19].

The results reveal that groundwater quality between the depth range of 45 and 60 metres of the aquifer in Punjab is categorised on the basis of EC and RSC as: fit in 53%, marginal in 22% and unfit in 25%.

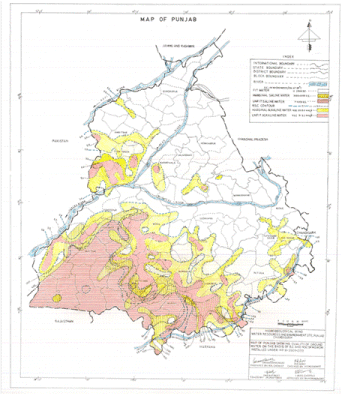

Map showing distribution of groundwater quality in Punjab State has been prepared on the basis of the results of analysis of ground water samples in respect of Electrical Conductivity (EC) and Residual Sodium Carbonate (RSC) and is given in Figure 2. Water chemistry is mainly influenced by water–rock interaction taking place from the recharge area to location of sampling. The water quality is different in different areas of Punjab due to the presence of different types of minerals.

Upper Bari Doab Canal Tract (UBDC)

Groundwater quality is largely fit for irrigation. Groundwater is not saline in UBDC tract comprising districts of Amritsar and Gurdaspur. Small pockets representing marginal and unfit category are due to alkalinity in parts of Gandiwind, Chola Sahib, Naushahra Panuan, Bhikhiwind, Valtoha and Patti blocks of Tarn Taran district.

Bist Doab Tract (BD)

Groundwater quality in entire area in Bist Doab tract is fresh and fit for agricultural purposes except small isolated pocket in Sultanpur Lodhi block of Kapurthala district and Rurka Kalan block of Jalandhar district where groundwater quality is categorized as unfit due to high alkalinity.

Area on south of Sutlej

Groundwater in large area lying South of Sutlej is affected by native salinity and alkalinity problems. Groundwater quality problem is more acute in South and South-western part. On the other hand groundwater quality is found to be fresh/fit for irrigation in large parts of the State comprising of districts Ropar, SAS Nagar, Fatehgarh Sahib, Patiala, Ludhiana, Northern part of Moga, North and Eastern part of Ferozepur districts. Groundwater between the depth range of 45 and 60 m is found to be unfit for irrigation in district of Muktsar, Faridkot, Bathinda, Mansa and part of Sangrur due to high salinity and or alkalinity. Dominance of Ca²⁺ and Mg²⁺ is mainly due to the presence of calcareous encrustations present in the soil matrix.

The weatherability of rock and release of ions depends on mineralogy of host rock. Hence, knowledge about host rock characteristics will help in understanding water quality of a region.

Conclusion

The study has shown that the groundwater quality in the depth range of 45-60 m on the basis of EC and RSC is categorized as: fit in 53% and marginal to unfit in remaining 47%. The spatial distribution of the groundwater quality shows that most of the parts of UBDC and BD are fall in fit category while most of the south-western part falls in marginal to unfit category indicating high salinity water, which cannot be used for irrigation purposes and require management for salinity control. In such conditions, the soil must be permeable, drainage must be adequate, irrigation water must be applied in excess to provide considerable leaching and salt-tolerant crops/plants should be selected.

Acknowledgements

Authors thank Ram Paul Aeri and Pramod Kumar, Punjab Water Resources Environment Directorate, Chandigarh for their help. The funding received from Purpose Driven Studies at PWRED, Chandigarh under HP-II is duly acknowledged. Dr. Gopal Krishan thanks Dr. Alan MacDonald, Dr. Dan Lapworth and Dr. Helen Bonsor (BGS, UK) for their support and encouragement.
