Silicon (Si) plays an important role on metabolic, physiologic, and structural activities in several plants, either Si accumulating or not [1]. According to Ma et al. Si is accumulated in high levels tissues of almost every plant species [2-4]. They showed that when interacting with magnesium (Mg), Si is responsible for the increase of chlorophyll levels and for the leaf metabolism. Owino-Gerroh and Gascho (2004) and Mali and Aery (2009) observed a reduction of plant lodging and a gain of productivity in corn and macassar beans by using increasing doses of Si [5,6]. In grain crops such as corn, rice and sorghum, Si is deposited in the form of silica bodies, mainly on epidermal cells, which are siliceous and bulliform, and on stomata and leaf trichomas [7]. Some silicate products recycled from the mining industry and iron and steel manufacturing, as well as waste cement from construction projects have been used in small scale in agriculture. Basalt rock, when applied especially on low fertility sandy soils, improves its physicochemical properties, and provides benefits to plant nutrition, since these rocks are sources of silica, calcium (Ca), and Mg [8]. Most of the studies involving basalt rocks have shown its effect on soil acidity correction and as soil fertilizer. This is  because depending on the source, the product enhances potassium (K), Ca and/or Mg levels and, possibly, increases the phosphorus ( P) availability [9]. On a study performed by [10], using a scrap phlogopite ‘waste’ from pegmatite mines ground and acidulated showed a yield increase of rice over 41% in comparison with recommended application rates of muriate of potash (KCl) and dolomite was obtained. Agarie et al .(1998) reported the effects of silicon in rice leaves;and showed that it  improves the photosynthetic potential and efficiency by keeping the leaves erect, decreasing self-shading [11]. According to Gao et al.(2011) and Kusumi et al. (2012), Si increases stomatal conductance and therefore regulates gas exchange (CO₂ and water) allowing rice plants to increasing CO₂ uptake and subsequently enhance photosynthesis [12,13]. Bazilevic (1993) as estimated that rice as crop uptakes 150 to 300 kg of Si ha^-1 [14].

Sutton and Sposito (2005) proposed that humic substances (HS) are the major organic component of the Earth’s soils and sediments, that were created from decayed biomatter by humification [15]. After plants die, their organic biomatter is degraded by microorganisms in soil to eventually produce dark-colored, extraordinarily complex chemicals (humus). Soils containing high levels of humus have a rich dark brown or black appearance and have been valued for centuries as a basis for good quality, high yield crop growing. Humic substances are found in especially high concentrations in peat and brown coals. Different grades of coal are formed by geologic compression of soil layers over millions of years. The lower grades of coal such as lignite and sub-bituminous coals are not efficient as fuel but contain large amounts of organic matter [16]. They Suggest that the use of humic substances in agriculture continues growing and developing, but that there are as many reports of effectiveness as well as ineffectiveness mainly due to the large diverse manufacturing processes. Some researchers, like Sparks, 2003 [17]  and Peña-Méndez et al. (2004) suggest that humic substances have an essential role in soil fertility and plant nutrition. Sometimes humic material can provide a source for microorganisms, but the mechanism is not always the same. Peña-Méndez et al. (2004)  Concluded that the humic substances as part of humus-soil organic matter are compounds arising from the physical, chemical, and microbiological transformation (humification) of biomolecules, and that they are important because it constitute the most ubiquitous source of non-living organic material known in nature [18]. They Also stated that approximately 80% of the total carbon in terrestrial media and 60% of the carbon dissolved in aquatic media are made up of humic substances, and that humic substances have important roles in soil fertility and are considered to have primal relevance for the stabilization of soil aggregates.

Ito et al. (1998) showed that various interactions between inorganic and organic substances are known to occur in the surface environment of the earth, and that these substances play an important role in the geochemical cycle of materials [19].They  Conducted experiments on silica and humic acid as representative inorganic and organic phases present in the natural aquatic environment and found that the surface structure of the silica gel can be an important parameter for the dissolution of Si in the presence of humic acid. Based on the previous statement, the objective of this study was to determine the effect on rice yield and growth that basalt rock fines (containing mainly silicon), humic substances, and the interaction of both included in MagmaHume (MH), a single granular product containing 87% of basalt and 13% of humic substance.

The experiment was carried out at ABC Organics, LLC facilities in Vero Beach, Florida. Basalt fines (BF) containing 45% of SiO₂, 14% of Fe₂O₃, 10% of CaO and 6% of MgO, was provided by Specialty Granules, Inc. (Hagerstown, MD 21742), and the Humic substance as Dri-Carbon (DC) containing 49% of humic acid, and Magmahume (MH) containing 22% of SiO₂, 5% of Fe₂O₃, 2% of CaO, 3% of MgO, and 0.75% of humic acid, were provided by Monty’s Plant Food (Louisville, KY 40209) Soil and rice seeds were provided by the California Rice Experiment Station (Biggs, CA 95917). The experimental design was a randomized block design with four replicates. Treatments were three rates of each product and a control not receiving silica nor humic acid. MH assessed rates were 313, 469, and 625 mg tray-1 equivalent to 50, 75 and 100 kg ha^-1; BF assessed rates were 275, 406, and 544 mg tray-1 equivalent to 44, 65 and 87 kg ha^-1; and DC assessed rates were 44, 63, and 81 mg/tray equivalent to 7, 10 and 13 kg ha^-1. Soil was screened and aeriated, following for each tray, 4,500 grams of soil were mixed with respective treatment, then the soil mix was placed in a 25 x 25 x 8 cm seedling tray. Each tray was placed in a 51 x 38 x 13 cm black polyethylene plastic tub. According to regularly practices done in rice growing area in California [20]. The equivalent to 164 kg of N, 48 kg of P2O5 and 31 kg of K2O per hectare were applied to all treatments as nutritional solution (1.8 grams of urea (46-0-0), 0.6 grams of DAP (18-46-0), and 0.4 grams of KCl (0-0-60) per tray). Each tub was filled with water and the nutritional solution until 2 cm below the top edge of the seedling tray to saturate the soil. Then the pregerminated M-209 a high yielding, early maturing, semi-dwarf, smooth hulled (glabrous), calrose–type medium grain rice cultivar seeds were sow in the seedling trays at an equivalent rate of 202 kg ha^-1 in each tray (Figure 1). Each replicate included the 10 treatments into an artificial pond to retain adequate moisture and emulate field conditions (Figure 2).Initially water was managed to keep the water level low to ensure crop establishment, and then water was kept one-inch above the tray’s upper edge. Plant height was assessed 90, 120 and 150 days after sowing (DAS). Plant height was measured from tray top edge to last leaf completely emerged tips. Harvest was done 150 DAS, and number of stems per tray; plants average height; plants average stem basal diameter; panicle length; and roots, stems, panicles fresh weight were assessed. Roots, stems, and grain dry weight were assessed 165 DAS. Yield per tray was recorded as grains dry weight, and then extrapolated to kilograms per hectare.

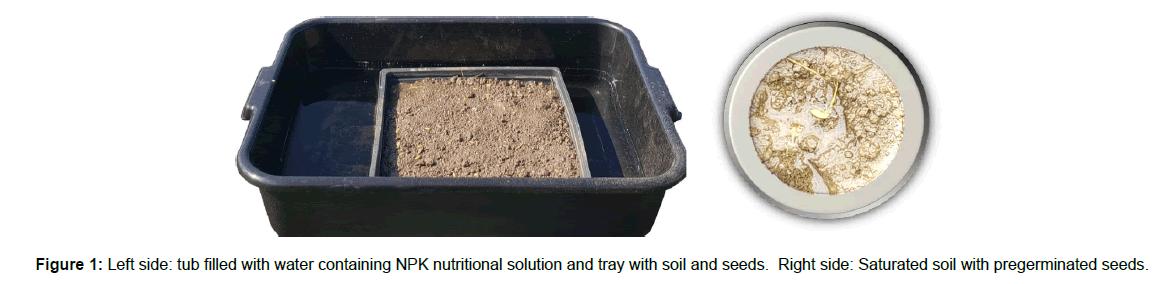

Figure 1: Left side: tub filled with water containing NPK nutritional solution and tray with soil and seeds. Right side: Saturated soil with pregerminated seeds.

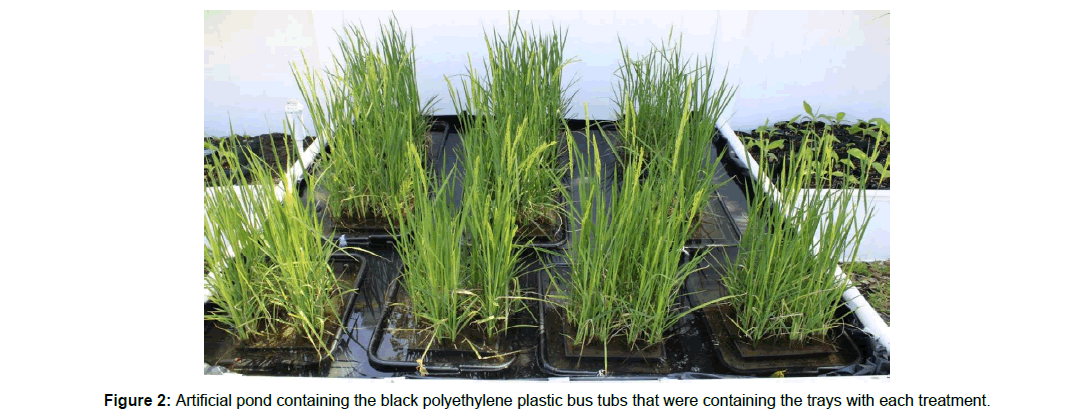

Figure 2: Artificial pond containing the black polyethylene plastic bus tubs that were containing the trays with each treatment.

Soil analyses were made by air drying and sieving (ϕ = 2 mm). Total Kjeldahl Nitrogen (TKN) was extracted by following EPA 351.2 method and Total Nitrogen (TN) was determined by using Shimadzu TOC-L combustion method. Total PKSi, were extracted by EPA method 365.1 and determined by ICP-OES by following EPA method 200.7. In detail for N, samples weighing ~ 0.2 g of soil were prepared and for P, K, and Si, ~ 0.4 g soil samples were weighed.

Data was analyzed as two-way factorial, with factors amendment and rate, arranged in a completely randomized block design. Treatments effects over assessed plants were quantified using analysis of variance “anova” (α > 0.05) and marginal means were separated using Student’s LSD (p > 0.05). The statistical software JMP® PRO 11.0.0 (JMP PRO version 11.0.0; SAS Institute, Cary, NC) was used to run the analyses.

Plant height

Although no significant difference was found between the height of the plants, for product, rate and interaction of product and rate, those plants receiving MH were numerically the tallest plants.

Plant basal diameter

Basal steam diameter (BD) at p<0.05, was not affected by product at 90 and 120 DAS, but it was significantly affected at 150 DAS, in the other hand, BD at 90 and 120 DAS was significantly affected by rate, but it was not at 150 DAS, for the interaction product rate, the BD at 90 and 150 DAS was not affected, but it was at 120 DAS (Table 1). At the end of the study, 150 DAS, the mean BD of plants receiving MH was as thick as the ones receiving BF, and these plants were 10 and 18% thicker than plants receiving DC and control plants, respectively (Figure 3).

Table 1: Analysis of variance (ANOVA) for rice growth variables with a randomized complete block design arranged in a two-way factorial structure.

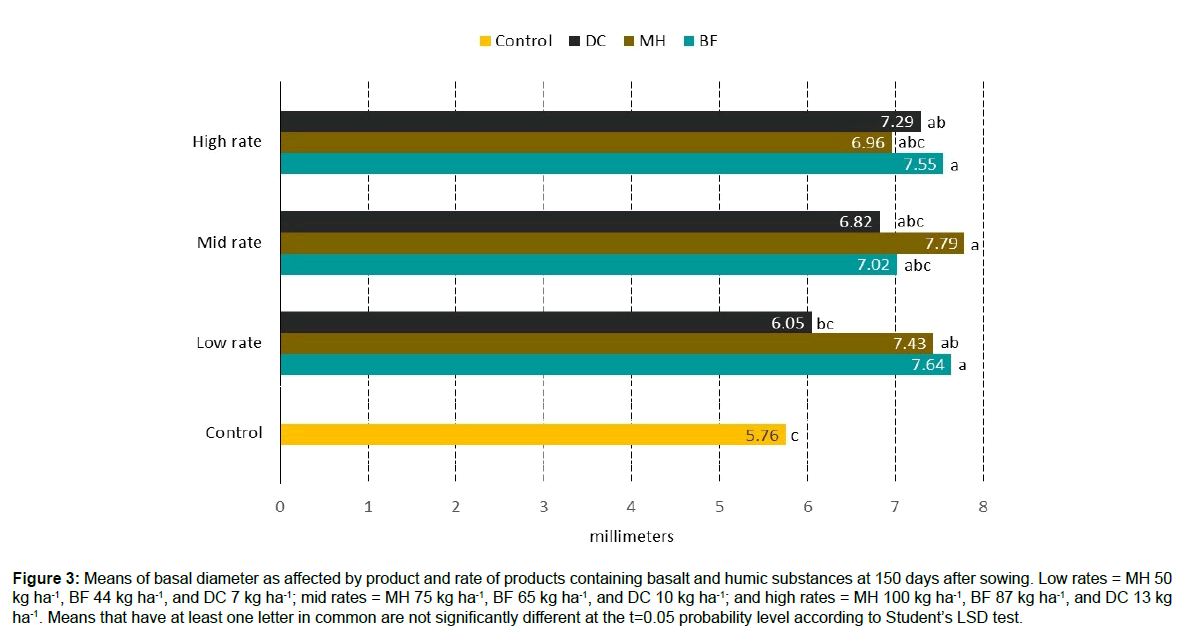

Figure 3: Means of basal diameter as affected by product and rate of products containing basalt and humic substances at 150 days after sowing. Low rates = MH 50 kg ha^-1, BF 44 kg ha^-1, and DC 7 kg ha^-1; mid rates = MH 75 kg ha^-1, BF 65 kg ha^-1, and DC 10 kg ha^-1; and high rates = MH 100 kg ha^-1, BF 87 kg ha^-1, and DC 13 kg ha^-1. Means that have at least one letter in common are not significantly different at the t=0.05 probability level according to Student’s LSD test.

Plant greenness of leaves

Greenness of leaves (GL) at p<0.05 at 90 DAS was not affected by product or rate and neither by its interaction, but it was affected by product at 120 and 150 DAS, by rate at 150 DAS, and by the interaction between product and rate at 120 and 150 DAS at p<0.05 (Table 1). At the end of the study, 150 DAS, mean of greenness of leaves for plants receiving MH were 4, 12, and 28% greener than plants receiving BF, DC, and control plants (Figure 4). Plants receiving MH were not significantly greener than plants receiving BF but were significantly greener than plants receiving DC and control plants. There were no significant differences for GL across rates, but all plants receiving any rate of MH or BF were significantly greener than plants not receiving silicon.

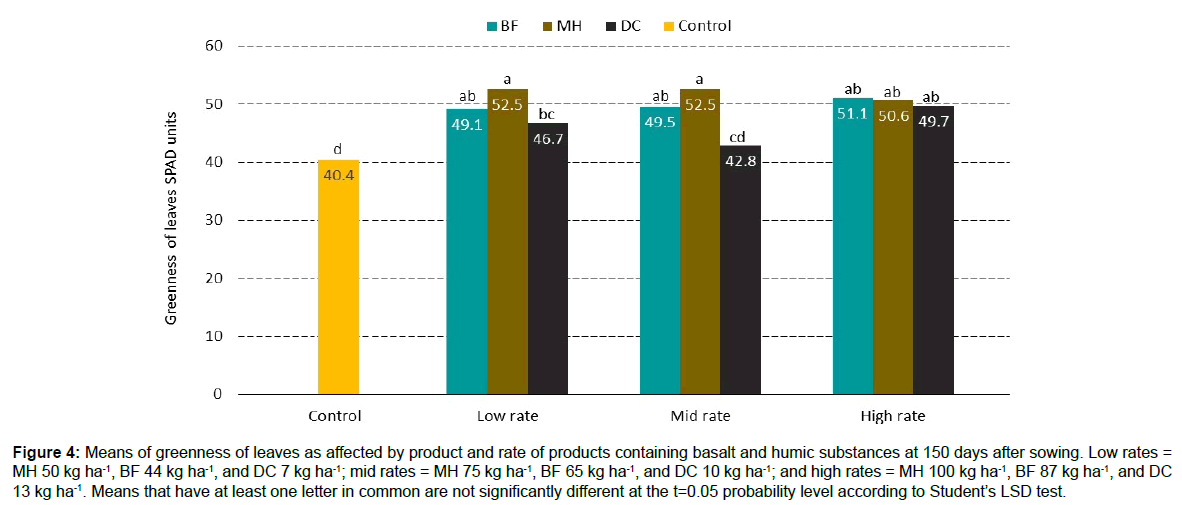

Figure 4: Means of greenness of leaves as affected by product and rate of products containing basalt and humic substances at 150 days after sowing. Low rates = MH 50 kg ha^-1, BF 44 kg ha^-1, and DC 7 kg ha^-1; mid rates = MH 75 kg ha^-1, BF 65 kg ha^-1, and DC 10 kg ha^-1; and high rates = MH 100 kg ha^-1, BF 87 kg ha^-1, and DC 13 kg ha^-1. Means that have at least one letter in common are not significantly different at the t=0.05 probability level according to Student’s LSD test.

Plant biomass – shoots, roots, and total plants fresh and dry weight

Except for root fresh weight at 90 DAS, and total dry weight at 90 DAS, in general there were no significant differences on shoots, roots, and total plants fresh and dry weight for product, rate and its interaction.

Plant yield

Yield was significantly affected by product and fertilizer rate as well as by its interaction at p<0.05 (Table 1). Plants receiving MH significantly produced 17, 24, and 77% more grains weight than plants receiving BF, DC, and control plants respectively (Figure 5). Rice grains yield trend response for MH and DC increased up to mid-rate, and then declined, but for BF continued increasing up to high rate (Figure 5). Treatments receiving MH and BF produced higher yields than plants not receiving Si (DC and control). Highest yield obtained in this study was from plants receiving MH at mid-rate, producing 82% more than control plants.

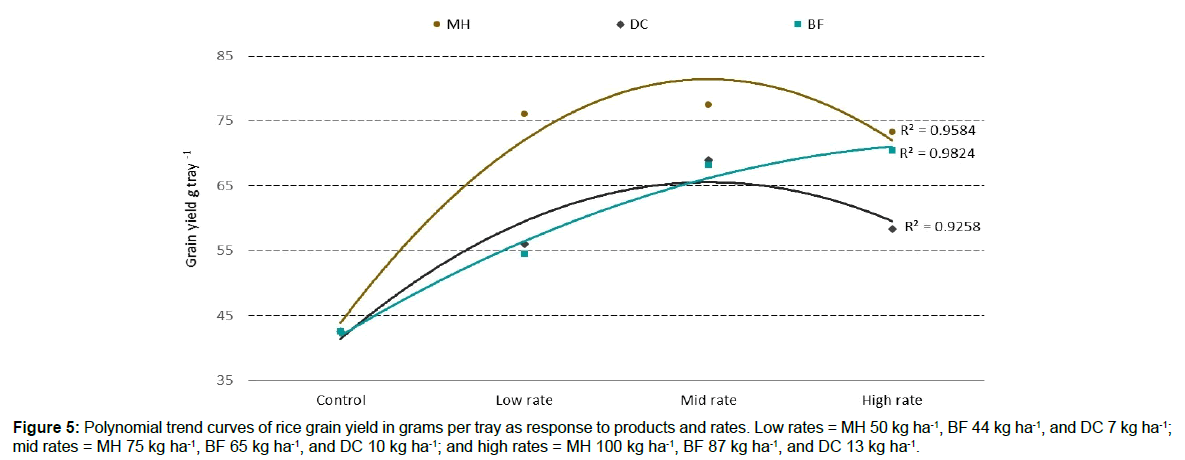

Figure 5: Polynomial trend curves of rice grain yield in grams per tray as response to products and rates. Low rates = MH 50 kg ha^-1, BF 44 kg ha^-1, and DC 7 kg ha^-1; mid rates = MH 75 kg ha^-1, BF 65 kg ha^-1, and DC 10 kg ha^-1; and high rates = MH 100 kg ha^-1, BF 87 kg ha^-1, and DC 13 kg ha^-1.

Soil analyses

No significant differences in nitrogen (N), (P), nor (K) were found between all treatments, but a significant difference was found for Si between control plants and plants receiving the products containing silica and/or humic acid (Table 1). Trend of Si concentration in soil for MH and DC is to increase from low to mid-rate, and then decrease at the high rate. On the other hand, trend for sconcentration in soil for BF is to increase as rate increases (Figure 6).

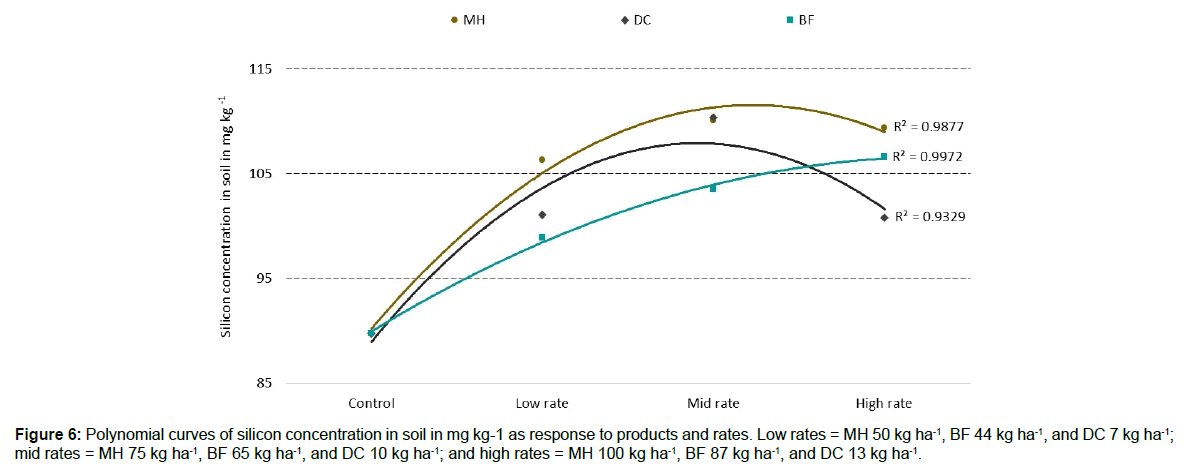

Figure 6: Polynomial curves of silicon concentration in soil in mg kg^-1 as response to products and rates. Low rates = MH 50 kg ha^-1, BF 44 kg ha^-1, and DC 7 kg ha^-1; mid rates = MH 75 kg ha^-1, BF 65 kg ha^-1, and DC 10 kg ha^-1; and high rates = MH 100 kg ha^-1, BF 87 kg ha^-1, and DC 13 kg ha^-1.

Tissue analyses

No significant differences on N, P, K, nor Si were found between all treatments for roots, stem-leaves, and grains but a significant difference was found for Si in the panicle-axis between plants receiving MH at low and mid-rates and control plants (Table 1). Trend of silicon concentration in panicle-axis for MH and DC is to increase from low to mid-rate, and then decrease at the high rate. Like soil, the trend for silicon concentration for BF is to increase as rate increases (Figure 7).

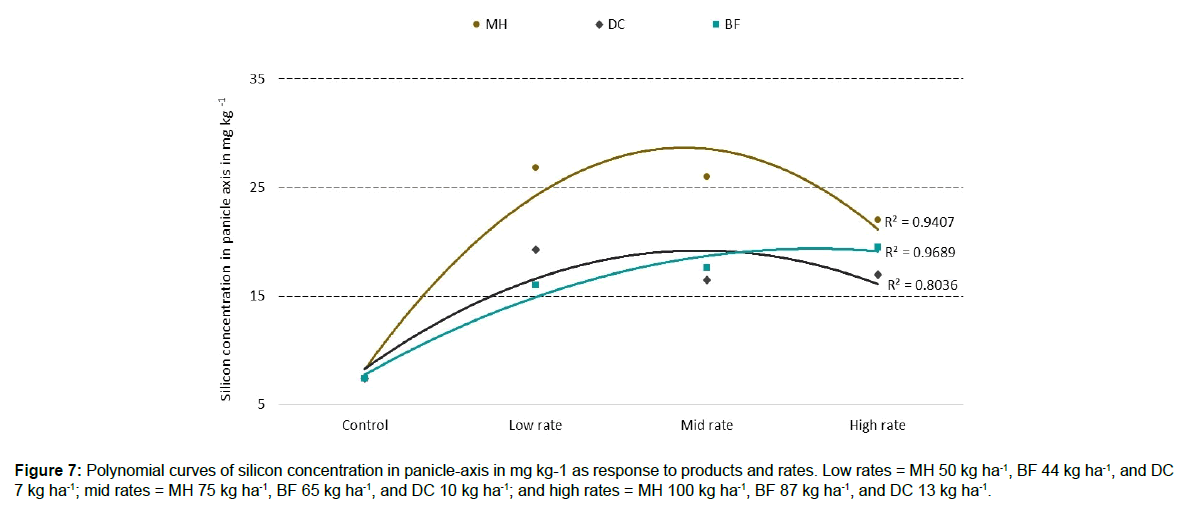

Figure 7: Polynomial curves of silicon concentration in panicle-axis in mg kg^-1 as response to products and rates. Low rates = MH 50 kg ha^-1, BF 44 kg ha^-1, and DC 7 kg ha^-1; mid rates = MH 75 kg ha^-1, BF 65 kg ha^-1, and DC 10 kg ha^-1; and high rates = MH 100 kg ha^-1, BF 87 kg ha^-1, and DC 13 kg ha^-1.

Higher rice grains yield in  treatments receiving silica (BF), humic acid (DC), or silica combined with humic acid (MH), compared to a control plants not receiving silica nor humic acid was observed.Increase in Rice grains yield was between 28% from plants receiving BF at the low-rate up to 82% from plants receiving MH at mid-rate (Figure 5). Many studies have proved the effect of Si on improving plant growth and yield, especially under biotic and abiotic stress [21-23]. Humic acid influenced the nutrition and growth of plants in an indirect manner. It might also influence the plant growth directly either through its effects on ion uptake or by more direct effects on the growth regulation of the plant [24]. The greenness of leaves suggests that treatments receiving basalt fines, humic substances, and the combination of both might have an effect over chlorophyll content in plants, but the tissue analyses revealed that at 150 DAS after sowing there was no significant differences among the treatments for N, but for Si concentration in panicle-axis. Also, for soil analysis higher concentrations of Si was found in treatments receiving basalt fines, humic substances, or the combination of both.

The correlation between Si content in the panicle axis or in soil and grain yield, revealing a good correlation panicle axis or in soil and grain yield, revealing a good correlation between Si concentration and grain yield is shown in Figure 8, corroborating the study by [25].A graph was prepared to determine the correlation between Si content in the panicle axis or in soil and grain yield, revealing that there is a good correlation between silicon concentration and grain yield. Adequate amount of Si supply to rice plants from the tillering stage until the elongation stage could give a significant effect on increasing the yield and boost the ripening process [26,27].  Previous studies also concluded that the application of Si based fertilizers have the potential to increase the yield and this increase is affected by the type of Si sources and the dosage.

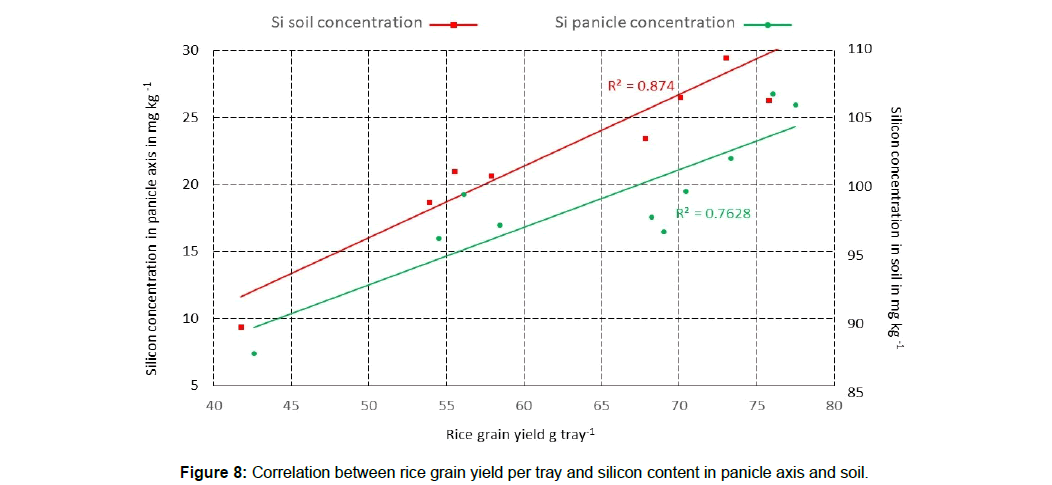

Figure 8: Correlation between rice grain yield per tray and silicon content in panicle axis and soil.

This study suggests that there is a positive interaction between basalt and humic substances and that the product MagmaHume has the potential to increase rice yield grains by 20% or more. Testing in different soils is recommended to validate this study.

The authors appreciate the collaboration from Dr. Luis Espino, at the University of California for providing the soil and rice seeds, the sponsoring from Specialty Granules Inc. for sponsoring this study and supplying the basalt fines, to Monty’s Plant Food for supplying the Dri-Carbon and Magmahume products, to MartinoTrotta and Salvador Galindo for his collaboration on processing the plants tissue for analyses.
