The celiac trunk arises from the ventral aspect of the abdominal aorta, emerging at a nearly fixed location at the level of the first lumbar vertebra. The celiac trunk typically trifurcates, giving rise to the splenic artery, the common hepatic artery, and the left gastric artery. The common hepatic artery further divides into the proper hepatic artery and the gastroduodenal artery; the proper hepatic artery then bifurcates at the hepatic hilum into the right hepatic branch and the left hepatic branch [1]. Approximately 15% of the population exhibits variations in the branches of the celiac trunk [2]. The frequency of iatrogenic hepatic vascular injuries increases in the presence of anatomical variations [3]. A thorough understanding of these anatomical variations is crucial to avoid potentially life-threatening complications that can occur, especially in hepatopancreatic surgery, liver transplantation, and chemoembolization [1,2]. Here, we report an unusual anatomical variant involving a quadrifurcation of the celiac trunk, giving rise to a left gastric artery that supplies the left hepatic artery, followed by a right hepatic artery, and then bifurcating into the splenic artery and a gastroduodenal artery, in a patient with hepato-renal polycystic disease who is a candidate for liver transplantation.

Case Presentation

The patient was a 47-year-old male with hepato-renal polycystic disease, who was a candidate for liver transplantation. An abdominal angioscan revealed multiple bilateral hepatic and renal cystic lesions of varying sizes, some of which exhibited wall calcifications, leading to hepatomegaly and bilateral nephromegaly (Figure 1). Additionally, an anatomical variant was observed, characterized by a quadrifurcation of the celiac trunk, giving rise separately to four branches: the left gastric artery, which further gave rise to the left hepatic artery, the splenic artery, the gastroduodenal artery, and the right hepatic artery (Figure 2). It is also noteworthy that the common hepatic artery and the proper hepatic artery were absent.

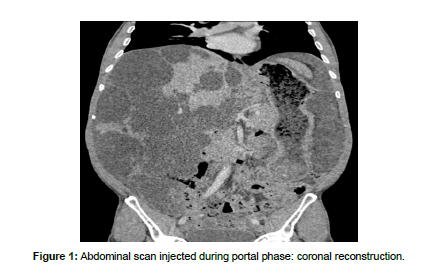

Figure 1: Abdominal scan injected during portal phase: coronal reconstruction.

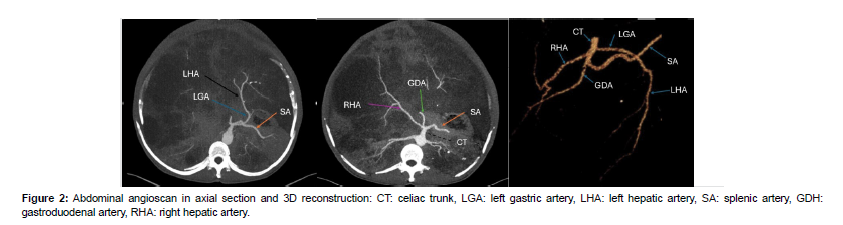

Figure 2: Abdominal angioscan in axial section and 3D reconstruction: CT: celiac trunk, LGA: left gastric artery, LHA: left hepatic artery, SA: splenic artery, GDH: gastroduodenal artery, RHA: right hepatic artery.

Discussion

The celiac trunk arises from the anterior surface of the abdominal aorta and typically gives rise to three branches in 72% to 90% of the population: the left gastric artery, the splenic artery, and the common hepatic artery [1,3]. The common hepatic artery then bifurcates into the proper hepatic artery and the gastroduodenal artery, with the proper hepatic artery further dividing at the hepatic hilum into the right and left hepatic branches [1,2]. However, this typical vascularization pattern, known as the modal pattern, is only present in 52% to 80% of cases [2]. Various anatomical variations of the celiac trunk and the hepatic arterial system have been described in several studies and classifications, with the Uflacker and Michels classifications being the most well-known and widely used. The former describes eight anatomical variants of the celiac trunk, while the latter describes ten anatomical variants of the hepatic arterial system. The most common variant reported is the origin of the right hepatic artery from the superior mesenteric artery [2,3].

Our observation presents an unusual anatomical variant that has not been previously classified or reported to our knowledge. In this variant, the celiac trunk separately gives rise to four branches: the left gastric artery, which in turn gives rise to the left hepatic artery, the splenic artery, the gastroduodenal artery, and the right hepatic artery, with the latter two branches arising directly from the celiac trunk. Another unique aspect of our observation is its presence in a patient with hepato-renal polycystic disease who is a candidate for liver transplantation.

Knowledge of these anatomical variations during surgery is crucial for planning surgical techniques to avoid potentially life-threatening complications such as hepatic ischemia, hemorrhage, and liver abscesses [2]. During liver transplantation, precise determination of the extrahepatic arterial schemes of both the donor and recipient livers is essential [4]. Segment IV of the liver is critically important in transplantation surgery, and therefore, understanding its blood supply origin is crucial [3]. Erroneous ligation due to ignorance of these variations could result in necrosis of a liver segment or lobe. Thus, all variations must be defined and managed appropriately to ensure adequate vascular supply during liver transplantation [4].

Conclusion

Anatomical variations of the celiac trunk and the hepatic arterial system are common. Preoperative knowledge of these variations is essential to reduce morbidity and mortality rates. Therefore, collaboration between surgeons and radiologists is crucial before any surgical intervention to ensure effective and safe patient management.
