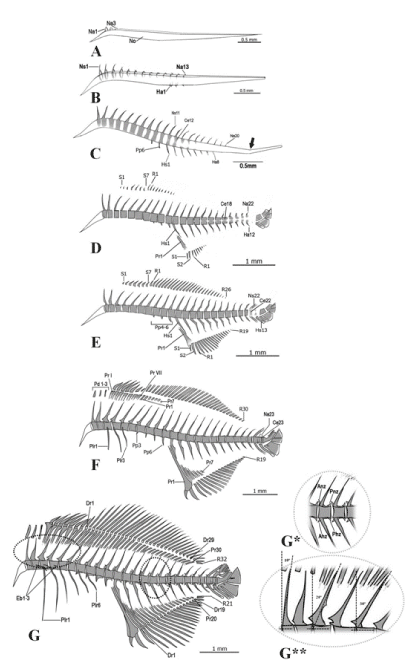

| Figure 1: Development of the vertebral column (A - G) in S. rivoliana (painted areas, mineralized structures). Structures: Ahz, anterior haemal zygapophysis; Anz, anterior neural zygapophysis; Ha, haemal arch; Hs, haemal spine; No, notochord; Na, neural arch; Ns, neural spine; Pp, parapophyse; Plr, pleural rib; Pd, predorsal; Ph, parhypural; Phz, posterior haemal zygapophysis; Pnz, posterior neural zygapophysis; Pr, proximal pterygiophore; R, lepidotrichium; Dr, distal radial; S, hard spine; Ce, vertebral centra; Ur, urostyle. |
